The TAIPAN is your all-in-one wireless AC Modem Router solution. Extreme Streaming Ready, the TAIPAN is the best home Modem Router for multiple users to enjoy 4K HD video, lag-free gaming and high quality audio throughout the house.

With the explosion of online, streaming and gaming services the SmartConnect feature delivers the necessary ultra-performance to power even the most demanding connected homes.

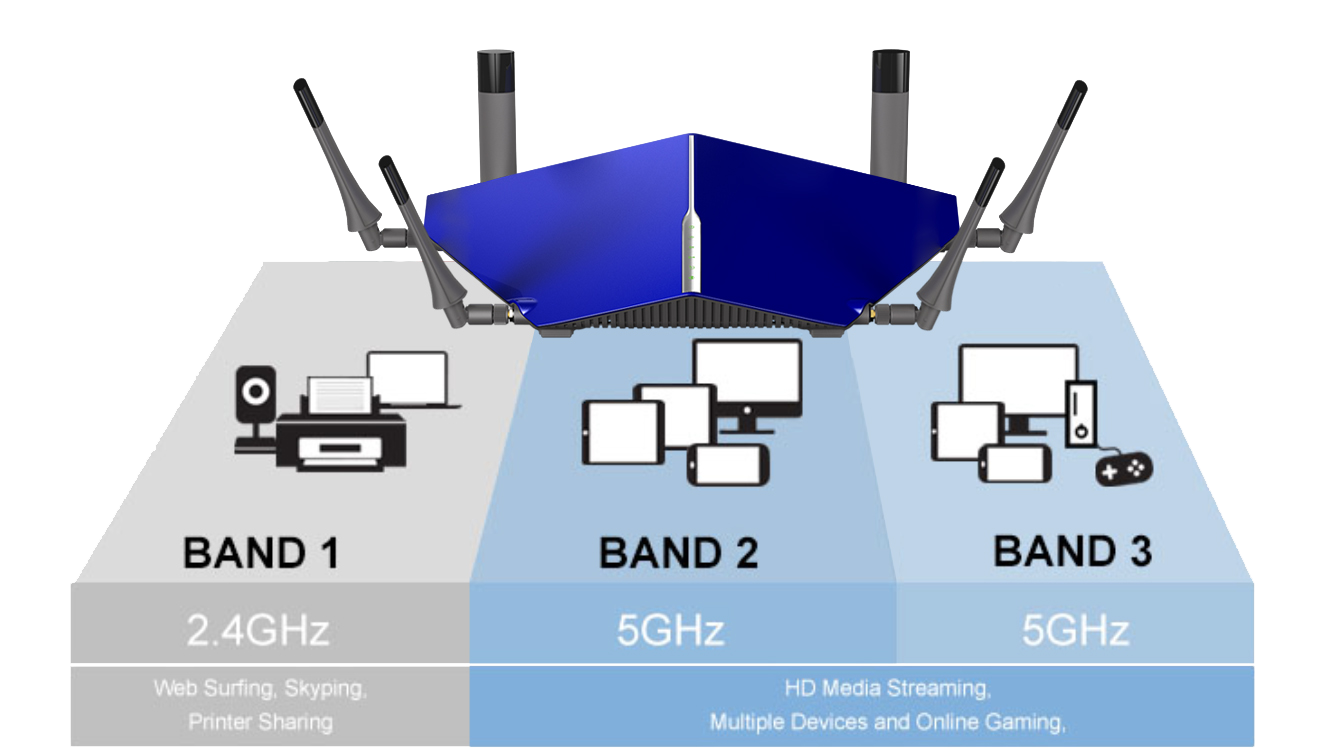

TRI BAND WI-FI

The AC3200 ULTRA Wi-Fi Modem Router is like three wireless routers in one. It has a 2.4GHz wireless band offering speeds up to 600Mbps and two separate 5GHz wireless bands delivering speeds up to 1,300Mbps that all operate at the same time. That means more lag free online gaming, 4k media streaming, and Facetime on more devices throughout your home.

SMART CONNECT

Not all Wi-Fi bands are the same, but you don’t need to worry about that. With Smart Connect Technology, the ULTRA Wi-Fi Modem Router chooses from the three Wi-Fi bands and automatically connects each device on your network to the best, clearest band available for the best connection every time.

SMARTBEAM FORMING

Improves coverage by directing bandwidth to your devices as you move around your home. You can stream HD video, surf the web, skype your friends and play online games from wherever you are so you’ll always get the best experience.

CONTROLLING YOUR NETWORK JUST GOT EASIER

Controlling your network by enabling parental controls, blocking unwanted devices, monitoring internet activity and creating Wi-Fi guest networks is easier than ever with our new interface.

SMARTER BANDWIDTH

Intelligent Traffic Prioritizations selects the fastest Wi-Fi for every device and prevents older devices from affecting optimal performance.

MORE ANTENNAS FOR MORE COVERAGE

Six high performance external antennas keep all of your mobile devices connected with stronger Wi-Fi coverage and superior performance.

MORE PROCESSING POWER

A 1 GHZ Dual Core Processor gives you all the processing power you need to support more devices and apps in your home. Experience the ultimate in lag free gaming and 4K media streaming.

SMART CONNECTIONS

Lots of connection options at your fingertips. Enjoy more of the stuff you love.

Additional Features

Speed

11AC Wi-Fi – World’s fastest Wi-Fi speeds of up to 600Mbps (2.4GHz) + 1300Mbps (5Ghz) + 1300Mbps (5Ghz).

1GHz Processor – Fast and reliable wireless, Ethernet and USB performance.

Gigabit Ethernet Ports – Ensures the best wired online experience for HD streaming and gaming.

Range

Whole-Home Coverage – 11AC technology extends wireless range further than with Wireless N.

High-Powered Antennas – 6 external antennas amplify wireless signal.

Performance

Traffic Prioritization – Advanced QoS engine distributes traffic optimally across both wireless bands to guarantee the best performance.

Tri-Band Technology – Decreases wireless interference and congestion, allowing you to connect more devices.

Band Steering – Automatically assigns devices to the less crowded 5 GHz network to increase bandwidth efficiency and availability.

Advanced AC SmartBeam – Unique beamforming technology dramatically enhances wireless signal strength and range.

Access

DLNA Enabled (Compatible) – Play and share your media on any DLNA devices, such as TVs, gaming consoles, smartphones and more.

Multiple USB Ports – One standard USB 2.0 port plus one USB 3.0 port with speeds up to 10x faster than 2.0.

mydlink SharePort App – Remotely stream and share movies, music, pictures and more from your connected USB hard drive.

SharePort Utility – Access and share a USB printer, scanner or storage device over your home network.

Management

Easy To Install – Installation wizard manually walks you through setup in minutes.

Quick Router Setup (QRS) App – Easy setup app for smartphones and tablets.

mydlink Lite App – Free mobile app with ability to monitor, control & troubleshoot your home network.

WPS Push Button Setup – Quickest method of connecting devices with the push of a button.

Zero Configuration – Once router is setup, other D-Link Zero Configuration devices can easily and instantly connect.

Security

L2TP Over IPSec VPN Server Support – Transmit data securely when connected remotely.

Parental Controls – Create online access schedules and block/allow specific websites and/or devices.

Guest Wi-Fi Network – Enable a public or encrypted wireless guest network.

Secure Wi-Fi Encryption – WPA/WPA2 provides highest level of wireless security.

(DSL-4320L)

General

Device Interfaces

IEEE 802.11ac wireless LAN
IEEE 802.11n/g/b/a wireless LAN
ADSL / VDSL WAN port
Four 10/100/1000 Gigabit LAN ports (configurable as WAN)
Two USB ports (one USB 3.0, one USB 2.0)
Reset button
WPS

LEDs

Power
USB
WLAN 2.4 GHz
WLAN 5 GHz
DSL
Internet

Antenna Type

Six external detachable antennas

Operating Frequency

2.4 GHz band: 2400 - 2483.5 MHz
2 x 5 GHz band: 5150 - 5725 MHz

Standards

IEEE 802.11ac
IEEE 802.11n
IEEE 802.11g
IEEE 802.11b
IEEE 802.11a
IEEE 802.3
IEEE 802.3u

Minimum Requirements

Windows 8/7 or Mac OS X 10.4 or higher
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Ethernet interface or Wi-Fi
Subscription with an ADSL/VDSL/NBN/UFB Internet Service Provider (for Internet access).

Functionality

Security

WPA & WPA2 (Wi-Fi Protected Access)
WPS (Wi-Fi Protected Setup) PIN

Advanced Features

Web setup wizard
Advanced QoS (Quality of Service) with band steering
Advanced AC SmartBeam
VPN passthrough/multi-session PPTP/L2TP/IPSec
VPN Server - L2TP over IPSec
Guest zone
DLNA media server support

mydlink™ SharePort™ App Features

Remote Access Mode: Access files through the Internet
Local Access Mode: Access files from any device connected to the DIR-890L
SharePort Web File Access support (web browser)
Accepts USB storage drives up to 250GB

mydlink™ Lite App Features

Remote Management
View current upload/download bandwidth
View currently connected clients
View web browsing history per client
Block/unblock client network access
Manage wireless network details
Accessible through a web browser or iOS or Android mobile app

Mobile App Support

mydlink™ Lite
mydlink™ SharePort™
QRS Mobile v1.5
Apps support iPhone®, iPad®, iPod Touch®, and Android™ devices

Advanced Firewall Features

SPI (Stateful Packet Inspection)
NAT (Network Address Translation)

Physical

Dimensions

373 x 241 x 157 mm

Power

Input: DC 12V/5A

Temperature

Operating: 0 to 40 °C
Storage: -20 to 65 °C

Humidity

Operating: 0% to 90% non-condensing
Storage: 5% to 95% non-condensing

Certifications

Wi-Fi Certified
RCM

SKU	DSL-4320L
Barcode #	790069421884
Brand	D-Link
Shipping Weight	3.1000kg
Shipping Width	0.200m
Shipping Height	0.217m
Shipping Length	0.400m
Shipping Cubic	0.017360000m3

Manufacturer Warranty

3 Years Limited Warranty

Manufacturer Contact Info

http://www.dlink.com.au/tech/
1300 766 868
