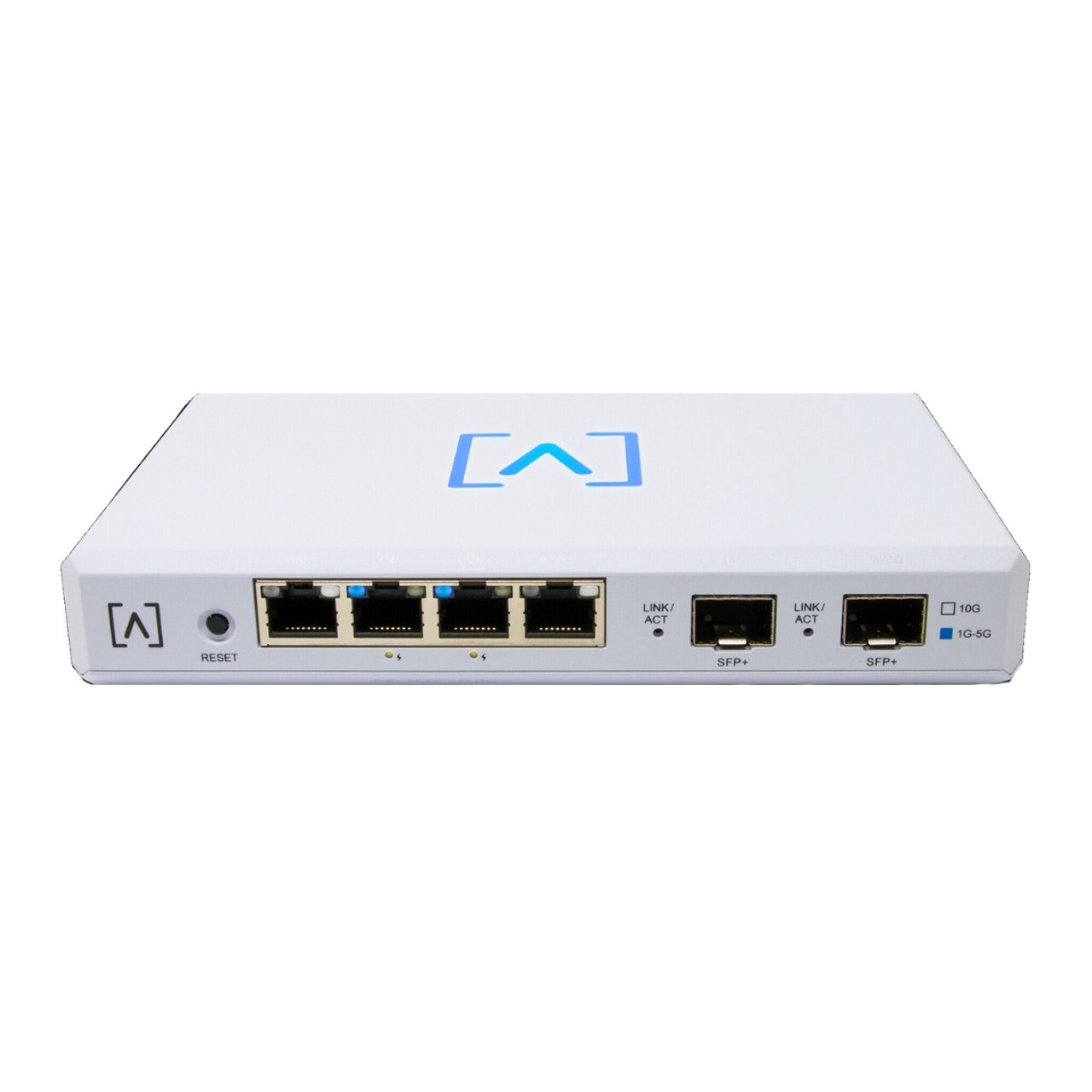

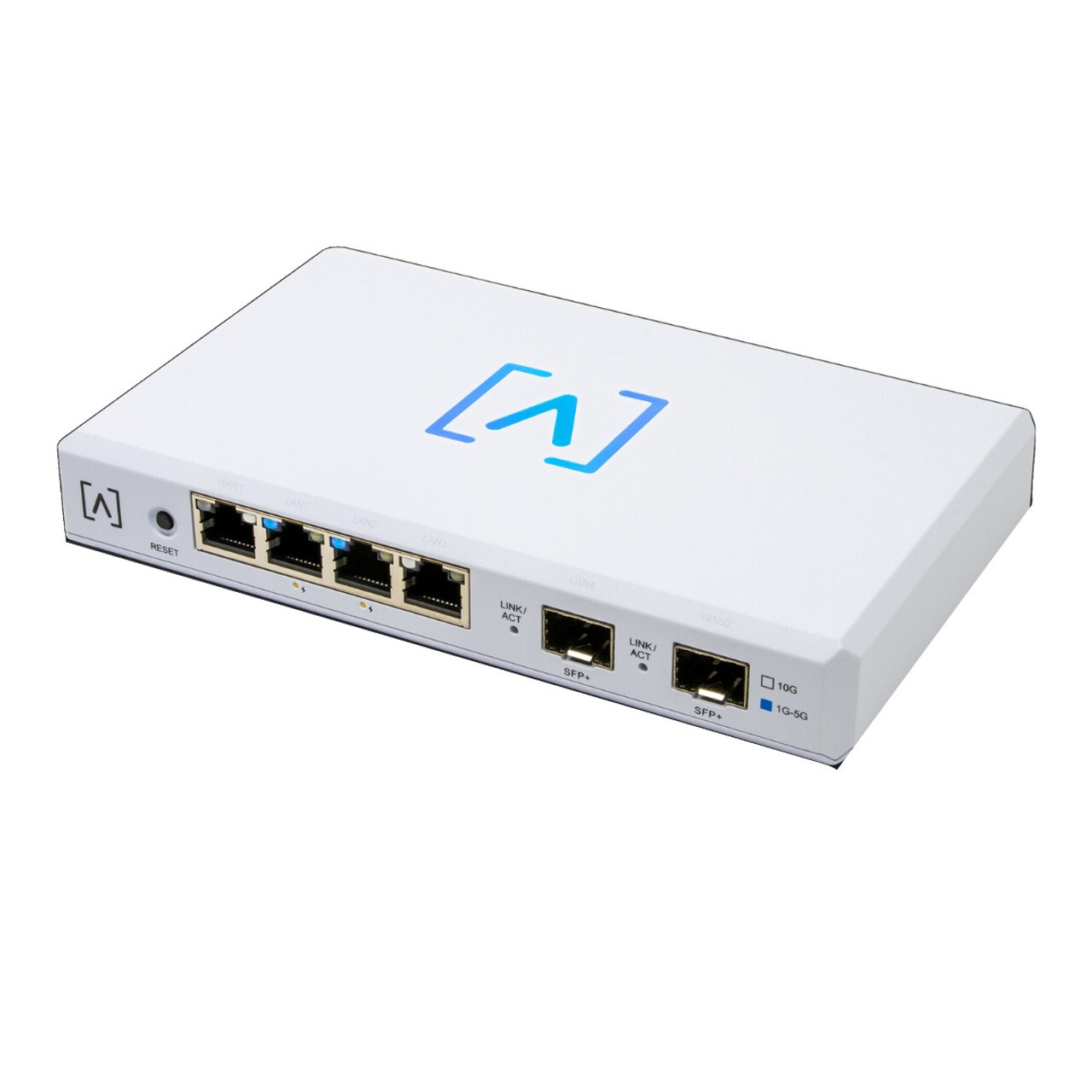

The Alta Labs Route10 router delivers unmatched network speeds with a 10 Gbps throughput. Equipped with four autosensing Ethernet ports that support up to 2.5 Gbps, it also features two high-capacity SFP+ ports for 1 to 10 Gbps fibre or copper connections, ensuring your network operates at optimal performance levels.

Key Features:

• 4x 2.5 Gbps RJ45 ports
• 2x 2.5 Gbps ports with PoE+
• 2x 10 Gbps SFP+ ports
• Quad-core Qualcomm 2.2 GHz processor
• Compact design
• Real-time statistics reporting and firewall configuration
• Supports multiple VLANs, NAT configuration, and dynamic DNS

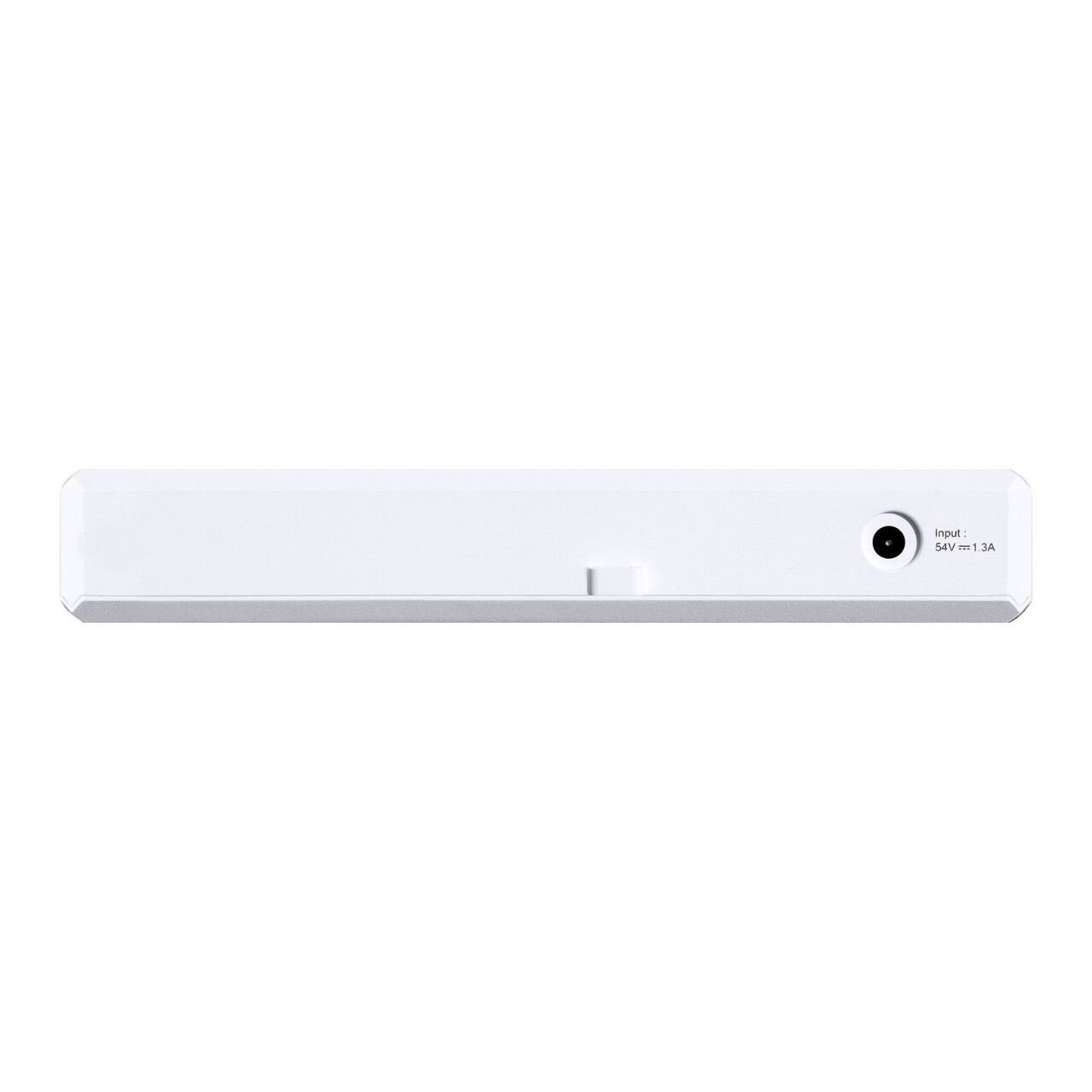

• Universal AC power supply
• 70W max. Input Power

PoE+ Power Integration

With Power over Ethernet (PoE+) available on two of its RJ45 ports, the Route10 can power compatible devices like access points. Supporting both the 802.3af and 802.3at standards, this router eliminates the need for additional power cables, making it a perfect choice for flexible installations.

Comprehensive VPN Support

Route10 offers advanced security options with its hardware-accelerated VPN servers, including L2TP, IPsec, and RADIUS server capabilities. These security features are ideal for small-to-medium businesses looking to create secure, remote network access without compromising performance.

Built for Advanced Networking Needs

With support for VLAN tagging, firewall configuration, and multiple subnet handling, the Route10 is engineered for sophisticated networking environments. The router also features real-time statistics reporting, allowing users to monitor their network with ease.

Compact and Versatile Design

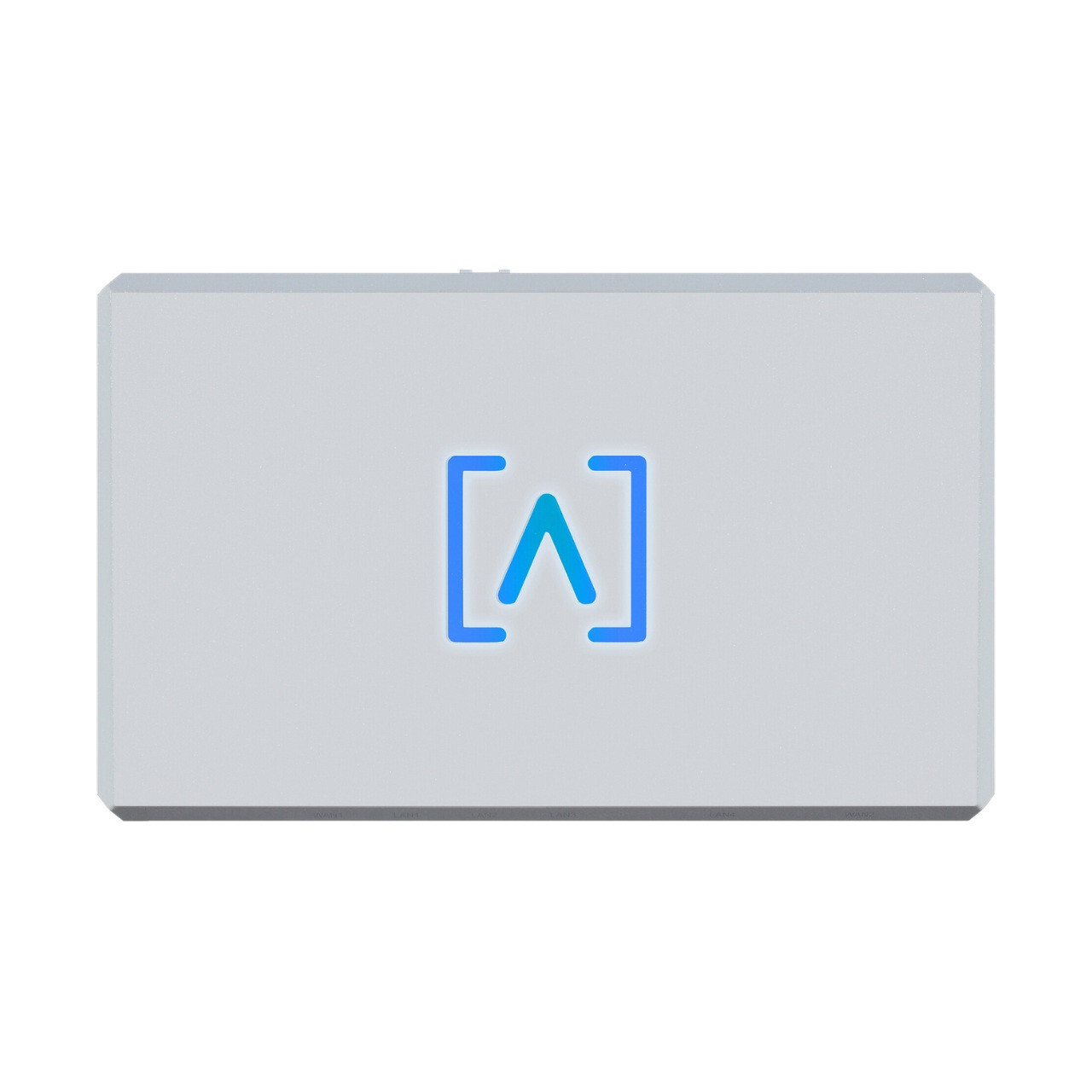

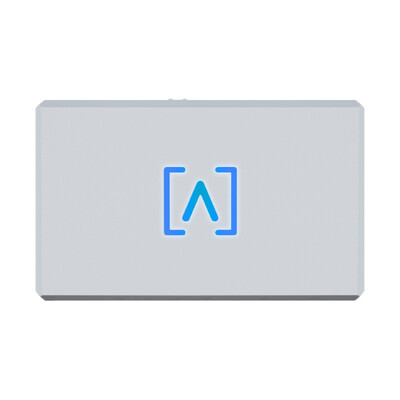

Measuring only 180 × 110 × 29.8 mm, the Route10 offers a sleek, compact design. Its enclosure is crafted with polycarbonate on top and milled aluminium on the bottom, ensuring durability while maintaining a stylish, matte finish. The router is perfect for desktop setups or wall-mounted installations.

Future-Proof Software Features

Designed with scalability in mind, Route10 supports advanced software features like OpenVPN, WireGuard, and Multi-WAN configurations. The forthcoming Alta Networks mobile app will make network monitoring and management more accessible than ever.

Enhanced Security with DPI

Features include Deep Packet Inspection (DPI), allowing users to restrict access to websites and applications. With device-specific filtering options, administrators can customise content control per device, enhancing security without limiting flexibility.
