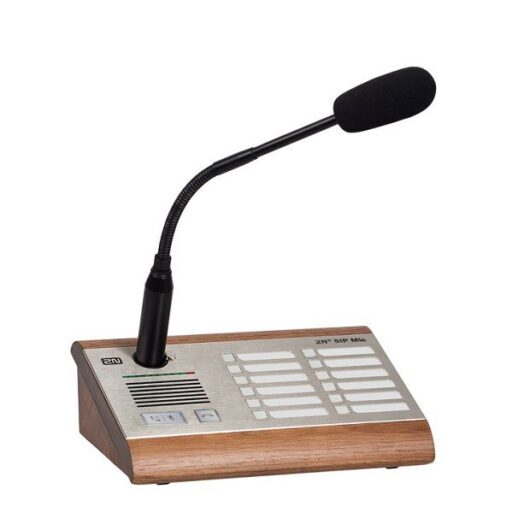

2N 914431E 2N SIP Mic Console

2N SIP Mic Console for paging and 2 way communication.

  • Server-less paging to up to 12 zones
  • Two-way communication
  • Pre-recorded announcements
  • Easy Configuration
  • Axis Vapix support for paging
  • Easy installation with single cable
  • Listen- in function
  • Announcements prerecording
  • Support for SIP IP Phone systems
  • Server -less paging for upto 12 zones – 2N 914431E  SIP Mic Console uses a multicast technology and sophisticated controlling mechanism hence enabling communication to up to 12 zones. Moreover, the microphone console- speaker connection is straight forward, no server needed.

  • Two-way communication – Call from the 2N IP intercoms to the paging console with an inbuilt speaker thanks to SIP protocol.

  • Pre-recorded announcements – Upload or record a message via the microphone and then play it by simple push of a button to a designated zone.

  • Easy configuration – Zones, priorities and announcements prepared in advance can easily be set up in the clean web interface.

  • Integration with an Axis solution – The 2N® SIP Mic microphone console is fully integrated into the AXIS Audio Manager central control software. Also, thanks to support for AXIS Vapix®, announcements can be made using AXIS cameras or speakers.

  • Easy installation with a single cable – The 2N® SIP Mic is very easy to install simply by connecting it to an existing IP network with a PoE cable.

  • Listen- in function – At simple press of a button one can listen to what is happening in certain zone.

  • Support for IP PBX (SIP) – The 2N 914431E SIP Mic Console can function independently or be simply connected to IP PBX.

(914431E)

Description 914431E
Audio codecs G.711u, G.722
Speakers 2 built-in, stereo, power output 2×1 W
Logical inputs 2, galvanically separated, sensitive to contact or voltage from 5 to 48 V
Relay output 1, galvanically isolated, NO and NC contact, max load 48 V, 1 A
Headphone output 3.5 mm jack, stereo, power output 2×30 mW, min. load impedance of 16 Ohm, DR. 101 dB, THD+N -85 dB
Primary microphone input symmetric, XLR, integrated phantom power supply 24 V, DR 88 dB, THD+N -82 dB
Headset microphone input 3.5 mm jack, integrated power supply for electret microphones, DR 84 dB, THD+N -78 dB
Line input 3.5 mm jack, mono or stereo non-symmetric stereo, DR 93 dB, THD+N -82 dB
Power supply 12 to 32 V, power draw max. 1 A PoE to 802.3af standard
Dimensions 209 x 65 x 143 mm
Operating temperature 0 to +40°C
Weight (Net) 1.60kg
Weight (Gross) 2.10kg
SKU 914431E
Brand AXIS
Shipping Weight 2.0000kg

Manufacturer warranty
