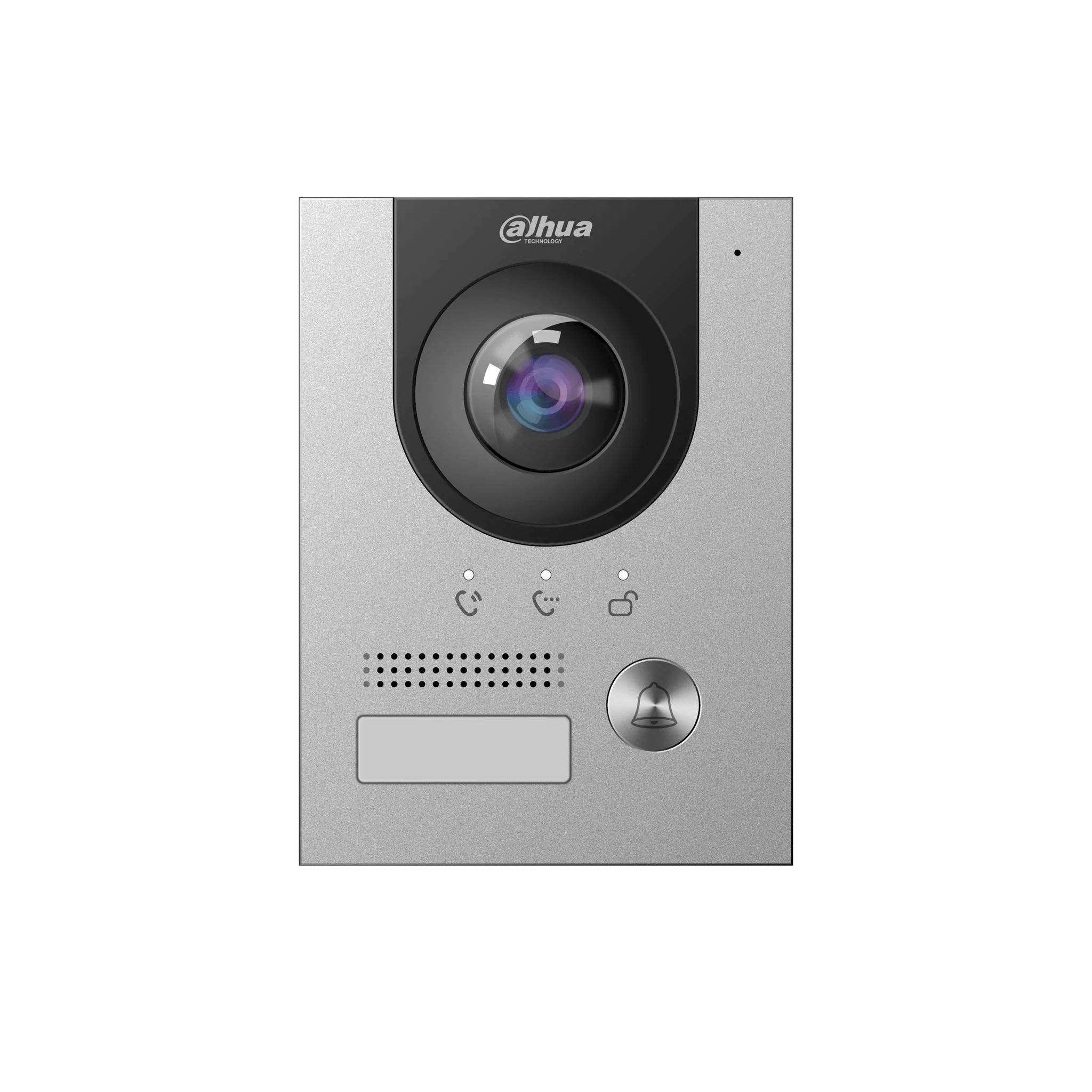

Dahua 2-wire IP Villa Door Station comes with both 2-wire and ethernet port

The Dahua 2-wire IP Villa Door Station is a state-of-the-art security solution designed to enhance the safety and convenience of your home or office. This versatile device features both 2-wire and Ethernet ports, allowing flexible installation options to suit your needs. The anodised aluminium front panel ensures durability and a sleek appearance, making it a stylish addition to any entrance.

Features

  • Anodised aluminium front panel
  • CMOS low illumination 2MP HD colourful 160° fisheye camera
  • Video intercom function
  • Access control function that supports two locks
  • Mobile phone app, talk to the visitor or unlock the door remotely on
  • Compatible with 2-wire interface & RJ45 interface
  • IK07 & IP65
  • Support H.265
  • Support surface and flush mount
  • PoE



(DHI-VTO2202F-P-S2)



System
Main Processor Embedded processor
Operating System Embedded Linux Operation System
Button Type Mechanical
Interoperability ONVIF; CGI
Network Protocol SIP; P2P; IPv4; UPnP; SNMP; DNS; DDNS; RTSP; RTP; TCP; UDP
Basic
Camera 1/2.5" 2MP CMOS Low Illumination HD Colourful Fisheye Camera
Field of View Horizontal: 168.6°; vertical: 87.1; diagonal:176.7°
Focal Length 1.9 mm
WDR 120 dB
Noise Reduction 3D NR
Video Compression H.265
Video Resolution 50Hz: Main Stream (720P@25 fps), sub stream (1080P@25 fps) 60Hz:
Main Stream (720P@30 fps), sub stream (1080P@30 fps)
Video Frame Rate 25 fps
Video Bit Rate 256 Kbps to 4 Mbps
Light Compensation Auto IR
Day/Night Auto (ICR)
Audio Compression G.711u
Audio Input 1 channel
Audio Output Built-in speaker
Audio Mode 2-way voice communication
Audio Enhancement Echo suppression/digital noise reduction
Audio Bit Rate 16 KHz, 16 Bit
Status Indicator Light 3
Port
Electric Lock 1
Alarm Output 1
Power Output 1-ch 12 VDC 100mA
Exit Button 1
Door Status Detection 1
Lock Control 1
Network Port One RJ45 10M/100M network port
General
Appearance colour Silver
Power Supply Dahua 2-wire switch (max. power supply distance 50 m)
DC 48V 1A
Standard PoE
Power Adapter Optional
Installation Flush/surface mount
Certifications CE; FCC; UL
Accessory Flush/surface mount
Product Dimensions 130 mm × 96 mm × 28.5 mm (5.12" × 3.78" × 1.12")
Protection IK07; IP65
Operating Temperature –30°C to +60°C (–22°F to 140°F)
Operating Humidity 10%–90% (RH, non-condensing)
Operating Altitude 0 m–3000 m
Power Consumption ≤ 12W
Net Weight 0.35 kg (0.77 lb)
Gross Weight 0.4 kg (0.88 lb)
SKU DHI-VTO2202F-P-S2
Model # 1.0.01.15.11507
Barcode # 6939554950803
Brand Dahua
Shipping Weight 0.1800kg

Manufacturer Warranty:3 Years
