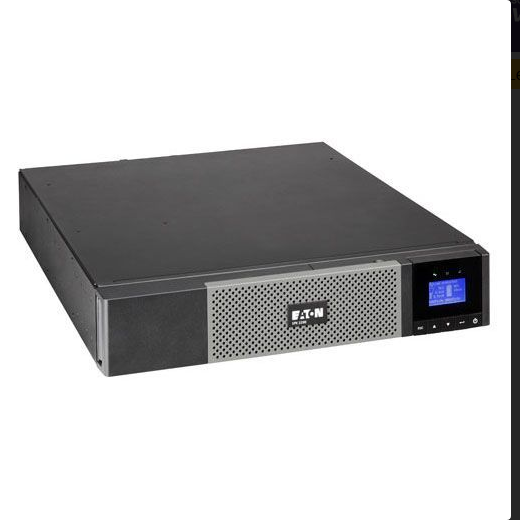

Eaton 5PX 2000VA/1800W 2U Rack/Tower UPS
Model # 5PX2000iRT
-
SKU: 5PX2000iRT
- Pick Up Available
- Australian Warranty
- Checkout Securely
Eaton 5PX 2000VA/1800W 2U Rack/Tower UPS
2000VA, The Eaton 5PX Rack/Tower UPS provides line-interactive backup power and scalable runtimes for servers, storage systems, VoIP gear and network equipment.
(5PX2000iRT)
| General | |
| Topology | Line-Interactive High Frequency (Pure Sinewave, Booster + Fader) |

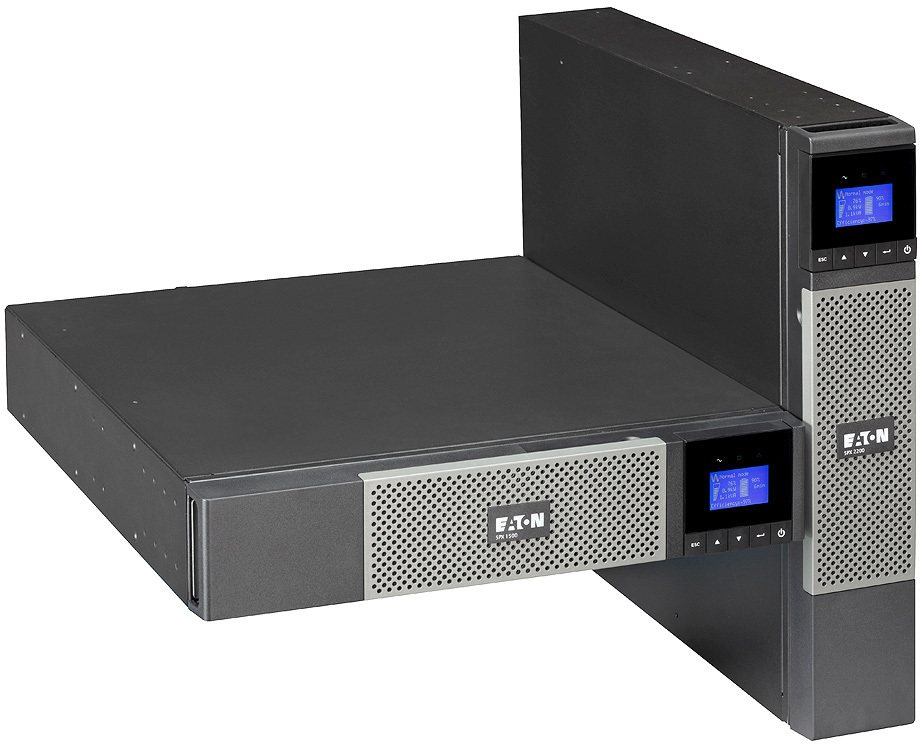

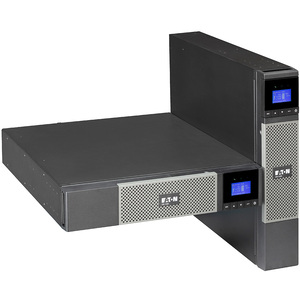

| Configuration | Tower/Rack 2U |
| Rating (VA/Watts) | 2000/1800 |
| Dimensions (H x W x D, mm) | 86.2 x 441 x 522 |
| Weight (kg) | 28.5 |
| Warranty | 3 years on electronics, 2 years on batteries |
| Electrical Input | |
| Connection |
(1) IEC-320-C14
 |
| Input Voltage Without Using Batteries | 160V-294V (adjustable to 150V-294V) |
| Input frequency Range Without Using Batteries | 47 to 70 Hz (50 Hz system), 56.5 to 70 Hz (60 Hz system), 40 Hz in low-sensitivity mode |
| Electrical Output | |
| Voltages | 230 V (+6/-10 %) (Adjustable to 200V / 208V / 220V / 230V / 240V) |

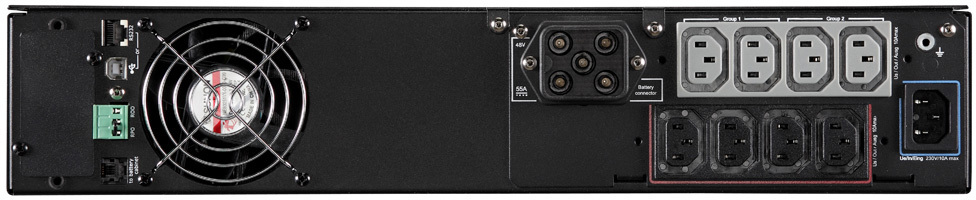

| Output Receptacles |
(8) IEC-320-C13
 |
| Remotely controlled sockets | 2 groups of 2 x IEC C13 (10 A) |
| Output Frequency | 50/60 Hz +/- 0.1 % (autosensing) |
| Battery | |
| Battery Management | ABM® & Temperature compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery units |
| Communications | |
| Communication Ports | 1 USB port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously) + 1 mini terminal block for remote ON/OFF and Remote Power Off |
| Communications Card Slots | 1 slot for NMC Minislot card or NMC ModBus/JBus or MC Contacts/Serial |
| Environmental & Standards | |
| Audible Noise | < 45 dBA |
| Operating Temperature | 0 to 40°C |
| Performance - Safety - EMC | IEC/EN 62040-1-1 (Safety), IEC/EN 62040-2 (EMC), IEC/EN 62040-3 (Performance), C-Tick |
| Approvals | CE, CB report, TÜV |
| SKU | 5PX2000iRT |
| Brand | EATON |
| Shipping Weight | 33.0000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.750m |
| Shipping Cubic | 0.003750000m3 |
