EZVIZ EP7 3MP 2K Smart Home Video Door Phone with 7inch Touch Monitor
- 3MP 2K Camera: High-Resolution Video
- 7-Inch Monitor: Touchscreen Interface
- Smart Home Integration: Seamless Connectivity
- Two-Way Audio: Clear Communication
- Night Vision: Enhanced Low-Light View
- Motion Detection: Instant Alerts
- Weatherproof: Durable Design
- Easy Installation: User-Friendly Setup

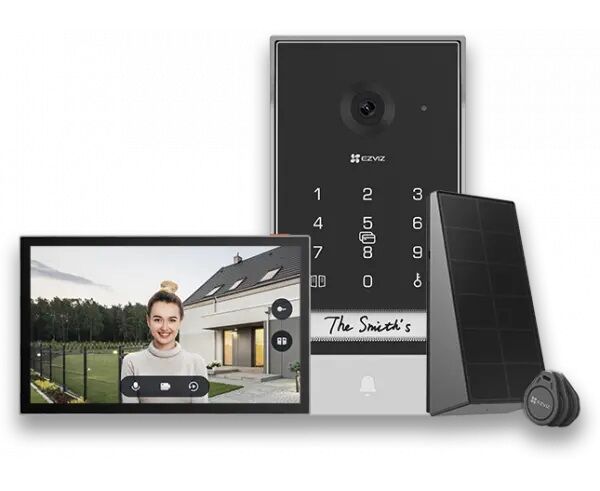

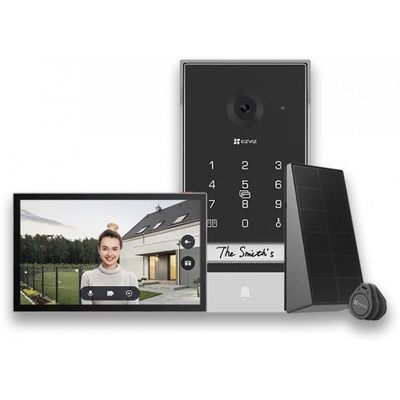

EZVIZ CS-EP7 Smart Home Video Doorphone
Taking a step further with its groundbreaking video doorphones, EZVIZ now introduces the EP7, a new innovation of the series that comes with a built-in keypad, removable battery, compatible solar charging panel, and enhanced Wi-Fi stability. Completely removing the wiring need between the indoor monitor and the outdoor doorphone, this sleek kit seamlessly merges plenty of smart features to enhance home security, while adapting easy installation and power supply to reduce as much hassle as possible – changing the game of traditional video intercoms. Future-ready and eco-conscious, the EP7 elevates your front door with effortless sophistication.
Built to be incredibly simple in installation

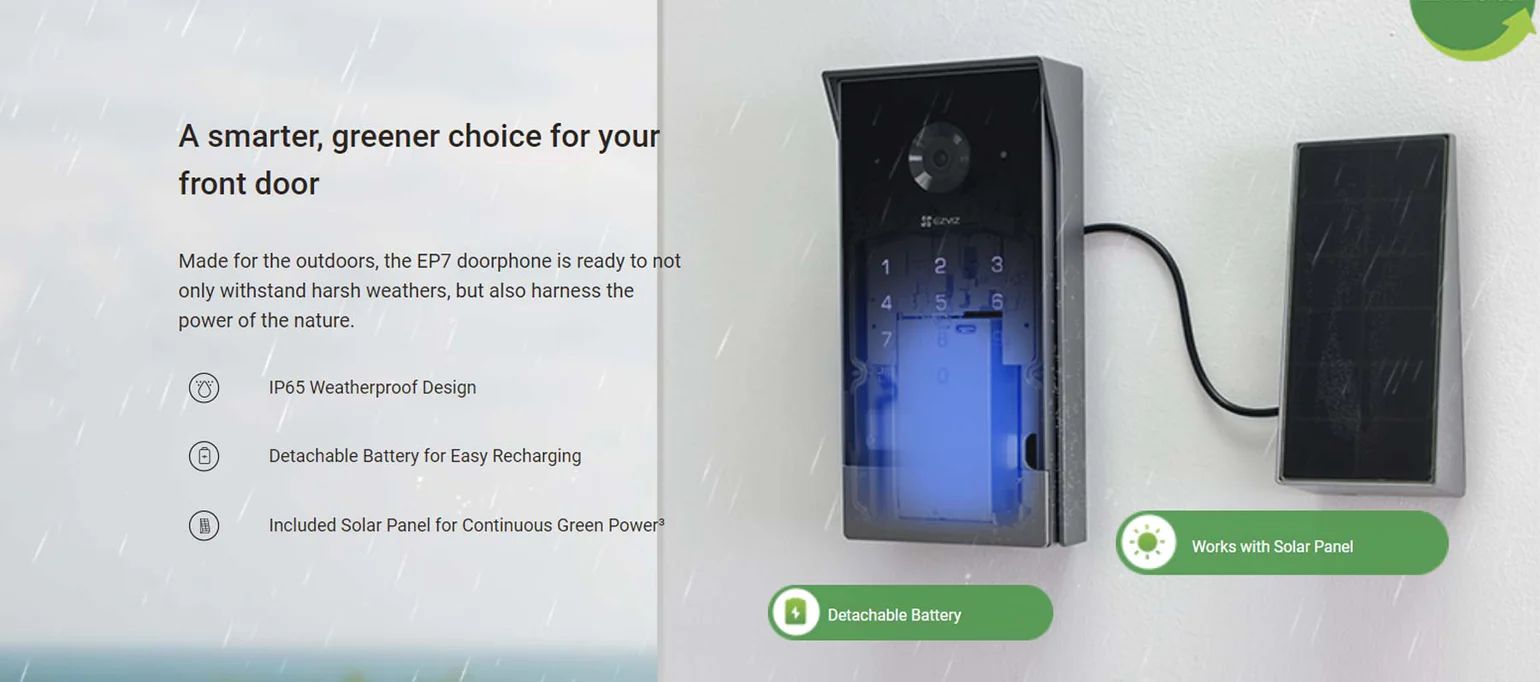

Even if you’re living in a historical house where electricity and network wiring aren’t planned for the big entrance, the EP7 can start working without big problems. Its outdoor doorphone comes with a large and detachable lithium battery that’s easy to charge and supports running on solar energy. Additionally, it communicates with your indoor monitor through your home Wi-Fi without any long, annoying connecting cable.
(CS-EP7)
Model CS-EP7
Network
Wi-Fi Standard. IEEE 802.11 AH
Frequency Range. 2.4GHz ~ 2.4835GHz 5.15GHz ~ 5.25GHz
Channel Bandwidth. 8 M (U ), 2 M (EU)
Security 64 / 128 bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
Wi-Fi HaLow Pairing
AP pairing
Max Transmission Distance for Intercom and monitor Up to 350m in open area; up to 80m in two enclosed walls
General
Operation Conditions
IP Grade Waterproof IP65, with shield cover
Power Supply 12-24VDC 1A power supply, adaptor (12V 1A included in package)
Battery Capacity 2600 mAh 7.3V (5200mAh 3.7V) rechargeable and detachable lithium battery 85 days at the rate of using 3 minutes per day, and open the electric strike plate 10 times
Package Dimensions 180 × 112 × 15 mm
Info
Display size
7” touch screen
Resolution
1024 × 600
Interface
Audio Input Built-in high-sensitivity microphone
Audio Output Built-in high-power speaker
Button
Screen On / Off Button
Terminal Two wiring ports to connect gate. Two wiring ports to connect electric strike plate. Two wiring ports to connect the solar panel.
Storage
Supports microSD card (Up to 512 GB)
Network Parameters
Interface Protocol EZVIZ Cloud Proprietary Protocol
Protocol EZVIZ Cloud Proprietary Protocol
Wi-Fi Parameters
Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n, 802.11ac
Frequency Range 904 M-928 M (US), 865 M-867 M (EU)
Channel Bandwidth Supports 20MHz
Security 64/128-bit WEP,WPA/WPA2,WPA-PSK/WPA2-PSK
Transmission Rate 11b: 11Mbps,11g: 54Mbps,11n: 150Mbps, 11ac:433.3Mbps
Performance Parameter
Power Voltage 8.1V max
Max. Power Current 240mA
Max. Power 1.2W
Operating Temperature
-20°C to 50°C
IP Grade IP65
Certifications
Certifications CE / WEEE / RoHS / REACH
SKU | CS-EP7 |
Brand | EZVIZ |
Shipping Weight | 1.8000kg |
Manufacturer Warranty
