CS-HP7

EZVIZ HP7 Smart Home Video Door Phone



A connected choice for safer, smarter home access

It’s time to upgrade your old intercom to be internet connected, remotely accessible and app controllable. EZVIZ’s first-ever HP7 Video Doorphone maximizes the convenience for homeowners to view, talk, and grant access to visitors even if they’re not home. It also enhances home safety, as the 2-in-1 outdoor camera and phone helps record videos in 2K clarity and detect people with real-time mobile notifications.

2K Resolution

7-Inch Color Touch Screen

Remote Door/Gate Unlock¹

2-Wire

Smart Human Motion Detection

Two-Way Talk (Supports voice changer feature)

Built-In Doorbell with Multiple Ringtones

Smart RFID Unlock (3 tags included)

Weatherproof Design

3 Name Cards Included

Supports 2.4 / 5 GHz Dual-Band Wi-Fi

Supports MicroSD Card (Up to 512 GB) & EZVIZ CloudPlay Storage²

Built to be reliable for houses and villas

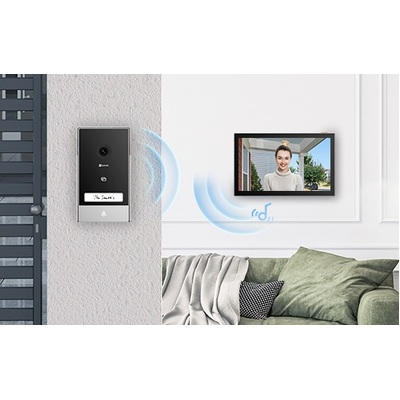

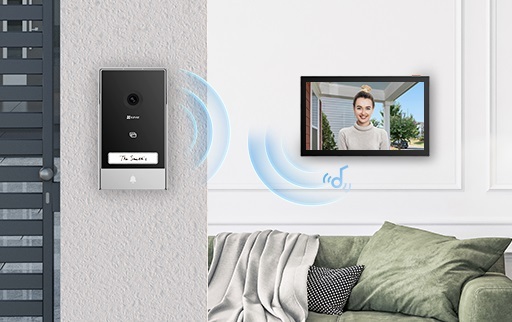

The HP7 is ideal for anyone who seeks to replace their bulky intercom in a renovated home, or for those who are moving into a spacious villa and need convenient communication and confident security. This stylish kit combines a 2-in-1 outdoor video doorbell with a large indoor monitor and easily fits any home style.

Manage your door easily - even remotely

Heavy dangling keys can now be history. The HP7 provides far easier access controls while adding visual protection to verify your visitors.

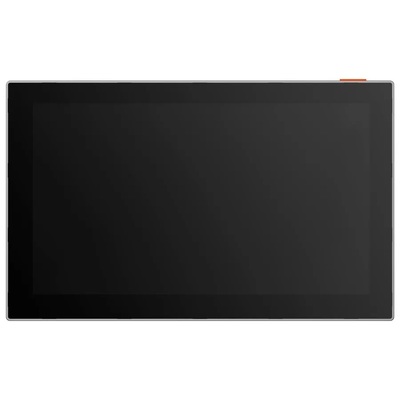

An all-in-one touch monitor to communicate & control

The 7-inch color touch screen is where you set up and manage your outdoor doorphone, respond to visitors, and save important video clips. Whenever a visitor rings your door, the indoor screen will automatically light up to let you know who’s outside.

Versatile features

Crisp live viewing

Two-way talk

Gate/Door unlock

Video history and storage

(Supports microSD card of up to 512 GB)

It’s easier than ever to respond from afar

Even if you’re not home, the HP7 makes sure you don’t miss a visitor. You can always use your phone to stay connected, and open the door for guests remotely. When responding to uninvited strangers, you can enable change the voice feature to keep yourself unidentified and to add another layer of protection.

Two-way Talk

Remote Unlock

Voice Changer for Privacy Protection

Next-level vision for a home intercom

The HP7 is designed to render ultra-wide and clear imaging, from day to night. With a 162-degree viewing angle and 2K lens, you can easily see a postman from head to toe without pixelated or blurry details. The HP7 camera also provides 5-meter infrared night vision for peace-of-mind 24/7.



Enhanced security with smart human motion detection

Whenever the HP7 video doorbell detects human activity at your front door, it will send you mobile notifications right away in case there’s an uninvited guest. You can always fine-tune the detection sensitivity and set up specific detection zones to reduce unwanted alerts.

Smart Human Motion Detection

Adjustable Detection Sensibility

Customizable Detection Zone

No Subscription Fee



Elegant design elevates your front door

The HP7 kit adopts a refined, minimalist look, with a simple, consistent glossy black for both devices. A standout from traditional intercoms, the HP7 satisfies modern tastes for a stylish home. The indoor monitor screen also maximizes the touch area, enhancing the whole user experience.

Steady connection for boosted performance

To maximize the connected experience with remote controls, you can connect the indoor monitor to either the 2.4 or 5 GHz band. Enjoy strong Wi-Fi with lower latency, larger bandwidth, and a stable signal.

Enhanced viewing pleasure with smaller video files

Compared against the prevailing H.264 video compression technology, H.265 creates a more fluid viewing experience with recorded footage. Meanwhile, you won’t have to worry about large video files taking up too much of your storage space – H.265 technology can reduce their sizes by up to 50%⁴.



Extra-Large, safe storage options that you can trust

You can secure your recorded videos on a local microSD card of up to 512 GB, or subscribe to EZVIZ CloudPlay for fully-encrypted cloud storage.



We do our best to protect data and privacy

We design the product to respectfully protect your data and privacy. You can also set up no filming zones to make sure recording only happens when it's appropriate and allowed.

(CS-HP7)

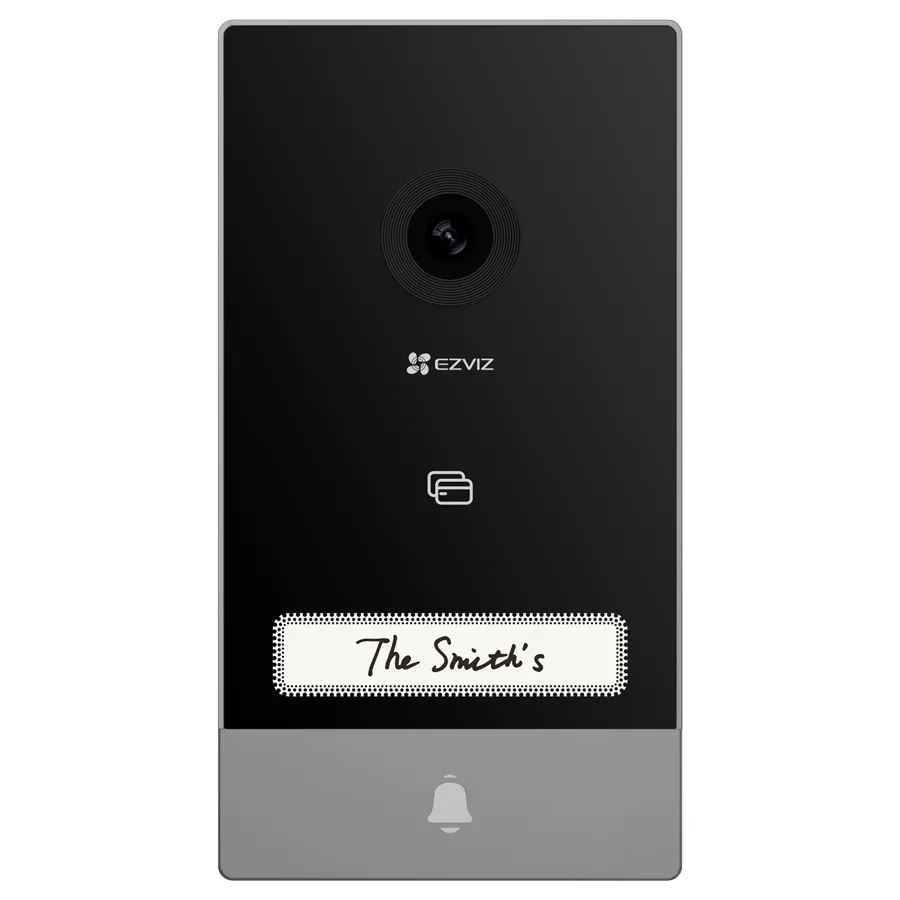

Outdoor Doorbell
Image Sensor 1/2.7" Progressive Scan CMOS (Supports low light sensitivity)
Lens 2.0 mm @ F2.2,viewing angle: 162° (Diagonal)
Day & Night IR-cut filter with auto-switching, 850 nm infrared light × 2 (max. 6m)
Max. Resolution 2048 × 1296
DNR 2D / 3D DNR
Video Compression H.265 / H.264
Frame Rate Max: 15fps; Self-Adaptive during network transmission
Connection and Function
Connection Method Wired connection (2-Wired, capable with 4-Wired), digital signal transmission
Transmission Distance Φ 2 x 0.75mm² , max. 50m Φ 2 x 1.5mm² , max. 100m Twisted pair, max. 120m
Open the door (Gate) Support 2 wiring ports. 1-10m distance. The intercom panel provides a “dry”-contact connection, without an electric current, to connect to the button for automated gate, gate breaking capacity: 12V / 2A
Unlock (Electric strike plate) Support 2 wiring ports. 1-10m distance. The electric strike plate or lock that you order must have a mechanical memory; the power supply to the electric strike plate or lock must not exceed 12V / 1.1A, otherwise should do as user manual.
Door Open Methods 1.RFID badge unlock (Badges × 3 pcs) 2.App remote unlock 3.Indoor display unlock
Outdoor Doorbell Interface
Audio Input Built-in high-sensitivity microphone
Audio Output Built-in high-power speaker
Doorbell Button Yes. The light can be set on or off.
Name Card Three handwritten name cards in total (one already on the intercom panel). The light can be set on or off.
Terminal Two wiring ports to connect screen. Two wiring ports to connect gate. Two wiring ports to connect electric strike plate.
Functions
Intelligent Alarm Smart human motion detection, Lingering Detection
Tamper Alarm Supports
Video Intercom Long-distance video two-way talk
General
Operation Conditions -30°C to 60°C , Humidity 95% or less (non-condensing)
IP Grade Waterproof, with shield cover
Size 161 × 87 × 20 mm (6.34 × 3.42 × 0.79 inch)
Interior Display
Display size 7” touch screen
Resolution 1024 × 600
Interface
Audio Input Built-in high-sensitivity microphone
Audio Output Built-in high-power speaker
Button Screen On / Off Button
Terminal Two wiring ports to connect 1st outdoor doorbell. Two wiring ports to connect 2nd outdoor doorbell. Two wiring ports to connect extra interior screen (not included in the kit)
Storage Supports microSD card up to 512 GB Supports EZVIZ Cloud storage
Network Parameters
Protocol EZVIZ Cloud Proprietary Protocol
Interface Protocol EZVIZ Coud Proprietary Protocol
Protocol EZVIZ Connect Protocol
Wi-Fi Parameters
Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n, 802.11ac
Frequency Range 2.4G: 2.4 GHz ~ 2.4835 GHz 5G: 5.15 GHz ~ 5.25 GHz
Channel Bandwidth Supports 20MHz
Security 64 / 128-bit WEP,WPA / WPA2, WPA-PSK / WPA2-PSK
Transmission Rate 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps, 11ac: 433.3Mbps
Function
Multiple ringtones Up to 20 ringtones
Functions Live view, playback, two-way talk, video call
General
Operation Conditions -10°C to 45°C, humidity 95% or less (non-condensing)
Weight Net weight: 855 g (30.16 oz) With package: 1825 g (64.37 oz)
Size 180 × 111 × 15 mm (7.09 × 4.37 × 0.59 inch)
Power Supply DC 24V / 1A power supply, adaptor (100- 240Vac)
Power Consumption 8W, Max. 24W
In the box
In the box - Monitor
- Wall Bracket for Monitor
- Power Adapter for Monitor
- Drill Template for Monitor
- Intercom Panel
- Drill Template for Intercom Panel
- Screwdriver
- Badges (×3)
- Screw Kit (×2)
- Name Card (×2)
- Wires and Wire Connectors
- DC 24V Power Supply Jack Connector Cable

- Regulatory Information (×2)


- Quick Start Guide
Certifications
Certifications CE / REACH / WEEE / RoHS
SKU CS-HP7
Brand EZVIZ
Shipping Weight 5.0000kg

Manufacturer Warranty
