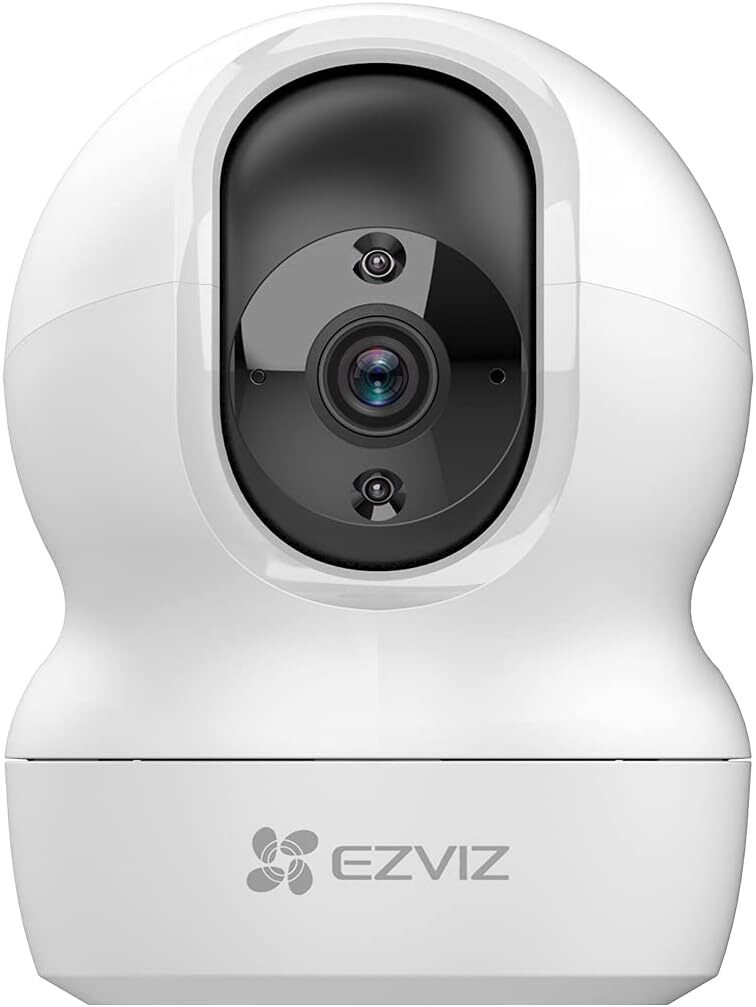

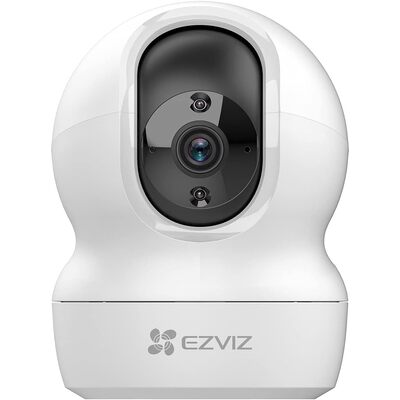

EZVIZ TY1 4MP Indoor Lifestyle Wifi Pan/Tilt Camera with IR Night Vision, Two Way Talk, Auto Tracking and Motion Detection
Smart Wi-Fi Pan & Tilt Camera
Watch over your entire space easily with the TY1 Camera’s 360-degree field-of-view and its smart tracking feature. It’s got you covered – all day & all night.
4MP Resolution
Panoramic View
IR Night Vision (Up to 10 m / 33 ft)
Human Motion Detection
Auto-Tracking
Two-Way Talk
Sleep Mode for Privacy Protection
H.265 Video Technology
Supports MicroSD Card (Up to 256 GB) & EZVIZ CloudPlay Storage¹
Records every corner in 4MP resolution
This powerful camera records images in 4MP resolution, rendering crisp details even in 4x digital zoom, so you see everything clearly in live video and playback.
Zero blind spots
Keep tabs on every corner with just one TY1 4MP. Its expansive 360-degree field-of-view ensures full coverage, so you don’t miss a thing.
Get the notifications that matter
A lot of activities go on inside your home. Don’t want to get alerted repeatedly when your curtains flutter in the wind? The TY1 4MP is smart enough to identify human activities in particular. You can choose to get alerted only when somebody is detected on camera.
Smart tracking
When it detects a moving object, the camera is smart enough to automatically track its motion while alerting you with an image in real-time.
Communication, anytime
Talk to your loved ones and deter unwelcome strangers – all by using the camera’s two-way communication feature. Using the EZVIZ App on your mobile device, you can easily and conveniently enjoy communication wherever you might be.
See further in the dark
Enjoy round-the-clock protection with the TY1 4MP camera. Using powerful Infrared LED lights, it lets you see up to 10 meters (33 feet) in dim light.
(CS-TY1-4MP)
Camera | |
---|---|
Image sensor | F2.2@1/3" Progressive Scan CMOS |
Shutter Speed | Self-adaptive shutter |
Lens | 4mm, view angle: 124°(Diagonal), 85° (Horizontal), 55°(Vertical) |
Lens Mount | M12 |
Day & Night | IR-cut filter with auto-switching |
DNR | 3D DNR |
WDR | Digital WDR |
Compression | |
Video Compression | H.265 / H.264 |
Video Bit Rate | Quad HD, Full HD, HD, Standard.Adaptive bit rate. |
image | |
Max. Resolution | 2560 × 1440 |
Frame Rate | Max. 20 fps; Self-Adaptive during network transmission |
Network | |
Smart Alarm | Human Motion detection |
Wi-Fi Pairing | AP pairing |
Protocol | EZVIZ cloud proprietary protocol |
Interface Protocol | EZVIZ cloud proprietary protocol |
Interface | |
Storage | Micro SD card slot (Max. 256G) |
Power | Micro USB |
Wired Network | RJ45 × 1 (10M/100M self-adaptive Ethernet port) |
Wi-Fi | |
Standard | IEEE802.11b, 802.11g, 802.11n |
Frequency Range | 2.4 GHz ~ 2.4835 GHz |
Channel Bandwidth | Supports 20MHz |
Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
Transmission Rate | 11b: 11Mbps, 11g :54Mbps, 11n :72Mbps |
Output Power(EIRP) | 19 dBm |
Antenna Gain | 1.9 dBi |
General | |
Operating Conditions | -10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing) |
Power Supply | DC 5V/2A |
Power Consumption | Max. 5W |
IR Range | Max. 10 m (32.81 ft) |
Dimensions | 88 × 88 × 119 mm (3.46 × 3.46 × 4.67 inch) |
Packaging Dimensions | 103 × 103 × 186 mm (4.06 × 4.06 × 7.32 inch) |
Bare Weight | 259g (9.14oz) |
In the box: | |
In the box: | - TY1 4MP Camera |
- Base | |
- Screw Kit | |
- Power Cable 3m (9.8 ft.) | |
- Drill Template | |
- Power Adapter | |
- Quick Start Guide | |
- Regulatory Information | |
Certifications: | |
Certifications: | FCC / UL / CE / WEEE / REACH / RoHS |
SKU | CS-TY1-4MP |
Brand | EZVIZ |
Shipping Weight | 5.0000kg |
