GR-GWN7662
Indoor Wi-Fi 6 Access Point

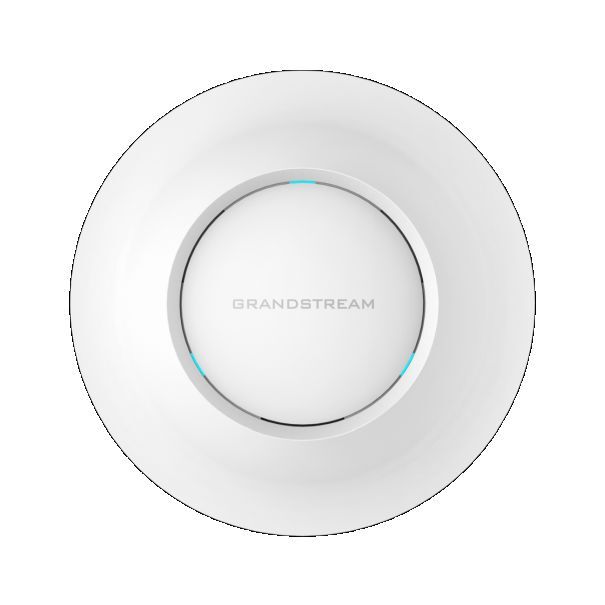

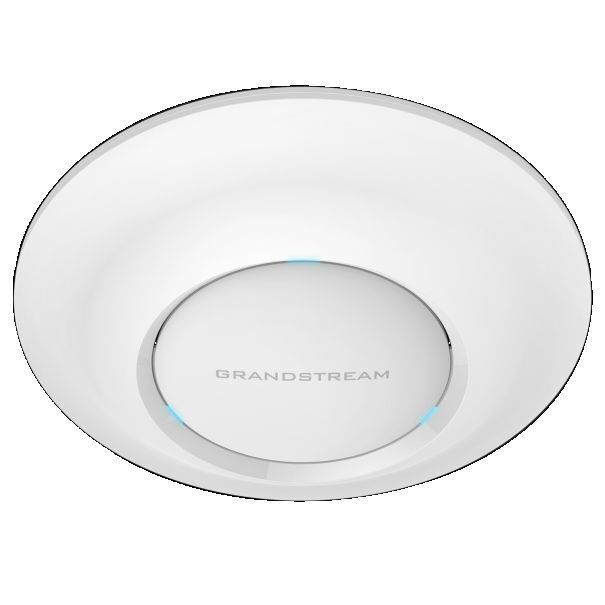

The Grandstream GWN7664 Wi-Fi 6 access point is made to provide dual-band 4x4:4 MU-MIMO with DL/UL OFDMA technology with a sophisticated internal antenna design for intense penetration and more stable connection offering maximum network throughput that covers a wide area for delivering internet at high speed to the high-density environment. The GWN7662 supports Wi-Fi 6 technology to deliver continuous high-speed data connection in a dense and high-user environment where constant data supply is required. It is the ideal device for providing internet to devices in every organization from small, medium and large.

Features:

  • 5.38 Gbps wireless throughput and 3.5 Gigabit wireline ports
  • 5GHz 4×4:4 MU-MIMO with DL/UL OFDMA technology
  • 32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
  • Up to 175-meter coverage range
  • Supports 256 concurrent Wi-Fi client devices
  • Advanced QoS to ensure real-time performance of low-latency applications
  • Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
  • Self power adaptation upon auto detection of PoE or PoE+
  • Embedded controller can manage up to 50 local GWN series APs; GWN.Cloud offers unlimited AP management; GWN Manager offers premisebased software controller

The GWN7662 is an 802.11ax Wi-Fi 6 access point ideal for small -to-medium sized businesses, home offices, retail shops, restaurants, hospitality, education and more. It offers 4x 4:4 MU-MIMO technology on the 5G band and 2x2:2 MU-MIMO on the 2.4G band as well as a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. Wi-Fi 6 technology supports the modern generation of dense environments where many users and many devices require consistent and reliable Wi- Fi connections at higher speeds. To ensure easy installation and management, the GWN7662 uses a controller-less distributed network management design in which the controller is embedded within the product’s web user interface. The GWN7662 is also supported by GWN.Cloud and GWN Manager, Grandstream’s free cloud and on-premise Wi-Fi management platform. It is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, 256 concurrent clients per AP and dual Gigabit network ports with PoE/PoE+, the GWN7662 is the ideal Wi-Fi access point for medium wireless network deployments with medium user density.

(GWN7662)

Features

  • 5.38 Gbps wireless throughput and 3.5 Gigabit wireline ports
  • 5GHz 4×4:4 MU-MIMO with DL/UL OFDMA technology
  • Up to 175-meter coverage range
  • Supports 256 concurrent Wi-Fi client devices
  • Advanced QoS to ensure real-time performance of low-latency applications
  • Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
  • Self power adaptation upon auto detection of PoE or PoE+
  • Embedded controller can manage up to 50 local GWN series APs; GWN.Cloud offers unlimited AP management; GWN Manager offers premise based software controller

Wi-Fi Standards

IEEE 802.11 a/b/g/n/ac(Wave-2)/ax



Antennas

6 single frequency internal antennas

2.4GHz 3.65dBi

5GHz 5.26dBi



Wi-Fi Data Rates

5G:

IEEE802.11ax:8.6Mbps to 4804Mbps IEEE 802.11ac: 6.5 Mbps to 3464 Mbps IEEE 802.11n: 6.5Mbps to 600Mbps

IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

2.4G:

IEEE 802.11ax:8.6Mbps to 573.5Mbps IEEE 802.11n: 6.5Mbps to 300Mbps IEEE 802.11b: 1, 2, 5.5, 11 Mbps

IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

*Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network



Frequency Bands

2.4GHz Radio: 2412 - 2484 MHz(WIFI)

5GHz Radio: 5180 - 5825 MHz

*Not all frequency bands can be used in all regions

Channel Bandwidth

2.4G: 20 and 40 MHz

5G: 20, 40 , 80 and 160MHz



Wi-Fi and System Security

WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/ control lockdown via digital signatures, unique security certificate and random default password per device

MIMO

2×2:2 2.4GHz (MU-MIMO)

4×4:4 5GHz (MU-MIMO)

Coverage Range

Up to 175 meters

*coverage range can vary based on environment



Maximum TX Power

2.4G: 25dBm

5G: 27dBm

*Maximum power varies by country, frequency band and MCS rate



Receiver Sensitivity

2.4G

802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7

802.11ax 20MHz: -60dBm @ MCS11; 802.11ax 40MHz: -58dBm @MCS11

5G

802.11a: -92dBm @6Mbps, -74dBm @54Mbps;

802.11n 20MHz: -74dBm @MCS7; 802.11n 40MHz:-71dBm @MCS7

802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9

802.11ax 20MHz: -60dBm @MCS11; 802.11ax 40MHz: -58dBm @MCS11;802.11ax 80MHz: -56dBm @ MCS11

SSIDs

32 SSIDs total, 16 per radio (2.4GHz & 5GHz)

Concurrent Clients

256

Network Interfaces

1x autosensing 10/100/1000 Base-T Ethernet Port

1x autosensing 10/100/1000/2500 Base-T Ethernet Port

Auxiliary Ports

1x Reset Pinhole, 1x Kensington lock

Mounting

Indoor wall mount or ceiling mount, kits included

LEDs

3 tri-color LEDs for device tracking and status indication

Network Protocols

IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

QoS

802.11e/WMM, VLAN, TOS



Network Management

Embedded controller can manage up to 50 local GWN APs

GWN.Cloud offers a free cloud management platform for unlimited GWN APs GWN Manager offers premise-based software controller for up to 3,000 GWN APs

Power and Green Energy Efficiency

Supports 802.3az PoE 802.3af/ 802.3at; Maximum Power Consumption: 16W



Environmental

Operation: -10°C to 45°C Storage: -30°C to 60°C

Humidity: 5% to 95% Non-condensing

Physical

Unit Dimension: 205.3mm(L)x205.3mm(W)x45.9mm(H); Unit Weight: 540g

Entire Package Dimension: 258mm(L)x247mm(W)x86mm(H); Entire Package Weight: 910g

Package Content

GWN7662 indoor Wi-Fi 6 Wireless AP, Mounting Kits, Quick Installation Guide

Compliance

FCC, CE, RCM, IC, UKCA

SKU GWN7662
Barcode # 6947273704485
Brand Grandstream
Shipping Weight 3.0000kg
Shipping Width 0.250m
Shipping Height 0.260m
Shipping Length 0.090m
Shipping Cubic 0.005850000m3

Manufacturer Warranty
