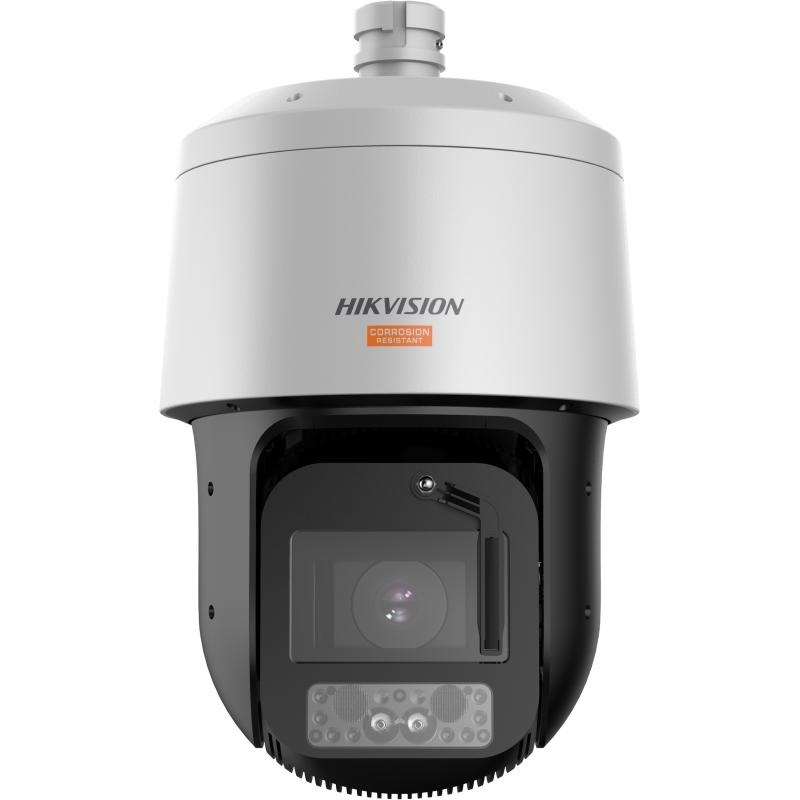

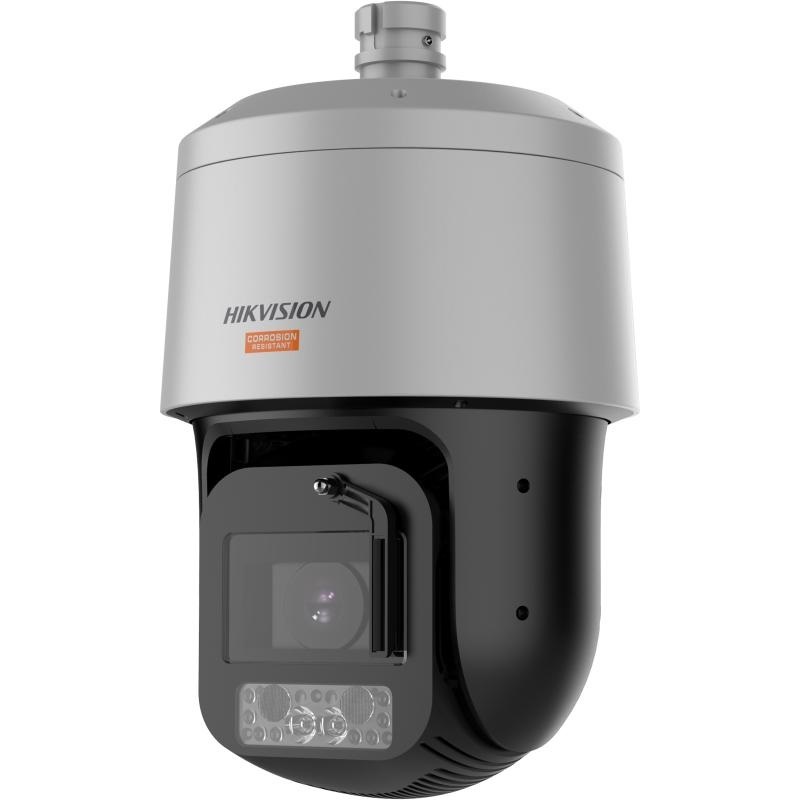

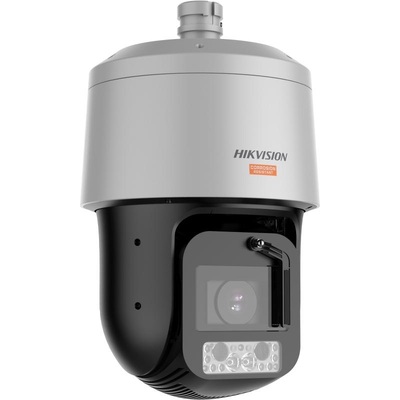

Name: HIKSVISION 8-inch 42x Polymer Anti-corrosion Network Speed Dome - DS-2DT8C442MXG-LWT
Brand: HIKSVISION
SKU: DS-2DT8C442MXG-LWT
Price: 5761 AUD
Availability: InStock

8-inch 42x Polymer Anti-corrosion Network Speed Dome

1/1.8" progressive scan CMOS
High quality imaging with 4 MP resolution
Excellent low-light performance with DarkFighter technology
42× optical zoom and 16× digital zoom provide close up views over expansive areas
Expansive night view with up to 500 m IR distance
Water and dust resistant (IP67)
Anti-corrosion polymer enclosure, protecting cameras to be used in corrosive environments, providing reliability and longevity compared to standard cameras

(DS-2DT8C442MXG-LWT)

Camera
Image Sensor1/1.8" progressive scan CMOS
Min. IlluminationColor: 0.001 Lux @ (F1.2, AGC ON), B/W: 0.0005 Lux @ (F1.2，AGC ON), 0 Lux with IR
Shutter Speed1s to 1/30,000 s
Slow ShutterYes
Day & NightIR cut filter
Zoom42x optical, 16x digital
Max. Resolution2560 × 1440

Lens
FocusAuto, semi-auto, manual
Focal Length6.0 mm to 252 mm
Zoom SpeedApprox. 5.4 s
FOV
Horizontal field of view: 58.8° to 1.97° (wide-tele),

Vertical field of view: 34.6° to 1.12° (wide-tele),

Diagonal field of view: 67.1° to 2.28° (wide-tele)
ApertureMax. F1.2

Illuminator
Supplement Light TypeHybrid
Supplement Light Range
IR Distance: up to 500 m

White Light Distance: up to 100 m
Smart Supplement LightYes

PTZ
Movement Range (Pan)360°
Movement Range (Tilt)-20° to 90° (auto flip)
Pan SpeedPan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s
Tilt SpeedTilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
Proportional PanYes
Presets300
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans, record time over 10 minutes for each scan
Power-off MemoryYes
Park ActionPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
3D PositioningYes
PTZ Status DisplayYes
Preset FreezingYes
Scheduled TaskPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

Video
Main Stream
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);

60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression
Main stream: H.265+/H.265/H.264+/ H.264

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16384 Kbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)8 fixed regions for each stream

Audio
Audio CompressionG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM, AAC
Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps~192 Kbps(MP2L2)/16 Kbps~64 Kbps(AAC)

Network
Network StorageNAS (NFS, SMB/ CIFS), ANR
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets
APIISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T)
Simultaneous Live ViewUp to 20 channels
User/HostUp to 32 users 3 user levels: administrator, operator, and user
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address)
ClientHikCentral, iVMS-4200, Hik-Connect
Web BrowserIE11, Chrome 57.0+, Firefox 52.0+, Safari 11+

AI Open Platform
Model Specification
Up to 4 models,

Model type: detection model, classification model, mixed model (detection model and classification model)

Day/Night SwitchDay, night, auto, scheduled-switch
Image EnhancementBLC, HLC, 3D DNR
Wide Dynamic Range (WDR)120 dB
DefogOptical defog
Image StabilizationEIS (Built-in gyroscope to improve EIS performance)
Regional ExposureYes
Regional FocusYes
Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Image Parameters SwitchYes
Privacy MaskUp to 24 masks, mosaic mask, mask color configurable, rectangle region
SNR≥ 52 dB

Interface
Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
On-board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC cards, up to 256 GB
Alarm7 inputs, 2 outputs
Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
RS-485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive

Event
Basic EventAudio exception, motion detection, video tampering alarm, alarm input, alarm output, exception
Smart EventLine crossing detection, region entrance detection, unattended baggage detection, object removal detection, intrusion detection, region exiting detection, audio exception detection
Smart TrackingManual tracking, auto-tracking
Alarm LinkagePreset, patrol scan, pattern scan, memory card video recording, alarm output, sending email, notify surveillance center, upload to FTP, NAS video recording, audible warning

Deep Learning Function
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting

Support alarm triggering by specified target types (human and vehicle)

General
Power36 VDC ± 25%, max. 60 W,24 VAC ± 25%, max. 60 W
Operating ConditionTemperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95%
Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
WiperYes
DimensionØ 242 mm × 398.1 mm (Ø 9.53" × 15.67")
WeightApprox. 6 kg (13.2 lb.)

Approval
EMC
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);

RCM (AS/NZS CISPR 32: 2015);

IC VoC (ICES-003: Issue 6, 2019)
Safety
UL (UL 62368-1)

CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

CE-LVD (EN 62368-1:2014+A11:2017),

BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);
Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU);

Reach (Regulation (EC) No 1907/2006)
Anti-Corrosion ProtectionNEMA 4X (NEMA 250-2018),C5
ProtectionIP67 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
