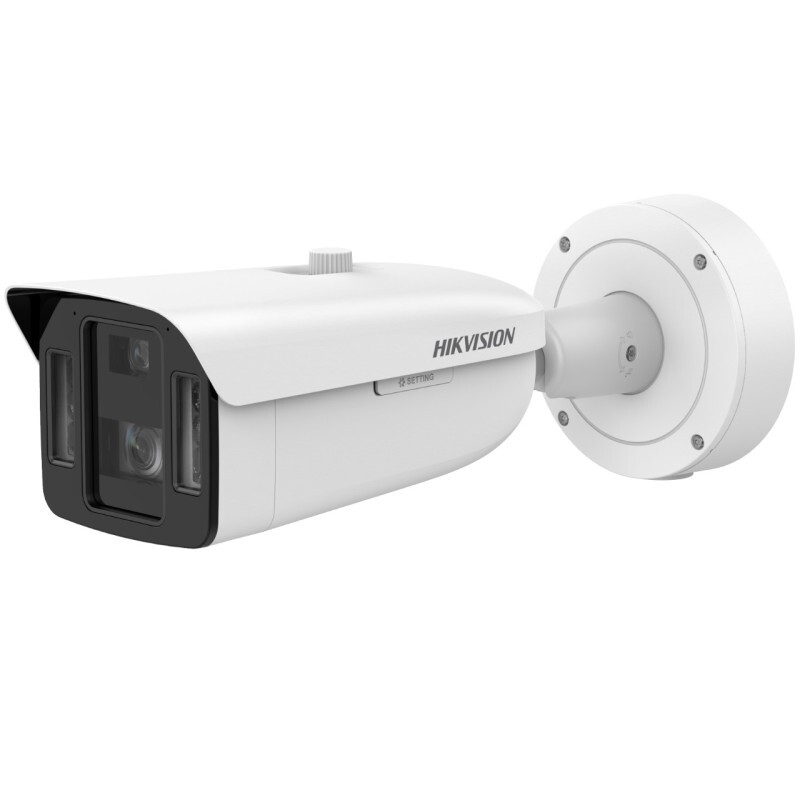

HIKVISION 4Mp DeepinView multi-sensor bullet camera
- High quality imaging with 4 MP resolution in channel 1 and 4 MP resolution in channel 2
- Adopt dual-channel design so you can get details in channel 1 and panorama view in channel 2
- Excellent low-light performance via DarkFighter and ColorVu technology
- Clear imaging against strong back light due to 140 dB WDR technology
- Efficient H.265+ compression technology to save bandwidth and storage
- 5 streams to meet a wide variety of applications
- Water and dust resistant (IP67) and vandal proof (IK10)
(IDS-2CD8A46G0-XZHSY-32M)
- Camera
- Image Sensor
Channel 1: 1/1.8" Progressive Scan CMOS,
Channel 2: 1/1.8 Progressive Scan CMOS"
- Max. ResolutionChannel 1: 2688 × 1520, channel 2: 2560 × 1440
- Min. Illumination
Channel 1: Color: 0.0005 Lux @ (F1.2, AGC ON), 0 Lux with Light, B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR,
Channel 2: Color: 0.0003 Lux @ (F1.0, AGC ON), 0 Lux with Light, B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR
- Shutter Time1 s to 1/100,000 s
- Day & Night
IR cut filter,
Blue glass module (less ghost phenomenon)
- Angle AdjustmentPan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360°
- Lens
- Focal Length & FOV
Channel 1: 8 to 32 mm : horizontal FOV 42.5° to 15.2°, vertical FOV: 23.4° to 8.7°, diagonal FOV 49.7° to 17.3°
Channel 2: 4 mm: horizontal FOV: 89°, vertical FOV: 45°, diagonal FOV: 107°
- FocusChannel 1: Auto, semi-auto, manual
- Iris Type
Channel 1: P-iris,
Channel 2: Fixed
- Aperture
Channel 1: Constant F1.6 throughout the zoom range,
Channel 2: F1.0
- DORI
- DORI
Channel 1:
Wide: D: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15 m
Tele: D: 400 m, O: 158.7 m, R: 80 m, I: 40 m
Channel 2:
D: 77 m, O: 30.5 m, R: 15.4 m, I: 7.7 m
- Illuminator
- Supplement Light TypeHybrid (IR and White Light)
- Supplement Light Range
Channel 1: up to 100 m,
Channel 2: up to 30 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- Video
- Main Stream
Channel 1:
50 Hz: 50 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 60 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
Channel 2:
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub-Stream
Channel 1:
50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
Channel 2:
50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
- Third Stream
Channel 1:
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Channel 2:
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
- Fourth Stream
Channel 1:
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Channel 2:
50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
- Fifth Stream
Channel 1:
50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
Channel 2:
50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
- Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
Fourth stream: H.265/H.264/MJPEG,
Fifth stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR,VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region Of Interest (ROI)4 fixed regions for each stream
- Target CroppingYes
- Audio
- Audio TypeMono sound
- Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
- Simultaneous Live ViewUp to 20 channels
- APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3
- Network Storage
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- ClientiVMS-4200,Hik-Connect
- Web Browser
Plug-in required live view: IE 10, IE11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
- Image
- Image Parameters SwitchYes
- Image SettingsSaturation,brightness,contrast,sharpness,AGC,white balance,adjustable by client software or web browser
- Day/Night Switch
Channel 1: Day, Night, Auto, Schedule, Alarm Trigger, Video Trigger,
Channel 2: Day, Night, Auto, Schedule, Alarm Trigger
- Wide Dynamic Range (WDR)140 dB
- Image Enhancement
Channel 1: BLC, HLC, 3D DNR, Defog, EIS,
Channel 2: BLC, HLC, 3D DNR, Defog
- Privacy Mask8 programmable polygon privacy masks
- Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
- Interface
- Video Output1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
- Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
- Alarm2 inputs, 2 outputs (max. 24 VDC, 1 A)
- Audio
1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
- RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Reset KeyYes
- Power Output12 VDC, max. 50 mA
- Event
- Basic EventMotion detection,video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full,HDD error,video quality diagnosis, vibration detection
- Smart EventScene change detection,audio exception detection,defocus detection
- LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,white light flashing
- Deep Learning Function
- Multi-Target-Type Detection
Channel 1,
Detects up to 60 targets simultaneously,
Supports simultaneous detection and capture of human body, face and vehicle,
Gets 7 face features,
Gets 13 human body features,
Gets 2 vehicle features
- Face Capture
Channel 1,
Detects up to 120 faces simultaneously,
Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°,
Uploads face with background and closed-up face pictures
- Face Comparison
Channel 1,
Up to 10 face libraries. 30,000 faces for each library. 150,000 faces in total. ,
Recognizes face identity via face modeling, grading and comparing to those in face library,
Supports face library encryption
- Perimeter Protection
Channel 1,
Line crossing, intrusion, region entrance, region exiting,
Support alarm triggering by specified target types (human and vehicle),
Channel 2,
Line crossing, intrusion, region entrance, region exiting,
Support alarm triggering by specified target types (human and vehicle)
- Road Traffic And Vehicle Detection
Channel 1,
Blocklist and allowlist: up to 10,000 records
Support license plate recognition of motorcycles (only in checkpoint scenario)
Support vehicle attribute detection, including vehicle type, color, brand, etc. (City Street mode is recommended.)
License plate recognition rate ≥98%
- General
- Power
Three-core terminal block,
12 VDC ± 20%, 1.90 A, max. 22.7 W,
24 VAC ± 20%, 1.39 A, max. 22.3 W,
PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.59 A to 0.44 A, max. 24.7 W
- MaterialAluminum alloy body
- DimensionØ140 mm × 410.1 mm (Ø5.5" × 16.1")
- Package Dimension462 mm × 197 mm × 195 mm (18.2" × 7.76" × 7.68")
- WeightApprox. 2.2 kg (4.85 lb.)
- With Package WeightApprox. 3.38 kg (7.45 lb.)
- Storage Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions
With -H: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing),
Without -H: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General FunctionHeartbeat,one-key reset,mirror,password protection,flash log,anti-banding
- HeaterYes
- DemistYes
- Approval
- EMC
FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
- Safety
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
LOA: IEC/EN 60950-1
- Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- ProtectionIP67: IEC 60529-2013,IK10: IEC 62262:2002
- Anti-Corrosion Protection-Y model: NEMA 4X (NEMA 250-2018)
- Automotive And RailwayEN50121-4
- OtherPVC FREE
SKU | IDS-2CD8A46G0-XZHSY-32M |
Brand | HIKVISION |
Shipping Weight | 2.0000kg |
