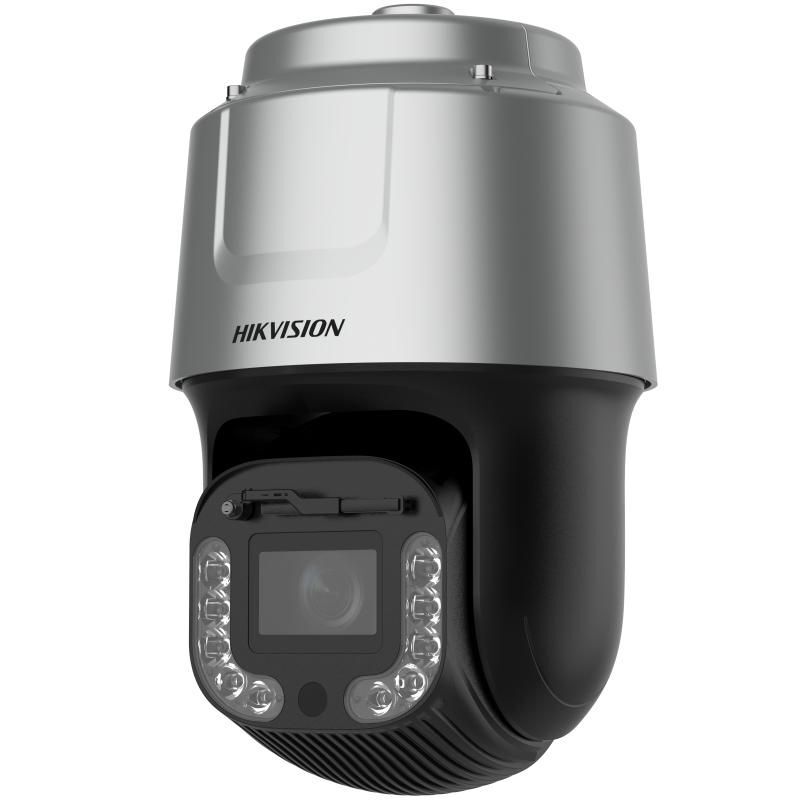

Camera Image Sensor 1/1.2? progressive scan CMOS Min. Illumination Color: 0.002 Lux @(F1.6, AGC ON),B/W: 0.0002 Lux @(F1.6, AGC ON),0 Lux with IR Shutter Speed 1/1 s to 1/30,000 s Slow Shutter Yes Day & Night IR cut filter Zoom 42x optical, 16x digital Max. Resolution 3840 × 2160 Lens Focus Auto, semi-auto, manual, rapid focus Focal Length 7.5mm to 315mm?42X Optical Zoom Speed Approx. 7.5 s FOV Horizontal field of view: 60.4° to 1.7° (wide-tele), Vertical field of view: 36.2° to 0.9° (wide-tele), Diagonal field of view: 67.8° to 2.2° (wide-tele) Aperture Max. F1.6 Illuminator Supplement Light Type IR Supplement Light Range IR Distance: up to 500 m Smart Supplement Light Yes PTZ Movement Range (Pan) 360°,Smart Pan-Tilt Correction Movement Range (Tilt) -20° to 90° (auto flip),Smart Pan-Tilt Correction Pan Speed Pan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s Tilt Speed Tilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s Proportional Pan Yes Presets 300 Patrol Scan 8 patrols, up to 32 presets for each patrol Pattern Scan 4 pattern scans, record time over 10 minutes for each scan Power-off Memory Yes Park Action Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan 3D Positioning Yes PTZ Status Display Yes Preset Freezing Yes Scheduled Task Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output Video Main Stream 50 Hz: 50 fps (3840 × 2160, 2560 × 1440), 100 fps (1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 60 fps (3840 × 2160, 2560 × 1440), 120 fps(1920 × 1080, 1280 × 960, 1280 × 720) *High frame rate is supported under monitoring mode only. Sub-Stream 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 24 fps (704 × 480, 640 × 480, 352 × 240) Third Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 24 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG Video Bit Rate 32 Kbps to 16384 Kbps H.264 Type Baseline Profile/Main Profile/High Profile H.265 Type Main Profile Scalable Video Coding (SVC) H.264 and H.265 encoding Region of Interest (ROI) 8 fixed regions for each stream Audio Audio Compression G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM?AAC_LC Audio Bit Rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)16 Kbps to 64 Kbps(AAC_LC) Audio Sampling Rate MP2L2: 16kHz, 32kHz, 48kHz,AAC-LC: 16kHz, 32kHz, 48kHz,MP3: 8kHz, 16KHz, 32KHz, 48KHz,PCM: 8kHz, 16kHz, 32kHz, 48kHz Environment Noise Filtering Yes Network Smooth Streaming Yes Security Password protection,complicated password,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,IP address filter,basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,control timeout settings,security audit log,TLS 1.3,host authentication (MAC address),TPM 2.0 (FIPS 140-2 level 2) Network Storage NAS (NFS, SMB/ CIFS), ANR Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour?WebSocket?WebSockets API ISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M)?OTAP Simultaneous Live View Up to 20 channels User/Host Up to 32 users 3 user levels: administrator, operator, and user Client HikCentral, iVMS-4200, Hik-Connect Web Browser IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+ Image Day/Night Switch Day, night, auto, scheduled-switch Image Enhancement BLC, HLC, 3D DNR Wide Dynamic Range (WDR) 140 dB Defog Optical defog Image Stabilization OIS Regional Exposure Yes Regional Focus Yes Image Settings Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser Image Parameters Switch Yes Privacy Mask Up to 24 masks, mosaic mask, mask color configurable, rectangle region SNR ? 52 dB Supplement Detection Satellite Positioning No Gyroscope Yes Compass No Interface Video Output 1.0 V[p-p]/75 ?, PAL, NTSC, BNC connector Reset Yes Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port On-board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC cards, up to 256 GB Alarm 7 inputs, 2 outputs Audio 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 K? ± 10%; 1 output (line out), line level, output impedance: 600 ? RS-485 Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive Event Basic Event Motion detection,video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),alarm input and output,vandal-proof alam,audio exception detection,unattended baggage detection, object removal detection Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,and PTZ actions (such as preset, patrol scan, pattern scan) Deep Learning Function Perimeter Protection Line crossing detection, region entrance detection, intrusion detection, region exiting detection Multi-Target-Type Detection Supports simultaneous detection and capture of human body, face and vehicle, Gets 7 face features, 14 human body features and 8 vehicle features Face Capture Detects up to 30 faces simultaneously, Uploads face with background and closed-up face pictures,Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture Face Comparison Up to 10 face libraries. 30000 faces for each library. 150000 faces in total, Recognizes face identity via face modeling, grading and comparing to those in face library, Supports face library encryption Road Traffic and Vehicle Detection Smart Function: Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc. Support vehicle and non-vehicle counting Blocklist and allowlist: up to 10,000 records LPR Countries/Regions: 4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions Accuracy (Under recommended installation and lighting conditions): License plate recognition rate ?98% Capture rate ?99% Driving direction accuracy rate ?98% Vehicle Capture Speed: Front installation in checkpoint scenario: up to 120 km/h Side installation: up to 80 km/h Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode Linkage and Tracking Smart Tracking Manual tracking, auto-tracking 3.0 Object Tracking Support person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded. General Power 36 VDC (Max. 62 W, including max. 12 W for IR and max. 8 W for heater), PoE 802.3 bt (Max. 51 W, including max. 12 W for IR and max. 8 W for heater) Operating Condition Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ? 95% General Function IP address filter,three streams,one-key reset,password protection,flash log Vandal-proof Alarm No Heater Yes De-icing No Demist Yes Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian Wiper Yes. Rain-sensing auto control Dimension Ø 267 mm × 430 mm (Ø 10.51" × 16.93") Weight Approx. 9.6 kg (21.16 lb.) Approval EMC CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2019); KC (KN 32: 2015, KN 35: 2015) Safety CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014+A11:2017), BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (SANS IEC60950-1) Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) Anti-Corrosion Protection NEMA 4X Protection IP67 Standard, IK10 (IEC 62262:2002), 6000V Lightning Protection, Surge Protection and Voltage Transient Protection,Nema 4x
