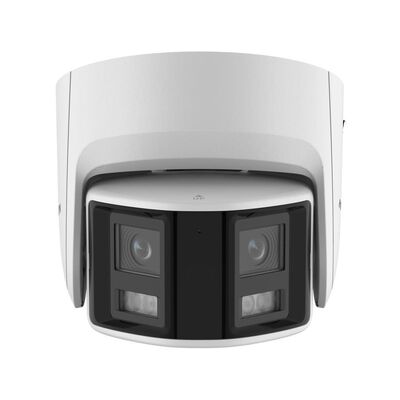

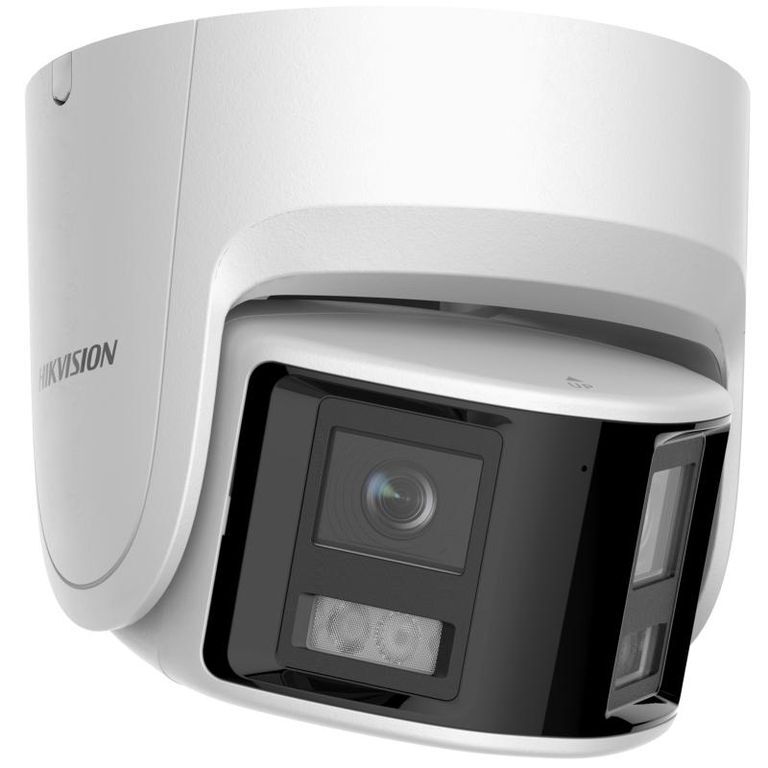

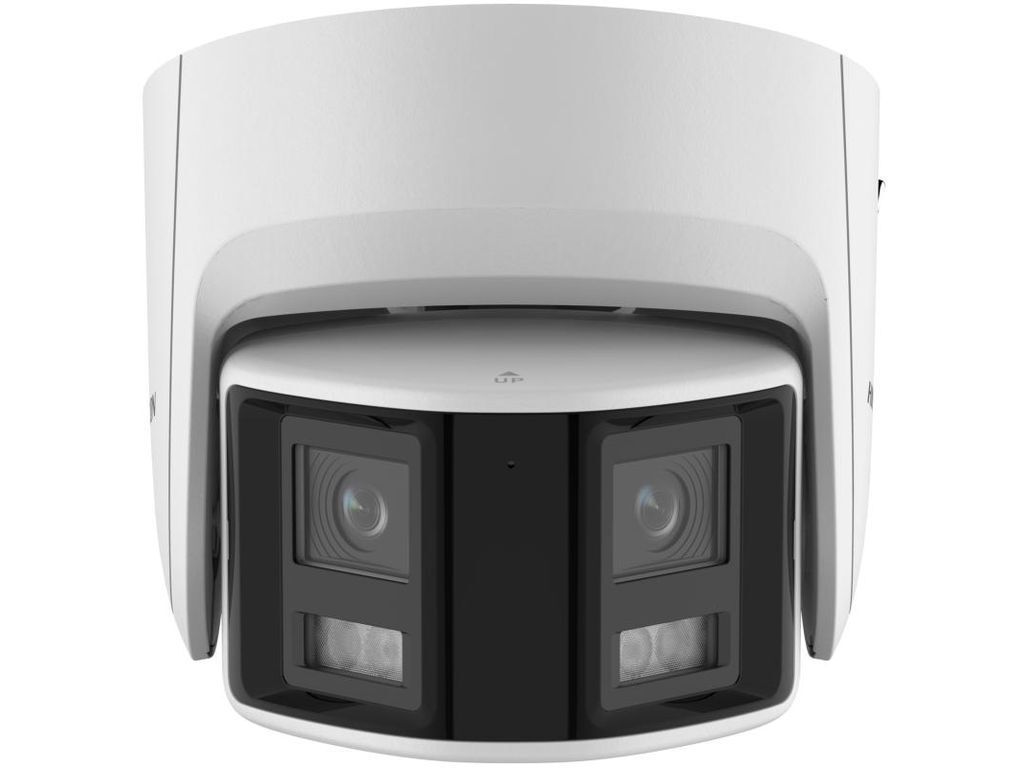

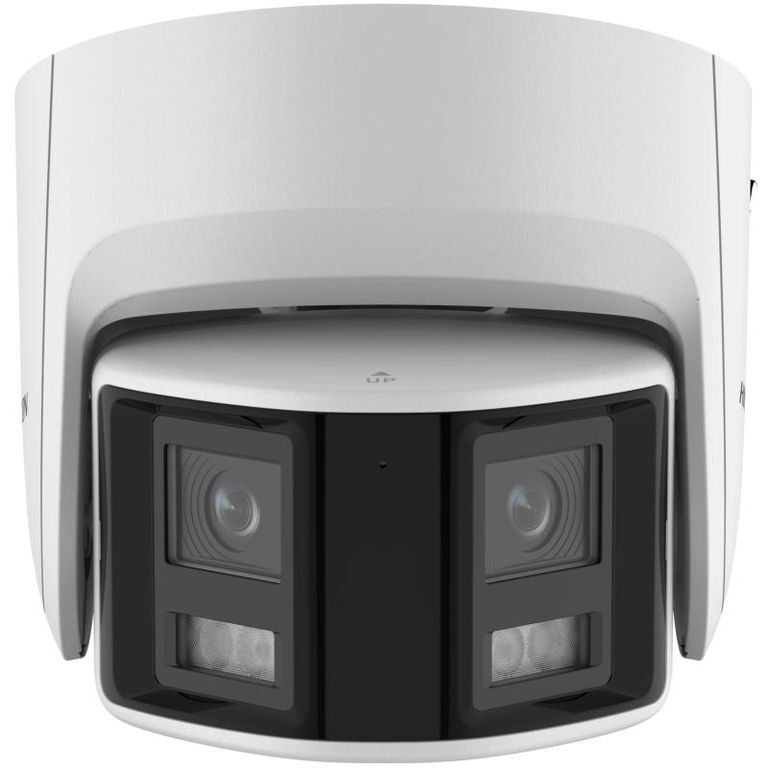

6 MP Panoramic ColorVu Fixed Turret Network Camera

High quality imaging with 6 MP resolution

One image that presents all the scenes covered by the camera

24/7 colorful imaging

Efficient H.265+ compression technology

Clear imaging against strong back light due to 130 dB WDR technology

Focus on human and vehicle classification based on deep learning

Active strobe light and audio alarm to warn intruders off

Water and dust resistant (IP67)

(DS-2CD2367G2P-LSU-SL)

Camera
Image Sensor 2 × 1/2.5" Progressive Scan CMOS
Max. Resolution 3632 × 1632
Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
Shutter Time 1/3 s to 1/100,000 s
Angle Adjustment Pan: 0° to 30°,tilt: -75° to 75°

Lens
Lens Type Fixed focal lens, dual lens, 2.8 mm
Focal Length & FOV 2.8 mm, horizontal FOV: 180°, vertical FOV: 81°
Lens Mount M12
Iris Type Fixed
Aperture F1.0
Depth of Field 2 m to ∞

DORI
DORI 2.8 mm, D: 45 m, O: 17.5 m, R: 9 m, I: 4.5 m

Illuminator
Supplement Light Type White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes

Video
Main Stream
50 Hz: 20 fps (3632 × 1632)
60 Hz: 20 fps (3632 × 1632)
Sub-Stream
50 Hz: 20 fps (1200 × 536, 960 × 432)
60 Hz: 20 fps (1200 × 536, 960 × 432)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile,Main Profile,High Profile
H.265 Type Main Profile
Bit Rate Control CBR,VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 1 fixed region(s) for main stream

Audio
Audio Type Mono sound
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering Yes

Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, Websocket, Websockets
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
Network Storage
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client iVMS-4200,Hik-Connect,Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Parameters Switch Yes
Image Settings Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switch Day,Night,Auto,Schedule
Wide Dynamic Range (WDR) 130 dB
SNR ≥ 52 dB
Image Enhancement BLC,HLC,3D DNR

Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone Yes
Built-in Speaker Max. power consumption: 1.2 W, max. sound pressure level: 10 cm: 95 dB.
Audio
1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 1 input(s), 1 output(s) (max. 24 VDC/24 VAC, 1 A)
Reset Key Yes

Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),alarm input and output,flashing alarm light output, audible alarm output, exception
Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)),
Scene change detection
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,white light flashing

General
Power
12 VDC ± 25%, 0.88 A, max. 10.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
Material
Base: metal, cover: metal
Dimension
SKU DS-2CD2367G2P-LSU-SL Brand HIKVISION Shipping Weight 2.0000kg

Manufacturer Warranty: 3 Years Manufacturer Warranty

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

HIKVISION COLORVU 2CD2367G2P-LSU-SL 6MP DUAL LENS STROBE AUDIO TURRET,2.8MM,IR 30M,MIC

Name: HIKVISION COLORVU 2CD2367G2P-LSU-SL 6MP DUAL LENS STROBE AUDIO TURRET,2.8MM,IR 30M,MIC
Brand: HIKVISION
SKU: DS-2CD2367G2P-LSU-SL
Price: 634 AUD
Availability: InStock
