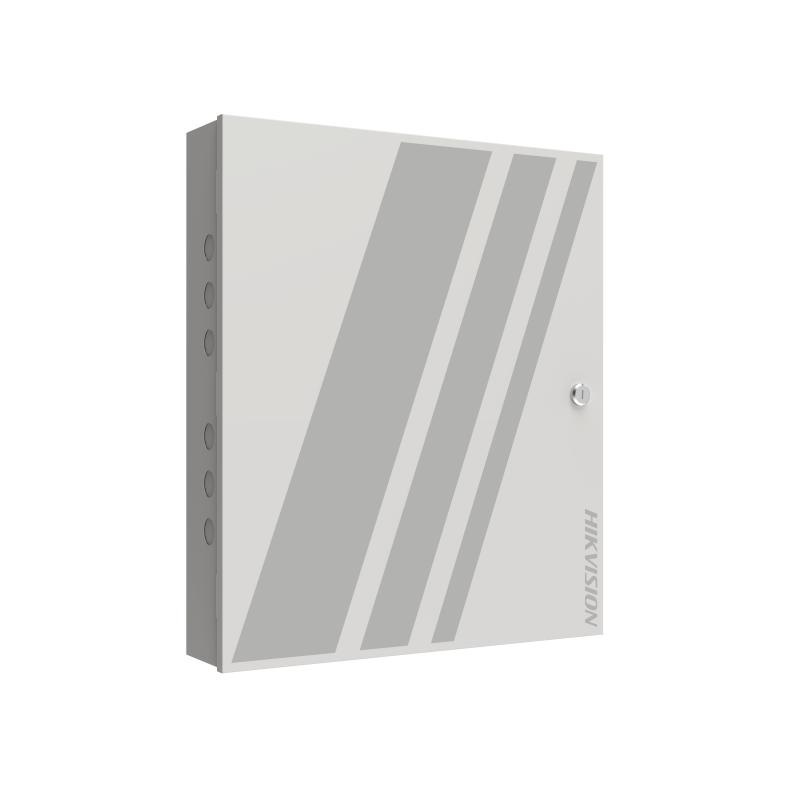

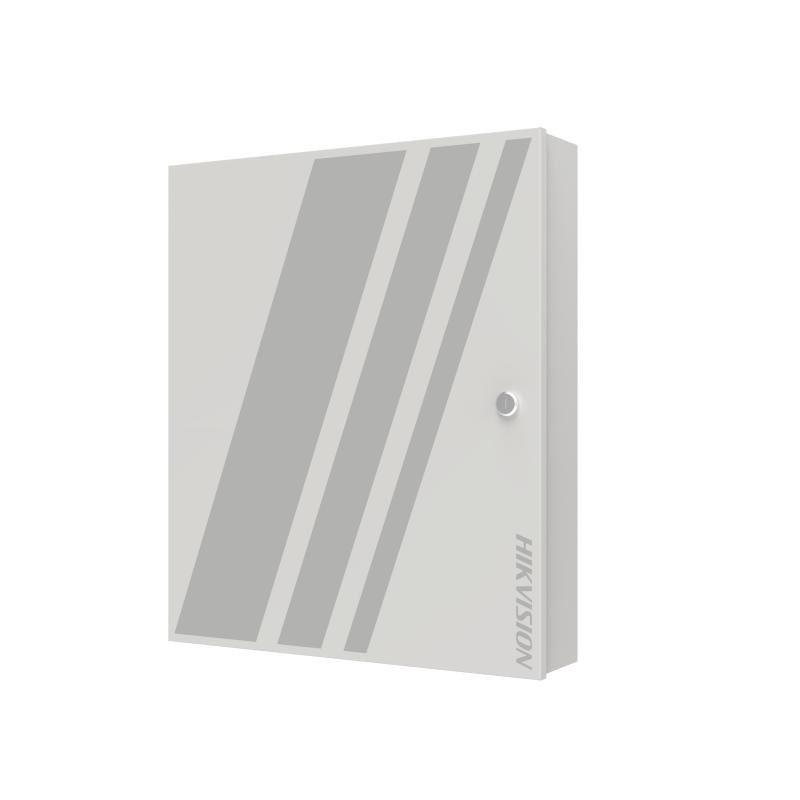

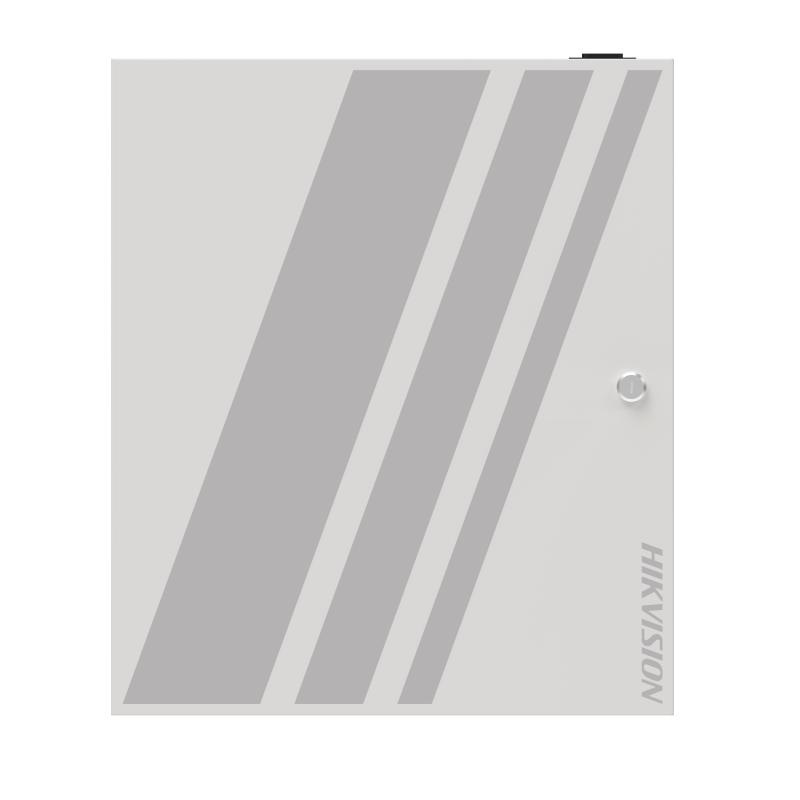

Hikvision DS-K2708X Access Controller
Model # DS-K2708X
-
SKU: DS-K2708X
- Pick Up Available
- Australian Warranty
- Checkout Securely
Hikvision DS-K2708X Access Controller
- Supports 8-door control. It is formed by 2 DS-K2M002X access modules, and one 4-doors access controller
- Access controller: downstream RS-485 redundancy wiring design to ensure communication stability. 5-ch downlink RS-485 interface supports two applications: 1. When 4-ch RS-485 communication, the 5th RS-485 can be used as a redundant application; 2. 4-ch RS-485 forms 2 groups of dual-bus loops with physical isolation. It is recommended that you do not have more than 16 access modules attached to each loop bus. Access Module: supports 8-ch RS-485 interface for card reader connecting
- Web configuration management. All configurations can be realized via web without software application
- Supports professional access control applications such as multi-door interlocking and anti-passback
- Supports backup battery access. Charging and discharging are available
- It has status indicators such as power supply, communication and operation, which is convenient for equipment health detection
(DS-K2708X)
- System
- Operating systemLinux
- Network
- Wired network1, 10/100/1000 Mbps self-adaptive
- Interface
- Network interface1
- Lock control
8, including 4 on access controller and 4 on access modules
Note: The cabinet contains 1 DS-K2704X(P) access controller and 2 DS-K2M002X access modules.
- Exit button
8, including 4 on access controller and 4 on access modules
Note: The cabinet contains 1 DS-K2704X(P) access controller and 2 DS-K2M002X access modules.
- Door contact input
8, including 4 on access controller and 4 on access modules
Note: The cabinet contains 1 DS-K2704X(P) access controller and 2 DS-K2M002X access modules.
- Alarm input
16, including 8 on access controller and 8 on access modules
Note: The cabinet contains 1 DS-K2704X(P) access controller and 2 DS-K2M002X access modules.
- Alarm output
8, including 4 on access controller and 4 on access modules
Note: The cabinet contains 1 DS-K2704X(P) access controller and 2 DS-K2M002X access modules.
- TAMPER1
- RS-485
15, including 7 on access controller and 8 on access modules
7 on access controller: 2 for card reader, 5 for access modules (4 for communication, each interface can connect up to 16 access modules; 1 for redundancy)
8 on access modules: 4 for card reader, 4 for access controller
- Wiegand
8, including 4 on access controller and 4 on access modules
Note: The cabinet contains 1 DS-K2704X(P) access controller and 2 DS-K2M002X access modules.
- USB1, USB 2.0
- Fire interface1
- Capacity
- User capacity100,000
- Fingerprint capacity10,000
- Card capacity200,000
- Event capacity600,000
- Linked door capacity8, including 4 on access controller and 4 on access modules
- Linked card reader capaciry
16 RS-485 card readers (OSDP protocol) and 8 Wiegand card readers;
8 RS-485 card readers on the access controller and 8 on access modules (4 for each);
4 Wiegand card readers on the access controller and 2 on access modules
- Authentication
- Fingerprint recognition duration＜ 1 s
- General
- Indicator
DS-K2704X(P): 12 indicators, 1 for indicating power status, 1 for running status, 1 for wired network status, 5 for RS-485 status, and 4 for door status
DS-K2M002X: 6 indicators, 1 for indicating power status, 1 for running status, 2 for RS-485 status, and 2 for door status
- BatteryCharge and discharge
- Power supply100 VAC to 240 VAC
- Power consumption≤ 200 W
- Working temperature-10 °C to 55 °C (14 °F to 131 ° F)
- Working humidity0% to 90% (No condensing)
- InstallationWall mounting
- LanguageEnglish, Thai, Traditional Chinese, Indonesian, Vietnamese, Arabic, Spanish (Europe), Spanish (South America), Italian, French, Dutch, Russian, Ukrainian, Portuguese (Europe), Portuguese (Brazil), Serbian, Croatian, Bulgarian, German, Greek, Romanian
- Function
- Configuration via Web browserSupport
- Multi-factor authenticationSupport
- First person inSupport
- Anti-passbackSupport 32 routes (64 card readers each)
- Multi-door interlockingSupport 32 groups (32 doors each)
| SKU | DS-K2708X |
| Brand | HIKSVISION |
| Shipping Weight | 2.0000kg |
Manufacturer Warranty: 2 years Manufacturer Warranty
