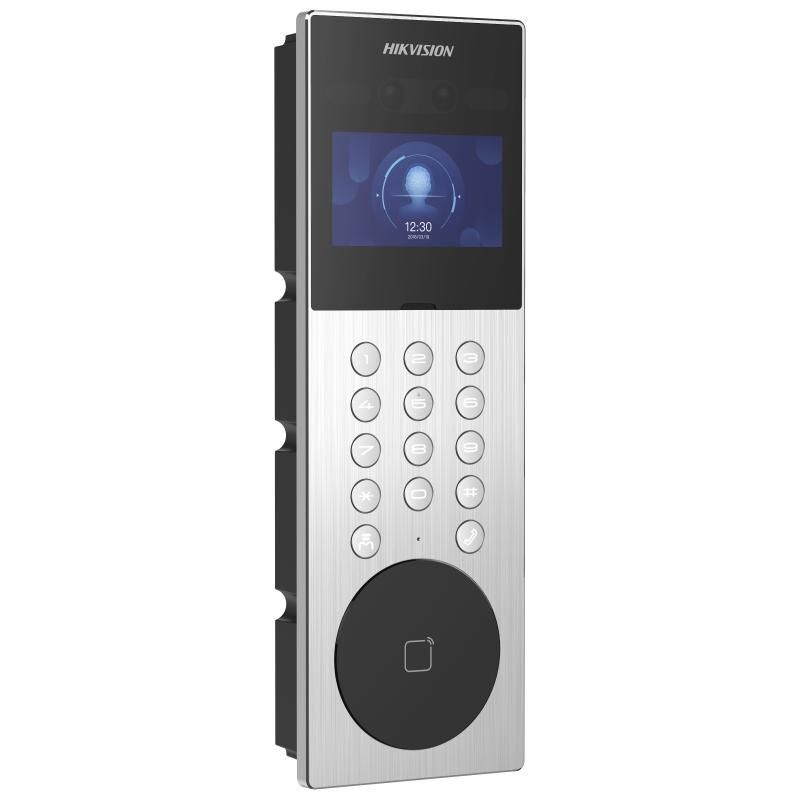

System parameters Operation system Linux ROM 1 GB RAM 4 GB Processor Embeded high performance processor Display parameters Screen size 4.3-inch Operation method / Type Colorful LCD Resolution 800 × 480 Video parameters Lens 2 MP HD camera Resolution Main stream: 1080p@30fps, 720p@30fps Sub stream: VGA@25fps, VGA@30fps FOV / Wide dynamic range (WDR) Digital WDR/120 dB Supplement light IR light, up to 3 m Video compression standard H.264 Audio parameters Audio input 1 built-in omnidirectional microphone Audio compression standard G.711 U?G.711 A?Opus?AAC-LD?AAC-LC?G.726?G.722.1 Audio output 1 built-in loudspeaker Audio compression bitrate 64 Kbps Audio quality Noise suppression and echo cancellation Volume adjustment Adjustable Capacity User capacity 10,000 Face capacity 5,000 Card capacity 50,000 Network parameters Network protocol TCP/IP, RTSP Wi-Fi / Bluetooth / 3G/4G / Device interfaces Alarm input 4 Network interface 1 RJ-45 10/100/1000 Mbps self-adaptive TAMPER 1 Exit button 1 RS-485 2 RS-485 (Half duplex, HIKVISION) USB / Wiegand / TF card / Alarm output / Lock control 2 relays, Max. 30 VDC, 2 A Door contact input 1 General Button Physical buttons Installation Flush mounting Indicator / Weight Net weight: 1.186 kg Gross weight: 1.471 kg Protective level IP65 Working temperature -30 °C to 60 °C (-22 °F to 140 °F) Working humidity 10% to 90% (no-condensing) Dimension (W × H × D) 373 mm × 124 mm × 43.7 mm (14.69" × 4.88" × 1.72") Power supply 12 VDC, 1.5 A Application environment Outdoor Power consumption ? 13 W Language English, TraChinese, Brazilian Portuguese, Spanish, Russian, Turkish, Arabic, Vietnamese, Kazak, Uzbek, Ukrainian, Estonia, Lithuanian, Latvian, Czech
