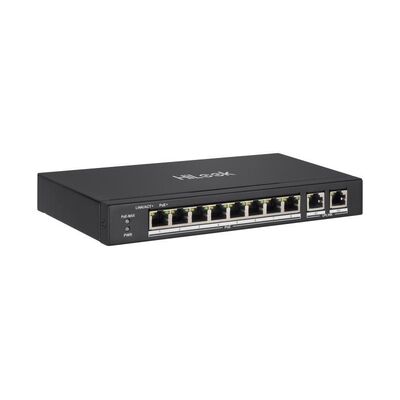

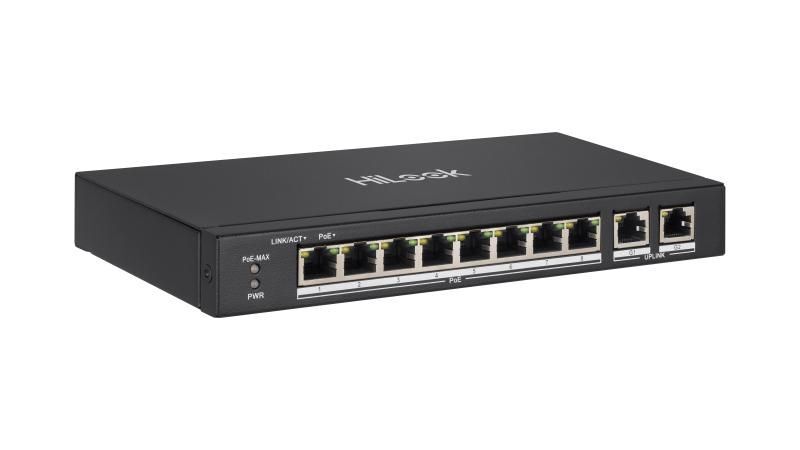

PoE Power Supply PoE Standard Ports 1 to 8: IEEE 802.3af, IEEE 802.3at PoE Power Pin Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously. PoE Port Ports 1 to 8 Max. Port Power Ports 1 to 8: 30 W PoE Power Budget 60 W Network Parameters Port Number 8 × 10/100Mbps PoE ports, and and 2 × Gigabit RJ45 ports Port Type RJ45 port, full duplex, MDI/MDI-X adaptive Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab Forwarding Mode Store-and-forward switching Working Mode Standard mode (default), Extend mode Ports for Long-Distance Transmission Ports 1 to 8 MAC Address Table 16 K Switching Capacity 5.6 Gbps Packet Forwarding Rate 4.1664 Mpps Internal Cache 4 Mbits Dialing Function Long Range Ports 1 to 8: up to 250 m. General Shell Metal material, fan-free design Gross Weight 1.20 Net Weight 0.555 Dimension (L × H × D) 217.6 mm × 103.35 mm × 27.8 mm (8.57” × 4.07” × 1.09”) Operating Temperature -10°C to 40°C (14°F to 104°F) Storage Temperature -40°C to 85 °C -40°F to 185°F) Operating Humidity 5% to 95% (no condensation) Storage Humidity 5% to 95% (no condensation) Power Supply 48 VDC, 1.35 A Power Consumption in Idle < 5 W Power Souce 65 W Max. Power Consumption 65 W Approval EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000- 3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016) Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CELVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013) Chemistry CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Manufacturer Warranty : 2 years Manufacturer Warranty
