6 MP AI Fixed Turret Network Camera High quality imaging with 6 MP resolution human and vehicle classification based on deep learning Built-in arrayed dual-microphone for real-time high quality audio security Clear imaging against strong back light due to 120 dB true WDR technology Efficient H.265+ compression technology Water and dust resistant (IP67)

(311330524)

Camera Image Sensor 1/2.4" Progressive Scan CMOS Max. Resolution 3200 × 1800 Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),0 Lux with light Shutter Time 1/3 s to 1/100,000 s Day & Night IR cut filter Angle Adjustment Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360° Lens Lens Type Fixed focal lens, 2.8 and 4 mm optional Focal Length & FOV 2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127° 4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° Lens Mount M12 Iris Type Fixed Aperture F1.6 Depth of Field 2.8 mm: 1.8 m to ? 4 mm: 3.1 m to ? DORI DORI 2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m 4 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m Illuminator Supplement Light Type IR Supplement Light Range Up to 30 m Smart Supplement Light Yes IR Wavelength 850 nm Video Main Stream 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. Video Compression Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings. Video Bit Rate 32 Kbps to 16 Mbps H.264 Type Baseline Profile,Main Profile,High Profile H.265 Type Main Profile Scalable Video Coding (SVC) H.264 and H.265 encoding Bit Rate Control CBR,VBR Region of Interest (ROI) 1 fixed region for main stream and sub-stream Target Cropping Yes Audio Audio Compression -2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate -2U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Audio Sampling Rate -2U: 8 kHz/16 kHz/32 kHz/48 kHz Environment Noise Filtering -2U: Yes Network Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets Simultaneous Live View Up to 6 channels API ONVIF (Profile S, Profile G),ISAPI,SDK,ISUP Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface User/Host Up to 32 users 3 user levels: administrator, operator, and user Client iVMS-4200,Hik-Connect,Hik-Central Network Storage NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported. Web Browser Plug-in required live view: IE 11, Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+, Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+ Image Image Parameters Switch Yes Day/Night Switch Day,Night,Auto,Schedule Wide Dynamic Range (WDR) 120 dB SNR ? 52 dB Image Enhancement BLC,HLC,3D DNR Privacy Mask 8 programmable polygon privacy masks Interface Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port Audio Built-in Microphone: -2U: Arrayed dual-microphone On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB Reset Key Yes Event Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture Deep Learning Function Perimeter Protection Line crossing, intrusion Support alarm triggering by specified target types (human and vehicle) General Power 12 VDC ± 25%, 0.66 A, max. 8 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 9.5 W Material Metal Dimension Ø127.3 mm × 96.3 mm (Ø5.0" × 3.8") Package Dimension 150 mm × 150 mm × 141 mm (5.9" × 5.5" × 5.5") Weight Approx. 515 g (1.1 lb.) With Package Weight Approx. 755 g (1.7 lb.) Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian General Function Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding Approval EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 Safety CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1 Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 Protection IP67: IEC 60529-2013
SKU 311330524
Brand HIKVISION
Shipping Weight 1.0000kg
Manufacturer Warranty : 3 years Manufacturer Warranty

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

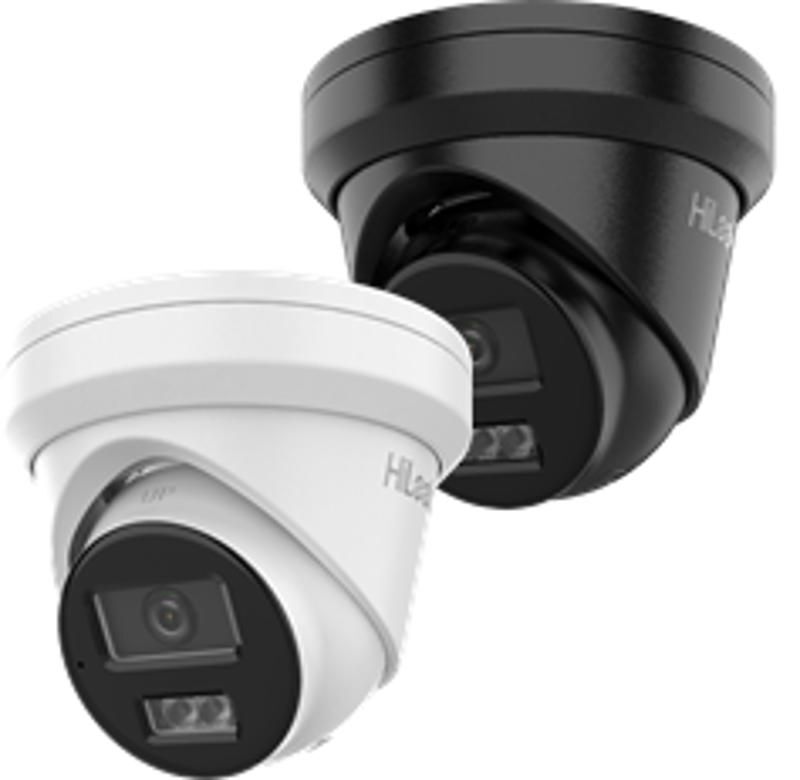

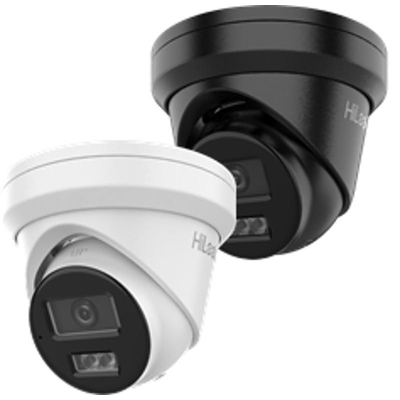

HIKVISION HILOOK T361H-MU 6MP TURRET CAMERA BLACK FIXED 2.8MM - 311330524

Model # 311330524

  • SKU: 311330524

$116.00
In Stock
