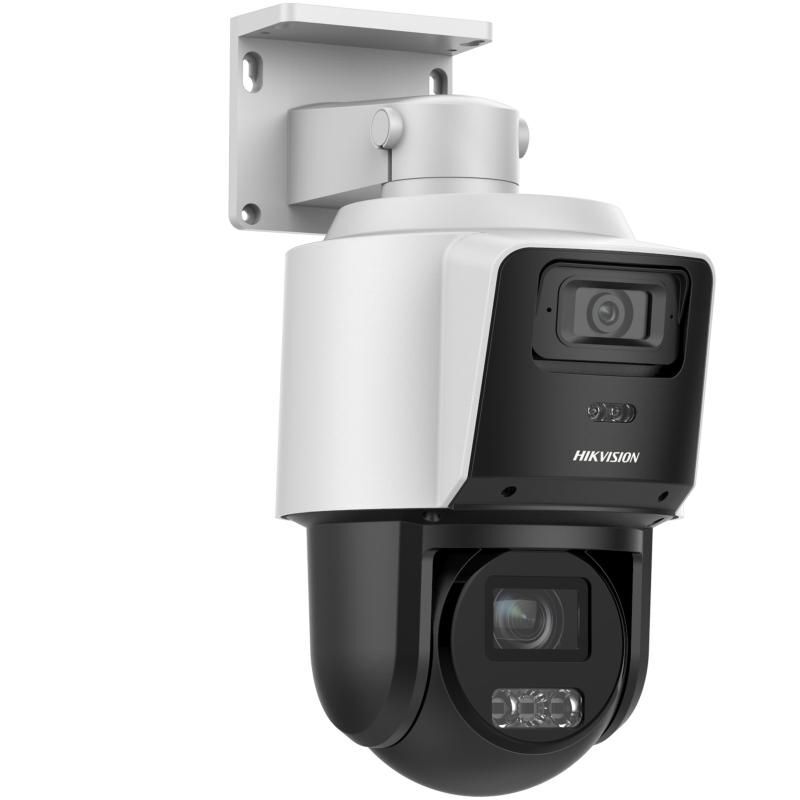

Camera Image Sensor [Bullet channel]: 1/2.8" Progressive Scan CMOS; [PTZ channel]: 1/2.8" progressive scan CMOS Min. Illumination [Bullet channel]: Color: 0.01 Lux @ (F1.6, AGC ON)?B/W: 0.005 Lux @ (F1.6?AGC ON), 0 Lux with IR; [PTZ channel]: Color: 0.01 Lux @ (F1.5, AGC ON), B/W: 0.005Lux @ (F1.5, AGC ON), 0 Lux with IR Shutter Speed 1 s to 1/30,000 s Slow Shutter yes Day & Night ICR Zoom [PTZ channel] 4 × optical, 16 × digital Max. Resolution [Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440 Lens Focus auto,manual,semi-auto Focal Length [Bullet channel]: 2.8 mm; [PTZ channel]: 2.8 to 12 mm, 4 × optical Zoom Speed [PTZ channel]: approx. 3.3 s FOV [Bullet channel] horizontal field of view: 114.9°, vertical field of view: 62.4°, diagonal field of view: 130.7°, [PTZ channel] horizontal field of view: 98° to 34.2°, vertical field of view: 52° to 19.2°, diagonal field of view: 111° to 39° Aperture [Bullet channel]: F1.6; [PTZ channel]: F1.5 to F2.9 Illuminator Supplement Light Type [Bullet channel] Hybrid (IR and White Light), [PTZ channel] IR Smart Supplement Light Yes Supplement Light Range [PTZ channel]: IR Distance: up to 40 m; [Bullet channel]: IR Distance: up to 30 m; White Light Distance: 30 m PTZ Movement Range (Pan) 0° to 350° Movement Range (Tilt) [Bullet channel] 7° to 17° (manually adjust), [PTZ channel] -5° to 90° Pan Speed pan speed: configurable from 0.1° to 30°/s; preset speed: 30°/s Tilt Speed tilt speed: configurable from 0.1° to 30°/s, preset speed 30°/s Proportional Pan yes Presets 300 Patrol Scan 8 patrols, up to 32 presets for each patrol Power-off Memory yes Park Action preset,patrol scan 3D Positioning yes PTZ Status Display yes Preset Freezing yes Scheduled Task dome reboot,preset,patrol scan,dome adjust,aux output Video Region of Interest (ROI) 1 fixed regions for main stream Main Stream [Bullet channel]: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) [PTZ channel]: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) Sub-Stream [Bullet channel]: 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) [PTZ channel]: 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) Third Stream [Bullet channel]: 50 Hz: 25 fps (1280 × 720?640 × 480?640 × 360) 60 Hz: 30 fps (1280 × 720?640 × 480?640 × 360) [PTZ channel]: 50 Hz: 25 fps (1280 × 720?640 × 480?640 × 360) 60 Hz: 30 fps (1280 × 720?640 × 480?640 × 360) Video Compression H.265,H.264,MJPEG Video Bit Rate 32 kbps to 16384 kbps H.264 Type main profile,baseline profile,high profile H.265 Type main profile Scalable Video Coding (SVC) yes Audio Audio Compression G.711,G.722.1,G.726,MP2L2,PCM,MP3,AAC Audio Bit Rate MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps; AAC : 16 kbps, 32 kbps, 64 kbps; MP3: 8 kbps, 16 kbps, 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps Audio Sampling Rate MP2L2: 16 kHz,AAC-LC: 16 kHz,PCM: 8 kHz, 16 kHz,MP3: 8 kHz, 16 kHz Environment Noise Filtering yes Network API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP Network Storage NAS (NFS, SMB/ CIFS),ANR, ANR Protocols TCP/IP,SMTP,RTSP,FTP,WebSockets,IGMP,WebSocket,Qos,RTCP,HTTPS,PPPoE,SNMP,NTP,RTP,UDP,DNS,HTTP,DHCP,Bonjour,802.1x,IPv4/IPv6,DDNS,ICMP,UPnP Simultaneous Live View 20 User/Host 32 Security 802.1X authenticated access,MAC address binding,Authenticated username and password,IP address filter,HTTPS encryption Client iVMS-4200,Hik-Connect Web Browser IE8+, Chrome31 to 44, Firefox 30 to 51, Safari8.0+ Image Image Settings sharpness, saturation, brightness, contrast Wide Dynamic Range (WDR) 120 dB SNR ? 52 dB Defog Digital defog Day/Night Switch day, night, auto, scheduled-switch Image Enhancement BLC,HLC,3D DNR Privacy Mask [Bullet channel] 24 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks Regional Focus [Bullet channel] No, [PTZ channel] Yes Regional Exposure [Bullet channel] No, [PTZ channel] Yes Image Parameters Switch Yes Interface Ethernet Interface RJ45, self-adaptive 10M/100M Ethernet port On-board Storage Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 512 GB Reset yes Event Basic Event Motion detection,video tampering alarm,exception,alarm input and output Smart Event Line crossing detection,intrusion detection,region entrance detection,region exiting detection,audio exception detection Linkage [Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, and trigger recording, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan) General General Function mirror,watermark,IP address filter,password protection Power 12 VDC, PoE+ Operating Condition -30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing) Demist Demist by heating the glass Material PC Dimension 311.5 mm × 223.5 mm × 156 mm (12.26" × 8.80" × 6.14") Weight Approx. 1.37 kg (3.02 lb.) Approval Protection IP66 Standard, Surge Protection and Voltage Transient Protection
