DC-D4236WRX

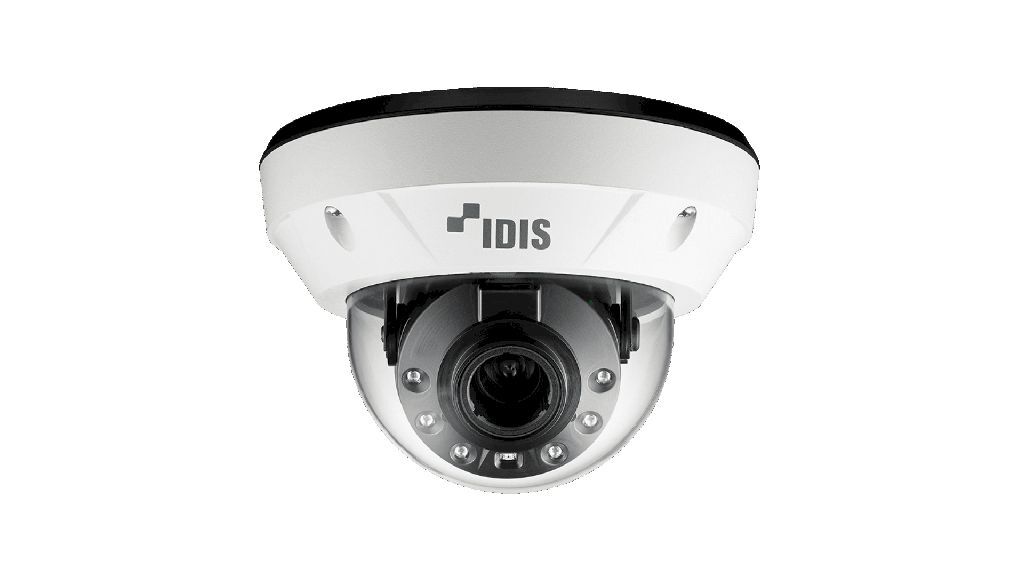

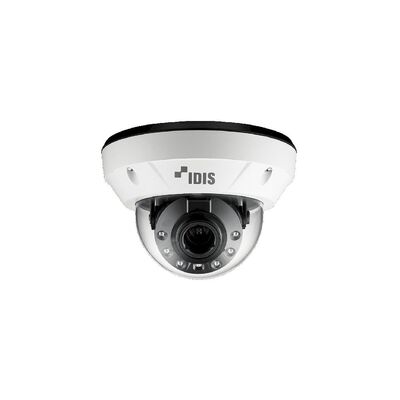

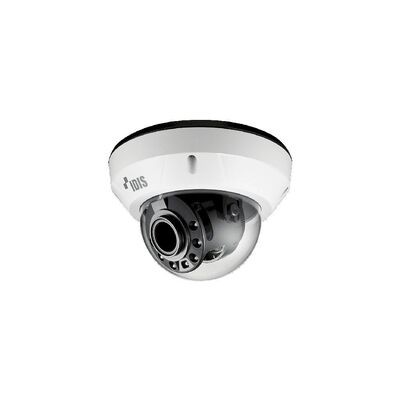

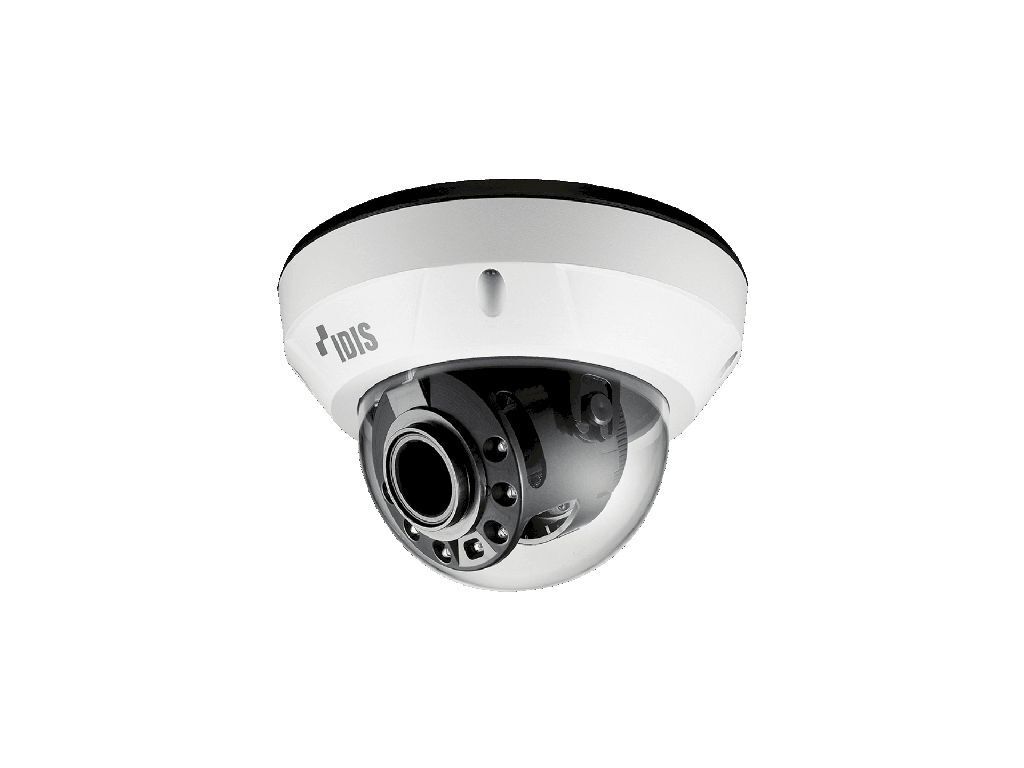

Full HD Vandal-Resistant IR Dome Camera
/ NDAA Compliant
  • Easy installation with DirectIP NVR
  • Full HD (1080p) resolution
  • Motorized Vari-focal lens (f=2.8 - 12mm)
  • micro SD/SDHC/SDXC
  • Two-way audio
  • Alarm in / out
  • IK10 / IP67 supports
  • PoE (IEEE 802.3af Class 3), 12V DC
  • Day and night (ICR)
  • True wide dynamic range (WDR)
  • IR LED (30m / 98.4 ft (6ea))
  • 3-axis mechanical design for installation
  • Supports ONVIF

(DC-D4236WRX)

Video
Image Sensor1/2.8" CMOS
Max. Resolution1920 x 1080
Scanning ModeProgressive Scan
Lens TypeMotorized Vari-focal
Focal Length2.8 ~ 12mm
ApertureF1.4 ~ F2.8
Iris ControlDC Iris
Angular Field of ViewWide : 98º(H), 51º(V), 116º(D)
Tele : 33º(H), 19º(V), 38º(D)
Min. IlluminationCOLOR : 0.1 lux @ F1.4
B/W : 0 lux (IR LED ON)
Dynamic Range120dB (True WDR)
Electronic Shutter SpeedAuto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15)
Day and NightYes (ICR)
IR Distance (LEDs)30m / 98.4 ft (6ea)
Image SettingExposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control)
Backlight CompensationBLC
Mirroring / PivotHorizontal / Vertical / Pivot
Image Stabilizer-
De-fog-
Privacy Masking8 Zones
Intelligent VideoVideo Motion Detection, Active Tampering Alarm, Trip Zone
Video Out-
Pan/Tilt/Rotate
Pan Range-175° ~ 175°
Tilt Range0° ~ 67°
Rotate Range-177° ~ 177°
Network
Video CompressionH.265, H.264 (MP), M-JPEG
Intelligent CodecYes
Bitrate ControlH.265 - CBR / VBR, H.264 - CBR / VBR
Audio CompressionADPCM 16K, G.726, G.711 u-Law, G.711 a-Law
Two-way AudioYes
IP Camera ProtocolDirectIP 2.0, ONVIF
Max. Frame Rate30ips : 1920 x 1080 (WDR)
Supported Resolution1920x1080, 1280x720, 640x360, 352x240
Multi-video StreamingQuadruple Streaming
Network ProtocolsDirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP,
RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2
SecuritySigned firmware, Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption
EthernetRJ45 (10/100BASE-T)
Recording Session Buffer (NLTSrec)Yes (Up to 60MB)
Edge Storagemicro SD/SDHC/SDXC, Smart Failover (Up to 512GB)
Alarm and Event
Trigger EventMotion Detection, Alarm in, Audio detection, Tampering, Trip Zone
Event NotificationRemote S/W, Email (with Image)
Audio AlarmYes
Audio In / Out1 / 1
Alarm In / Out1 / 1
Environmental
Vandal Proof CasingIK10
Outdoor ReadyIP67
Operating Temperature-20°C ~ +55°C (-4°F ~ +131°F)
*Starting up at above 0°C (32°F)
Operating Humidity0% ~ 90%
Electrical
Power Source12VDC, PoE IEEE 802.3af (Class 3)
Power Consumption12V=, 0.64A, 7.7W
PoE, IEEE 802.3af (Class 3), 7.8W
ApprovalFCC, CE, KC
Mechanical
DimensionsØ155 x 105mm (Ø6.1" x 4.13")
Weight0.985kg (2.17lb)
SKU DC-D4236WRX
Brand IDIS
Shipping Weight 2.0000kg
Manufacturer Warranty: 5 Years Manufacturer Warranty

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

IDIS DC-D4236WRX 2MP MFZ(2.8-12MM) H.265 NDAA OUTDOOR DOME

Model # DC-D4236WRX

  • SKU: DC-D4236WRX

$305.00
$601.00
SAVE $296.00 (49%)
In Stock
