DC-D4537HRXA

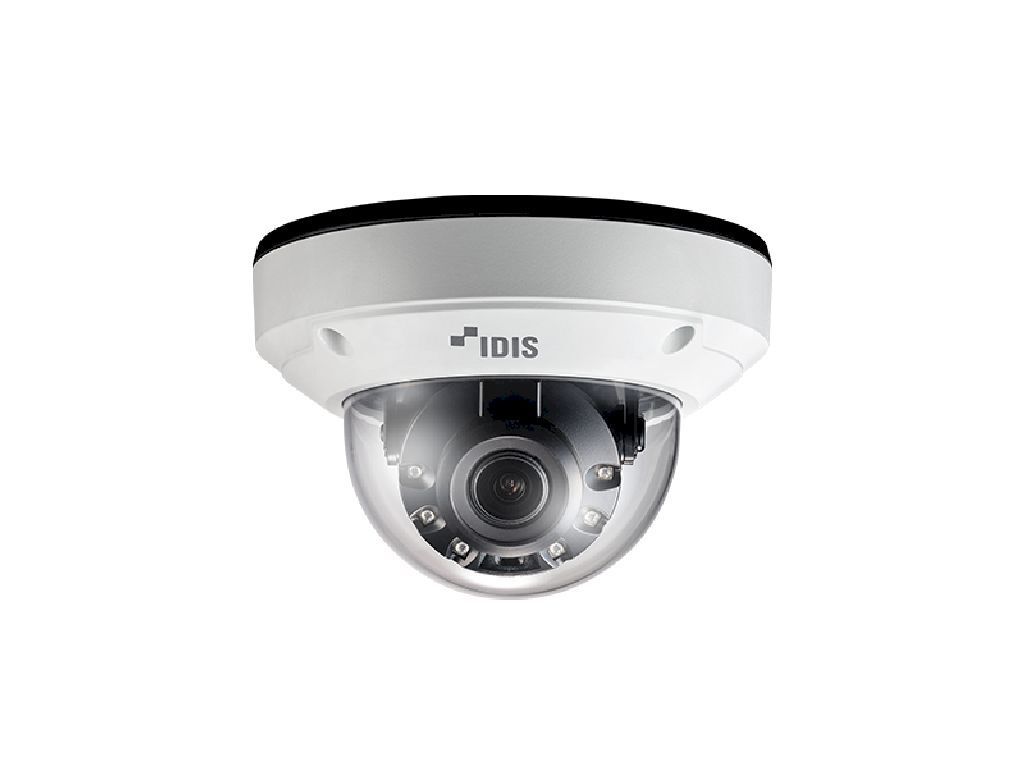

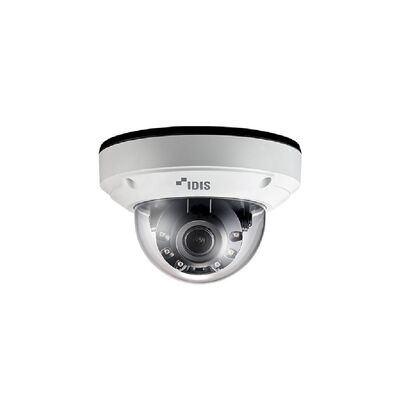

H.265 5MP AI IR Dome Camera
/ NDAA Compliant
  • 5MP (2592x1944) resolution
  • IDIS Deep-Learning Analytics (IDLA)
  • IR LED (40m / 131.2 ft (6ea))
  • micro SD/SDHC/SDXC
  • Day and night (ICR)
  • True wide dynamic range (WDR)
  • Easy installation with DirectIP NVR
  • H.265 and Intelligent Codec
  • Remote Motorized Focus and Zoom
  • PoE (IEEE 802.3af Class 3)
  • IK10, IP67
  • Built in Heater
  • Supports ONVIF

(DC-D4537HRXA)

Video
Image Sensor1/2.8" CMOS
Max. Resolution2592 x 1944
Scanning ModeProgressive Scan
Lens TypeMotorized Vari-focal
Focal Length2.7 ~ 13.5mm
ApertureF1.4 ~ 3.2
Iris ControlDC Iris
Angular Field of View[4:3 mode]
Wide : 101.2º(H) 72.5º(V) 137.4º(D)
Tele : 30.4º(H) 22.8º(V) 38º(D)

[16:9 mode]
Wide : 101.2º(H) 53.3º(V) 121.6º(D)
Tele : 30.4º(H) 17º(V) 34.7º(D)
Min. IlluminationCOLOR : 0.15 lux @ F1.4
B/W : 0 lux (IR LED ON)
Dynamic Range120dB (True WDR)
Electronic Shutter SpeedAuto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15)
Day and NightYes (ICR)
IR Distance (LEDs)40m / 131.2 ft (6ea)
Image SettingExposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control)
Backlight Compensation-
Mirroring / PivotHorizontal / Vertical / Pivot
Image Stabilizer-
De-fogYes
Privacy Masking8 Zones
Intelligent VideoVideo Motion Detection, Active Tampering Alarm, Object Detection, Intrusion, Loitering, Line Crossing, Face Detection
Video Out-
Pan/Tilt/Rotate
Pan Range-175° ~ 175°
Tilt Range0° ~ 64°
Rotate Range-177° ~ 177°
Network
Video CompressionH.265, H.264 (MP), M-JPEG
Intelligent CodecYes
Bitrate ControlH.265 - CBR / VBR, H.264 - CBR / VBR
Audio CompressionADPCM 16K, G.726, G.711 u-Law, G.711 a-Law
Two-way AudioYes
IP Camera ProtocolDirectIP 2.0, ONVIF
Max. Frame Rate4:3 mode : 30ips : 2592 x 1944(WDR)
16:9 mode : 30ips : 2592 x 1456(WDR)
Supported Resolution4:3 : 2592x1944, 1920x1440, 1280x960, 640x480
16:9 : 2592x1456, 1920x1080, 1280x720, 640x360
Multi-video StreamingQuadruple Streaming
Network ProtocolsDirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP,
RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2
SecuritySigned firmware, Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption
EthernetRJ45 (10/100BASE-T)
Recording Session Buffer (NLTSrec)Yes (Up to 60MB)
Edge Storagemicro SD/SDHC/SDXC, Smart Failover (Up to 512GB)
Alarm and Event
Trigger EventMotion Detection, Alarm in, Audio detection, Tampering, Object Detection, Intrusion, Loitering, Line Crossing, Face Detection
Event NotificationRemote S/W, Email (with Image)
Audio AlarmYes
Audio In / Out1 / 1
Alarm In / Out1 / 1
Environmental
Vandal Proof CasingIK10
Outdoor ReadyIP67, Heater
Operating Temperature-40°C ~ +55°C (-40°F ~ +131°F)
*Starting up at above -20°C (-4°F)
Operating Humidity0% ~ 90%
Electrical
Power SourcePoE (IEEE 802.3af Class 3)
Power Consumption12V=, 1.1A, 13.2W
PoE, IEEE 802.3af(Class 3), 10W
ApprovalFCC, CE, KC
Mechanical
DimensionsØ155 x 104.4mm(Ø6.1” x 4.11”)
Weight1kg (2.2lb)
SKU DC-D4537HRXA
Brand IDIS
Shipping Weight 2.0000kg
Manufacturer Warranty: 5 Years Manufacturer Warranty

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

IDIS DC-D4537HRXA 5MP MFZ (2.7-13.5MM) EDGE AI NDAA OUTDOOR OME OUTDOOR MZ EDGE AI VA

Model # DC-D4537HRXA

  • SKU: DC-D4537HRXA

$522.00
$934.00
SAVE $412.00 (44%)
In Stock
