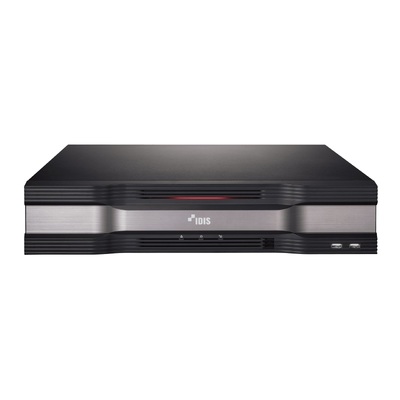

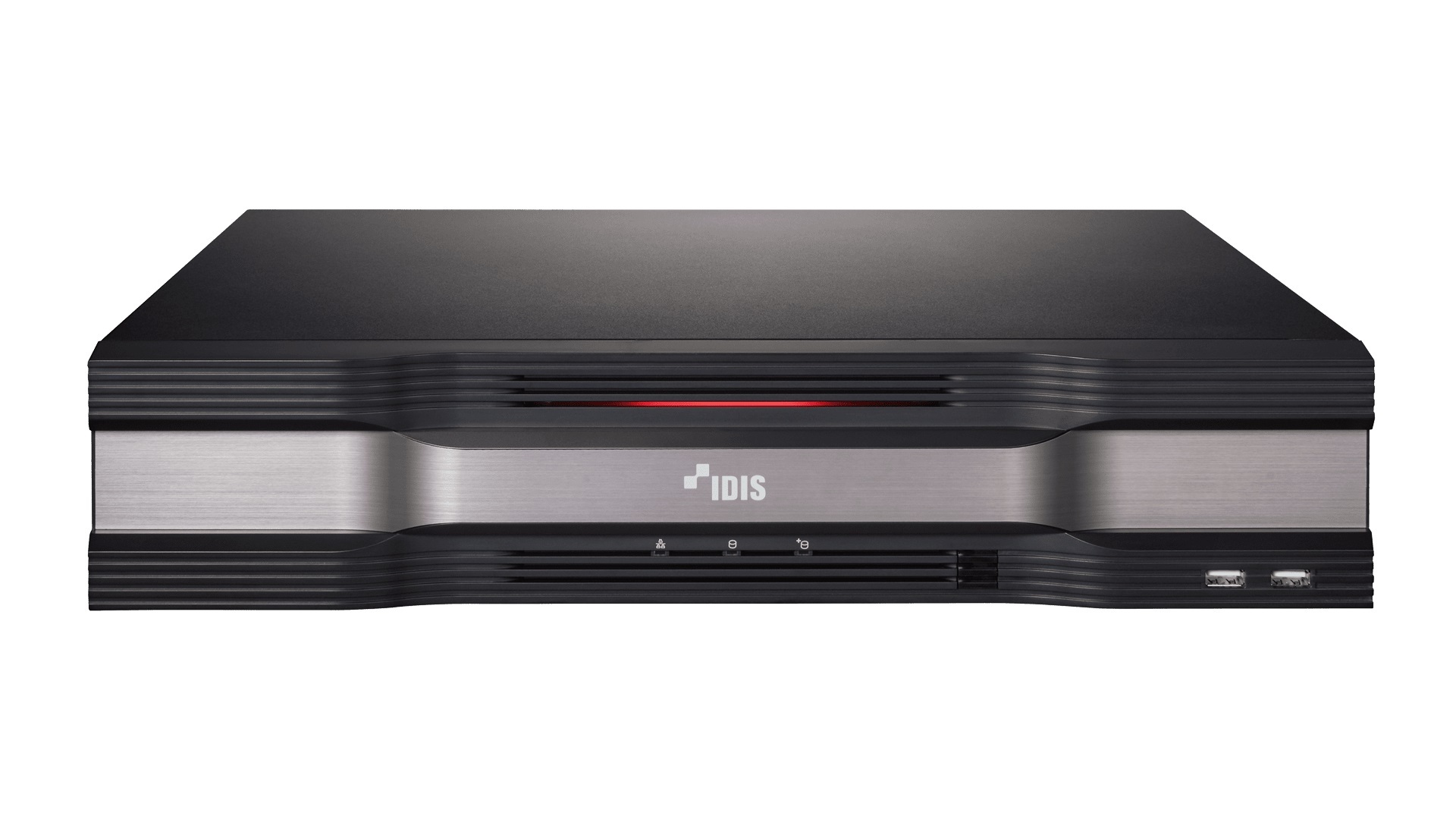

IDIS DR-6516P-0TB DirectIP 6500 Series H.265 4K Recorder / NDAA Compliant

  • Total incoming throughput 320Mbps
  • Up to 480ips UHDreal-time recording
  • Supports H.265 / H.264 codec
  • Supports UHD display
  • Up to 480ips live display
  • Easy to install, set-up, and play with DirectIP cameras
  • Built-in 16 channel PoE Switch
  • Expandable up to 252TB using eSATA storage
  • Supports RAID 1
  • Supports one click network configuration through FEN service
  • Supports third party cameras (Axis, Panasonic, ONVIF)
  • NDAA Compliance

(DR-6516P-0TB)

Video
Video Inputs 16 IP Channels
Max. Incoming Throughput 320Mbps
Supported Camera DirectIP, AXIS, PANASONIC, ONVIF
Video Outputs 2 HDMI
Display Resolution HDMI : 3840x2160, 1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200
Display Speed Up to 480ips
Digital Zoom x2 ~ x12
NVR Side Dewarping Yes
Recording
Max. Throughput 180Mbps, 480ips@UHD
Recording Resolution Up to 12MP (Depending on IP Camera)
Video Compression H.265, H.264
Recording Mode Time-lapse, Event, Pre-event, Panic
Trigger Event IDLA(Object Detection, Intrusion, Loitering, Line Crossing, Face Detection), BI(Exceed Occupancy Limit, Social Distancing, Mask Rule Violation, Queue Congestion), Motion, Trip-zone, Tampering, Video Loss, Audio Detection, Alarm In, Network Alarm, Text-in, System, Etc.
Playback
Performance 16ch synchronous playback
Search Mode Time-lapse, Event Log, Text-in, Thumbnail, Metadata(via IDIS Center, IDIS Solution Suite)
Digital Zoom x2 ~ x12
Storage
HDD SATA x 6, eSATA x 4, RAID 1 Supported
Total Capacity The maximum HDD capacity is updated as new HDD models become available.
For the most recent information, please check here
Network
Client Connection Gigabit Ethernet (Client) x1
Video In Connection Gigabit Ethernet(IP Camera) x16 + Gigabit Ethernet(Ext) x1
Transmission Speed 50Mbps / 100Mbps (BRP Mode)
PSE Power PoE (IEEE 802.3at Class 4) Supported 16 Ports, 120W
Event Notification Email (Attach Clip (.cbf) .MP4), Callback to Remote S/W, Push Notification (IDIS Mobile)
Two-way Audio Yes
Interface
Audio In / Out Local (NVR) : 1 RCA / 1RCA + 2HDMI
IP Camera :16 / 16 (Depending on IP Camera)
Alarm In / Out Local(NVR) : 4 / 1
IP Camera : 16 / 16 (Depending on IP Camera)
Alarm Reset In Yes
Serial Interface RS232 (Terminal Block), RS485 (Terminal Block)
USB USB 2.0 x 2, USB 3.0 x 1
User Interface Mouse, IR Remote Control, Network Remote Keyboard
General
Operating System Embedded Linux
Environmental
Operating Temperature 0°C to 40°C (32℉ ~ 104℉)
Operating Humidity 0% ~ 90%
Electrical
Power Consumption 100-240V~, 50/60Hz, 3.0-1.5A, 250W
Approval FCC, UL, CE, CB
Mechanical
Unit Dimensions (W x H x D) 430mm x 88mm x 420mm (16.9" x 3.5" x 16.5")
Unit Weight 6.75kg (14.88lb) (with 1HDD)
SKU DR-6516P-0TB
Brand IDIS
Shipping Weight 6.7000kg

Manufacturer Warranty
