TR-2508

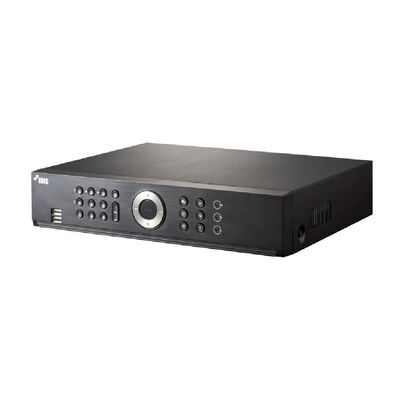

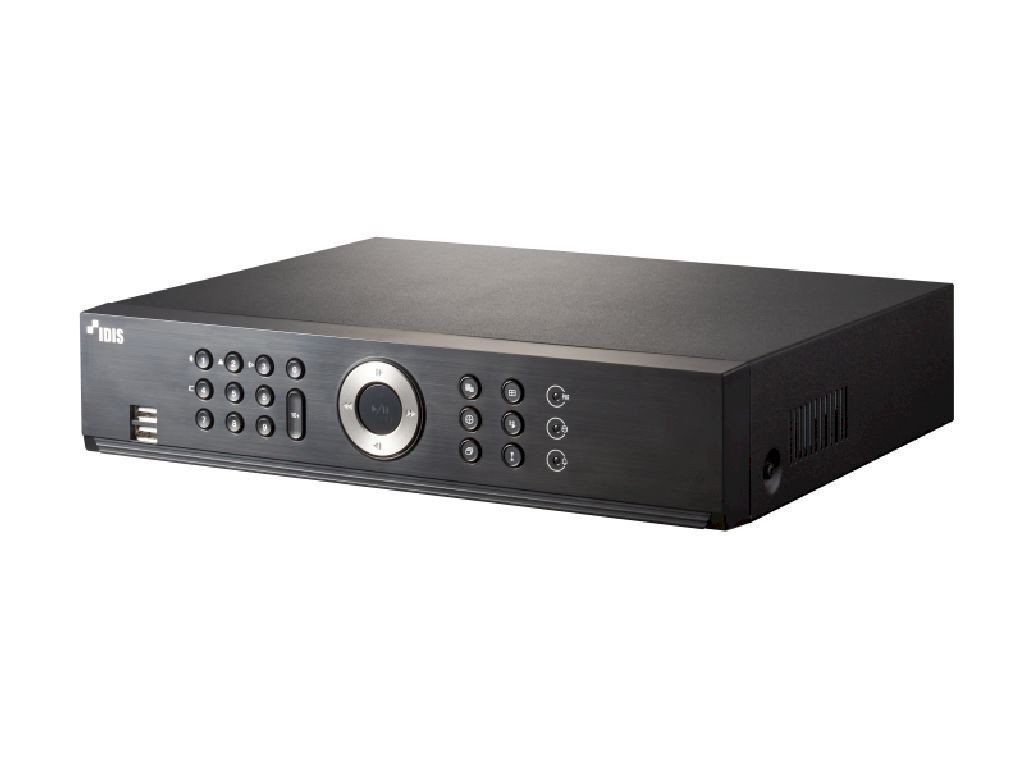

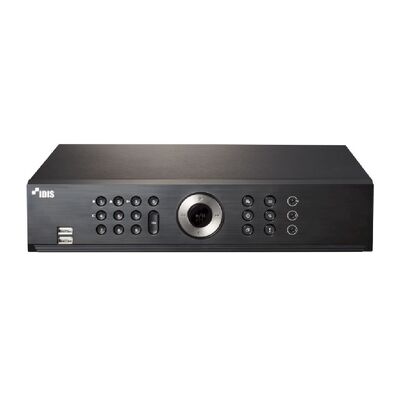

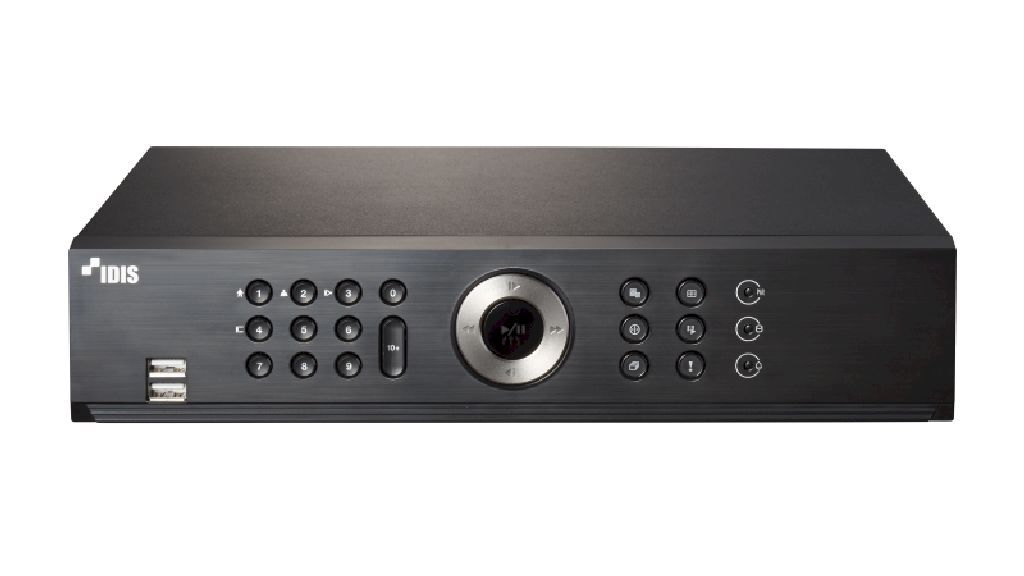

DirectCX 8channel H.265 Recorder
/ NDAA Compliant
  • Supports Multi Standard Analog Camera
  • Up to 240ips Full HD recording
  • H.265 encoding , Intelligent Codec Support
  • Up to 5MP resolution support
  • UHD Display with HDMI output
  • Full HD Display with HDMI and VGA output
  • Long transmission distance over coax cable
  • Supports OSD control over Coax
  • Expandable up to 12TB using 2 SATA interfaces
  • Supports one click network configuration through FEN service

(TR-2508-2TB)

Video
Video Inputs8 BNC
Supported CameraHD-TVI : 5MP, 4MP, 3MP, 1080P, 720P
AHD : 5MP, 4MP, 3MP, 1080P, 720P
CVBS : NTSC / PAL
Video Outputs1 HDMI, 1 VGA
Display ResolutionHDMI : 3840 x 2160, 1920 x 1080, 1280 x 1024
VGA : 1920 x 1080, 1280 x 1024
Display SpeedUp to 240ips
Digital Zoomx2 ~ x7
Recording
Recording Resolution2560x1920, 2560x1440, 1920x1536, 1920x1080, 1280x720, 960x576, 960x480, 720x576, 720x480, 960x288, 960x240, 640x360, 720x288, 720x240, 480x288, 480x240, 360x288, 360x240
Video CompressionH.265, H.264, Intelligent Codec
Recording ModeTime-Lapse, Event, Pre-Event, Panic
Trigger EventMotion, Video loss, Video Blind, Alarm in, Text-In, System
Playback
Performance8ch synchronous playback
Search ModeTime-lapse, Event log, Text-in, Thumbnail
Digital Zoomx2 ~ x7
Storage
HDDSATA x 2
Total CapacityThe maximum HDD capacity is updated as new HDD models become available.
For the most recent information, please check here
Network
Client ConnectionFast Ethernet x1
Transmission Speed30ips@Full HD per channel, same as recording stream
Event NotificationEmail (attach clip cbf, mp4), Callback to Remote S/W, Push notification (IDIS Mobile)
Two-way AudioYes

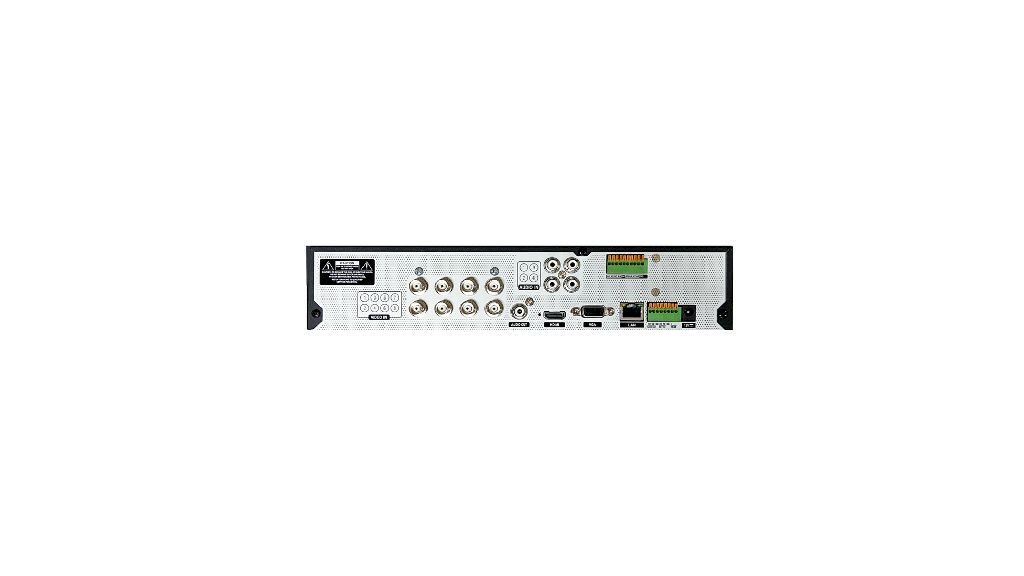

Interface
Audio In / Out4 RCA / 1 RCA + 1 HDMI
Alarm In / Out8 In / 1 Relay out
Alarm Reset In-
Serial InterfaceRS232 / RS485(Terminal Block)
USBUSB 2.0 x 2(Front x 2)
User InterfaceMouse, IR Remote Control, Front Button, Network Remote Keyboard
General
Operating SystemEmbedded Linux
Environmental
Operating Temperature0°C to 40°C (32℉ ~ 104℉)
Operating Humidity0% ~ 90%
Electrical
Power InputAdaptor
Input : 100-240V AC, 50/60Hz, 1.5A, Output : 12V DC, 5A
Power Consumption12V=, 1.84A, 22.1W
ApprovalFCC, CE, KC
Mechanical
Unit Dimensions (W x H x D)300mm x 67mm x 243.6mm (11.8" x 2.6 x 9.6")
Unit Weight3.0 kg (with 2 2TB HDD)
SKU TR-2508-2TB
Brand IDIS
Shipping Weight 2.0000kg
Manufacturer Warranty: 3 Years Manufacturer Warranty
