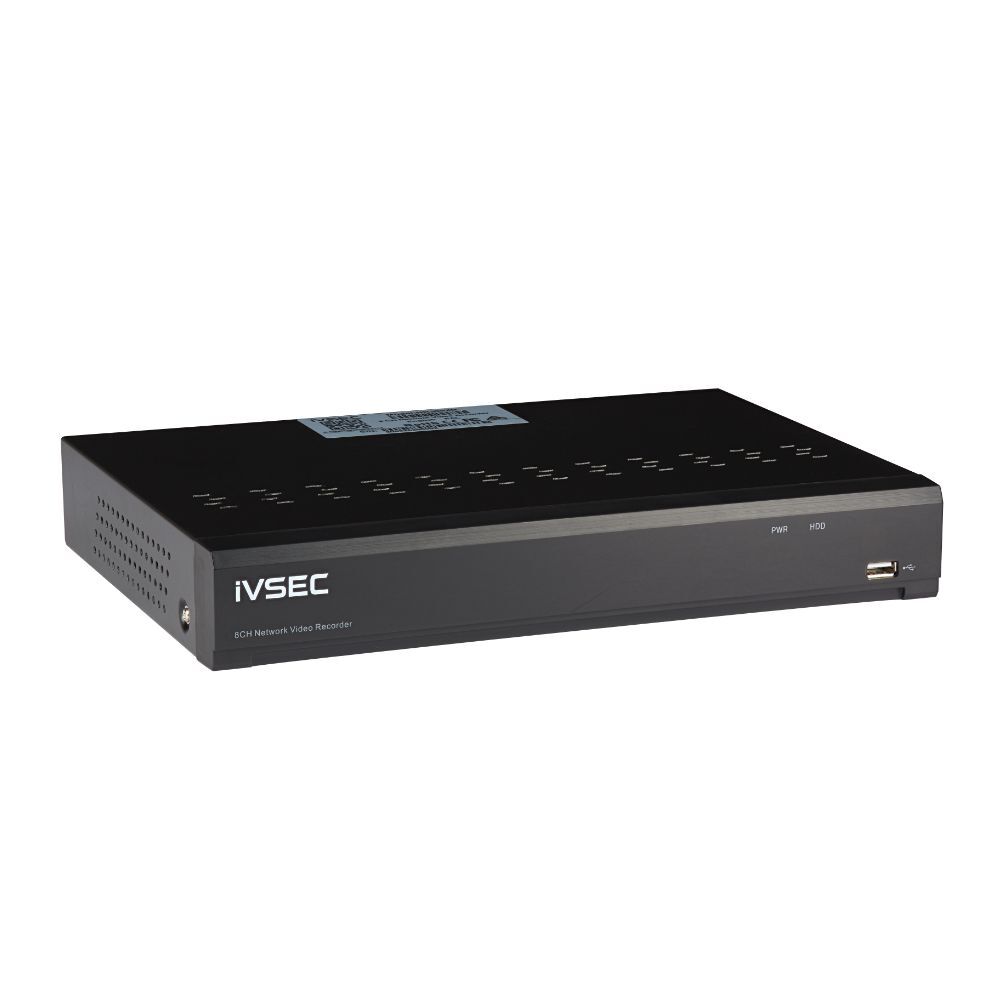

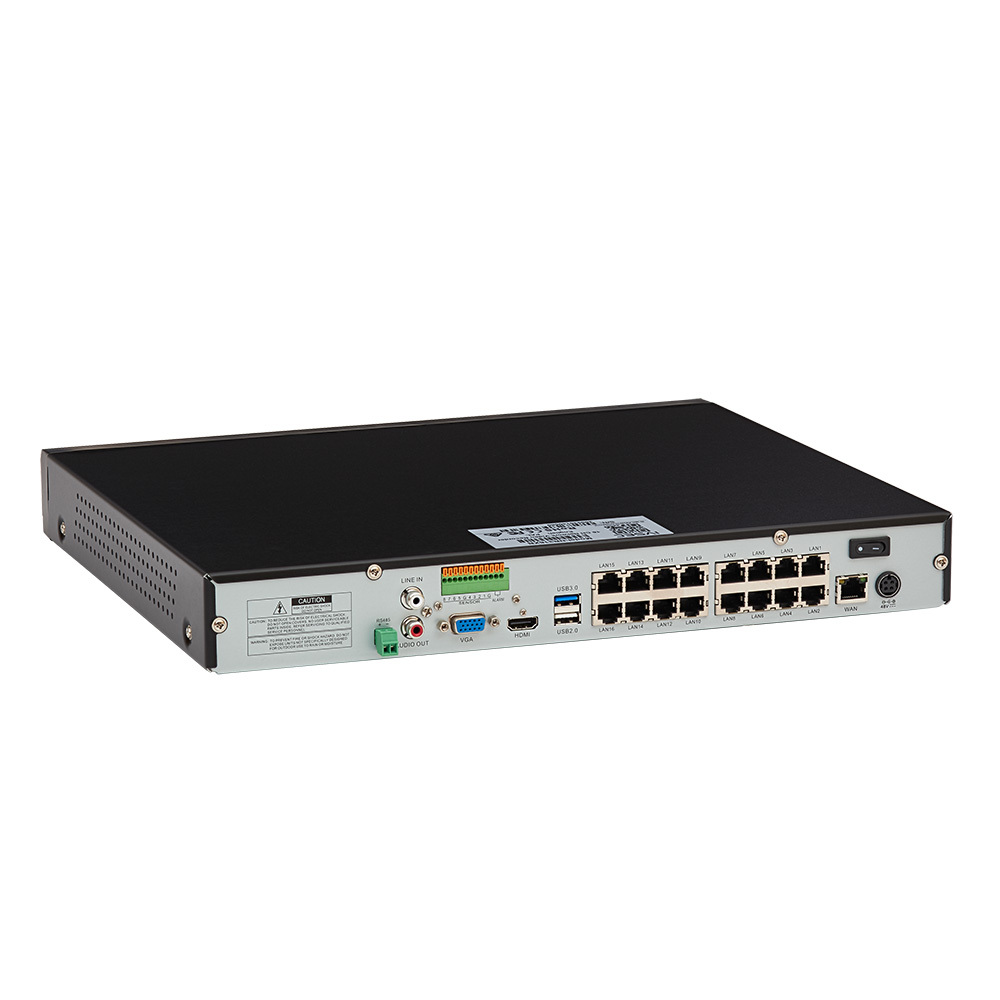

IVSEC NR316XC NVR 16CHANNELS 12MP 16 EPOE PORTS 2 BAYS H265 4K HDMI IVS

Included IVS to match cameras with facial detection, Human and car detection. Now with Alarm relays

(NR316XC)

Maximum Channels 16
Maximum Video Resolution (Megapixels) 12MP
Examples of Channels at a resolution with FPS 128 Mbps
Video Compression H.264, H.265
Video Output Resolution 4K, HD-1080p, HD-720p, 1.3 MP, D1, VGA
Image Display 1/4/6/8/9/10/13/14/16
Search Method Continuous, Scheduling, Event Triggered ( PIR, IVS, Motion, Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Pedestrian Detection, Face Detection, Cross Counting)
Total Storage Potential (TB) 32
HDD Bays, Size Bays x2, Up to 16TB per HDD
Software Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app
Protocols TCP, HTTP, HTTPS, DHCP, DDNS, NTP, SMTP, PPPOE, RTSP, UPnP, ONVIF, P2P, QR Code
Language English, French, Dutch, German, Italian, Polish, Portuguese, Spanish, Thai, Turkish, Hungarian, Simplified Chinese, Etc.
Audio Streaming Out
Power Over Ethernet Switch Ports 16 up to 802.3at(30w)
Power Over Ethernet Yes
Power Supply DC48V/3.750A
Power Consumption 10 W （Without HDD）
Connectors HDD: 3.5″ SATA HDD Slot x 2, USB3 Female x1, USB2 Female x 2, Gigabit Ethernet: RJ-45 Port x 1 and 16 x PoE+ ports, HDMI and VGA, Alarm ports 8 in and 1 out, Audio out, Power Jack input, On off switch
Operating Environment 5ºC to 45ºC (41ºF-113ºF) Humidity: 20%-80% RH
In The Box Printed quick installation guide, Mouse, Remote control, HDD screws, Power supply.
Warranty 24 months parts
Dimensions 380 X 320 X 54mm
Weight (kg) 1.54 kg
SKU NR316XC
Brand IVSEC
Shipping Weight 4.5000kg

Manufacturer Warranty
