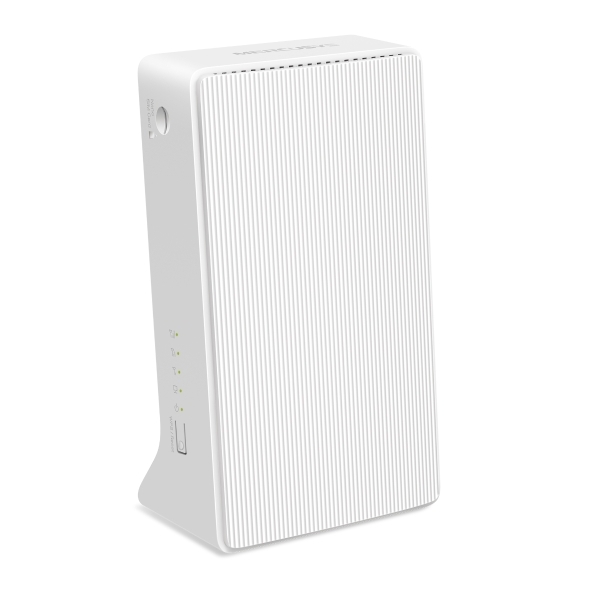

Mercusys MB130-4G AC1200 Wireless Dual Band 4G LTE Router
Model # MB130-4G
-
SKU: MB130-4G
- Pick Up Available
- Australian Warranty
- Checkout Securely
Mercusys MB130-4G AC1200 Wireless Dual Band 4G LTE Router
- 4G network – Enjoy the 4G LTE download speeds up to 150 Mbps.
- Plug a SIM card and play – No configurations needed, compatibility of SIM cards are assured by years of field tests.
- Dual Band 1200 Mbps WiFi – Fast WiFi
speeds up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band. - Simultaneous Connection– Share internet access with up to 32 Wi-Fi devices.

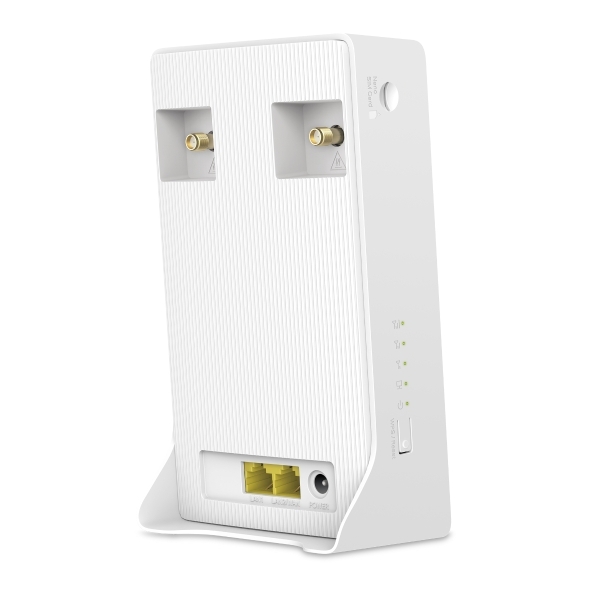

- External Antennas Ports – Plug in your 4G/3G Antennas to enhance the Network Signal.
- Wi-Fi router mode – Plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection.
(MB130-4G)
- Wireless Standards
-
IEEE 802.11ac/a/b/g/n
- Frequency
-
5 GHz, 2.4 GHz
- WiFi Speeds
-
867 Mbps at 5 GHz
300 Mbps at 2.4 GHz
- Reception Sensitivity
-
11g 6Mbps: -95dBm
11g 54Mbps: -77dBm
11n HT20 MCS7: -74dBm
11n HT40 MCS7: -71dBm
11a 6Mbps: -92dBm
11a 54Mbps: -75dBm
11ac VHT20 MCS8: -70dBm
11ac VHT40 MCS9: -65dBm
11ac VHT80 MCS9: -61dBm
- Transmission Power
-
2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP)
- Wireless Security
-
WPA-PSK / WPA2-PSK
- Wireless Functions
-
Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless
Statistics
- Wireless
- Dimensions
-
95×61.05×165.97 mm
- Interfaces
-
1× 10/100Mbps LAN/WAN Port
1× 10/100Mbps LAN Port
2× 4G/3G External Antenna Ports
1× Nano SIM Card Slot
- Button
-
WPS/Reset Button
- Ethernet Ports
-
1× 10/100 Mbps LAN/WAN Port +
1× 10/100 Mbps LAN
- Network Type
-
EU:
FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
TDD-LTE: B38/B40 (2600/2300 MHz)
HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz)
- Hardware
- DHCP
-
Server
- Software
- Package Contents
-
AC1200 Wireless Dual Band 4G LTE Router (MB130-4G)
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
- Environment
-
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~60°C (-40°F~140°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensin
| SKU | MB130-4G |
| Barcode # | 6957939001971 |
| Shipping Weight | 0.2200kg |
Manufacturer Warranty
