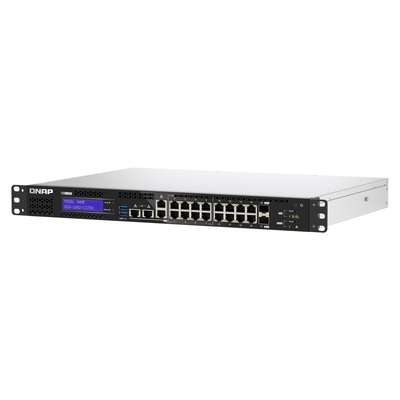

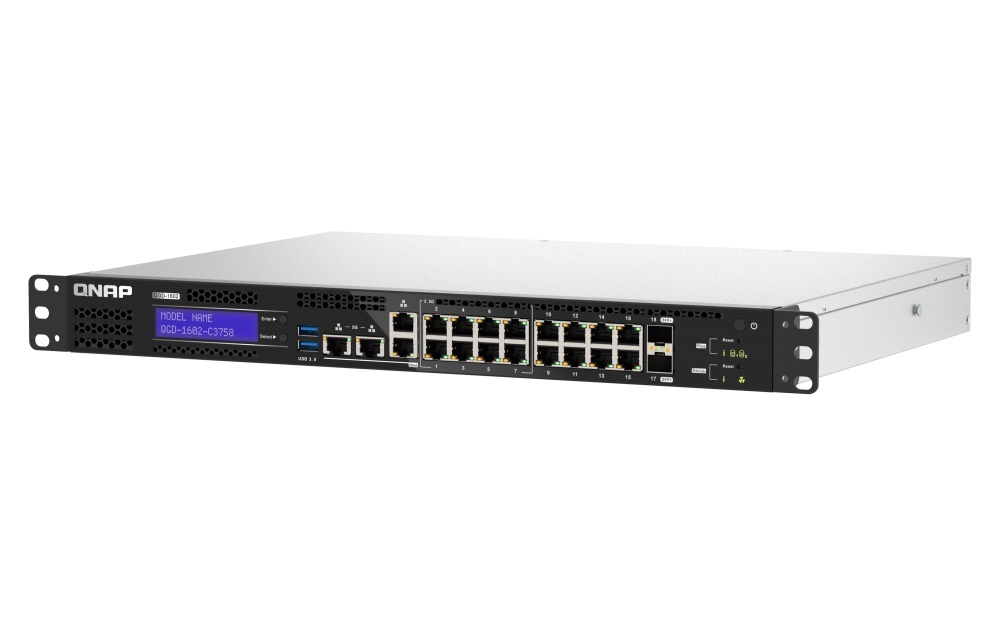

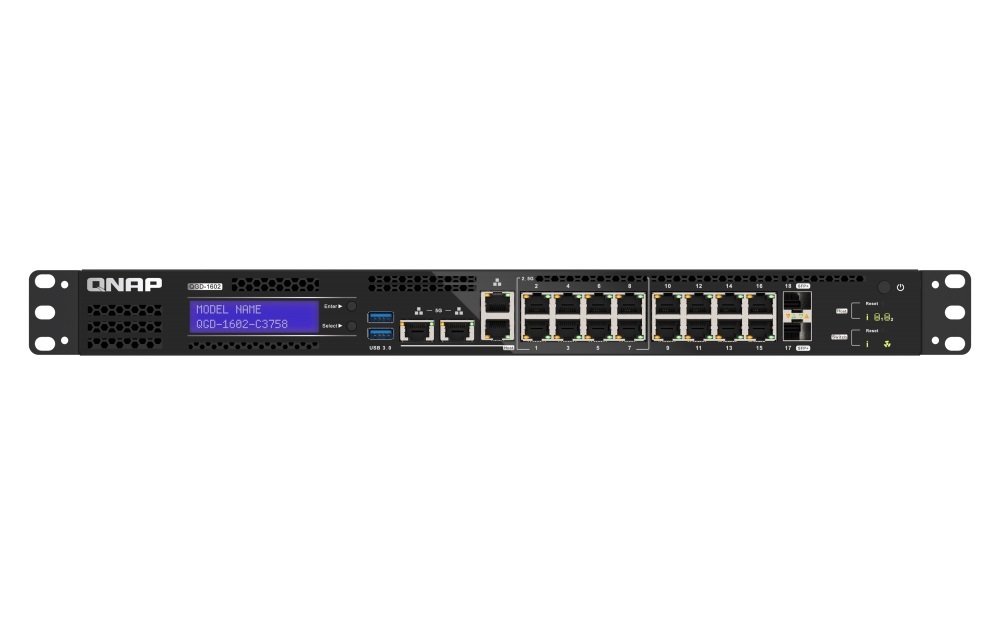

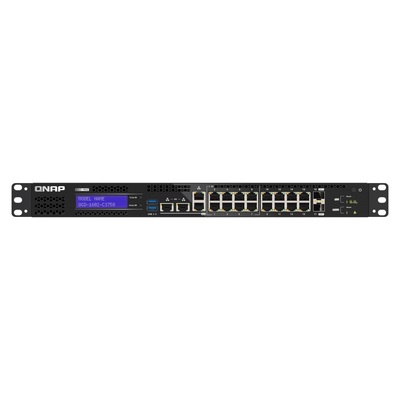

QGD-1602-C3758-16G

8 x 2.5GbE Gigabit RJ45 ports, 8 x Gigabit RJ45 ports, 2 x 10GbE SFP+ ports; Intel® Atom® C3758 octa-core 2.2 GHz processor, 16 GB DDR4 RAM, supports hosting up to 6 VMs

The QNAP QGD-1602 is the world’s first managed switch series that supports Virtual Machines (VMs). Featuring 2.5GbE and 10GbE SFP+ ports, the QGD-1602 allows you to build a high-speed network infrastructure. With a dual-CPU design, the QGD-1602 uses Intel® Atom® multi-core 2.2GHz processors with two SATA drive bays to support VM and QTS applications. The QGD-1602 not only fulfills IP surveillance, network security and storage expansion applications, but also integrates QuWAN to form a SD-WAN architecture with other QNAP devices across multiple sites, helping to build a resilient and secure IT infrastructure. With 20GbE internal bandwidth capacity and Intel® QuickAssist Technology (Intel® QAT), the QGD-1602 achieves the high-performance transmission required for edge computing virtualization and IPsec VPN, and offers SMBs a cost-optimized and centrally managed LAN deployment solution.

intel-atom

  • 10GbE connectivity

    Two 10GbE SFP+ ports provide computers, LAN switches and NAS with higher bandwidth to empower applications like virtualization, 4K video editing and file sharing.

  • Layer 2 network

    Provides comprehensive Layer 2 management features (such as VLAN, LACP, QoS IGMP Snooping, and Wake-on-LAN) with user-friendly network management software. IT staff can efficiently control network bandwidth and enhance security using a web-based management interface.

  • Dual M.2 PCIe slots

    Set up an SSD cache or storage pools to increase file access efficiency.

  • Two SATA drive bays

    Supports up to two SATA drives.

  • Flexible PCIe expansion

    Two PCIe Gen3 x2 slots allow users to install 10GbE network cards, QM2 dual-port M.2 SSD/10GbE cards, USB 3.2 Gen 2 (10Gbps) cards, or wireless adapters.

  • Mesh VPN

    Host containerized applications and virtual machines with various operating systems. Flexibly install QuWAN, virtual router, firewalls, or wireless LAN management software for various networking management applications.

Upgraded performance for smoother virtualization

The QGD-1602 provides a full upgrade of network speeds, performance and memory, which not only greatly enhances the network transmission speeds of edge devices, but also optimizes the capabilities of running multiple virtual machines and containers for highly-efficient virtualization applications.

  • 8 -core

    CPU (Max.)

  • 10 GbE

    network

  • 20 Gbps

    Internal bandwidth capacity

  • 64 GB

    RAM (Max.)

(QGD-1602-C3758-16G)


Management Type Web Managed
Number of Ports 18
10GbE SFP+ 2
10G/1G
2.5GbE (RJ45) 8
1GbE (RJ45) 8
PCIe Slot Slot 1: PCIe Gen3 (x4 slot, x2 speed)
Slot 2: PCIe Gen3 (x4 slot, x2 speed)
USB 3.2 Gen 1 port 2
Management Port 2 x 5GbE ; 2 x 1GbE
USB 3.2 Gen 2 (10Gbps) Port Optional via PCIe adapter
Power Supply Description Internal Power Supply Unit
Max. Power Consumption 100W
Input Power Type AC
Input Voltage Range 100-240VAC, 50/60 Hz
MAC Address Table 32K
Total Non-Blocking Throughput 48Gbps
Switching Capacity 96Gbps
Management Interface Web

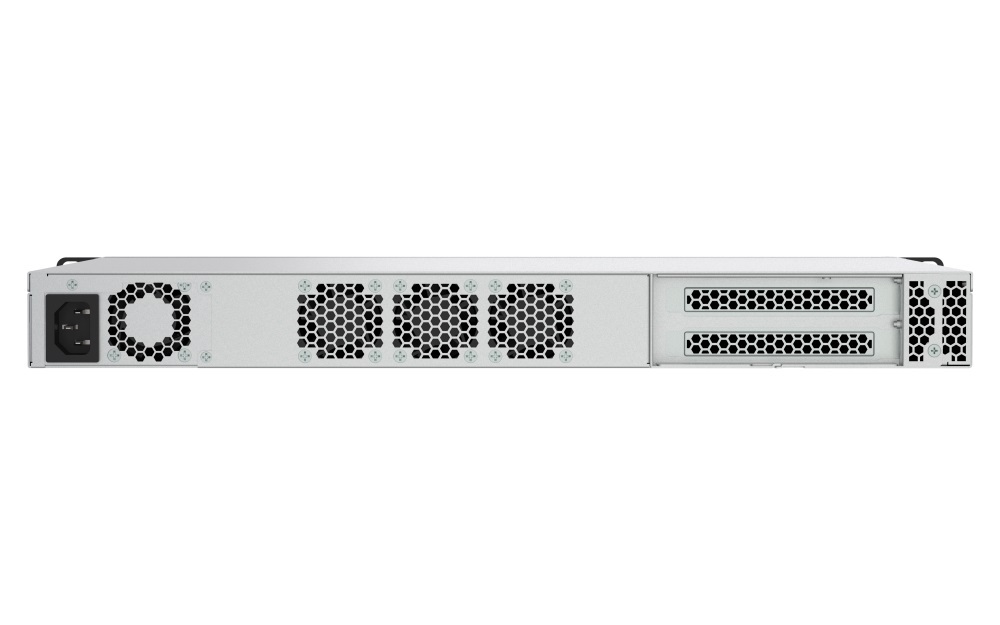

Fan System: 3 x 4 cm (12V DC)
Supported Standards IEEE 802.3u 100Tx Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3bz 2.5G/5G BASE-T Multi-Gig Ethernet
IEEE 802.3an 10GBASE-T 10G Ethernet
IEEE 802.3ae 10GBASE-SR
IEEE 802.3ae 10GBASE-LR
IEEE 802.3z 1000Base-X
IEEE 802.3x Full-duplex flow control
IEEE 802.1q Virtual LANs (VLAN)
IEEE 802.1p QoS Protocol for Traffic Prioritization
Form Factor Rackmount
LED Indicators Per Port: Link/Activity/Speed
Per System: Warning/Fan
LCD Management
Buttons Device PSU power button
Host power button
Host reset button(load default)
Switch reset button
Dimensions (HxWxD) 44.2 × 435.2 × 327.7 mm
Weight (Net) 4.37 kg
Weight (Gross) 5.52 kg
Operating Temperature 0°C to 40°C (32°F to 104°F)
Relative Humidity 5% to 95% non-condensing, wet bulb: 27˚C (80.6˚F)
Certifications CE, FCC, VCCI, BSMI RCM
Electromagnetic Compliance CLASS A, UL62368
Jumbo Frames
QTS Built-in
CPU Intel® Atom® C3558 quad-core 2.2 GHz processor
CPU Architecture 64-bit x86
Intel QAT Support
Internal Network Bandwidth 2 x 10GbE
Floating Point Unit
Encryption Engine (AES-NI)
System Memory 8 GB (1 x 8 GB)
Maximum Memory 64 GB
Memory Slot 2 x SODIMM DDR4
Flash Memory 4GB (Dual boot OS protection)
Drive Bays 2 x 2.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 2.5-inch bays:
2.5-inch solid-state drives
2.5-inch hard disk drives
Hot-swappable
M.2 SSD Slots 2 (NVMe, PCIe Gen3 x 1)
SSD Cache Acceleration Support
File System: Internal Hard Drive EXT4
File System: External Hard Drive EXT3, EXT4, NTFS, FAT32, HFS+, exFAT (optional license)
Warranty 2 Years
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
  1. QGD-1602-C3758-16G

    • Download Datasheet
    • Download Datasheet
    • Download Datasheet

    Management Type Web Managed
    Number of Ports 18
    10GbE SFP+ 2
    10G/1G
    2.5GbE (RJ45) 8
    1GbE (RJ45) 8
    PCIe Slot Slot 1: PCIe Gen3 (x4 slot, x2 speed)
    Slot 2: PCIe Gen3 (x4 slot, x2 speed)
    USB 3.2 Gen 1 port 2
    Management Port 2 x 5GbE ; 2 x 1GbE
    USB 3.2 Gen 2 (10Gbps) Port Optional via PCIe adapter
    Power Supply Description Internal Power Supply Unit
    Max. Power Consumption 100W
    Input Power Type AC
    Input Voltage Range 100-240VAC, 50/60 Hz
    MAC Address Table 32K
    Total Non-Blocking Throughput 48Gbps
    Switching Capacity 96Gbps
    Management Interface Web
    Fan System: 3 x 4 cm (12V DC)
    Supported Standards IEEE 802.3u 100Tx Fast Ethernet
    IEEE 802.3ab 1000BASE-T Gigabit Ethernet
    IEEE 802.3bz 2.5G/5G BASE-T Multi-Gig Ethernet
    IEEE 802.3an 10GBASE-T 10G Ethernet
    IEEE 802.3ae 10GBASE-SR
    IEEE 802.3ae 10GBASE-LR
    IEEE 802.3z 1000Base-X
    IEEE 802.3x Full-duplex flow control
    IEEE 802.1q Virtual LANs (VLAN)
    IEEE 802.1p QoS Protocol for Traffic Prioritization
    Form Factor Rackmount
    LED Indicators Per Port: Link/Activity/Speed
    Per System: Warning/Fan
    LCD Management
    Buttons Device PSU power button
    Host power button
    Host reset button(load default)
    Switch reset button
    Dimensions (HxWxD) 44.2 × 435.2 × 327.7 mm
    Weight (Net) 4.37 kg
    Weight (Gross) 5.52 kg
    Operating Temperature 0°C to 40°C (32°F to 104°F)
    Relative Humidity 5% to 95% non-condensing, wet bulb: 27˚C (80.6˚F)
    Certifications CE, FCC, VCCI, BSMI RCM
    Electromagnetic Compliance CLASS A, UL62368
    Jumbo Frames
    QTS Built-in
    CPU Intel® Atom® C3758 8-core 2.2 GHz processor
    CPU Architecture 64-bit x86
    Intel QAT Support
    Internal Network Bandwidth 2 x 10GbE
    Floating Point Unit
    Encryption Engine (AES-NI)
    System Memory 16 GB (1 x 16 GB)
    Maximum Memory 64 GB
    Memory Slot 2 x SODIMM DDR4
    Flash Memory 4GB (Dual boot OS protection)
    Drive Bays 2 x 2.5-inch SATA 6Gb/s, 3Gb/s
    Drive Compatibility 2.5-inch bays:
    2.5-inch solid-state drives
    2.5-inch hard disk drives
    Hot-swappable
    M.2 SSD Slots 2 (NVMe, PCIe Gen3 x 1)
    SSD Cache Acceleration Support
    File System: Internal Hard Drive EXT4
    File System: External Hard Drive EXT3, EXT4, NTFS, FAT32, HFS+, exFAT (optional license)

SKU QGD-1602-C3758-16G
Brand QNAP
Shipping Weight 5.5600kg
Shipping Width 0.528m
Shipping Height 0.160m
Shipping Length 0.403m
Shipping Cubic 0.034045000m3

Manufacturer Warranty: 2 Years Limited Warranty
