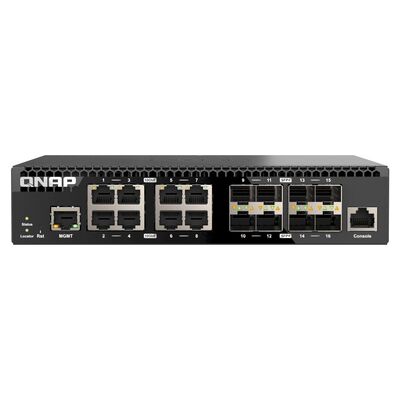

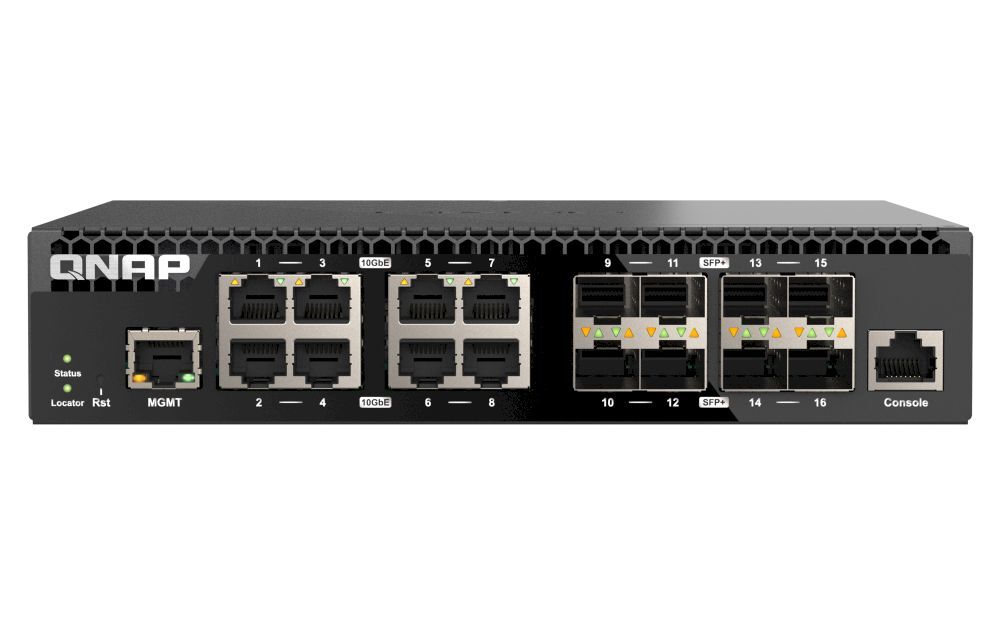

QSW-M3216R-8S8T Half-width Rackmount 16-Port 10GbE Layer 2 Web Managed Switch for SMB/SOHO high-speed networking environments

More 10GbE ports and more space-saving at an affordable price. The QNAP QSW-M3216R-8S8T is a half-width rackmount L2 Managed Switch with eight 10GbE SFP+ fiber ports and eight 10GbE RJ45 ports. Supporting Layer 2 switching and network management via a user-friendly web user interface, the QSW-M3216R-8S8T offers flexible deployment in high-speed network environments and provides an entry-level network management solution. With a half-width design, the QSW-M3216R-8S8T can be conveniently placed within working environments without taking up too much space, and two can be installed in a single 1U rack space. The QSW-M3216R-8S8T is made in Taiwan (MIT), providing a high-quality and reliable networking solution.

10G Multi-Gig connectivity

Includes eight 10GbE RJ45 and eight 10GbE SFP+ fiber ports for connecting different interfaces.

User-friendly management interface

The QNAP Switch System (QSS) is easy to use and provides an overview dashboard, port management and setting guide, making central network management intuitive.

Layer 2 network

Provides Layer 2 management features (such as LACP, VLAN, ACL and LLDP) for IT staff to efficiently control network bandwidth and enhance security.

RSTP

One of the few web-managed switches that supports Rapid Spanning Tree Protocol (RSTP). Easily and efficiently deploy small/medium-scale networks that support expansion, redundancy, and loop prevention.

Online firmware update

QSS can be updated with just one click, helping IT staff ensure their network security.

Flow Control

Compliant with IEEE802.3x Flow Control in full-duplex mode, the QSW-M3216R-8S8T avoids packet loss from unparalleled bandwidth.

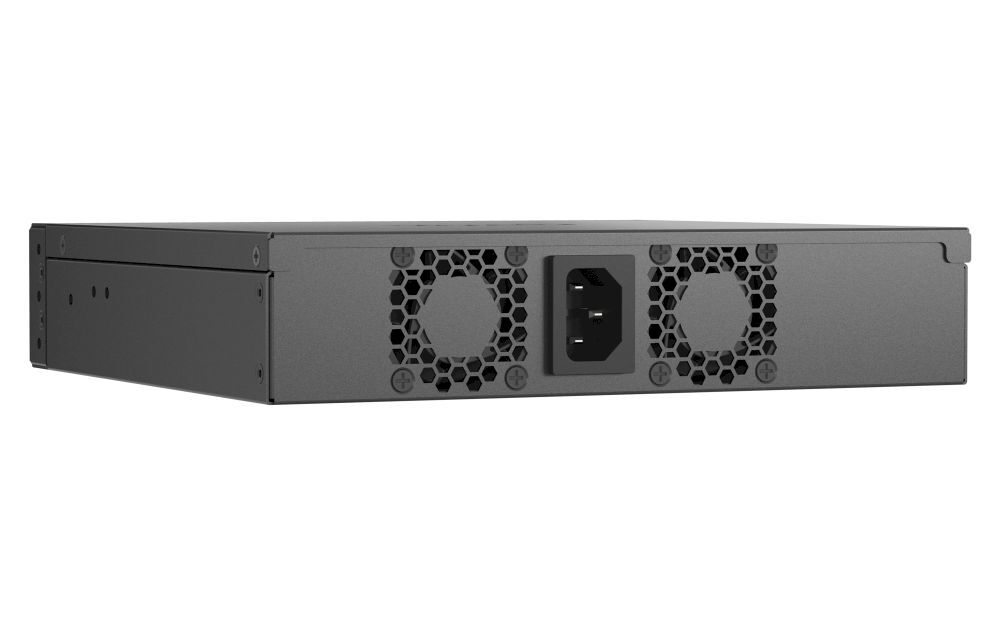

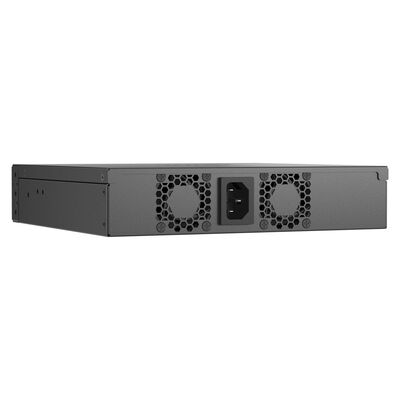

Dependable performance with effective heat dissipation

With a compact metal body that optimizes cooling performance, the QSW-M3216R-8S8T provides stable and reliable operations even when under full load. The front-panel LEDs also assist in viewing the current system status.

(QSW-M3216R-8S8T)

Management Type Web Managed
Number of Ports 16
10GbE SFP+ 8
10GbE BASE-T (RJ45) 8
Management Port 1 x 1GbE RJ45
Power Supply Description Internal Power supply Unit
Max. Power Consumption 80W
Input Power Type AC
Input Voltage Range 100-240VAC, 50/60Hz
MAC Address Table 16K
Total Non-Blocking Throughput 160Gbps
Switching Capacity 320Gbps
Management Interface Web
Console RJ45
Fan PWM VAPO Bearing fan x 2
Supported Standards IEEE 802.3 Ethernet
IEEE 802.3u 100BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3ae 10G Fiber
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.1Q VLAN Tagging
IEEE 802.1w RSTP
IEEE 802.3ad LACP
IEEE 802.1AB LLDP
IEEE 802.1p Class of Service
Form Factor Half-width rackmount
LED Indicators Per Port: Speed/Link/Activity
Per System: Power/Status
Buttons Reset button
Dimensions (HxWxD) 43.3 x 207 x 199.5 mm
Weight (Net) 1.52 kg
Weight (Gross) 2.23 kg
Operating Temperature 0˚C to 40°C (32°F to 104°F)
Relative Humidity 5~95% Non-condensing
Certifications CE, FCC, VCCI, BSMI
Electromagnetic Compliance CLASS A
Jumbo Frames 9K
Warranty 2 Years

Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.

SKU QSW-M3216R-8S8T
Brand QNAP
Shipping Weight 1.5000kg

Manufacturer Warranty: 2 Years Manufacturer Warranty
