QNAP

The QNAP REXP-1000 Pro expansion enclosure is designed for expanding the storage space on the Turbo NAS and can support maximum 240TB raw capacity* by connecting multiple expansion enclosures via high-speed mini SAS cables. This is especially useful for large data applications, such as video surveillance, data archiving, and TV broadcast storage.

*Supported Turbo NAS models and maximum number of applicable expansion enclosures

Turbo NAS models TVS-EC1080+
TVS-EC1080
TS-EC1080 Pro
TVS-EC880
TS-EC880 Pro
TVS-1282
TVS-871
TVS-882
TVS-671
TVS-682
TVS-471
TS-1079 Pro TS-879 Pro
TS-870 Pro
TS-870
TS-670 Pro
TS-670
TS-470 Pro
TS-470
RAM of NAS >= 4GB >= 4GB >= 4GB >= 4GB >= 4GB 2GB 2GB 2GB 2GB
Maximum number of REXP-1000 Pro 4* 4* 4 4 4 2 2 2 2
Maximum number of hard drives 50 48 48 46 44 30 28 26 24
Maximum raw capacity** 400 TB 384 TB 384 TB 368 TB 352 TB 240 TB 224 TB 208 TB 192 TB
Maximum RAID group size in NAS 80 TB 64 TB 64 TB 48 TB 32 TB 80 TB 64 TB 48 TB 32 TB
Maximum RAID group size in REXP-1000 Pro 80 TB
Maximum number of RAID groups per storage pool 128
Maximum storage pool size 308 TB 308 TB 308 TB 308 TB 308 TB 240 TB 224 TB 208 TB 192 TB
Maximum number of storage pools per system 128
Maximum flexible volume size RAM < 4GB: 144 TB
RAM >= 4GB: 250 TB
Maximum iSCSI LUN size RAM < 4GB: 144 TB
RAM >= 4GB: 250 TB

*The TS-EC880 Pro and TS-EC1080 Pro are shipped with 2GB RAM which supports a maximum of two REXP-1000 Pro expansion enclosures. Upgrading to 4GB RAM allows them to support up to four REXP-1000 Pro.

**The maximum capacity is calculated by 8TB HDDs.



Plug and use, seamless capacity expansion

Simply connect a REXP-1000 Pro to a Turbo NAS* and power it on. The Turbo NAS will detect the hard drives in the REXP-1000 Pro as newly installed local drives. The Turbo NAS capacity can be expanded seamlessly by using the powerful QTS Storage Manager.

* Optional purchase of SAS expansion card and QTS 4.1.0 (or newer) are required for the Turbo NAS.



Missing mode protection

When disconnection of the expansion enclosures occurs, the Turbo NAS enters missing mode automatically and blocks I/O access to protect the stored data. The system can then recover from the missing mode to the normal state with data staying intact when the disconnection is resolved.



High density, high efficiency and highly scalable

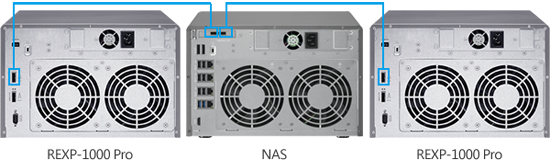

The REXP-1000 Pro supports 10 hard drives and 60TB raw capacity, and has two SAS wide ports (IN port and OUT port) for host connectivity and daisy-chain respectively. Each SAS wide port combines four SAS channels (maximum 8 SAS channels supported per expansion enclosure). The solution delivers unprecedented performance of up to 24Gbps per host connection.



Powerful QTS Storage Manager

The QTS Storage Manager neatly presents tools and options for managing system storage with an intuitive graphical user interface, which simplifies the process of NAS capacity expansion and REXP-1000 Pro management. IT administrators can easily monitor the health status of REXP-1000 Pro and the disks within it. When cascading multiple expansion enclosures in a rack, the Locate Disk and Locate Enclosure functions assist IT administrators for quick maintenance.

An excellent backup solution for the Turbo NAS

In addition to expanding an existing volume, IT administrators can use the REXP-1000 Pro as a budget-friendly external storage to perform speedy and secure backup tasks for the Turbo NAS. The QNAP RTRR (Real-Time Remote Replication) or rsync service lets IT administrators back up the Turbo NAS data to the REXP-1000 Pro on a real time or scheduled basis.

Flexible drive selection

The REXP-1000 Pro offers high flexibility in hard drive selection. IT administrators can choose enterprise-level SAS HDDs with high performance and high reliability for mission critical applications, low-cost but high-capacity SATA HDDs for large data archiving, or high-speed and high stability SSDs for I/O intensive operations.

(REXP-1000-Pro)

Host Interface Two SAS 6Gbps 4x wide port (IN port, OUT port)
Hard Drive 10 x 3.5-inch SAS/SATA 6Gb/s, SAS/SATA 3Gb/s hard drive or 2.5-inch SAS/SATA, SSD hard drive
  1. The standard system is shipped without hard drives.
  2. For the hard drive compatibility list, please visit compatibility.
LED Indicators Front panel: Status, fan error, system over heat, SAS link, SAS error, enclosure ID
Form Factor Tower
Dimensions 217.5(H) x 327(W) x 321.2(D) mm
8.54(H) x 12.87(W) x 12.65(D) inch
Weight Net weight (NAS only) : 9.24 kg/20.37 lb
Gross weight (with packing and accessories) : 13.78 kg/30.38 lb
Sound Level* Standby: 24.5 dB
Sound pressure (LpAm): 34.6 dB(A)
Power Consumption Sleep mode: 63.6W
In operation: 169.52W
(with 10 near line SAS hard drive installed)
Temperature 0-40˚C
Relative Humidity 5~95% RH non-condensing, wet bulb: 27˚C.
Power Supply ATX 350W, Input: 110-240 Vac~, 47-63Hz, 5A
COM Port Reserved for system maintenance
Fan 2 x 12 cm smart cooling fan

Front View:

1 LED Indicators: Status, Fan Error, System Over Heat, SAS Link, SAS Error
2 Enclosure ID
3 Hard Drive Tray
4 Tray Lock
5 Release Button
6 Hard Drive LEDs

Rear View:

1 Power Connector
2 Power Switch
3 K-Lock Security Slot
4 IN Port
5 OUT Port
6 COM Port (Reserved)
7 System Cooling Fans



* Testing Environment:
Refer to ISO 7779 ; Maximum HDD loaded ; Bystander Position ; Average data from 1 meter in front of operating NAS



Expansion Enclosure Management

The functions listed below are managed via the QNAP QTS operating system.

  1. Support for hard disk’s S.M.A.R.T. capacity
  2. RAID expansion enclosure LED identifier
  3. Location indication of RAID expansion enclosure
  4. Location indication of hard disks on RAID expansion enclosure
  5. Smart fan control
  6. In-band firmware update
QNAP Flexible Volume

The disks, RAID Groups, storage pools, and volumes in the RAID expansion enclosures are configured via the QTS operating system.

  1. Support for multiple RAID groups in a storage pool to ensure data safety
  2. Online storage pool expansion
  3. Online volume expansion
  4. Block-based iSCSI LUN
  5. Support for thin-provisioned volume with space reclamation
  6. Support for thin-provisioned iSCSI LUN with space reclamation

QNAP Flexible Volume Architecture

Intelligent Storage Manager

The QTS Storage Manager neatly presents tools and options for managing system storage with an intuitive graphical interface. From reviewing the system storage allocation in the Dashboard, to managing volumes, Storage Pools, disks and iSCSI storage, the Storage Manager provides a centralized place to ease the work of storage management.






Designs and specifications are subject to change without notice.
