  • Our Fastest Wi-Fi 6E and Wi-Fi 6 Router to Date: Up to 15.6 Gbps Quad-Band WiFi for faster browsing, streaming, and downloading, all at the same time.1
  • WiFi 6E Unleashed: The brand new 6 GHz band brings more bandwidth, faster speeds, and near-zero latency.
  • Two 10G Ports: 1× 10 Gbps WAN/LAN port + 1× 10 Gbps Ethernet/Fiber Combo WAN/LAN port + 1× 2.5 Gbps WAN/LAN port + 4× Gigabit LAN ports + 1× USB 3.0 port ensure max flexibility and boosted throughput.
  • Powerful CPU: 2.0 GHz quad-core processor and 1 GB RAM ensure fast transmission speeds and smooth operation of numerous devices and applications.
  • Maximised Coverage: 8× high-performance dual-band antennas along with Beamforming boost WiFi signals throughout your home.
  • More Devices with Less Lag: OFDMA and MU-MIMO technology deliver data to multiple devices, simultaneously.1
  • TP-Link HomeShield: Enhanced security defends against the latest cyber threats.5


Standards • IEEE 802.11ax 6 GHz,
• IEEE 802.11ax/ac/n/a 5 GHz,
• IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds AXE16000
• 6 GHz: 4804 Mbps (802.11ax)
• 5 GHz-1: 4804 Mbps (802.11ax)
• 5 GHz-2: 4804 Mbps (802.11ax)
• 2.4 GHz: 1148 Mbps (802.11ax)
WiFi Range 4 Bedroom Houses
8× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM
Improves transmission power to strengthen signal coverage

Multiple streams in the same band strengthen the fault tolerance in transmission
WiFi Capacity Very High
Allocate devices to different bands for optimal performance

Simultaneously communicates with multiple MU-MIMO clients

Simultaneously communicates with multiple clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

Access an extra band to reduce congestion

16 Streams
Connect your devices to more bandwidth
Working Modes • Router Mode
• Access Point Mode
Processor 2.0 GHz Quad-Core CPU

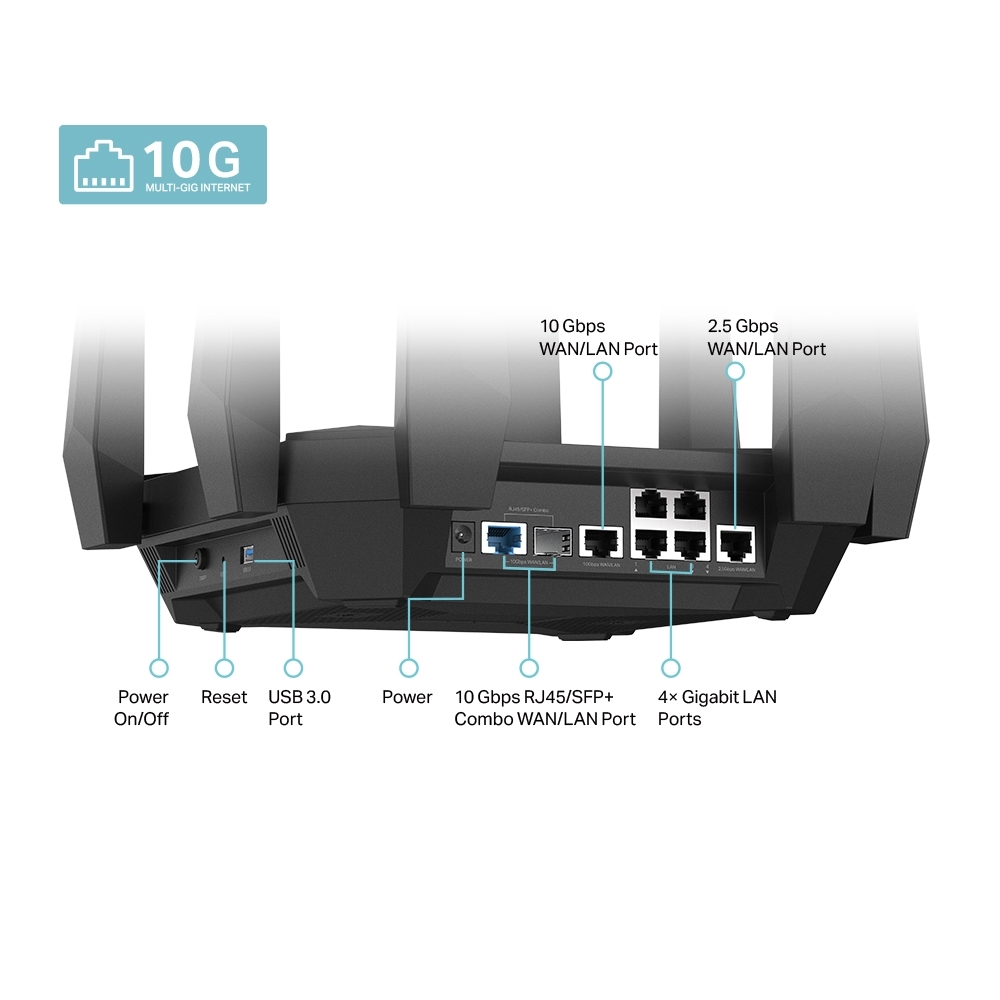

Ethernet Ports • 1× 10 Gbps RJ45/SFP+ Combo WAN/LAN Port
• 1× 10 Gbps WAN/LAN Port,
• 1× 2.5 Gbps WAN/LAN Port
• 4× 1 Gbps LAN Ports
USB Support 1× USB 3.0 Port

• Supported Partition Formats:

• Supported Functions:
FTP Server
Media Server
Samba Server
Buttons • Power On/Off Button
• Wi-Fi On/Off Button
• LED On/Off Button
• WPS Button
• Reset Button
Power 12 V ⎓ 5 A
WiFi Encryption • WPA
• WPA2
• WPA3
• WPA/WPA2-Enterprise (802.1x)
Network Security • SPI Firewall
• Access Control
• IP & MAC Binding
• Application Layer Gateway

HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner
Guest Network • 1× 6 GHz Guest Network
• 1× 5 GHz-1 Guest Network
• 1× 5 GHz-2 Guest Network
• 1× 2.4 GHz Guest Network
VPN Server • OpenVPN Server
• PPTP VPN Server
• L2TP VPN Server
VPN Client • Open VPN Client
• PPTP VPN Client
• L2TP VPN Client
Protocols • IPv4
• IPv6
Service Kits HomeShield
Learn More>
OneMesh™ OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
Learn More>
All OneMesh Products>
Parental Controls HomeShield Parental Controls
Custom Profiles
Professional Content Filter Library
Family Time
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports
WAN Types • Dynamic IP
• Static IP
• L2TP
Quality of Service QoS by Device
Cloud Service • Auto Firmware Upgrade
• TP-Link ID
NAT Forwarding • Port Forwarding
• Port Triggering
• UPnP
• IGMP Snooping
• Bridge
• Tag VLAN
DHCP • Address Reservation
• DHCP Client List
• Server
DDNS • TP-Link
• DynDNS
Management • Tether App
• Webpage
System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)
Certifications FCC, RoHS
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing
WiFi Transmission Power FCC: < 30 dBm (2.4 GHz), < 30 dBm (5 GHz), ≤ 25 dBm (6 GHz)
WiFi Reception Sensitivity 2.4 GHz:
11ax HE20 MCS0: -97dBm, 11ax HE20 MCS11: -66dBm
11ax HE40 MCS0: -95dBm, 11ax HE40 MCS11: -64dBm

5 GHz-1:
11ax HE20 MCS0: -93dBm, 11ax HE20 MCS11: -62dBm
11ax HE40 MCS0: -91dBm, 11ax HE40 MCS11: -60dBm
11ax HE80 MCS0: -88dBm, 11ax HE80 MCS11: -57dBm
11ax HE160 MCS0: -82dBm, 11ax HE160 MCS11: -52dBm

5 GHz-2:
11ax HE20 MCS0: -95dBm, 11ax HE20 MCS11: -64dBm
11ax HE40 MCS0: -93dBm, 11ax HE40 MCS11: -62dBm
11ax HE80 MCS0: -90dBm, 11ax HE80 MCS11: -59dBm
11ax HE160 MCS0: -84dBm, 11ax HE160 MCS11: -53dBm

6 GHz:
11ax HE20 MCS0: -95dBm, 11ax HE20 MCS11: -65dBm
11ax HE40 MCS0: -93dBm, 11ax HE40 MCS11: -62dBm
11ax HE80 MCS0: -90dBm, 11ax HE80 MCS11: -58dBm
11ax HE160 MCS0: -84dBm, 11ax HE160 MCS11: -53dBm
Dimensions (W×D×H) 9.1 × 9.1 × 2.7 in
(232 × 232 × 68 mm)
Package Contents • Wi-Fi Router Archer AXE300
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
Barcode # 4897098688038
Shipping Weight 1.0000kg

Manufacturer Warranty: 3 Years Manufacturer Warranty

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

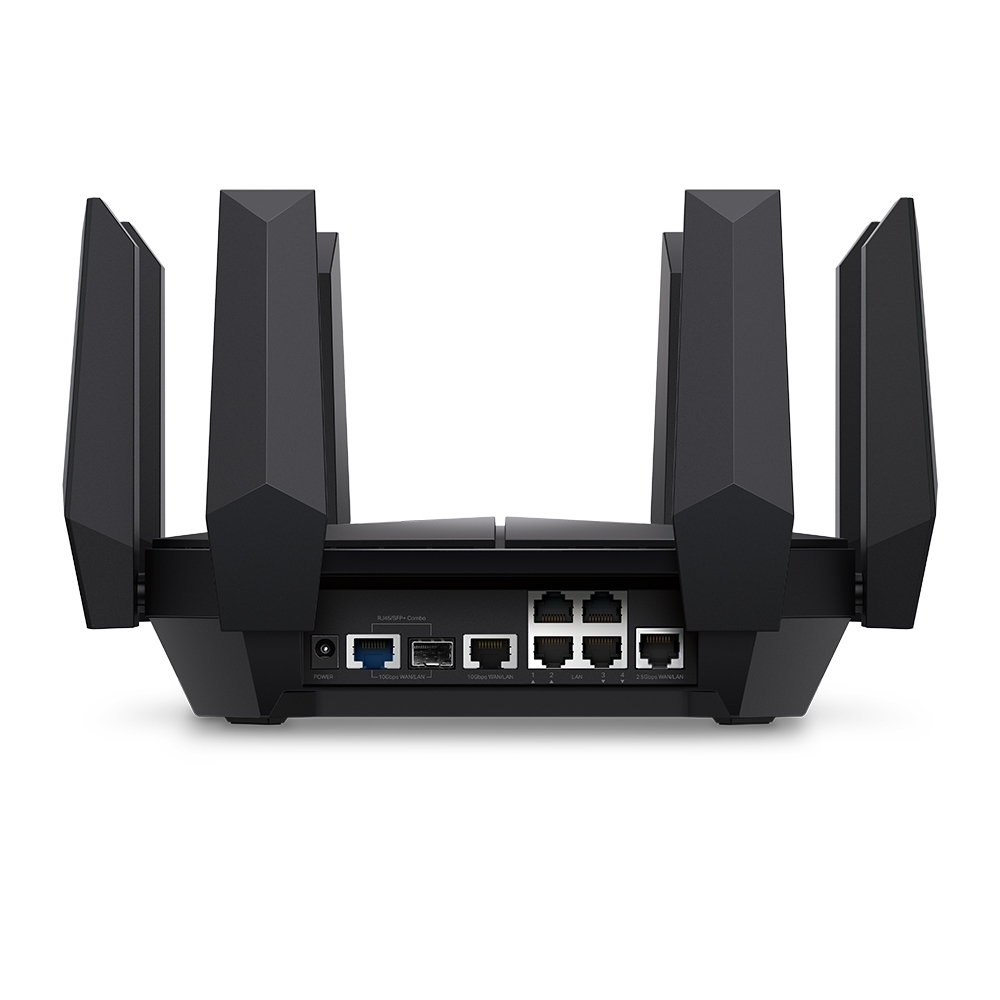

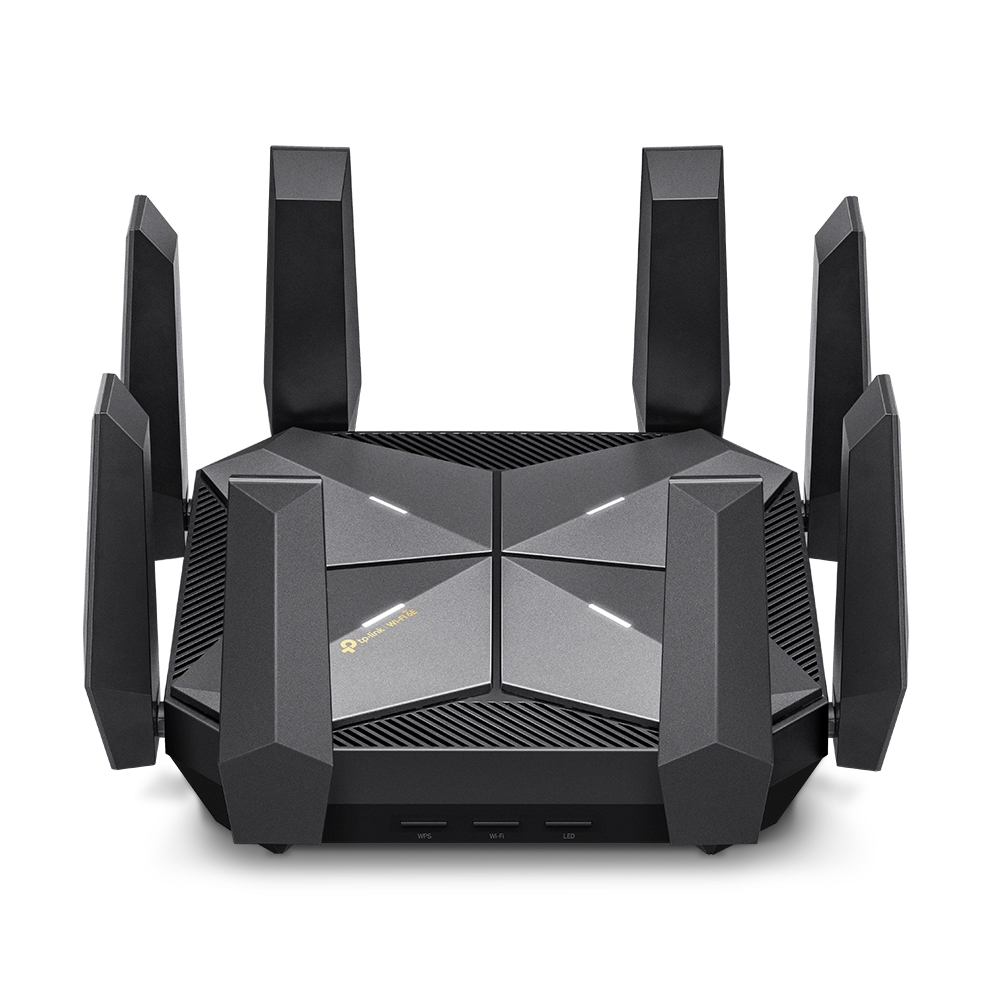

TP-Link Archer AXE300 Quad-Band Wi-Fi 6E Router AXE16000
