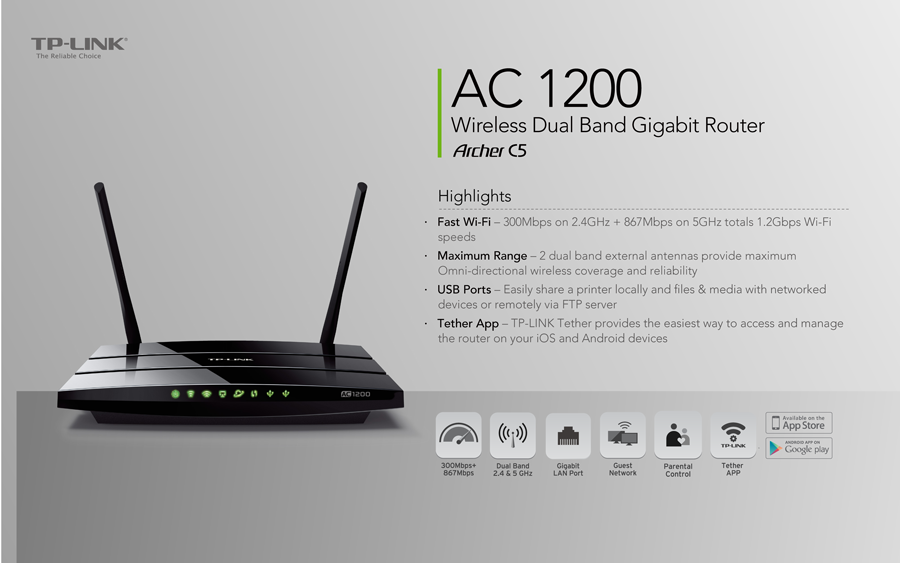

AC1200 Wireless Dual Band Gigabit Router - NBN Ready
Please note: This item does not include a modem


.png)

(ArcherC5)
HARDWARE FEATURES |
Interface |
4 10/100/1000Mbps LAN Ports
1 10/100/1000Mbps WAN Port
2 USB 2.0 Ports |
Button |
WPS/Reset Button
Wireless On/Off Switch
Power On/Off Button |
Dimensions (W X D X H) |
9.6x6.4x1.3 in. (243x160.6x32.5mm) |
External Power Supply |
12VDC / 2.5A |
Antenna Type |
2 dual band detachable antennas (RP-SMA) |
WIRELESS FEATURES |
Wireless Standards |
IEEE 802.11ac/n/a 5GHz
IEEE 802.11n/g/b 2.4GHz |
Frequency |
5GHz and 2.4GHz |
Signal Rate |
5GHz: Up to 867Mbps
2.4GHz: Up to 300Mbps |
Reception Sensitivity |
5GHz:
11a 54Mbps: -74dBm
11ac HT20: -67dBm
11ac HT40: -63dBm
11ac HT80: -59dBm
11n HT20: -71dBm
11n HT40: -69dBm
2.4GHz:
11g 54M: -76dBm
11n HT20: -73dBm
11n HT40: -71dBm |
Transmit Power |
CE:
<20dBm(2.4GHz)
<23dBm(5GHz)
FCC:
<30dBm |
Wireless Functions |
Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
Wireless Security |
64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption |
SOFTWARE FEATURES |
Quality of Service |
WMM, Bandwidth Control |
WAN Type |
Dynamic IP/Static IP/PPPoE/L2TP(Dual Access)/PPTP(Dual Access) |
Management |
Access Control
Local Management
Remote Management |
DHCP |
Server, Client, DHCP Client List,
Address Reservation |
Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
Dynamic DNS |
DynDns, Comexe, NO-IP |
VPN Pass-Through |
PPTP, L2TP, IPSec |
Access Control |
Parental Control, Local Management Control, Host List, Access
Schedule, Rule Management |
Firewall Security |
DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding |
Protocols |
Supports IPv4 and IPv6 |
USB Sharing |
Support Samba(Storage)/FTP Server/Media Server/Printer Server |
Guest Network |
2.4GHz guest network × 1
5GHz guest network × 1 |
OTHERS |
Certification |
CE, FCC, RoHS |
Package Contents |
AC1200 Wireless Dual Band Gigabit Router Archer C5
2 detachable antennas
Power supply unit
Resource CD
Ethernet Cable
Quick Installation Guide |
System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8/8.1/10
MAC OS, NetWare, UNIX or Linux |
Environment |
Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
SKU |
ArcherC5 |
Barcode # |
6935364091699 |
Brand |
TP-Link |
Shipping Weight |
1.1000kg |
Shipping Width |
0.320m |
Shipping Height |
0.070m |
Shipping Length |
0.240m |
Shipping Cubic |
0.005376000m3 |
- Manufacturer Warranty
- 3 Years Limited Warranty
- Manufacturer Contact Info
- http://www.tp-link.com.au
1300 875 465
