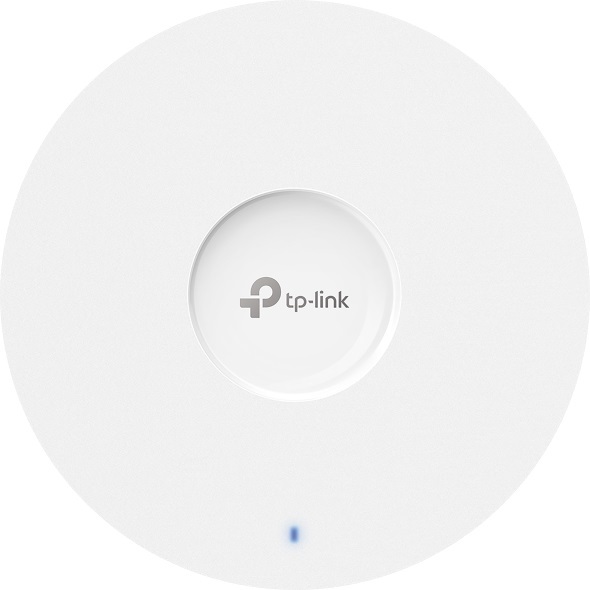

EAP683-UR

AX6000 Ceiling Mount Wi-Fi 6 Access Point

Up to 5952 Mbps Wi-Fi 6 Speeds: 1148 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz^†
Ultra-range wireless coverage by 4×4 MIMO dual-band internal antennas with high transmission power.
Supports Wi-Fi 6 technologies, such as HE160, 1024-QAM, etc.^‡
Integrates with the Omada SDN platform for centralised management.
Advanced Features: Omada Mesh, Seamless Roaming, and more.^§
PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included).

(EAP683-UR)

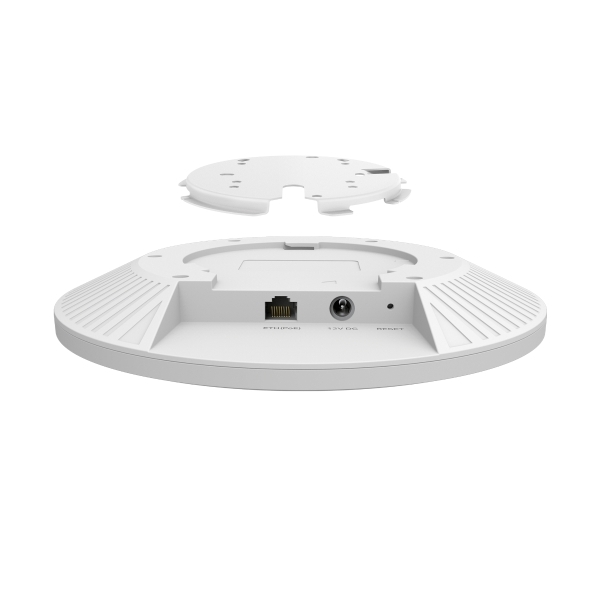

Interface	1× 2.5 Gigabit PoE+ Port
Button	Reset
Power Supply	• 802.3at PoE • 12 V / 2 A DC Note：Power adapter is not included.
Power Consumption	• EU: 20.43W • US: 23.69W

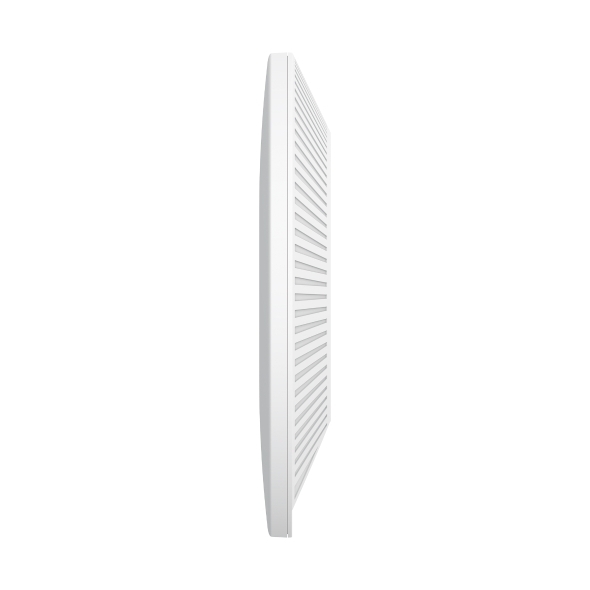

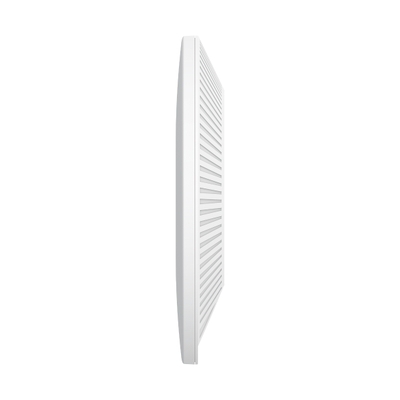

Dimensions ( W x D x H )	8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
Antenna Type	Internal Omni • 2.4 GHz: 4× 4 dBi • 5 GHz: 4× 5 dBi
Bluetooth	Yes
Mounting	Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES
Coverage	185㎡(2000ft²)^***
Concurrent Clients	510+^**
Wireless Standards	IEEE 802.11ax/ac/n/g/b/a
Frequency	2.4 GHz and 5 GHz
Signal Rate	• 5 GHz: Up to 4804 Mbps • 2.4 GHz: Up to 1148 Mbps
Wireless Functions	• 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO • HE160 (160 MHz Bandwidth)^‡ • Seamless Roaming ^§ • Omada Mesh^§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client
Wireless Security	• Captive Portal Authentication^§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power	• CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, band1 & band2, EIRP) <28 dBm(5 GHz, band3, EIRP) • FCC: <26 dBm (2.4 GHz) <26 dBm (5 GHz)

MANAGEMENT
Omada App	Yes
Centralized Management	• Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller
Cloud Access	Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
System Logging Local/Remote Syslog	Local/Remote Syslog
SSH	Yes
Web-based Management	HTTP/HTTPS
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes
Zero-Touch Provisioning	Yes. Require the use of Omada Cloud-Based Controller.

OTHERS
Certification	CE,FCC,RoHS
Package Contents	• EAP683 UR • Ceiling/Wall Mounting Kits • Installation Guide
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment	• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
