ViewSonic 12' Pen Drive display, 99.9% antimicrobial Solution, Windows and e-signature compatible and support. Touch Pen and housing

A perfectly suited for efficient e-document workflow

Implemented antimicrobial technology on pen and housing
High Performance and e-Signature precision with 2048 pen pressure
Ergonomic design, VESA-compliance, and Kensington lock security
Windows® compatible and support e-Signature software
8H tempered glass with anti-scratch, anti-glare, and anti-fingerprint

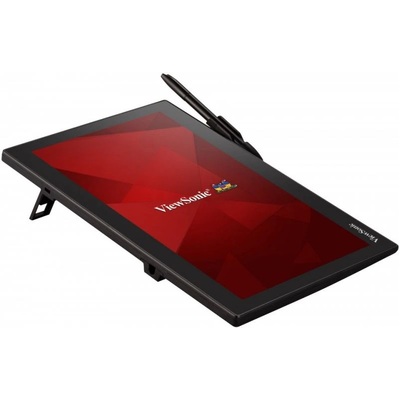

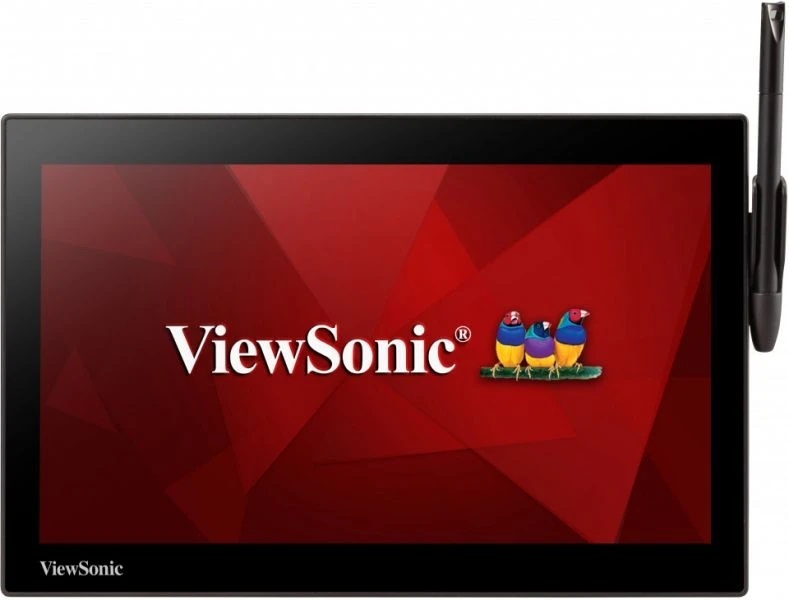

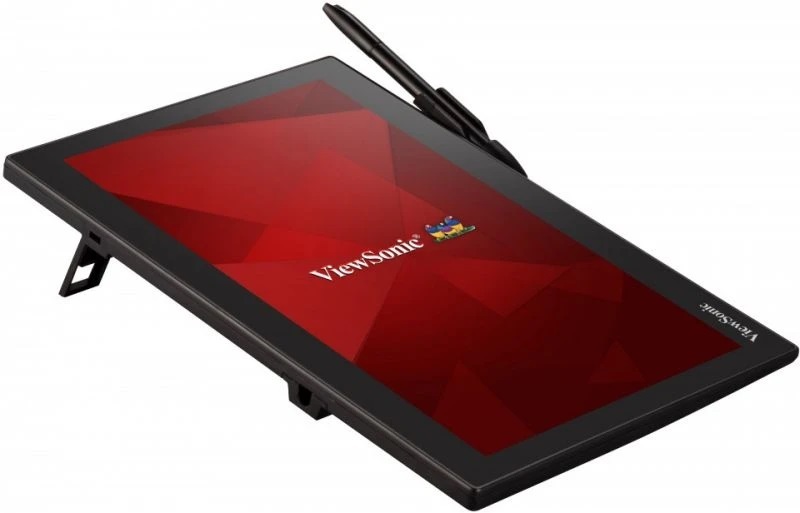

ViewSonic PD1213 is an ideal solution for optimizing user experience with streamlined service via Kiosk solution. 11.6 - inch LCD pen display offers intuitive writing, annotating, and signage capabilities for organizations that need to let customers use in portrait and landscape mode, making it easier for the user to view and signed documents. It’s an ideal e-Signature solution for corporate, banking, finance, hospitality, insurance, and healthcare.

(PD1213)

LCD PANEL
Display Area: 256.32 x 144.18 mm (11.6" TFT LCD)
Optimum Resolution: 1280 x 800 pixels
Brightness: 200 cd/m2
Contrast Ratio: 800:1
Backlight: LED Light-Bar
Viewing Angles: H:170° (85°/ 85°) V:170° (85°/ 85°)
Panel Surface: 8H tempered glass
CONNECTOR
USB: Micro USB2.0
TOUCH
Technology: EMP Technology
Digitizer Resolution: 5080 LPI
Writing Response: 250 PPS
Accuracy: +/- 0.5mm(center)
Pressure Level: 2048 levels

ERGONOMICS
Tilt: Portrait : 0/ 15°/ 20°
Landscape: 0/ 9°/ 13°
COMPATIBILITY
PC: Windows XP, 7,8,10
POWER
Voltage: USB 5V
Consumption: 6.98W (Typ.)/ 7.63W (Max.)
OPERATING CONDITIONS
Temperature (º F / º C): 0℃ to 50℃
Humidity: 20%-80%(Max), Non-Condensation
DIMENSIONS W x H x D (inch/mm)
Physical (in / mm): 287.0 X 185.6 X 14.3 mm
Box (in / mm): 350.0 X 273.0 X 76.0 mm
WEIGHT
Net (lb / kg): 0.72 kg
Gross (lb / kg): 1.15 kg
REGULATIONS
CE FCC
WARRANTY
1 Year
WHAT'S IN THE BOX
1. PD1213 Pen Display x 1
2. USB 2.0, 2 in 1 Y-cable (Micro USB to Type A x 2) x 1

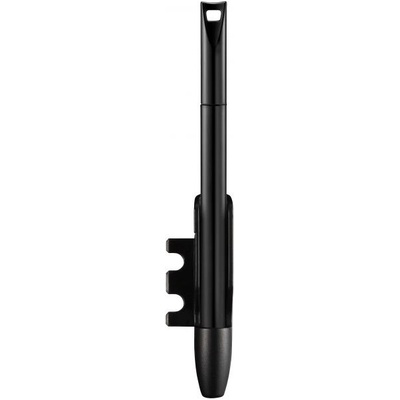

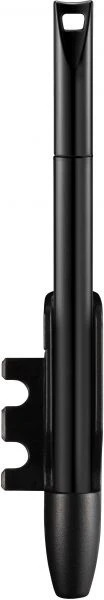

3. EMP-001 Pen x 1
4. Replacement Pen nib x 3
5. Pen tether x 1
6. Nib removal tool x 1
7. Screwdriver x 1
8. AC/DC Power Adapter 5V/2A x 1
9. Quick Start Guide x 1
