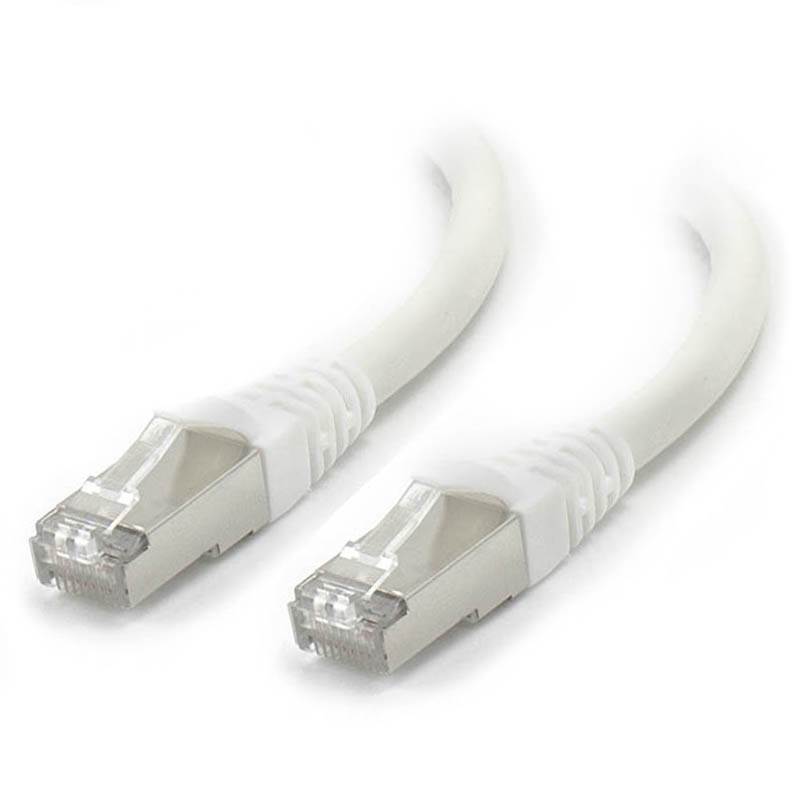

Alogic 0.5m White 10GbE Shielded CAT6A LSZH Network Cable
Model # C6A-0.5-White-SH
-
SKU: C6A-0.5-White-SH
Stock Availability
🟢Live
Allow 1–2 business days for stock transfer
- Pick Up Available
- Australian Warranty
- Checkout Securely
ALOGIC · Available from DeviceDeal
ALOGIC C6A-0.5-White-SH 0.5m White 10GbE Shielded CAT6A LSZH Cable
A 0.5m white shielded CAT6A network cable for listed 10GBASE-T applications, with 750MHz bandwidth, 26AWG stranded copper, foil-wrapped pairs, overall copper-braid shielding and an LSZH jacket.
Product overview
The C6A-0.5-White-SH is supplied as a 0.5m white CAT6A shielded network cable. The source lists 750MHz bandwidth, up to 10G LAN use, individually foil-wrapped twisted pairs, overall copper-braid shielding, 26AWG stranded bare-copper conductors and an LSZH jacket.
Buy with confidence from DeviceDeal
DeviceDeal is an authorised ALOGIC reseller in Australia. Purchase with the supplied manufacturer warranty and local DeviceDeal support.
Frequently asked questions
How long is the cable?
0.5m.
What network speed is listed?
Up to 10G LAN, including 10GBASE-T.
What bandwidth is stated?
750MHz.
How is the cable shielded?
Each twisted pair is wrapped in aluminium foil Mylar, with an overall copper braided shield.
What jacket is supplied?
LSZH (Low Smoke Zero Halogen).
(C6A-0.5-White-SH)
Key features
ALOGIC C6A-0.5-White-SH 0.5m White 10GbE Shielded CAT6A LSZH Cable
A concise view of the supplied product features.
Product specifications
ALOGIC C6A-0.5-White-SH 0.5m White 10GbE Shielded CAT6A LSZH Cable
| Brand | ALOGIC |
|---|---|
| Model | C6A-0.5-White-SH |
| Product type | Shielded CAT6A network cable |
| Length | 0.5m |
| Colour | White |
| Category | Category 6a |
| Wiring scheme | T568A |
| Standard | TIA/EIA-568C-2.1 |
| Listed bandwidth | 750MHz |
| Listed network application | Up to 10G LAN; 10GBASE-T; 1000BASE-TX and lower |
| Connector | 8P8C RJ45; 50-micron gold plated |
| Conductor | 26AWG (7/0.16) stranded bare copper |
| Pair shielding | Aluminium foil Mylar, 100% coverage |
| Overall shielding | Copper braided shield |
| Jacket | LSZH (Low Smoke Zero Halogen) |
| Temperature rating | 75°C |
| Voltage rating | 30V |
| Approvals/compliance as supplied | A-Tick; ETL; UL; IEEE; RoHS; IEC 802.3an; ISO/IEC 11801 |
| Packaging | Polybag |
| Warranty | Limited Product Lifetime Warranty |
| SKU | C6A-0.5-White-SH |
| Barcode # | 9350784003706 |
| Brand | ALOGIC |
| Shipping Weight | 1.0000kg |
| Shipping Width | 0.002m |
| Shipping Height | 0.011m |
| Shipping Length | 0.010m |
Warranty information
ALOGIC C6A-0.5-White-SH 0.5m White 10GbE Shielded CAT6A LSZH Cable
Limited Product Lifetime Warranty
This product is supplied with a limited product lifetime warranty. DeviceDeal is an authorised ALOGIC reseller in Australia.
