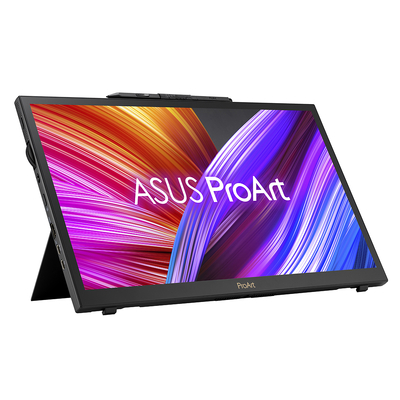

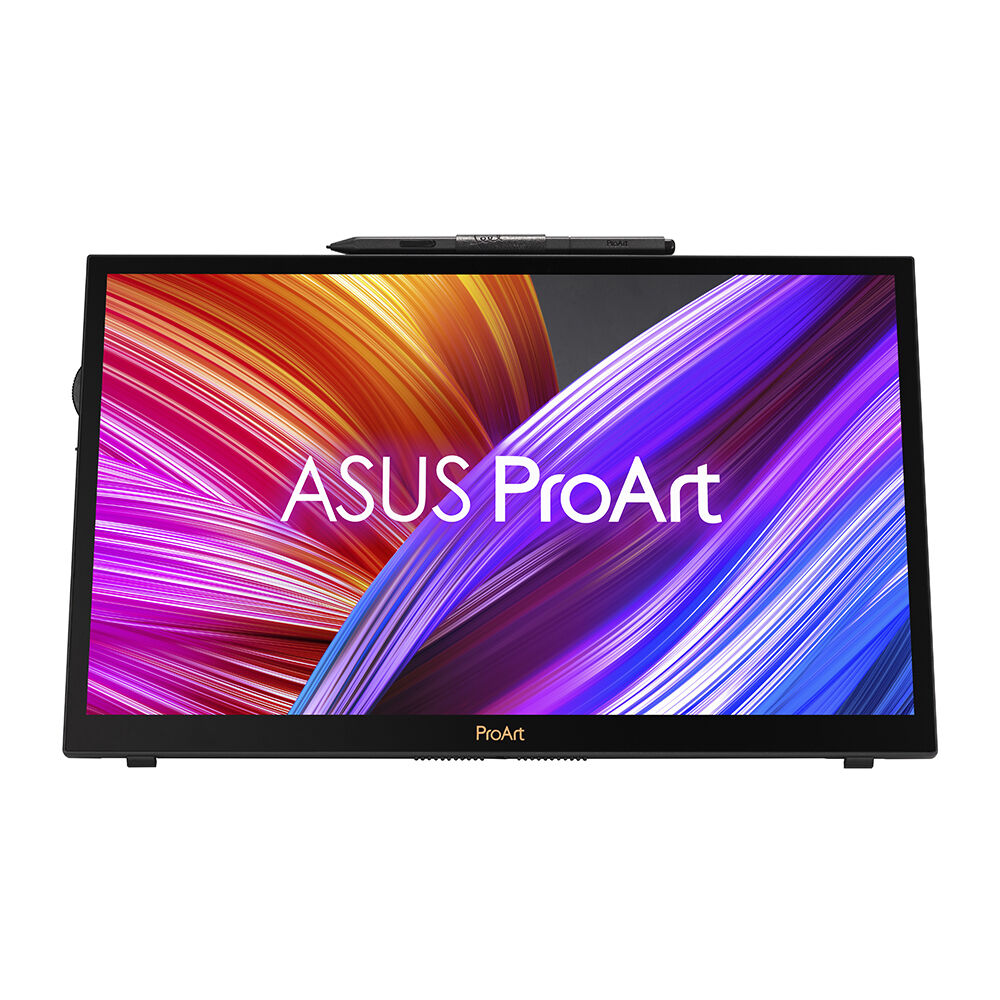

ASUS ProArt PA169CDV 15.6" 4K UHD Touch Portable Pen Display

4K UHD | Wacom EMR Technology | 10-Point Touch | Model: PA169CDV

Elevate your digital artistry with the ASUS ProArt PA169CDV, the world’s first portable monitor that is both PANTONE® Validated and Calman Verified. This 15.6-inch 4K UHD (3840 x 2160) IPS display is a dedicated canvas for creators, featuring a fully-laminated screen to minimize parallax and bundled with a battery-free ProArt Pen powered by Wacom EMR technology. With 10-bit color depth, 100% sRGB coverage, and a peak brightness of 500 nits, it provides professional-grade color accuracy in a slim, travel-ready form factor that integrates seamlessly with Adobe creative tools via the built-in ASUS Dial.

Main Features

Wacom EMR Pen Experience: Bundled battery-free ProArt Pen supports 4096 pressure levels and 40° tilt for a natural, pen-on-paper drawing feel.
ASUS Dial & Control Panel: Physical dial and virtual interface provide intuitive, precise control over brush sizes, opacity, and zoom in Adobe and other creative apps.
Dual Kickstand Design: Features two innovative stands; the upper tilts the display at 17° for drawing, while the lower provides a standard viewing angle for productivity.
Precision Laminated Screen: Reduces the gap between the glass and the panel to eliminate parallax, ensuring the cursor stays exactly under the pen tip.

Technical Specs

Display: 15.6" IPS, 4K UHD (3840 x 2160), 10-point Multi-touch
Color Specs: 10-bit (1.07B colors), 100% sRGB, ΔE < 2
Brightness/HDR: 450 cd/m² (Typ), 500 cd/m² (Peak), HDR10
I/O: 1x USB-C (DP Alt Mode), 1x HDMI 2.0, 1x USB-C (Power)
Audio: Built-in 1W x 2 Stereo Speakers
Mounting: 1/4" Tripod Socket for easy attachment to stands

The Ultimate Portable Studio for Professional Artists

The ProArt PA169CDV is engineered to bridge the gap between a portable monitor and a high-end drawing tablet. Its 4K UHD resolution offers incredible pixel density (282 PPI), making it perfect for detailed retouching and illustration. The Anti-Glare and Anti-Fingerprint (AGAF) coating ensures the touch and pen experience remains smooth and clear even during intense sessions. With its 96W-capable USB-C port and a 1/4" tripod socket on the base, you can easily integrate it into a camera rig for tethered shooting or use it as a secondary precision control panel. This display is the definitive choice for professionals who need Calman Verified color accuracy on the go.

(PA169CDV)

Detailed Specifications: ProArt Display PA169CDV (Pen Display)

Portable 4K Creative Canvas

Panel Size / Type

15.6" IPS with AGAF (Anti-Glare, Anti-Fingerprint) Surface

Resolution & Density

4K UHD (3840 x 2160) | 282 PPI @ 60Hz

Brightness

500 cd/㎡ (Peak HDR) | 450 cd/㎡ (Typ.)

Contrast Ratio

15,000:1 (Max HDR) | 1200:1 (Typical)

Color Fidelity
