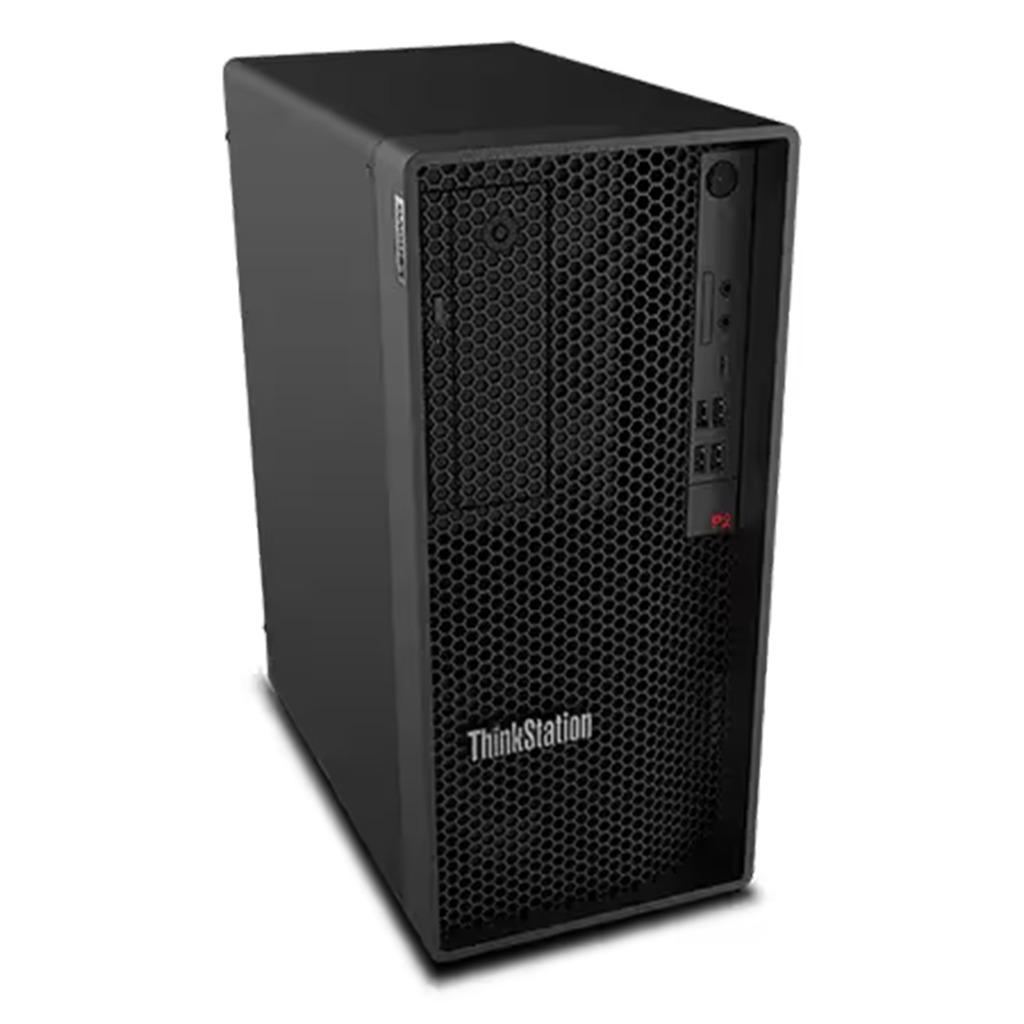

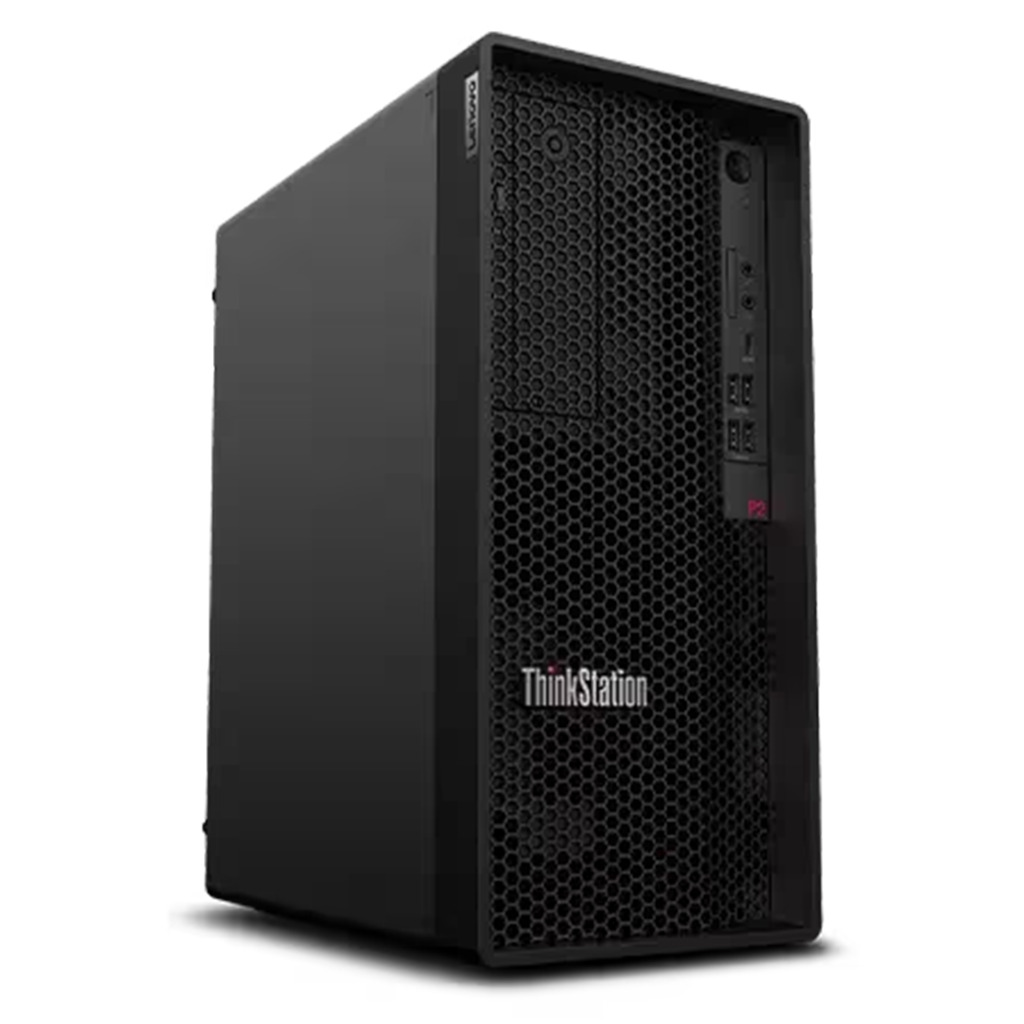

Lenovo ThinkStation P2 Tower Workstation i7-14700 16GB 1TB RTX4060 W11P
Model # 30FR000FAU
-
SKU: 30FR000FAU
- Pick Up Available
- Australian Warranty
- Checkout Securely
Lenovo ThinkStation P2 Tower Workstation i7-14700 16GB 1TB RTX4060 W11P
Lenovo ThinkStation P2 Tower Workstation - CPU: Intel Core i7-14700, 20C (8P + 12E) / 28T - GPU: NVIDIA GeForce RTX 4060 8GB - 2x 8GB UDIMM DDR5-4400 Non-ECC - 1TB SSD - 750W Platinum Fixed PSU - Intel I219-LM, 1x GbE RJ-45 - Front Ports: USB-C, 2x USB-A 3.1, 2x USB-A 3.2, Audio - Rear USB Ports: 4x USB-A, HDMI 2.1, 2x DisplayPort 1.4, 1x RJ-45 - Windows 11 Pro - 30FR000FAU
| · Ultimate computing prowess enabled with Intel® Core™ processors |
| · Superior graphical processing & performance powered by NVIDIA® professional graphics |
| · Configurable memory & storage, easy to upgrade whenever needed |
| · Enhanced reliability, & security |
| · Ideal for students, educators, data-analysts, engineers, & designers |
(30FR000FAU)
| Processor |
Intel® Core™ i7-14700, 20C (8P + 12E) / 28T, Max Turbo up to 5.4GHz, P-core 2.1 / 5.3GHz, E-core 1.5 / 4.2GHz, 33MB |
| Processor Sockets |
1x FCLGA1700 |
| Integrated Graphics |
Integrated Intel® UHD Graphics 770 |
| Discrete Graphics |
1x NVIDIA® GeForce RTX™ 4060 8GB |
| Chipset |
Intel® W680 Chipset |
| Memory |
2x 8GB UDIMM DDR5-4400 Non-ECC |
| Memory Slots |
Four DDR5 UDIMM slots, dual-channel capable |
| Max Memory |
Up to 128GB (4x 32GB DDR5 UDIMM) |
| PCIe NVMe Controller |
Integrated NVMe® Controller |
| PCIe NVMe Drive |
1x 1TB SSD M.2 2280 PCIe® 4.0x4 Performance NVMe® Opal |
| SATA Controller |
Onboard Intel® RSTe SATA RAID |
| SATA/SAS Drive |
1x 1TB HDD 7200rpm 3.5" SATA6Gb/s |
| Storage Support |
Up to 2x 3.5" SATA HDD; also supports up to 3x M.2 SSD (two by onboard, one by M.2 to PCIe® adapter) • 3.5" HDD up to 4TB each • Onboard M.2 SSD up to 4TB each • M.2 SSD by M.2 to PCIe adapter up to 2TB |
| Optical |
9.0mm DVD±RW |
| Audio Chip |
High Definition (HD) Audio, Realtek® ALC897Q-CG codec |
| Power Supply |
750W Platinum Fixed |
| DESIGN | |
| Keyboard |
USB Calliope Keyboard, Black, English |
| Mouse |
USB Calliope Mouse, Black |
| Expansion Slots |
Supports four PCIe® slots with two PCIe 4.0 x16 and two PCIe 3.0 x1. • Slot 1: PCIe 4.0 x16, full height, full length, 75W, double-width • Slot 2: PCIe 3.0 x1, full height, half length, 25W • Slot 3: PCIe 4.0 x16 (x4 lanes), full height, half length, 25W • Slot 4: PCIe 3.0 x1, full height, half length, 25W |
| M.2 Slots |
|
| Bays |
Three internal disk bays, up to two 3.5" bays plus one 2.5" bay: • Bay 1 supports one 3.5" HDD, standard; or one 2.5" HDD / SSD, optional • Bay 2 supports one 3.5" HDD or 2.5" HDD / SSD, optional • Bay 3 supports one 2.5" HDD / SSD, optional • Front Access HDD Bay supports one 3.5" HDD or 2.5" HDD / SSD, optional, occupies Bay 2 location |
| Dimensions (WxDxH) |
170 x 315.35 x 376 mm (6.7 x 12.4 x 14.8 inches, with feet) |
| Weight |
9.67 kg (21.32 lbs, maximum configuration) |
| CONNECTIVITY | |
| Onboard Ethernet |
Intel® I219-LM, 1x GbE RJ-45 |
| Optional Ethernet |
None |
| WLAN + Bluetooth |
None |
| Card Reader |
None |
| Front Ports |
|
| Rear Ports |
|
| Optional Rear Ports (configured) |
None |
| SECURITY & PRIVACY | |
| Security Chip |
Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| Physical Locks |
|
| Cover Lock |
None |
| Cable Lock |
No Cable |
| Chassis Intrusion Switch |
None |
| MANAGEABILITY | |
| System Management |
Intel® vPro® Enterprise with Intel AMT 16 |
| SERVICE | |
| Base Warranty |
3-year, Onsite |
| Included Upgrade |
3Y Premier Support Upgrade from 3Y Onsite |
| Green Certifications |
|
| ISV Certifications |
Please visit ISV certifications for Lenovo® Workstations |
| SOFTWARE | |
| Operating System |
Windows® 11 Pro, English |
| Bundled Software |
None |
| SKU | 30FR000FAU |
| Brand | Lenovo |
| Shipping Weight | 9.6700kg |
Manufacturer Warranty: 3 Years Manufacturer Warranty
