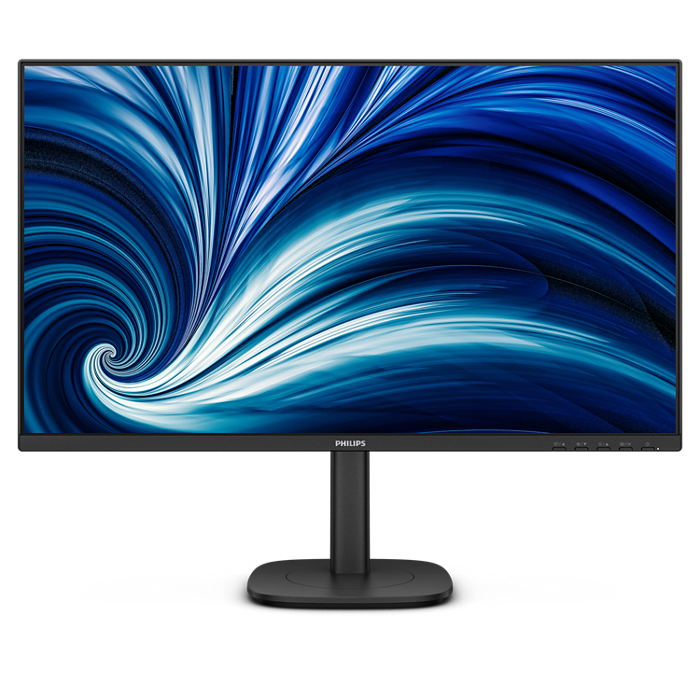

Philips 27B2U3601 27in QHD 120Hz IPS USB-C Docking Monitor
Model # 27B2U3601/75
-
SKU: 27B2U3601-75
- Pick Up Available
- Australian Warranty
- Checkout Securely
Philips 27B2U3601 27in QHD 120Hz IPS USB-C Docking Monitor
The Philips 27B2U3601 combines a 27-inch Quad HD IPS display with a smooth 120Hz refresh rate, USB-C docking with up to 90W power delivery, Gigabit Ethernet, DisplayPort output and a fully adjustable SmartErgoBase for streamlined professional workspaces.
2560 x 1440 resolution with wide 178-degree viewing angles and true 8-bit colour.
Smooth refresh rate for fluid scrolling, multitasking and everyday business workflows.
Video, data and notebook power delivery through one compatible USB-C connection.
Integrated Gigabit Ethernet, USB hub and DisplayPort output simplify desk connectivity.
CrystalClear Quad HD Productivity
The Philips 27B2U3601 features a 27-inch IPS panel with a native 2560 x 1440 Quad HD resolution. The increased pixel density provides detailed images and additional desktop space for spreadsheets, documents, business applications and multitasking.
The IPS panel delivers wide 178-degree horizontal and vertical viewing angles, 350 cd/m² typical brightness, true 8-bit colour and a typical 1500:1 contrast ratio.
Smooth 120Hz Refresh Rate
A maximum 120Hz refresh rate provides smoother movement when scrolling through webpages and spreadsheets, moving application windows and navigating complex business software.
Philips supports 2560 x 1440 at up to 120Hz through HDMI, DisplayPort and USB-C when the connected device and selected USB-C configuration support the required bandwidth. Adaptive Sync variable refresh rate support is also included.
One-Cable USB-C Docking with Up to 90W Power Delivery
The integrated USB-C upstream connection can carry video through DisplayPort Alt Mode, USB data and power through a single compatible USB-C cable. This allows a supported notebook to connect to the monitor and desk peripherals while receiving power from the display.
Philips specifies typical USB-C power delivery of 90W and a maximum power delivery of up to 90W using USB Power Delivery 3.0.
Professional Docking Connectivity
- 1 x HDMI 2.0 input
- 1 x DisplayPort 1.4 input
- 1 x USB-C upstream with DisplayPort Alt Mode, data and power delivery
- 1 x DisplayPort output
- RJ45 Ethernet LAN
- 4 x USB-A downstream ports
- 1 x USB-A B.C 1.2 fast-charge port
- Audio output
Business Workspace Features
- 2W x 2 built-in stereo speakers
- Smart Link Sync support
- SmartImage picture enhancement
- SmartControl software support
- Adaptive Sync variable refresh rate
- Kensington security lock
- 100 x 100mm VESA mounting
Gigabit Ethernet Through USB-C
The integrated RJ45 Ethernet connection allows a compatible USB-C connected notebook to access a wired network through the monitor. Philips specifies 10/100Mbps operation in USB 2.0 mode and up to 1000Mbps Gigabit Ethernet in USB 3.0 mode.
PXE, MAC Address Pass-Through and Wake-on-LAN are supported on compatible systems, making the docking functionality suitable for managed professional and business environments.
USB 3.2 Gen 1 Hub
The integrated USB 3.2 Gen 1 hub supports data transfer speeds up to 5Gbps and provides four USB-A downstream ports for keyboards, mice, storage devices and other compatible peripherals.
One USB-A port also supports B.C 1.2 fast charging for compatible mobile devices.
DisplayPort Output for Multi-Monitor Workspaces
A DisplayPort output enables compatible daisy-chain monitor configurations, helping reduce the number of display cables that need to run directly back to the connected computer.
The monitor also supports Philips Smart Link Sync as either a compatible primary or secondary monitor. With supported Smart Link Sync displays, brightness and colour settings can be coordinated across a daisy-chained workspace.
SoftBlue Technology for Comfortable Viewing
Philips SoftBlue technology uses a hardware-based low blue-light panel designed to improve visual comfort during extended working sessions while maintaining colour performance.
The implementation is TÜV Rheinland Low Blue Light Hardware Solution certified, and the monitor also meets the eyesafe CERTIFIED 2.0 standard.
Flicker-Free and EasyRead
Flicker-Free technology helps regulate display brightness to reduce visible flicker during extended use, while EasyRead mode creates a paper-like viewing experience for long, text-heavy documents.
These features make the display well suited to document processing, spreadsheets, research and other productivity-focused workflows.
SmartErgoBase Ergonomic Adjustment
The SmartErgoBase provides extensive positioning flexibility with 150mm height adjustment, -5 to 30-degree tilt, -180 to 180-degree swivel and -90 to 90-degree pivot adjustment.
A 100 x 100mm VESA mounting interface is also included for compatible monitor arms and mounting solutions.
Built-In Stereo Speakers
Two integrated 2W stereo speakers provide convenient audio for presentations, online content and everyday multimedia without requiring separate desktop speakers. An audio output is also provided for compatible headphones or external audio equipment.
Wide Colour Coverage
The true 8-bit IPS panel displays 16.7 million colours. Philips specifies typical colour gamut coverage of 125% sRGB and 114% NTSC, providing broad colour reproduction for everyday professional and visual workloads.
Why Choose the Philips 27B2U3601?
The Philips 27B2U3601 combines QHD detail, smooth 120Hz operation and full USB-C docking functionality in one professional display. With up to 90W notebook charging, Gigabit Ethernet, a USB hub, DisplayPort output, built-in speakers and comprehensive ergonomic adjustment, it is designed to reduce desk clutter while supporting productive multi-device and multi-monitor workflows.
Frequently Asked Questions
What resolution does the Philips 27B2U3601 support?
The monitor has a native Quad HD resolution of 2560 x 1440 and supports refresh rates up to 120Hz through compatible HDMI, DisplayPort and USB-C connections.
How much USB-C power can the Philips 27B2U3601 deliver?
The USB-C connection supports up to 90W power delivery through USB PD 3.0 for compatible notebooks and devices.
Does the Philips 27B2U3601 have Ethernet?
Yes. The monitor includes RJ45 Ethernet with up to Gigabit network speeds when used in a compatible USB 3.0 configuration.
Can the Philips 27B2U3601 daisy-chain another monitor?
Yes. A DisplayPort output is included for compatible daisy-chain monitor configurations.
Does the Philips 27B2U3601 have speakers?
Yes. It includes two built-in 2W stereo speakers.
Can the Philips 27B2U3601 be VESA mounted?
Yes. It supports a standard 100 x 100mm VESA mounting pattern.
Not sure which monitor is right for you? View the DeviceDeal Monitor Buying Guide to compare the key features to consider before choosing your next display.
(27B2U3601-75)
- 27-inch QHD 2560x1440 IPS panel, 350 nits, 1500:1 contrast
- 120Hz refresh rate with 4ms response time
- USB-C docking with DP Alt mode, data and power delivery
- Built-in RJ-45 Ethernet LAN connection
- 2x HDMI 2.0 and DisplayPort 1.4 inputs plus 5-port USB hub
- 125% sRGB colour gamut coverage
- Built-in stereo speakers and ergonomic SmartErgoBase stand
Key Specifications
Full Specifications
Display
| Panel Size | 27in / 68.5cm |
| Aspect Ratio | 16:9 |
| LCD Panel Type | IPS technology |
| Backlight Type | W-LED system |
| Maximum Resolution | 2560 x 1440 at 120Hz via HDMI, DisplayPort or USB-C |
| Pixel Pitch | 0.2331 x 0.2331mm |
| Pixel Density | 109 PPI |
| Effective Viewing Area | 596.74 x 335.66mm |
| Brightness | 350 cd/m² |
| Contrast Ratio | 1500:1 typical |
| SmartContrast | 50,000,000:1 |
| Display Colours | 16.7 million, true 8-bit |
| Viewing Angle | 178° horizontal / 178° vertical, C/R > 10 |
| Response Time | 4ms Gray-to-Gray typical |
| Scanning Frequency | 30-230kHz horizontal / 48-120Hz vertical |
| Display Coating | Anti-Glare, 3H, Haze 25% |
Colour and Image Quality
| sRGB Colour Gamut | 125% typical |
| NTSC Colour Gamut | 114% typical |
| sRGB Mode | Yes |
| Picture Enhancement | SmartImage |
| Adaptive Sync | Yes |
| Smart Link Sync | Yes, primary or secondary monitor |
Eye Comfort
| SoftBlue Technology | Yes |
| Flicker-Free | Yes |
| EasyRead | Yes |
| Eyesafe | eyesafe CERTIFIED 2.0 |
| Low Blue Light Certification | TÜV Rheinland Low Blue Light, Hardware Solution |
Video and Network Connectivity
| HDMI | HDMI 2.0 x 1 |
| DisplayPort Input | DisplayPort 1.4 x 1 |
| USB-C Input | USB-C x 1 upstream, DisplayPort Alt Mode, data and power delivery |
| DisplayPort Output | DisplayPort Out x 1 |
| RJ45 | Ethernet LAN, USB 2.0: 10/100Mbps, USB 3.0: up to 1000Mbps |
| Network Features | PXE, MAC Address Pass-Through and Wake-on-LAN on compatible systems |
| Audio Output | Yes |
| HBR3 | Yes, DisplayPort and USB-C |
| HDCP | HDCP 1.4 and 2.2 via HDMI, DisplayPort and USB-C |
USB Hub and Power Delivery
| USB Standard | USB 3.2 Gen 1, up to 5Gbps |
| USB Upstream | USB-C x 1 |
| USB Downstream | USB-A x 4 |
| Fast Charging | 1 x USB-A with B.C 1.2 fast charging |
| Typical USB-C Power Delivery | 90W |
| Maximum USB-C Power Delivery | Up to 90W |
| USB Power Delivery Version | USB PD 3.0 |
Audio and Convenience
| Built-in Speakers | 2W x 2 |
| Control Software | SmartControl |
| Plug and Play Compatibility | DDC/CI, Mac OS, sRGB, Windows 11 / 10 |
| Kensington Lock | Yes |
| VESA Mount | 100 x 100mm |
Stand and Ergonomics
| Stand Type | SmartErgoBase |
| Height Adjustment | 150mm |
| Pivot | -90° to +90° |
| Swivel | -180° to +180° |
| Tilt | -5° to +30° |
Power
| Power Supply | Built-in, 100-240VAC, 50-60Hz |
| On Mode | 23.43W typical, Energy Star test method |
| ECO Mode | 13.8W typical |
| Standby Mode | 0.35W typical |
| Off Mode | 0.3W typical |
| Power LED | Operation: White, Standby: White blinking |
Dimensions
| Product with Stand, Maximum Height | 615 x 540 x 229mm |
| Product without Stand | 615 x 361 x 46mm |
| Packaging | 730 x 445 x 139mm |
Weight
| Product with Stand | 6.44kg |
| Product without Stand | 4.77kg |
| Product with Packaging | 9.17kg |
Operating Conditions
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | 20% to 80% |
| Operating Altitude | Up to 12,000ft / 3,658m |
| Non-Operating Altitude | Up to 40,000ft / 12,192m |
| MTBF | 70,000 hours, excluding backlight |
Sustainability
| Environmental Standards | Energy Star, EPEAT, RoHS |
| Post-Consumer Recycled Plastic | 85% |
| Recyclable Packaging Material | 100% |
| Housing | PVC / BFR free |
Cabinet
| Front Bezel | Black |
| Rear Cover | Black |
| Stand Foot | Black |
| Finish | Texture |
USB-C video requires the connected device to support DisplayPort Alt Mode over USB-C.
Philips specifies USB-C power delivery of up to 90W using USB Power Delivery 3.0. Actual charging capability depends on the connected notebook or device.
Philips states that USB-C High Resolution mode enables the maximum 2560 x 1440 resolution at 120Hz.
RJ45 Gigabit Ethernet operation requires the appropriate USB mode and compatible system. PXE, MAC Address Pass-Through and Wake-on-LAN support can vary depending on system configuration.
Smart Link Sync requires compatible Smart Link monitors in the daisy-chain configuration.
| SKU | 27B2U3601-75 |
| Brand | PHILIPS |
3 Year Manufacturer Warranty
