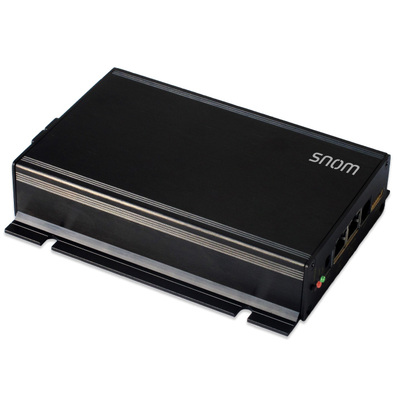

Snom SNOM-PA1-PLUS SIP-Based Annoucement System

With the Snom PA1+, a SIP PBX can be expanded to become a broadcasting system for HD audio announcements from any Snom SIP phone or to play background music in rooms, corridors and office floors.

With the Snom PA1+, a SIP PBX can be expanded to become a broadcasting system for HD audio announcements from any Snom SIP phone or to play background music in rooms, corridors and office floors.

The integrated 6.5-watt high-performance amplifier can already fill large rooms with sound using existing 600ohm speakers, but larger PA systems can also be added via the existing connections.

Another possible use is the freely configurable relay contacts, which can be remotely controlled via SIP or DTMF and thus help to integrate existing door opening systems, for example.

Additional network components such as LAN cameras can also be connected to the gigabit switch in order to set up or expand a security system. High security standards, such as SHA 2 encryption, are key attributes of the PA1+.

Features
  Gigabit Ethernet
  HD audio
  IPv6 & IPv4
  Power over Ethernet (PoE)
  Security (TLS & SRTP)
  Telephone directory

(SNOM-PA1-PLUS)






Technical Specifications
V: 2022 / 06 / 14 - 13 2022 - Snom Technology GmbH 2/3
Basics
· Operating system Linux
· Wall mountable
· Product numbers
· Snom PA1+ | Public announcement system | EU & UK
| PN 00004602
· Snom PA1+ | Public announcement system |
Americas | PN 00004603
Dimensions and weight
· Dimensions (L x W x H, approx.)
· 165 mm x 104 mm x 35 mm
· 175 mm x 104 mm x 35 mm with connectors
· Weight (approx.)
· 400 g
Interfaces and connections
· Snom PA1+ power options
· Power over Ethernet (PoE), IEEE 802.3af, class 3
· Power adapter: 100 - 240 V AC / 50 - 60 Hz | 5 V DC
(SELV) / 2 A / 10 W 2

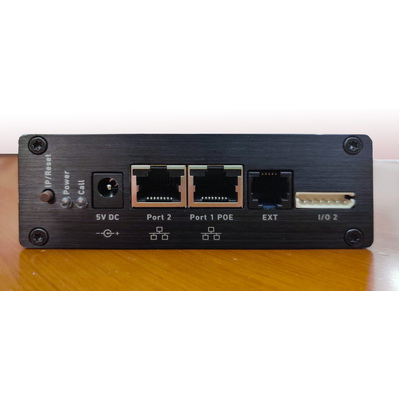

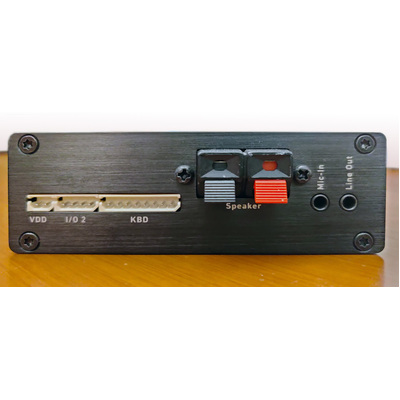

· Wired interfaces
· 1 coaxial power adapter connector
· 2 RJ45-8P8C Gigabit Ethernet ports
· 2 RCA jack (1 Mic In / 1 Line Out) for wired headset
connection 3
· 4 pin I/O connector
· 1 loudspeaker connector
Indicators and keys
· 1 green LED for call status indication
· 1 red LED for power status indication
· 1 dedicated key for Reset / IP address announcement
Call features
· Outgoing call features
· Multicast paging
· Incoming call features
· Auto answer
Audio devices and codecs
· Amplifier 1
· 6.5 W, class D amplifier
· Impedance 600 Ω
· Audio codecs
· G.711 (A-law, μ-law), G.722, G.723.1, G.726, G.729
· Dual-tone multi-frequency signalling (DTMF)
· in-band, out-of-band, SIP-INFO
User interfaces and setup
· Configuration and setup via menu-driven web user
interface (WUI)
· Languages
· Automatic configuration via provisioning
· Loading of settings and firmware via HTTP / HTTPS /
TFTP
· Supported DHCP provisioning options 66 / 67
· Secure Redirection And Provisioning Service (SRAPS)
support
· Plug & Play (PnP) support
· Secure provisioning with preinstalled certificate
· Localization
· Timezone, Dial tone
· Diagnostic
· SIP trace, PCAP trace, Syslog
Networking technologies and protocols
· Network technologies
· OpenVPN
· VoIP related protocols and techniques
· SIP (RFC 3261), ,SDP (RFC 3261) RTP (RFC 8866)
· Secure VoIP protocols
· SIPS (SIP over TLS), SRTP (RFC 3711)
· Network protocols
· IPv4 / IPv6 (Dual Stack), , NTP, , HTTP,DHCP LDAP
FTP, ,TFTP L2TP
· Secure network protocols
· TLS
Interoperability
· Certified VoIP partner

SKU SNOM-PA1-PLUS
Brand SNOM
Shipping Weight 0.3000kg
Shipping Width 0.120m
Shipping Height 0.230m
Shipping Length 0.100m
Shipping Cubic 0.002760000m3
Manufacturer Warranty
1 Year Manufacturer Warranty

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

Snom SNOM-PA1-PLUS SIP-Based Annoucement System

Model # SNOM-PA1-PLUS

  • SKU: SNOM-PA1-PLUS

$302.00
$1,159.00
SAVE $857.00 (74%)
Sold Out

Pre-ordering not available for this item.
