10 m purple CAT6 snagless Ethernet patch cable

Designed for reliable wired Ethernet with CAT6 250 MHz performance and Multi-Gigabit support. Designed for dependable wired networking with product-specific construction and installation details shown below.

10 mCAT6 250 MHzUp to 10GbpsUp to 100W PoE24 AWG CopperPVC / CMG

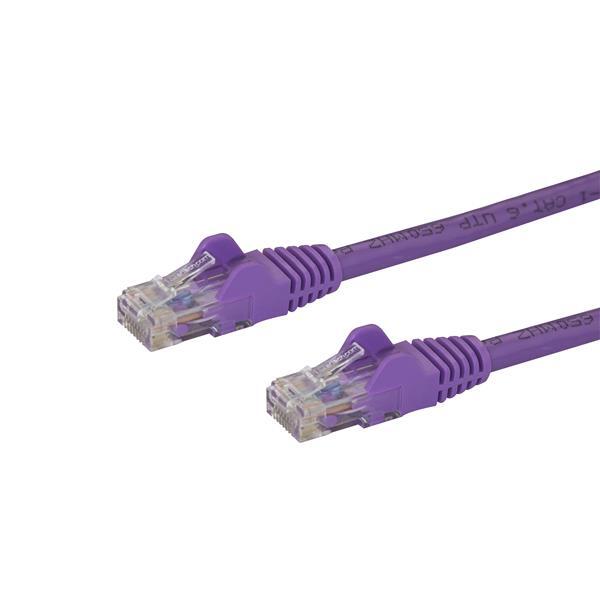

StarTech N6PATC10MPL 10 m purple CAT6 snagless Ethernet patch cable

CAT6 network performance

Designed for reliable wired Ethernet with CAT6 250 MHz performance and Multi-Gigabit support.

24 AWG pure copper

Uses stranded copper conductors rather than copper-clad aluminium for dependable data and PoE connections.

Snagless RJ45 connectors

Connector clip protection and molded strain relief help reduce snagging and sharp bends during installation.

Up to 100W PoE

Supports Power over Ethernet applications with compatible IEEE 802.3bt equipment.

What to know

10 m purple cable with RJ45 male connectors at both ends.
4-pair UTP, 24 AWG stranded copper construction.
PVC jacket with CMG general-purpose fire rating.
Current exact-SKU StarTech technical information rates the cable at CAT6 250 MHz.

Product video

Australian warranty confidence

This Australian version supplied by DeviceDeal is covered by a lifetime official StarTech.com manufacturer warranty in Australia. Retain the DeviceDeal tax invoice as proof of purchase; coverage and claims remain subject to StarTech.com terms, eligibility requirements and product assessment.

Frequently asked questions

What is the StarTech N6PATC10MPL?

The N6PATC10MPL is a 10 m purple CAT6 RJ45 Ethernet patch cable for wired network connections.

What connectors does the N6PATC10MPL use?

It has one RJ45 male connector at each end for standard Ethernet network equipment.

What network speeds does the N6PATC10MPL support?

It supports 1Gbps, 2.5Gbps and 5Gbps Multi-Gigabit Ethernet, and up to 10Gbps over supported CAT6 channel distances with compatible equipment.

What cable rating does the N6PATC10MPL use?

Current exact-SKU StarTech technical information rates this cable as CAT6, 250 MHz.

Does the N6PATC10MPL support Power over Ethernet?

Yes. Its 24 AWG pure copper construction supports Power over Ethernet applications, including up to 100W with compatible IEEE 802.3bt equipment.

How is the N6PATC10MPL constructed?

It uses 24 AWG stranded copper, 4-pair UTP construction, a PVC CMG-rated jacket, snagless molded strain relief and gold-plated RJ45 contacts.

What is included with the N6PATC10MPL?

The package contains 1 x Cat6 patch cable.

What warranty applies to the N6PATC10MPL in Australia?

The Australian version supplied by DeviceDeal is covered by a lifetime official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility requirements and product assessment. Retain the DeviceDeal tax invoice as proof of purchase.

(N6PATC10MPL)

Features and highlights

CAT6 250 MHz

Current exact-SKU StarTech technical information specifies CAT6 performance rated to 250 MHz.

Multi-Gigabit ready

Supports common Gigabit and Multi-Gigabit Ethernet speeds with compatible networking equipment.

24 AWG copper

Stranded pure copper conductors support reliable data transmission and Power over Ethernet applications.

Snagless RJ45 design

Protected connector clips and molded strain relief help simplify cable runs and reduce connector stress.

Up to 100W PoE

Supports compatible Power over Ethernet equipment, including IEEE 802.3bt applications up to 100W.

10 m purple jacket

Provides a 10 m colour-coded cable run using a durable PVC CMG-rated jacket.

Key highlights

RJ45 male to RJ45 male
4-pair UTP construction
50-micron gold-plated contacts
T568B wiring
PVC CMG-rated jacket
Lifetime StarTech.com manufacturer warranty

Warranty confidence

Lifetime official StarTech.com manufacturer warranty in Australia. Retain the DeviceDeal tax invoice as proof of purchase.

Specifications

StarTech N6PATC10MPL 10 m purple CAT6 snagless Ethernet patch cable

Source note: The supplied DeviceDeal specification text lists CAT6 - 650 MHz, while current exact-SKU StarTech technical material lists CAT6 - 250 MHz. The current StarTech 250 MHz value is used here; supplied physical/package values are preserved where not contradicted.

General

Product

StarTech N6PATC10MPL CAT6 snagless Ethernet patch cable

Warranty

Lifetime official StarTech.com manufacturer warranty

Cable category

CAT6, 250 MHz

Ethernet capability

1Gbps, 2.5Gbps, 5Gbps and up to 10Gbps over supported CAT6 channel distances with compatible equipment

Power over Ethernet

Supports PoE applications, including up to 100W with compatible IEEE 802.3bt equipment

Hardware and connectors

Connector A

1 x RJ45 male

Connector B

1 x RJ45 male

Conductors

4-pair UTP, 24 AWG stranded copper

Connector plating

Gold, with 50-micron contacts

Cable jacket

PVC - Polyvinyl Chloride

Fire rating

CMG Rated (General Purpose)

Cable type

Snagless

Wiring standard

TIA/EIA-568-B.1-2001 T568B

Physical characteristics

Colour

Purple

Cable length

10 m

Product length

10 m

Product weight

387 g

Packaging and in the box

Package length

33 cm

Package width

25.5 cm

Package height

35 mm

Shipping weight

406 g

Included in package

1 x Cat6 patch cable
