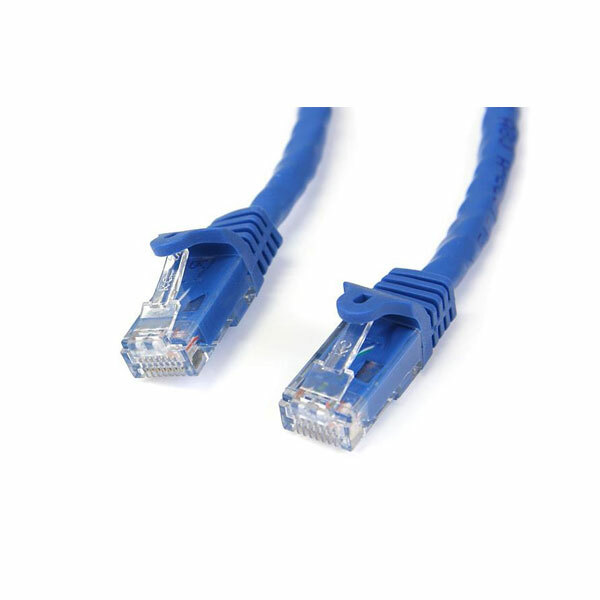

StarTech N6PATC3MBL 3 m blue CAT6 Ethernet cable

Standard CAT6 patch connectivity with 24 AWG stranded copper, snagless RJ45 connectors and Power over Ethernet support.

3 mCAT6 250 MHz24 AWG CopperUp to 100W PoE

StarTech N6PATC3MBL 3 m blue CAT6 Ethernet cable

CAT6 network performance

Current exact-SKU StarTech information specifies CAT6 250 MHz performance with Multi-Gigabit Ethernet support.

24 AWG copper

Stranded pure copper conductors support dependable data transmission and Power over Ethernet.

Snagless RJ45 design

Connector clip protection and molded strain relief help reduce snagging and sharp bends during installation.

Up to 100W PoE

Supports compatible IEEE 802.3bt Power over Ethernet applications up to 100W.

What to know

RJ45 male to RJ45 male.
4-pair UTP, 24 AWG stranded copper construction.
PVC jacket with CMG general-purpose fire rating.
CAT6 250 MHz rating from current exact-SKU StarTech technical information.

Product video

Australian warranty confidence

This Australian version supplied by DeviceDeal is covered by a lifetime official StarTech.com manufacturer warranty in Australia. Retain the DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is the StarTech N6PATC3MBL?

The N6PATC3MBL is a 3 m blue CAT6 Ethernet patch cable with RJ45 connectors for wired network connections.

What connectors does the N6PATC3MBL use?

It has one RJ45 male connector at each end.

What cable rating does the N6PATC3MBL use?

Current exact-SKU StarTech technical information rates this cable as CAT6, 250 MHz.

What network speeds does the N6PATC3MBL support?

It supports 1Gbps, 2.5Gbps and 5Gbps Multi-Gigabit Ethernet, and up to 10Gbps over supported CAT6 channel distances with compatible equipment.

Does the N6PATC3MBL support Power over Ethernet?

Yes. Its 24 AWG stranded copper construction supports Power over Ethernet applications, including up to 100W with compatible IEEE 802.3bt equipment.

How is the N6PATC3MBL constructed?

It uses 24 AWG stranded copper, 4-pair UTP construction, a PVC CMG-rated jacket, snagless molded strain relief and gold-plated RJ45 contacts.

What is included with the N6PATC3MBL?

The package contains 1 x 3 m Blue Snagless Cat6 UTP Patch Cable - ETL Verified.

What warranty applies to the N6PATC3MBL in Australia?

The Australian version supplied by DeviceDeal is covered by a lifetime official StarTech.com manufacturer warranty in Australia, subject to StarTech.com warranty terms, eligibility requirements and product assessment. Retain the DeviceDeal tax invoice as proof of purchase.

(N6PATC3MBL)

Features and highlights

CAT6 250 MHz

Current exact-SKU StarTech technical information specifies CAT6 performance rated to 250 MHz.

Multi-Gigabit ready

Supports 1Gbps, 2.5Gbps, 5Gbps and up to 10Gbps over supported CAT6 channel distances with compatible equipment.

24 AWG copper

Uses stranded pure copper conductors for reliable data and Power over Ethernet delivery.

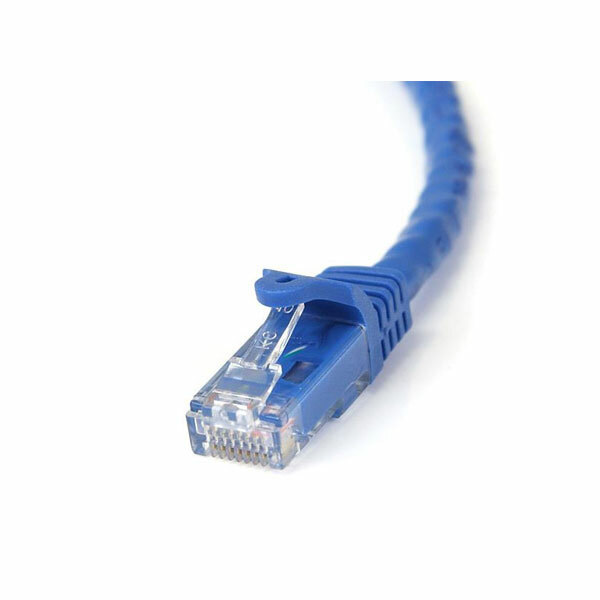

Snagless RJ45 connectors

Protected clips and molded strain relief help reduce connector damage during cable runs.

Up to 100W PoE

Supports compatible IEEE 802.3bt Power over Ethernet applications up to 100W.

3 m blue cable

Colour-coded PVC patch cable for organized network installations.

Key highlights

RJ45 male to RJ45 male
4-pair UTP
50-micron gold-plated contacts
24 AWG stranded copper
T568B wiring
Lifetime StarTech.com manufacturer warranty

Warranty confidence

Lifetime official StarTech.com manufacturer warranty in Australia. Retain the DeviceDeal tax invoice as proof of purchase.

Specifications

StarTech N6PATC3MBL 3 m blue CAT6 snagless Ethernet patch cable.

Source note: The current DeviceDeal page lists a 300 g shipping weight. The current exact-SKU StarTech datasheet lists 126 g product weight and 146 g packaged weight, so the StarTech values are used.

General

Product

StarTech N6PATC3MBL CAT6 Ethernet patch cable

Warranty

Lifetime official StarTech.com manufacturer warranty

Cable category

CAT6, 250 MHz

Ethernet capability

1Gbps, 2.5Gbps, 5Gbps and up to 10Gbps over supported CAT6 channel distances with compatible equipment

Power over Ethernet

Supports PoE applications, including up to 100W with compatible IEEE 802.3bt equipment

Hardware and connectors

Connector A

1 x RJ45 male

Connector B

1 x RJ45 male

Conductors

4-pair UTP, 24 AWG stranded copper

Connector contacts

50-micron gold-plated

Cable jacket

PVC - Polyvinyl Chloride

Fire rating

CMG Rated (General Purpose)

Cable type

Snagless with molded strain relief

Wiring standard

TIA/EIA-568-B.1-2001 T568B

Physical characteristics

Colour

Blue

Cable length

3 m

Product length

3 m

Product width

1.3 cm

Product height

1.6 cm

Product weight

126 g

Packaging and in the box

Package length

17.0 cm

Package width

19.9 cm

Package height

2.3 cm

Shipping weight

146 g

Included in package

1 x 3 m Blue Snagless Cat6 UTP Patch Cable - ETL Verified

SKU	N6PATC3MBL
Barcode #	65030846561
Brand	Startech
Shipping Weight	0.3000kg
Shipping Width	0.180m
Shipping Height	0.020m
Shipping Length	0.210m
Shipping Cubic	0.000756000m3

Official StarTech.com manufacturer warranty in Australia

Lifetime warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com manufacturer warranty in Australia for the lifetime warranty period.

Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
