STARTECH N6LPATCH10MGR

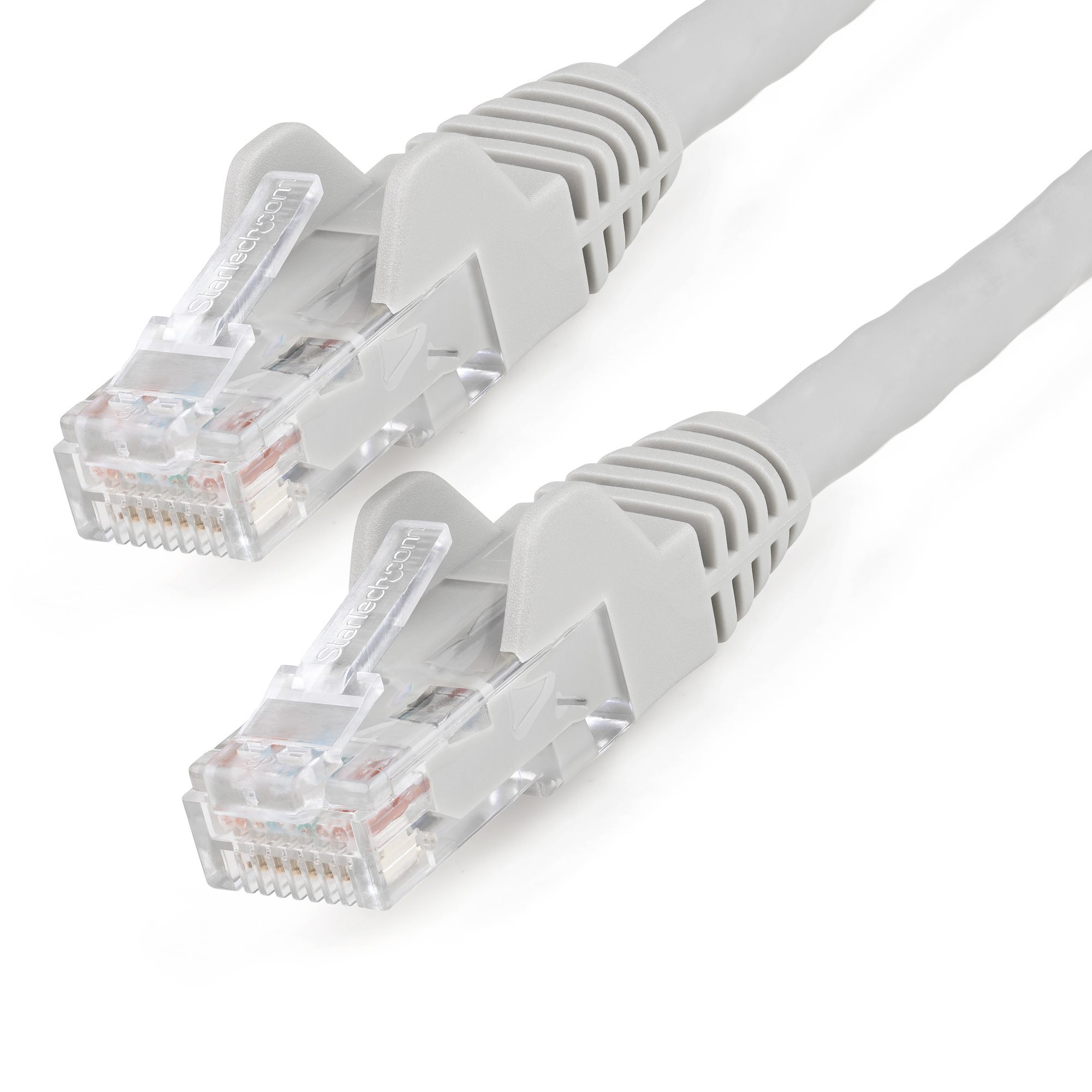

10 m LSZH CAT6 Ethernet cable - Grey

A 10 m grey snagless CAT6 network patch cable with 100% copper conductors, Multi-Gigabit support, high-power PoE capability and an LSZH jacket.

10 mCAT6 250 MHz100 W PoELifetime warranty

StarTech N6LPATCH10MGR 10 m LSZH CAT6 Ethernet cable - Grey

Key capabilities

Multi-Gigabit CAT6

Supports 1, 2.5 and 5 Gbps networking, plus 10 Gbps at cable distances up to 55 m.

100 W PoE ready

Tested for up to 100 W continuous power and compliant with IEEE 802.3bt Type 4.

100% copper U/UTP

24 AWG bare-copper conductors in a 4-pair U/UTP construction.

LSZH jacket

PVC-free Low Smoke Zero Halogen jacket for installations where reduced smoke and corrosive fumes are important.

What to know

Official technical specifications identify this cable as 4-pair U/UTP, not shielded STP.
The official technical specification rates CAT6 performance at 250 MHz.
10 Gbps support is specified for CAT6 cable distances up to 55 m; this product is 10 m long.

Product videos

Australian warranty confidence

This is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com Lifetime manufacturer warranty in Australia. Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is the StarTech N6LPATCH10MGR?

The StarTech N6LPATCH10MGR is a 10 m grey Category 6 Ethernet patch cable with a Low Smoke Zero Halogen jacket, snagless RJ-45 connectors and U/UTP construction.

Which Ethernet speeds does this CAT6 cable support?

It supports 1 Gbps, 2.5 Gbps and 5 Gbps connections, and StarTech specifies 10 Gbps support at cable distances up to 55 m.

What is the cable bandwidth rating?

The official technical specification rates the cable as CAT6 at 250 MHz and ETL Verified.

Does the cable support Power over Ethernet?

Yes. It is tested for up to 100 W continuous power and complies with IEEE 802.3bt Type 4 for high-power PoE applications.

What conductors and connectors does it use?

It uses 24 AWG 100% copper conductors in a 4-pair U/UTP construction, with RJ-45 connectors and 50-micron gold-plated contacts.

What does the LSZH jacket provide?

The Low Smoke Zero Halogen jacket is PVC-free and is designed to produce lower levels of toxic, corrosive fumes and smoke in the event of a fire.

What is included in the package?

The package contains one 10 m grey CAT6 Ethernet cable.

What warranty applies in Australia?

The StarTech N6LPATCH10MGR is covered by a Lifetime official StarTech.com manufacturer warranty in Australia when supplied by DeviceDeal. Retain the DeviceDeal tax invoice; warranty coverage and claims are subject to StarTech.com terms, eligibility requirements and product assessment.

(N6LPATCH10MGR)

Features and highlights

Multi-Gigabit CAT6

Supports 1, 2.5 and 5 Gbps networking, plus 10 Gbps at cable distances up to 55 m.

100 W PoE ready

Tested for up to 100 W continuous power and compliant with IEEE 802.3bt Type 4.

100% copper U/UTP

24 AWG bare-copper conductors in a 4-pair U/UTP construction.

LSZH jacket

PVC-free Low Smoke Zero Halogen jacket for installations where reduced smoke and corrosive fumes are important.

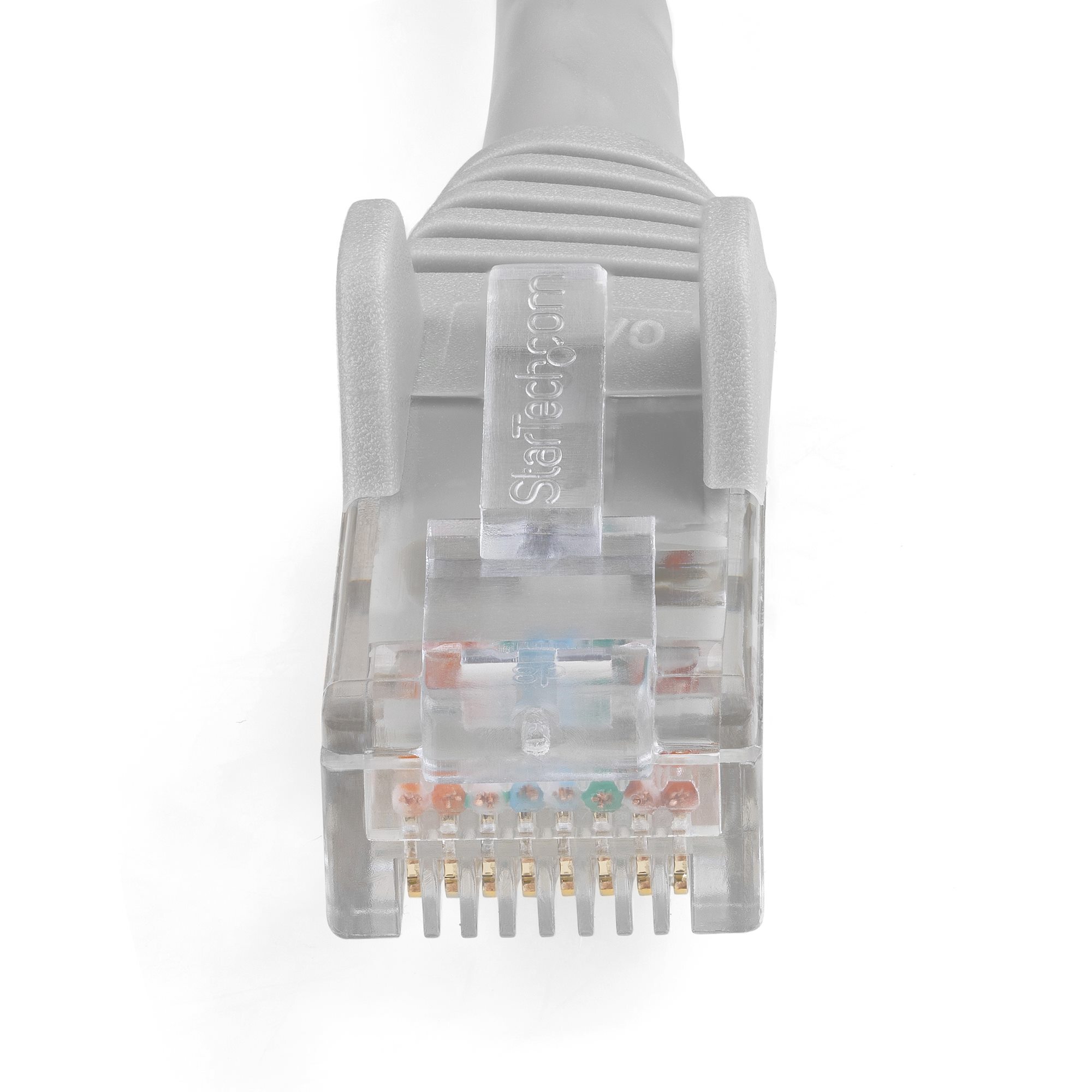

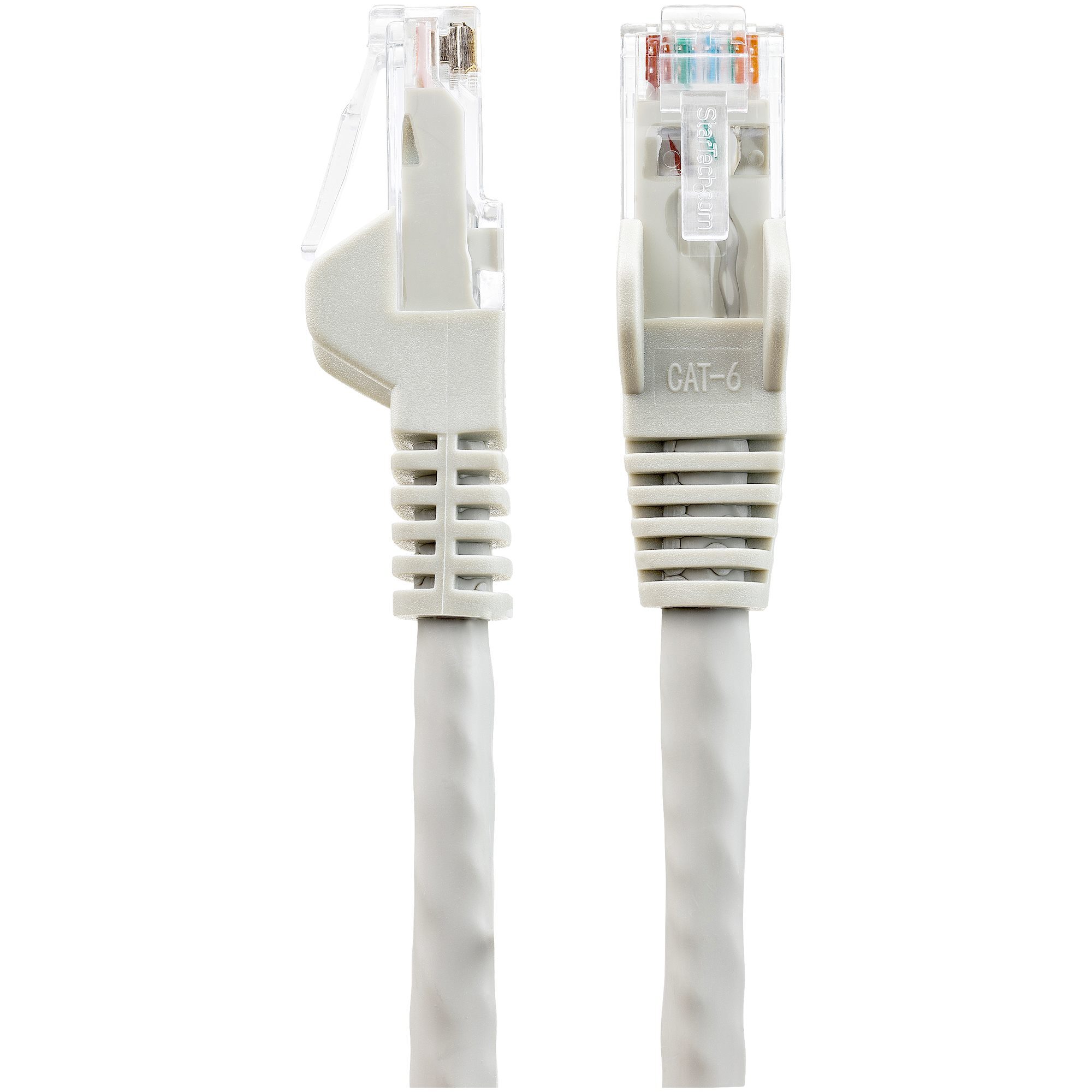

Snagless RJ-45 ends

Molded strain relief helps protect the RJ-45 latch and supports easier routing through constrained spaces.

Verified CAT6 performance

Official technical specification lists CAT6 at 250 MHz with ETL verification.

Key highlights

10 m grey cable
50-micron gold-plated RJ-45 contacts
100% copper, 24 AWG
ETL Verified CAT6
Lifetime official StarTech.com manufacturer warranty in Australia.

Technical specifications

StarTech N6LPATCH10MGR 10 m LSZH CAT6 Ethernet cable - Grey

Warranty Information

Warranty	Lifetime

Hardware

Number of Conductors	4 pair U/UTP
Cable Jacket Material	Low Smoke Zero Halogen (LSZH)
Wiring Standard	TIA/EIA-568-B.1-2001 T568B
Wire Gauge	24 AWG, 100% copper

Performance

ETL Verified	Yes
Cable Rating	CAT6 - 250 MHz
Network Speeds	1 Gbps, 2.5 Gbps, 5 Gbps; 10 Gbps up to 55 m
Power over Ethernet	Tested up to 100 W continuous; IEEE 802.3bt Type 4
Maximum Cable Length	32.8 ft [10 m]

Connector(s)

Connector A	1 - RJ-45
Connector B	1 - RJ-45
Connector Contacts	50-micron gold-plated
Boot	Snagless molded strain relief

Electrical Characteristics

Cable Impedance	100 ohms ± 15% at 250 MHz
Maximum DC Resistance	14 ohms per 1000 ft [305 m]
Pair-to-Ground Capacitance	330 pF per 328 ft [100 m]
Mutual Capacitance	5.6 nF per 1000 ft [305 m]
Propagation Delay Skew	45 ns per 328 ft [100 m]

Environmental

Operating Temperature	0 to 80¡C
Storage Temperature	0 to 80¡C
Humidity	0% RH to 95% RH

Physical Characteristics

Color	Gray
Cable Length	32.8 ft [10 m]
Cable OD	0.23 in [6.0 mm]
Product Height	0.3 in [7.8 mm]
Product Width	0.5 in [1.2 cm]
Product Length	32.8 ft [10 m]
Weight of Product	13.0 oz [368.0 g]

Packaging Information

Package Quantity	1
Package Length	8.3 in [21.0 cm]
Package Width	9.7 in [24.6 cm]
Package Height	1.8 in [4.5 cm]
Shipping Weight	14.4 oz [408.0 g]

What's in the Box

Included in Package	1 - 10 m grey CAT6 cable

SKU	N6LPATCH10MGR
Barcode #	65030892773
Brand	Startech
Shipping Weight	0.4000kg
Shipping Width	0.220m
Shipping Height	0.040m
Shipping Length	0.230m
