STARTECH N6LPATCH50CMBL

50 cm Blue LSZH CAT6 Ethernet cable for multi-gigabit networks

Connect Ethernet equipment with a 100% copper, 24 AWG CAT6 patch cable built with an LSZH jacket and snagless RJ45 connectors. It supports 1/2.5/5Gbps Ethernet and 10Gbps up to 55 m, with tested support for up to 100 W continuous PoE.

CAT6 250 MHz50 cmBlue100 W PoELifetime warranty

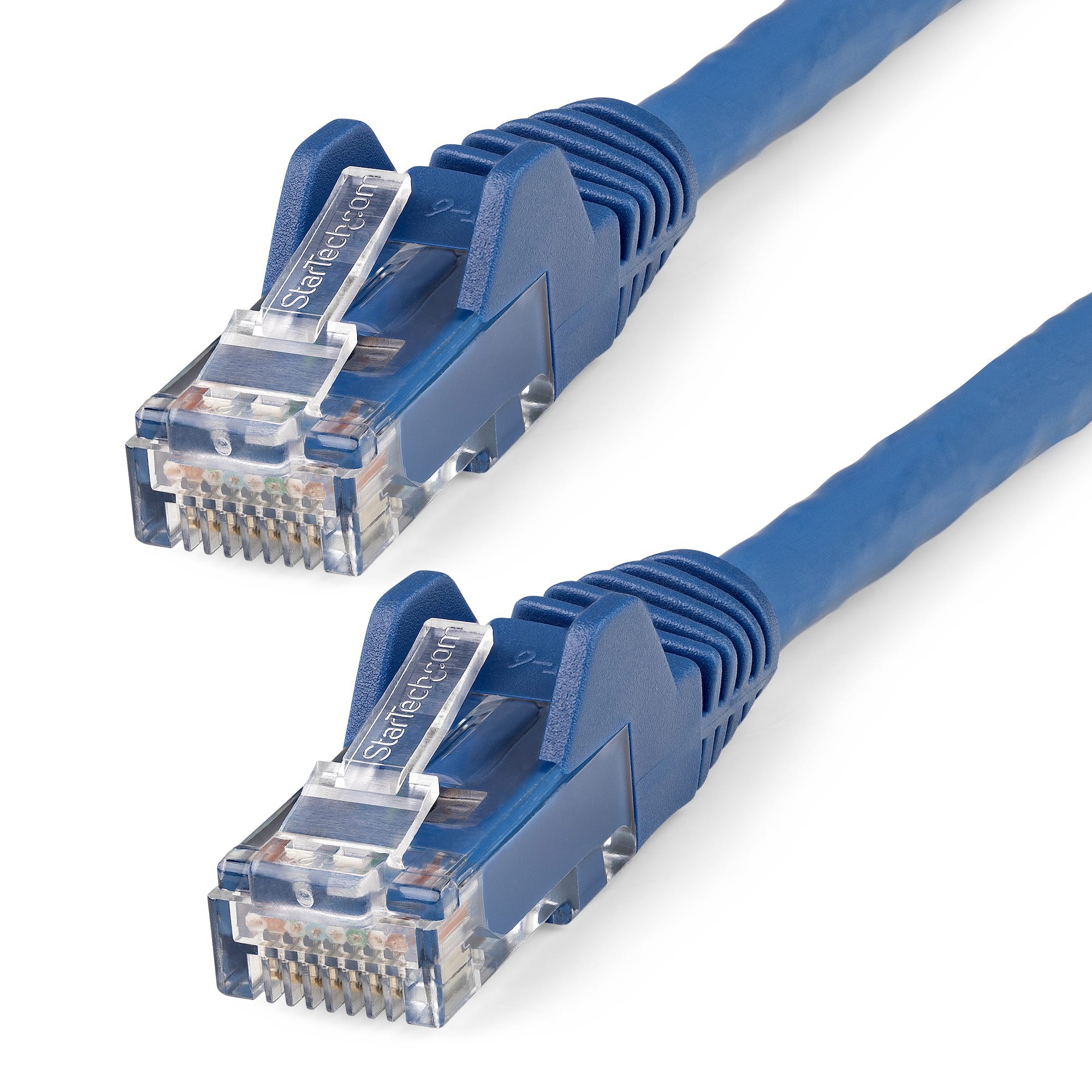

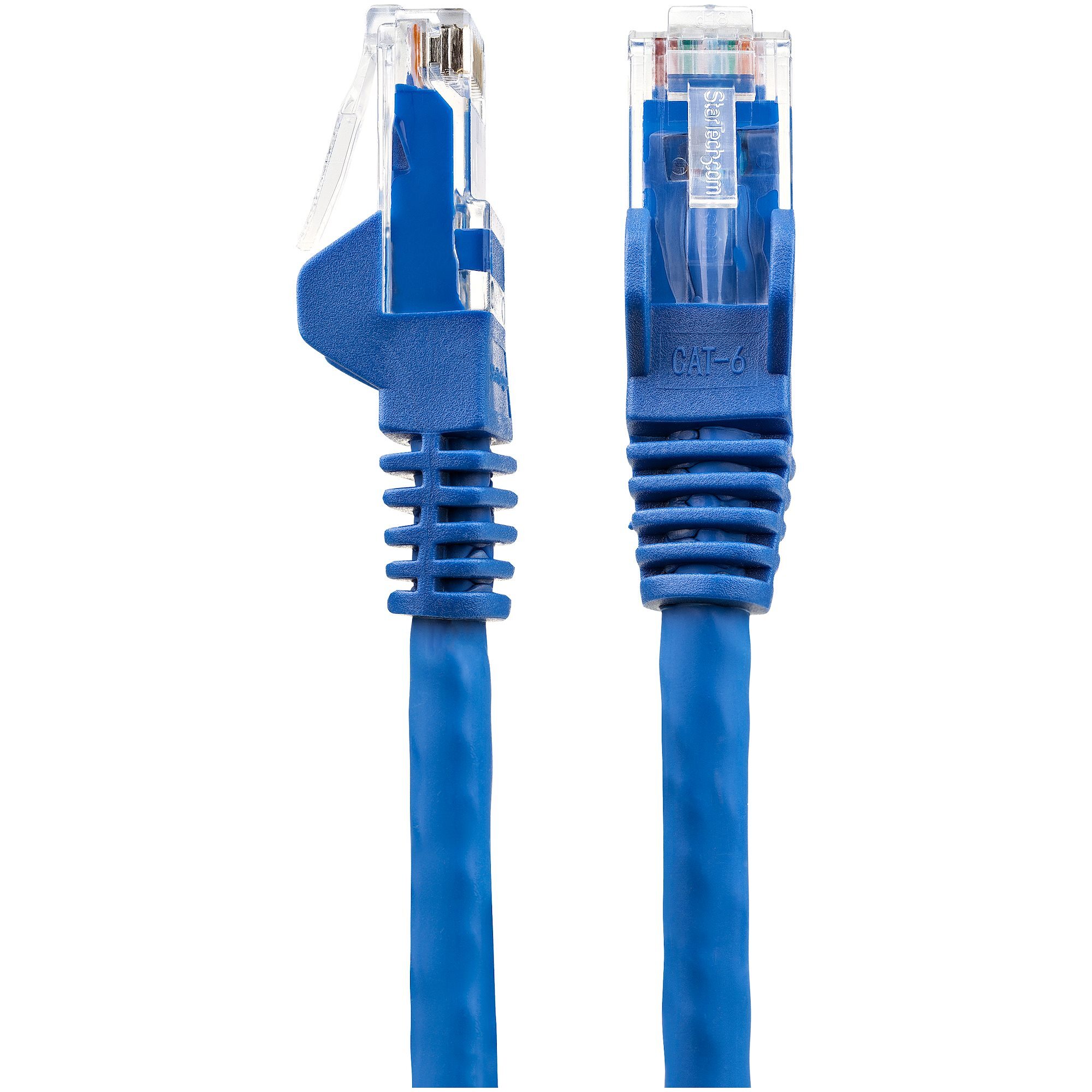

StarTech N6LPATCH50CMBL 50 cm Blue LSZH CAT6 Ethernet cable

Key capabilities

Multi-gigabit CAT6

Supports 1Gbps, 2.5Gbps and 5Gbps networking, plus 10Gbps up to 55 m where the full channel supports it.

100 W PoE support

Tested for up to 100 W continuous Power over Ethernet and IEEE 802.3bt Type 4 applications.

100% copper U/UTP

Uses 24 AWG solid-quality copper conductors in a four-pair unshielded twisted-pair construction.

LSZH jacket

Low Smoke Zero Halogen construction suits installations where reduced smoke and halogen emissions are required.

What to know before buying

Both ends use RJ45 male connectors with snagless molded strain relief.
The official technical specification rates this cable as CAT6 at 250 MHz and ETL Verified.
10Gbps support applies to channel lengths up to 55 m and depends on compatible network equipment and cabling.
The cable is passive and does not require drivers or a separate power supply.

Product videos

Australian version and official StarTech.com warranty

This is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com lifetime manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is the StarTech N6LPATCH50CMBL?

The StarTech N6LPATCH50CMBL is a 50 cm blue LSZH CAT6 Ethernet patch cable with snagless RJ45 connectors for copper Ethernet networking.

Which Ethernet speeds does this CAT6 cable support?

It supports 1Gbps, 2.5Gbps and 5Gbps Ethernet, plus 10Gbps Ethernet for channel lengths up to 55 m when the connected network equipment and cabling support those speeds.

What is the cable bandwidth rating?

The official technical specification rates the cable as CAT6 at 250 MHz and ETL Verified.

Does the cable support Power over Ethernet?

Yes. It is tested for up to 100 W continuous PoE and supports IEEE 802.3bt Type 4 Power over Ethernet applications.

What conductors and connectors does it use?

It uses 100% copper 24 AWG conductors in a 4-pair U/UTP construction, with snagless RJ45 male connectors and 50-micron gold-plated contacts at both ends.

What does the LSZH jacket provide?

The Low Smoke Zero Halogen jacket is designed to reduce smoke and halogen emissions compared with conventional PVC cable jackets, making it suitable where LSZH cabling is required.

What is included in the package?

The package contains one StarTech N6LPATCH50CMBL 50 cm CAT6 Ethernet cable.

What warranty applies in Australia?

This Australian-version product supplied by DeviceDeal is covered by the official StarTech.com lifetime manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase; coverage and claims remain subject to StarTech.com warranty terms, eligibility requirements and product assessment.

(N6LPATCH50CMBL)

Features and highlights

Multi-Gigabit CAT6

1/2.5/5Gbps Ethernet support and 10Gbps up to 55 m.

100 W PoE ready

Tested for up to 100 W continuous PoE and IEEE 802.3bt Type 4.

100% copper U/UTP

Four-pair 24 AWG copper construction for standards-based Ethernet cabling.

LSZH jacket

Low Smoke Zero Halogen cable jacket for installations where LSZH is required.

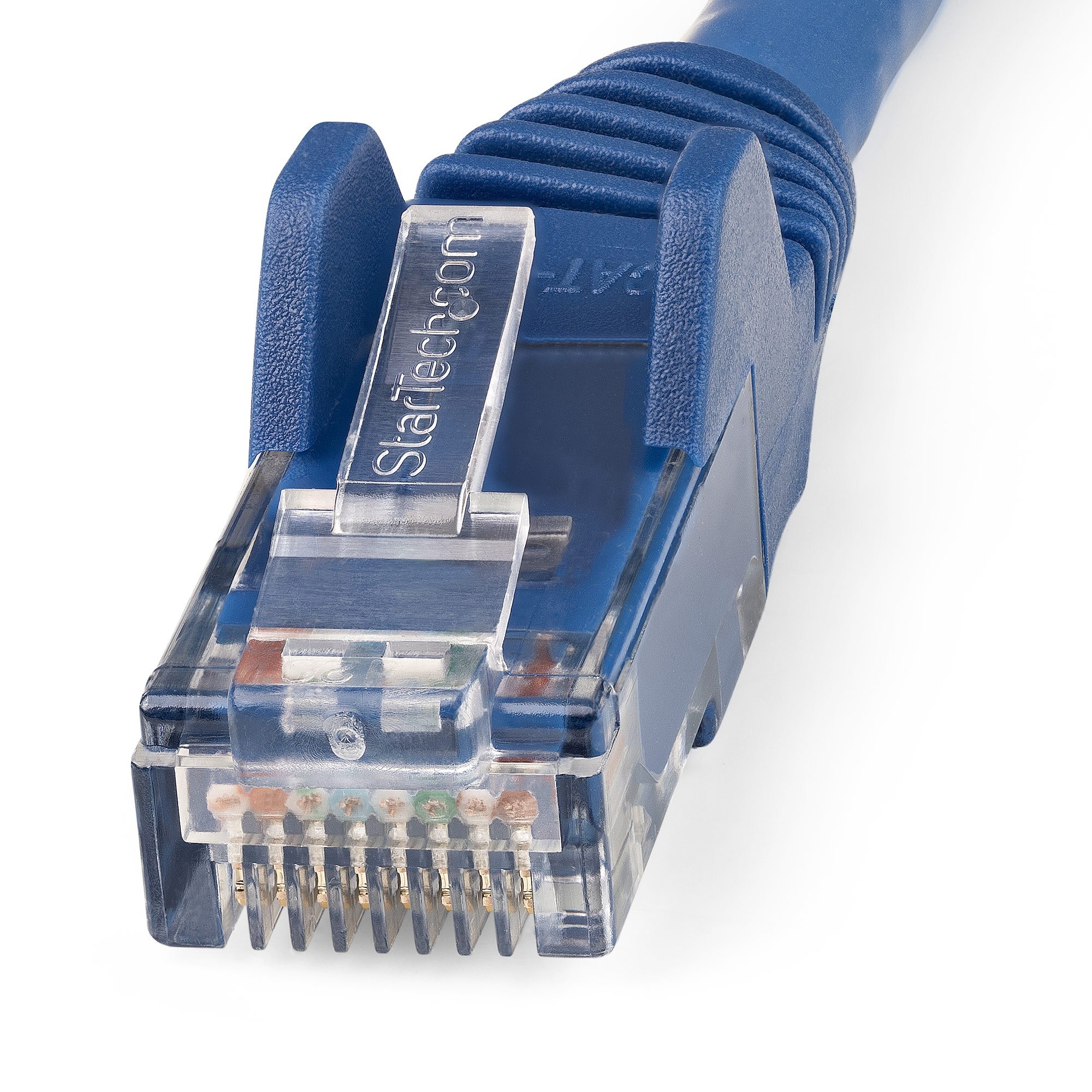

Snagless RJ45 ends

RJ45 male connectors with molded strain relief and 50-micron gold-plated contacts.

Verified CAT6 performance

Official specification: CAT6 250 MHz, T568B wiring and ETL Verified.

Key highlights

50 cm blue cable
100% copper, 24 AWG conductors
50-micron gold-plated RJ45 contacts
CAT6 250 MHz and ETL Verified
Official StarTech.com lifetime manufacturer warranty in Australia

Technical specifications

StarTech N6LPATCH50CMBL 50 cm blue LSZH CAT6 Ethernet cable.

Warranty Information

Warranty	Lifetime

Hardware

Cable Type	CAT6 Ethernet patch cable
Cable Jacket Type	Low Smoke Zero Halogen (LSZH)
Cable Construction	4 pair U/UTP
Wiring Standard	TIA/EIA-568-B.1-2001 T568B
Wire Gauge	24 AWG, 100% copper

Performance

ETL Verified	Yes
Cable Rating	CAT6 - 250 MHz
Supported Network Speeds	1Gbps, 2.5Gbps and 5Gbps; 10Gbps up to 55 m
Power over Ethernet	Tested up to 100 W continuous; IEEE 802.3bt Type 4
Maximum Cable Length	1.6 ft [0.5 m]

Connector(s)

Connector A	1 - RJ45 Male
Connector B	1 - RJ45 Male
Connector Contacts	50-micron gold-plated
Connector Style	Snagless molded strain relief

Electrical Characteristics

Cable Impedance	100 ohms ±15% at 250 MHz
Maximum DC Resistance	14 ohms per 1000 ft [305 m]
Pair-to-Ground Capacitance	330 pF per 328 ft [100 m]
Mutual Capacitance	5.6 nF per 1000 ft [305 m]
Delay Skew	45 ns per 328 ft [100 m]

Environmental

Operating Temperature	0¡C to 80¡C
Storage Temperature	0¡C to 80¡C
Humidity	0% to 95% RH

Physical Characteristics

Color	Blue
Cable Length	1.6 ft [0.5 m]
Cable Outside Diameter	6 mm
Product Height	0.8 cm [0.3 in]
Product Width	1.2 cm [0.5 in]
Product Length	1.6 ft [0.5 m]
Weight of Product	26 g [0.9 oz]

Packaging Information

Package Quantity	1
Package Length	14.3 cm [5.6 in]
Package Width	19.7 cm [7.8 in]
Package Height	1.7 cm [0.7 in]
Shipping (Package) Weight	36 g [1.3 oz]

What's in the Box

Included in Package	1 - 50 cm CAT6 Ethernet cable
