2.5 m Yellow slim CAT6 Ethernet cable for high-density network installs

StarTech N6PAT250CMYLS is a 2.5 m yellow slim CAT6 patch cable for reliable Ethernet and PoE connections where cable space, flexibility and airflow matter. Its 28 AWG pure-copper construction is 36% thinner than standard CAT6 network cables and uses snagless RJ45 connectors for easier routing.

CAT6 250 MHz2.5 mYellowUp to 10GbpsUp to 100W PoE++Lifetime warranty

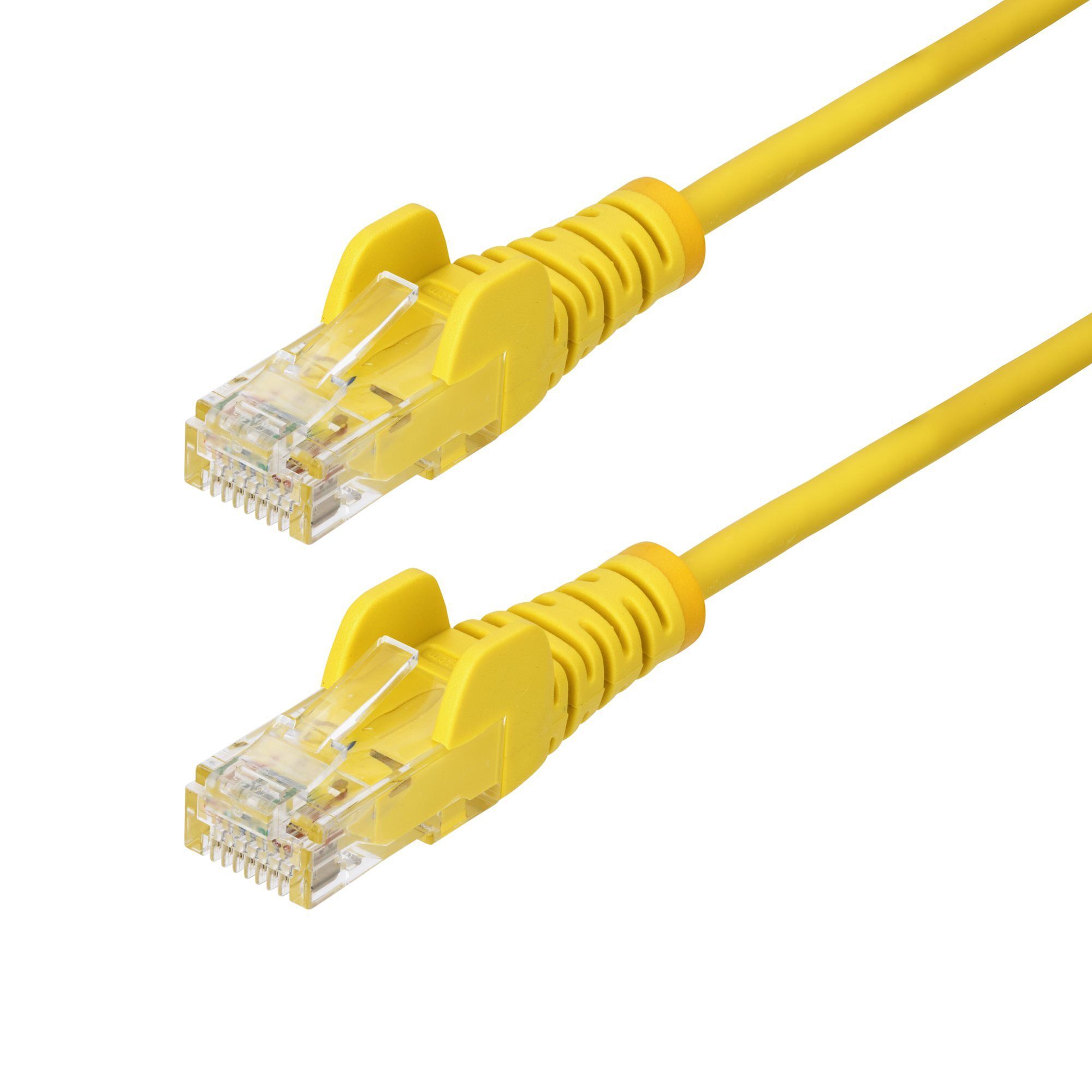

StarTech N6PAT250CMYLS yellow 2.5 m slim CAT6 Ethernet cable

Key capabilities

36% slimmer cable profile

The slim CAT6 design improves flexibility and can help preserve airflow in crowded racks, cabinets and patch-panel installations.

CAT6 performance

Rated for CAT6 operation up to 250 MHz and data rates up to 10Gbps when the connected equipment and end-to-end channel support those speeds.

Up to 100W PoE++

Supports compatible IEEE 802.3bt Type 4 PoE applications, allowing data and power to be carried over the same network cable.

Pure copper, LSZH construction

Uses 28 AWG stranded pure bare copper conductors, 4-pair UTP wiring, 50-micron gold-plated RJ45 contacts and a Low Smoke Zero Halogen jacket.

What to know before buying

Both ends use male RJ45 connectors with snagless strain relief.
The cable is unshielded 4-pair UTP, not a shielded network cable.
Maximum network speed depends on the full Ethernet channel and connected equipment.
PoE power depends on compatible PoE sourcing equipment, the powered device and available power budget.

Australian version and official warranty

This StarTech N6PAT250CMYLS is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com lifetime manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is the StarTech N6PAT250CMYLS?

The StarTech N6PAT250CMYLS is a 2.5 m yellow slim CAT6 Ethernet patch cable with snagless RJ45 connectors, designed for flexible routing in dense network installations.

What network performance does the N6PAT250CMYLS support?

The N6PAT250CMYLS is rated for CAT6 operation up to 250 MHz and supports data rates up to 10Gbps when the connected equipment and end-to-end network channel support those speeds.

Does the N6PAT250CMYLS support Power over Ethernet?

Yes. The N6PAT250CMYLS supports up to 100W PoE++ with compatible IEEE 802.3bt Type 4 power sourcing equipment, powered devices and an appropriate power budget.

What connectors are on the N6PAT250CMYLS?

The N6PAT250CMYLS has one male RJ45 connector at each end, with snagless strain relief to help protect the locking clips during installation and cable routing.

Why is the N6PAT250CMYLS described as a slim CAT6 cable?

The slim cable profile is 36% thinner than standard CAT6 network cables, helping improve routing flexibility and airflow in crowded racks, patch panels and cable-management spaces.

How is the N6PAT250CMYLS constructed?

The N6PAT250CMYLS uses 28 AWG stranded pure bare copper conductors in a 4-pair UTP construction, 50-micron gold-plated RJ45 contacts and a Low Smoke Zero Halogen (LSZH) jacket.

What is included with the N6PAT250CMYLS?

The package includes one 2.5 m slim CAT6 Ethernet patch cable.

What warranty applies to the N6PAT250CMYLS in Australia?

The Australian version of the N6PAT250CMYLS supplied by DeviceDeal is covered by the official StarTech.com lifetime manufacturer warranty in Australia, subject to StarTech.com warranty terms, eligibility requirements and product assessment.

(N6PAT250CMYLS)

Features and highlights

Slim 2.5 m CAT6 cable

Yellow cable with a profile 36% thinner than standard CAT6 network cables for flexible routing in high-density installations.

Up to 10Gbps, 250 MHz

CAT6-rated performance up to 250 MHz and data rates up to 10Gbps with compatible network equipment and channel components.

100W PoE++ support

Supports compatible IEEE 802.3bt Type 4 PoE++ applications up to 100W for data and power over one Ethernet connection.

28 AWG pure copper and LSZH

4-pair UTP construction with stranded pure bare copper, 50-micron gold-plated contacts, snagless RJ45 ends and an LSZH jacket.

Key highlights

2.5 m yellow slim CAT6 Ethernet patch cable.
Male RJ45 to male RJ45, snagless straight connectors.
Individually tested for CAT6 signal-integrity performance.
T568B wiring standard.
Designed for dense racks, closets, patch panels and compatible PoE devices.

Warranty confidence

Covered by the official StarTech.com lifetime manufacturer warranty in Australia, subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Specifications

StarTech N6PAT250CMYLS 2.5 m yellow slim CAT6 Ethernet cable for space-conscious wired network connections.

Source note: Official StarTech data lists a 2.5 m cable length but a separate 1.5 m product length. Both published values are preserved here for review.

General

Product

StarTech N6PAT250CMYLS slim CAT6 Ethernet cable

Warranty

Lifetime official StarTech.com manufacturer warranty

Cable category

CAT6, 250 MHz

Power Delivery

Up to 100W PoE++ with compatible IEEE 802.3bt Type 4 equipment

Performance

Maximum data transfer rate

Up to 10Gbps with compatible CAT6 equipment and a properly rated end-to-end network channel

Cable testing

Individually tested for Near-End Crosstalk (NEXT) and Return Loss (RL) performance

Hardware and connectors

Conductors

4-pair UTP, 28 AWG stranded pure bare copper

Connector 1

1 x RJ45

Connector 2

1 x RJ45

Connector contacts

50-micron gold-plated

Jacket

Low Smoke Zero Halogen (LSZH)

Connector style

Straight, snagless

Wiring standard

T568B

Physical and environmental

Colour

Yellow

Cable length

2.5 m

Product length

1.5 m

Cable outer diameter

3.6 mm

Product width

11.6 mm

Product height

13.8 mm

Product weight

32 g

Operating temperature

10¡C to 60¡C

Storage temperature

-20¡C to 60¡C

Humidity

10% to 80%

Packaging and in the box

Package width

22.0 cm

Package length

20.0 cm

Package height

10 mm

Shipping weight

54 g

Included in package

1 x Slim CAT6 Ethernet cable, LSZH

SKU	N6PAT250CMYLS
Barcode #	65030918626
Brand	Startech
Shipping Weight	0.0540kg
Shipping Width	0.001m
Shipping Height	0.022m
Shipping Length	0.020m

Lifetime manufacturer warranty

Official StarTech.com warranty in Australia

StarTech N6PAT250CMYLS is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com lifetime manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
