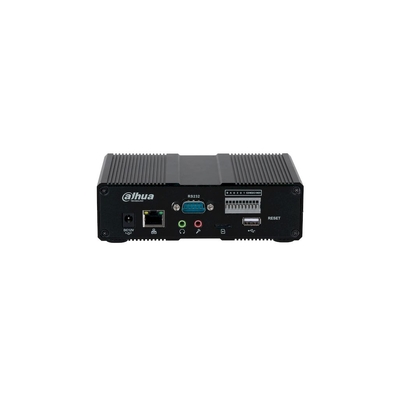

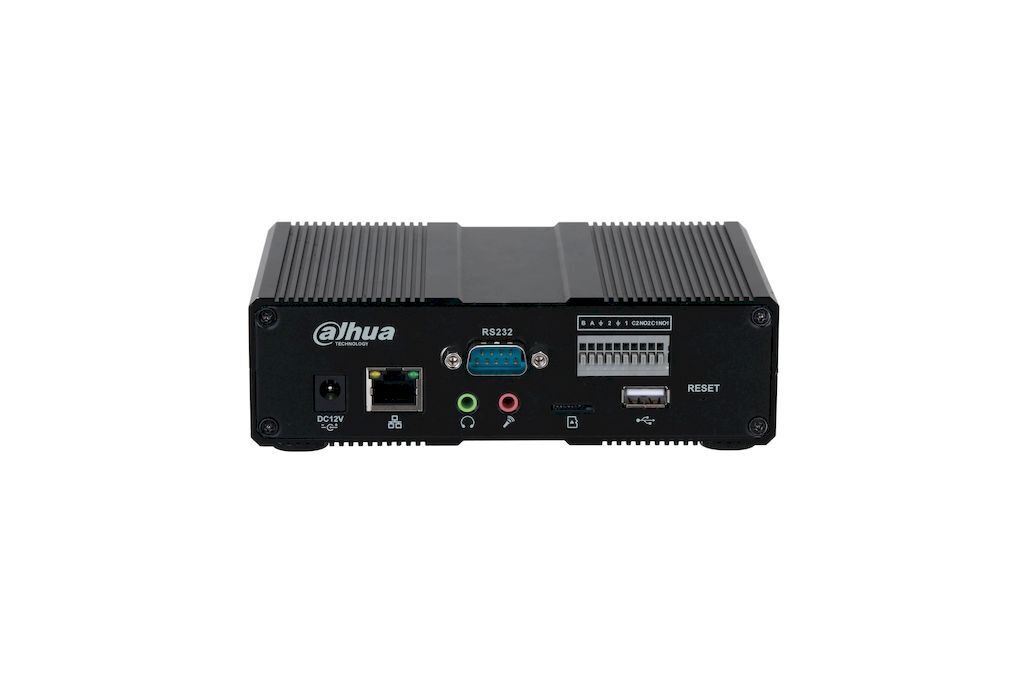

Model Model NEB0105HI-4K System Parameter System Processor High-performance industrial embedded micro processor Embedded LINUX Interface Video Input 1 HDMI1.4 (support DVI with convertor), 1 DP Video Output 1 HDMI2.0 and 1 HDMI loop output Audio Input 1 HDMI and DP (embedded), 1 3.5mm jack Intercom 1 3.5mm jack earphone (reserved) 1 3.5mm jack microphone (reserved) Alarm In/Out 2/2?30VDC 1A,125VAC 0.5A linkage out? Network Port 1 RJ45 10/100/1000M self-adaptive ethernet interface RS232 1 RS232(DB9) USB 1 USB 2.0, 1 USB ?reserved? RS485 1 RS485 Performance Encoding Capacity Access Resolution HDMI/DP?4096x2160/3840x2160/2560x1440/1920x1080/1280x1024/1280x960/1280x720/1024x768 Encoding Capacity Video Frame Rate 1~60fps, 4096×2160 max supports 24fps, 3840×2160 max supports 30fps Encoding Capacity 4096×2160@24fps,3840×2160@30fps,2560×1440@60fps,1920×1080@60fps,1280×1024@60fps,1280×960@60fps,1280×720@60fps,1024×768@60fps Video Encoding Format H.265/H.264?default H.264? Audio Encoding Format G.711a Stream Type Composite stream, video stream Protocol RTSP;Private Others Working Environment Operating temperature -10?~+55? Humidity 10%~90%, 86kpa~106kpa Consumption ?10W Dimension 45mm×153.8mm×100mm(1.77× 6.06× 3.93 inch), (H*D*W) Power DC12V,2.0A;POE Weight 0.65kg (1.43 Ib)
