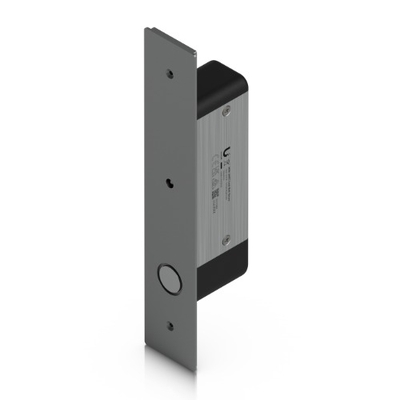

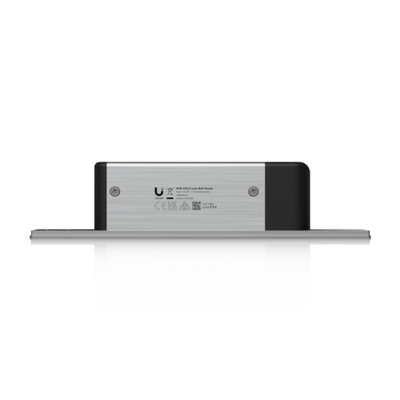

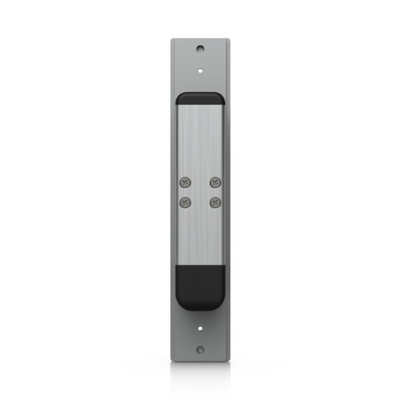

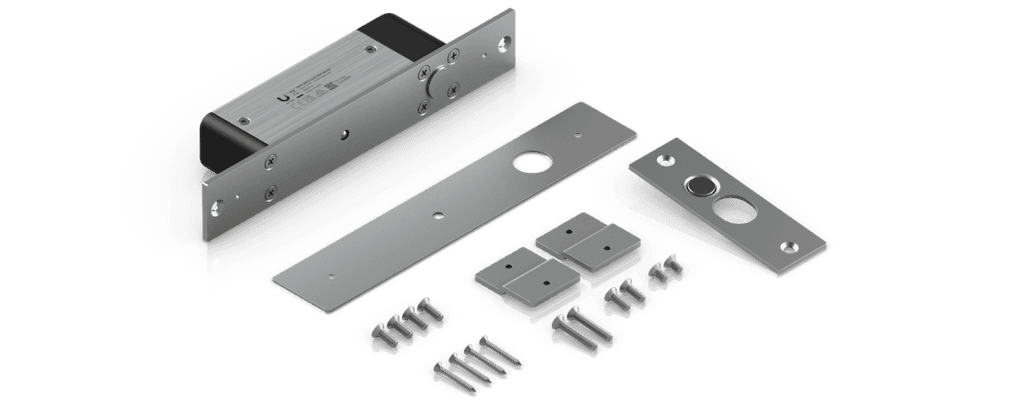

Ubiquiti UACC-Lock-Bolt-Secure Fail-Secure Bolt Lock, Fail-Secure Electric Drop Bolt Lock.
Model # UACC-Lock-Bolt-Secure
-
SKU: UACC-Lock-Bolt-Secure
Don't pay: $195.00
$186.00
SAVE $9.00 (5%)
- Pick Up Available
- Australian Warranty
- Checkout Securely
Ubiquiti Fail-Secure Bolt Lock, Fail-Secure Electric Drop Bolt Lock.
Tech Specs: Click Here
Installation Guide: Click Here
Description:
Fail-secure electric drop bolt lock.
Compatibility:
EAH-8, UA-Hub-Gate, UA-Ultra, UA-Hub-Door, UA-Hub-Door-Mini
(UACC-Lock-Bolt-Secure)

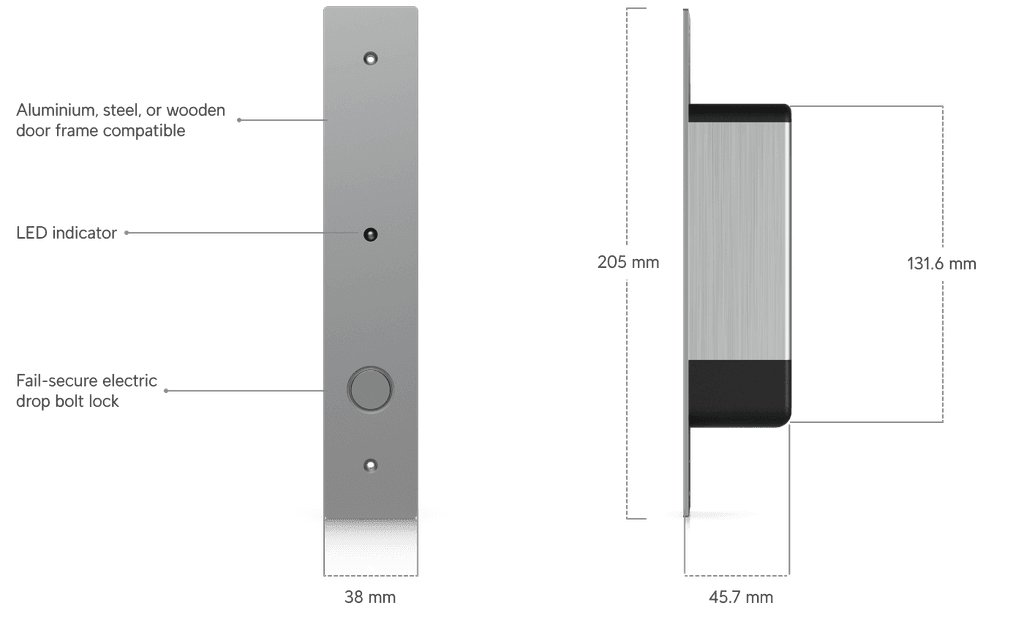

Dimensions
Lock body: 132 x 30 x 42 mm (5.2 x 1.2 x 1.7") Door frame plate: 82 x 32 x 3 mm (3.2 x 1.3 x 0.1") Door plate: plate: 204 x 33 x 3 mm (8 x 1.3 x 0.1")
Weight
Lock body: 350 g (12.3 oz) Door frame plate: 22 g (0.7 oz) Door plate: 46 g (1.6 oz)
Enclosure Material
Lock body: aluminum alloy Door frame plate/Door plate: aluminum alloy
Lock Features
Fail secure
Single door (Wooden/metal)
Embedded
Max. 900mA
12V DC ±10%
(1) Lock 12V/NO (red) (1) Lock 12V/COM (black) (1) Lock 12V/NC (blue) (1) DPS/- (white) (1) DPS/+ (orange)
Door frame recess mount
Red: locked Green: unlocked & power indicator
Door Status Contact
Dry contact
Door Open: DPS/+ & DPS/- = Open Door Close: DPS/+ & DPS/- = Short
Max. 30V DC, 0.5A
Ambient Storage Temperature
-20 to 70° C (-4 to 158° F)
Ambient Operating Temperature
-10 to 60° C (14 to 140° F)
Ambient Operating Humidity
5 to 90% noncondensing
NDAA Compliant
✓
Certifications
FCC, IC, CE
| SKU | UACC-Lock-Bolt-Secure |
| Brand | UBIQUITI |
| Shipping Weight | 1.0000kg |
Manufacturer Warranty: 1 Year Manufacturer Warranty
