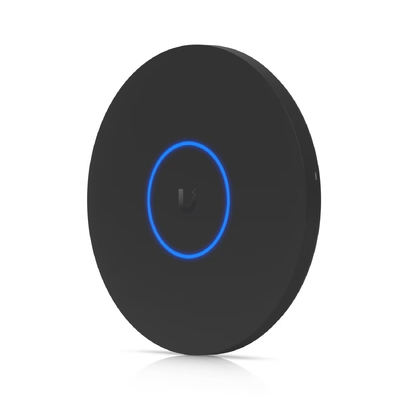

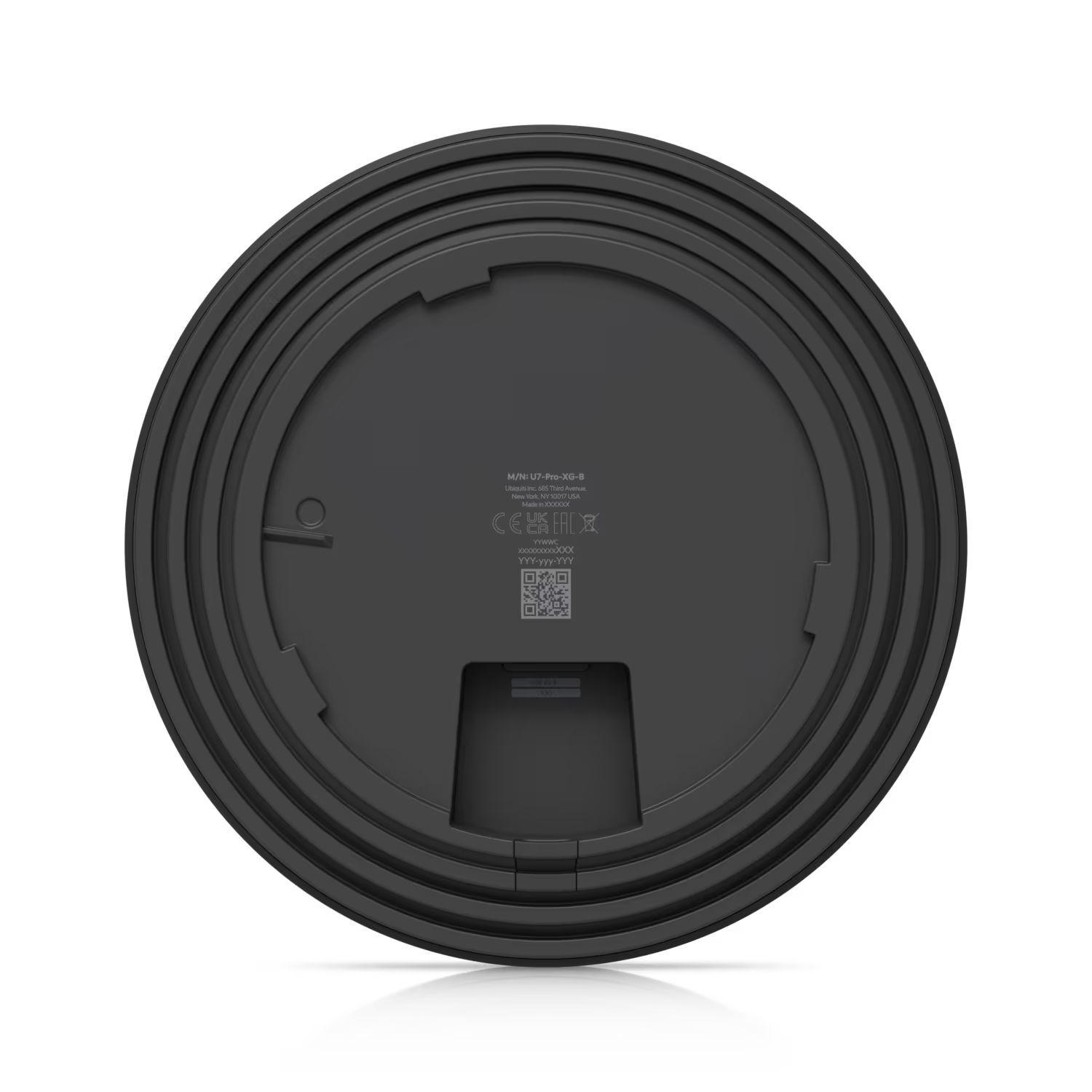

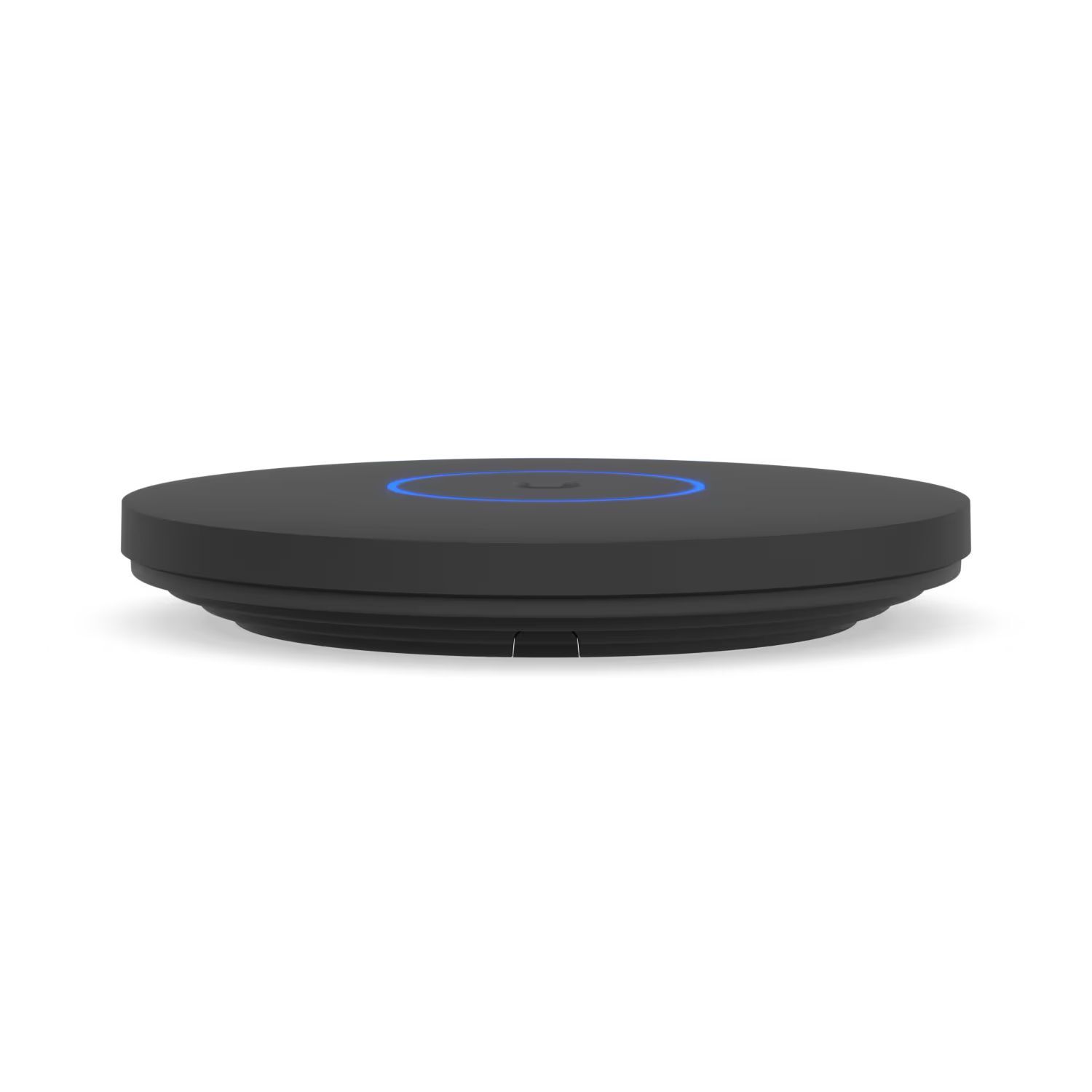

Ceiling-mounted 6-stream WiFi 7 AP with 10/5/2.5/1 GbE support.



(U7-Pro-XG-B)

Overview

Category Specification

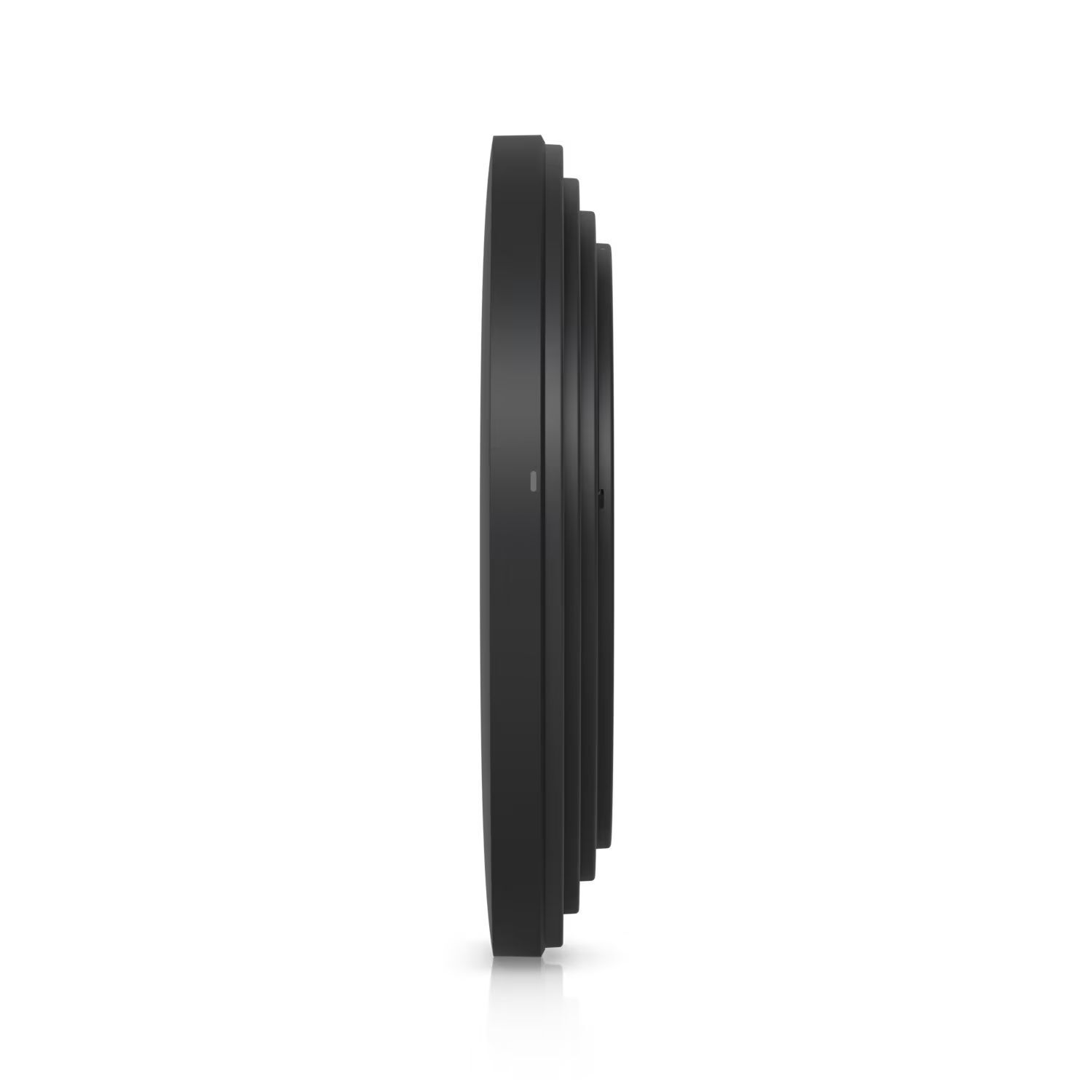

Dimensions Ø206 x 32.5 mm (Ø8.1 x 1.3")
WiFi Standard WiFi 7
Spatial Streams 6
Coverage Area 140 m² (1,500 ft²)
Max. Client Count 300+
Uplink 10 GbE

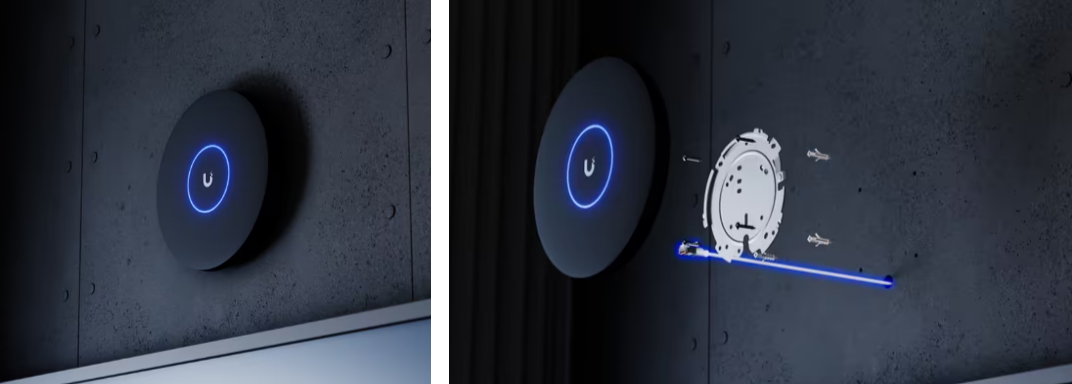

Mounting Ceiling, Wall (Lite Mount Included)
Power Method PoE+

Performance

Frequency Band MIMO Max. Data Rate Antenna Gain Max. TX Power
6 GHz 2 x 2 (DL/UL MU-MIMO) 5.8 Gbps (BW320) 6 dBi 24 dBm
5 GHz 2 x 2 (DL/UL MU-MIMO) 4.3 Gbps (BW240) 5 dBi 26 dBm
2.4 GHz 2 x 2 (DL/UL MU-MIMO) 688 Mbps (BW40) 4 dBi 23 dBm
Max. BSSIDs 8 per Radio

Supported Data Rates

Standard Band / Rates
802.11be (WiFi 7) 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)
  5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Features

Functionality Supported
Wireless Meshing ✓
Band Steering ✓
802.11v BSS Transition Management ✓
802.11r Fast Roaming ✓
802.11k Radio Resource Management (RRM) ✓
Advanced Radio Management ✓
Passpoint (Hotspot 2.0) ✓
Captive Portal with Branding ✓
Voucher Authentication ✓
Payment-Based Authentication ✓
External Portal Server Support ✓
Password Authentication ✓
Guest Network Isolation ✓
Private Pre-Shared Key (PPSK) ✓
WiFi Speed Limiting ✓
Client Device Isolation ✓
WiFi Schedules ✓
RADIUS over TLS (RadSec) ✓
Dynamic RADIUS-assigned VLAN ✓

Hardware

Category Specification
Max. Power Consumption 22W
Supported Voltage Range 42.5–57V DC

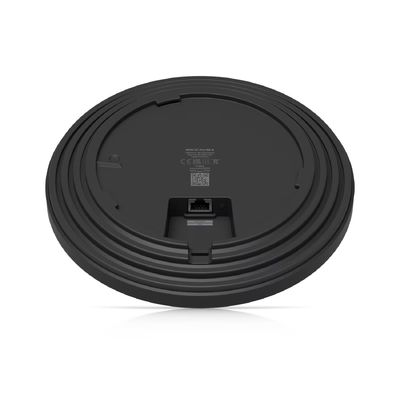

Networking Interface (1) 10 GbE RJ45 port
Weight 750 g (1.7 lb)
Management Ethernet
Enclosure Material UV-stabilized polycarbonate, aluminum alloy
Mount Material Stainless steel (SUS304), galvanized steel (SGCC)
LEDs System: White/Blue
Channel Bandwidth HT/VHT/HE/EHT (20/40/80/160/240/320 MHz)
NDAA Compliant ✓
Certifications CE, FCC, IC
Ambient Temperature -30 to 40° C (-22 to 104° F)
Ambient Humidity 5 to 95% noncondensing

Software Compatibility

Requirement Details
UniFi Network Version v9.0.114+ (White), v9.1.120+ (Black)



SKU U7-Pro-XG-B
Barcode # 810177162124
Brand UBIQUITI
Shipping Weight 0.7500kg

Manufacturer Warranty : 1 years Manufacturer Warranty
