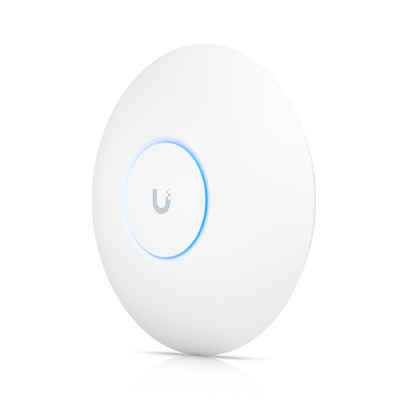

Name: Ubiquiti U7-Pro UniFi 7 Dual Band WiFi 7 Access Point (No PoE+ Injector included)
Brand: Ubiquiti
SKU: U7-PRO
Price: 338 AUD
Availability: InStock

Ubiquiti U7-Pro UniFi 7 Dual Band WiFi 7 Access Point (No PoE+ Injector included)

Ceiling-mount WiFi 7 AP with 6 GHz support, 2.5 GbE uplink, and 9.3 Gbps over-the-air speed.

Conceptual video for connecting U7-PRO to 48-port PoE+ switch.

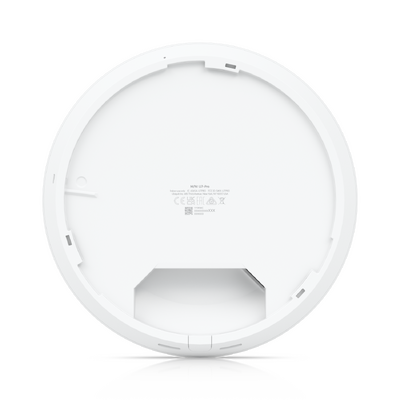

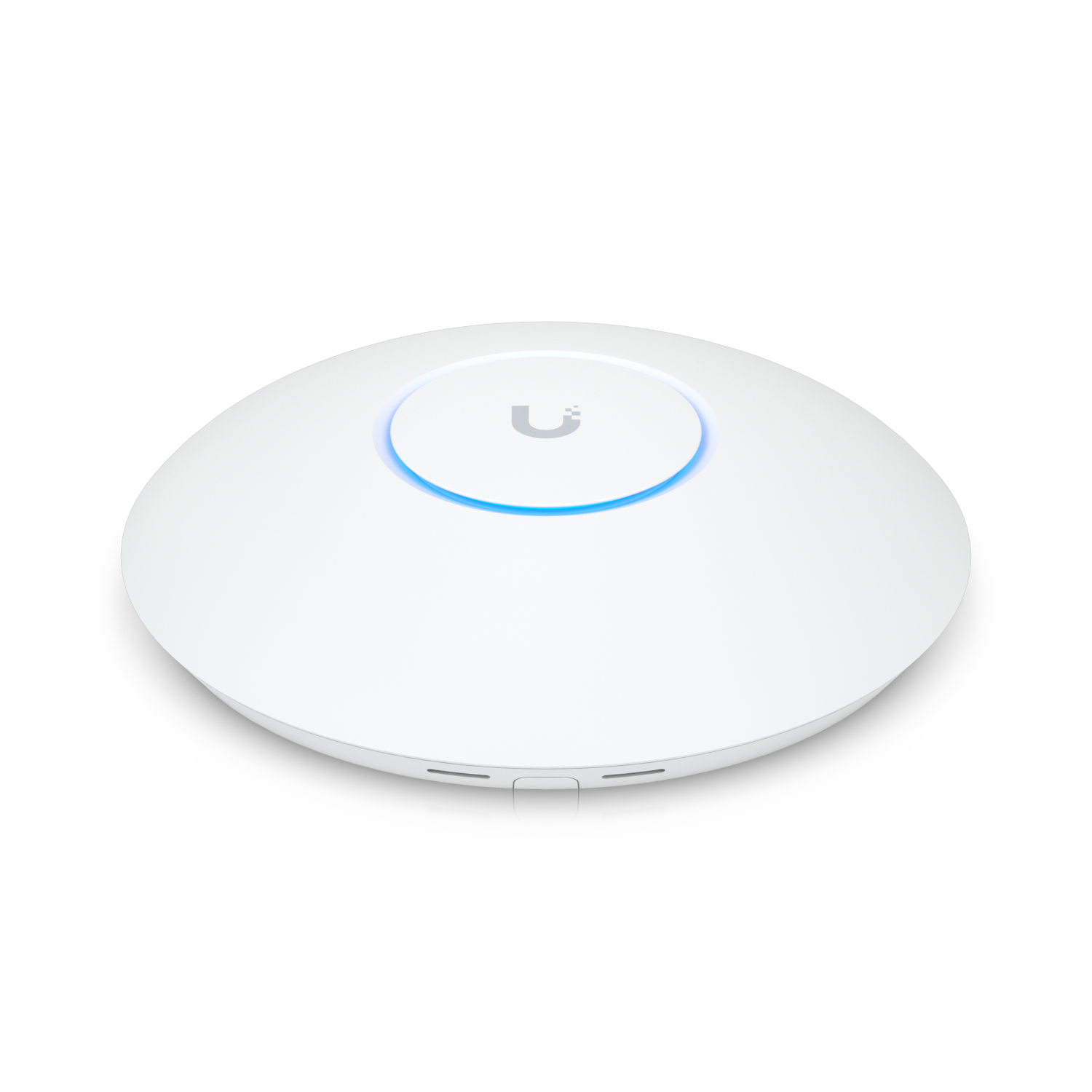

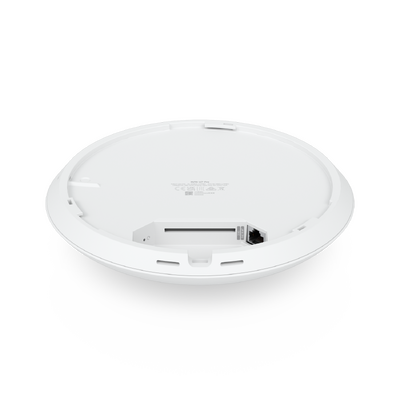

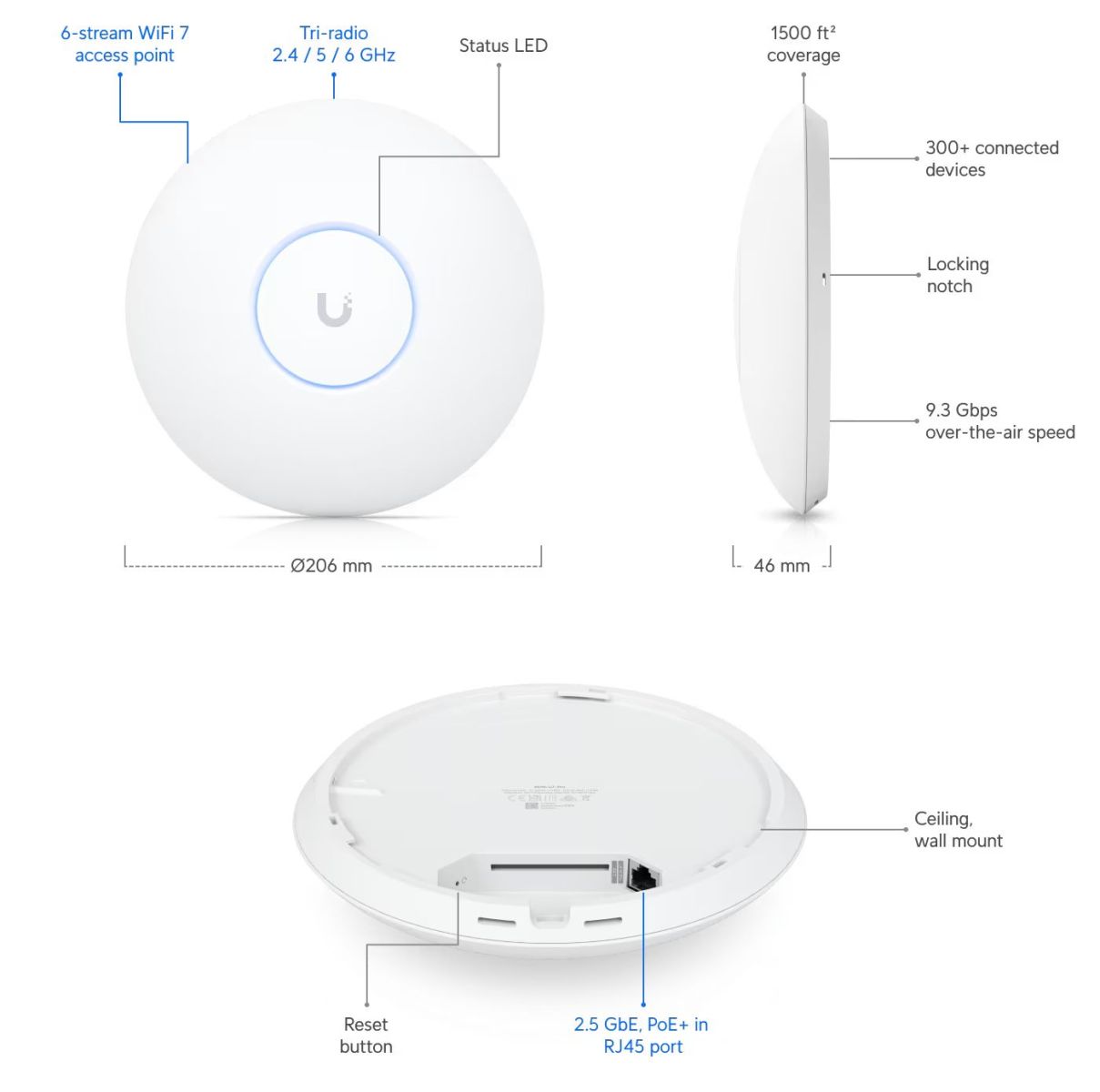

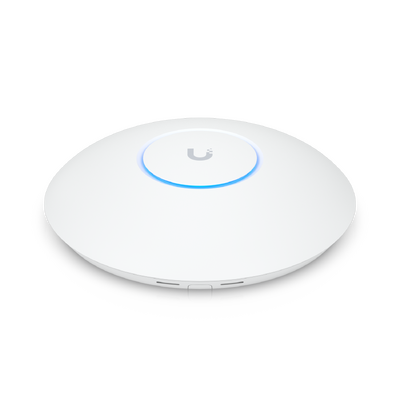

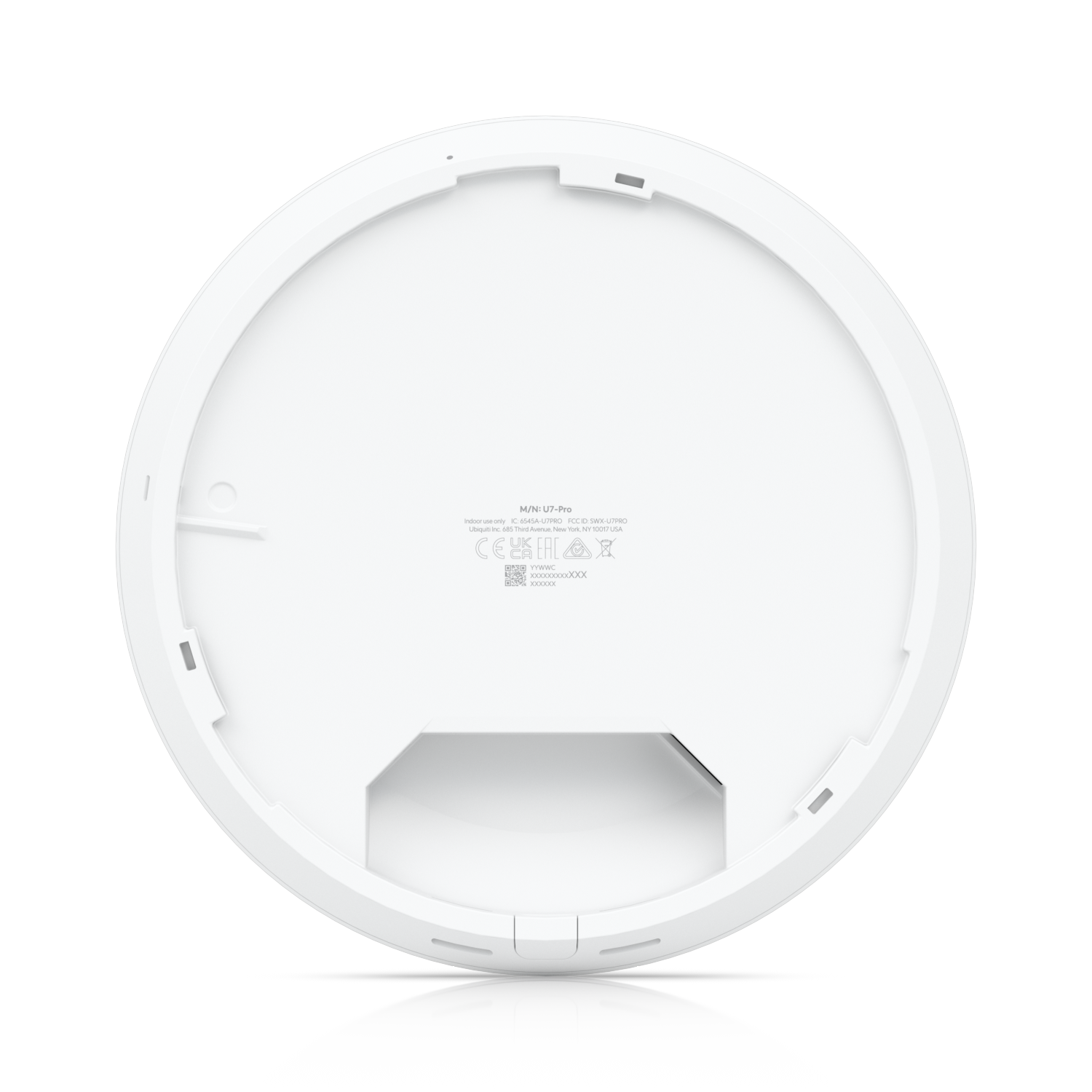

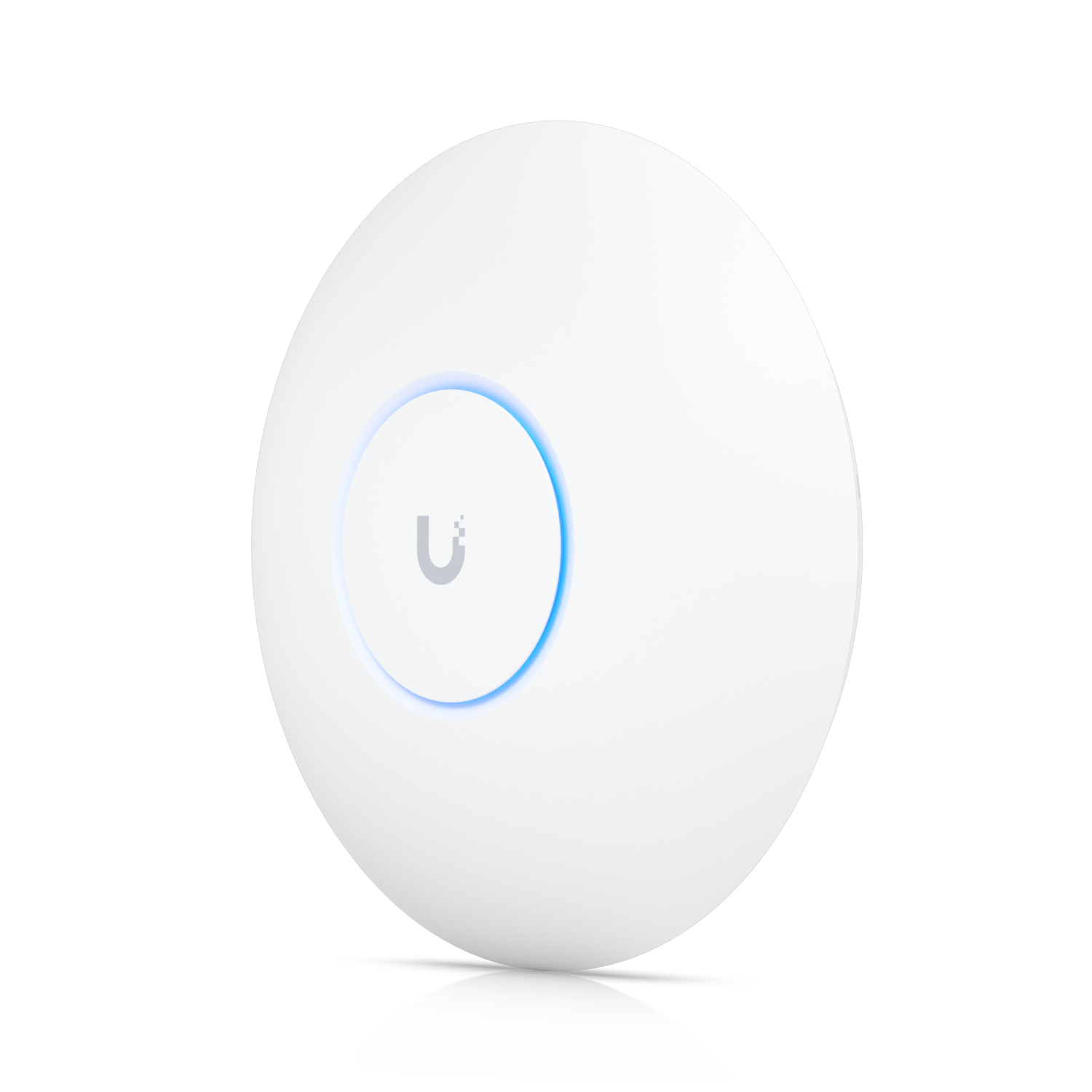

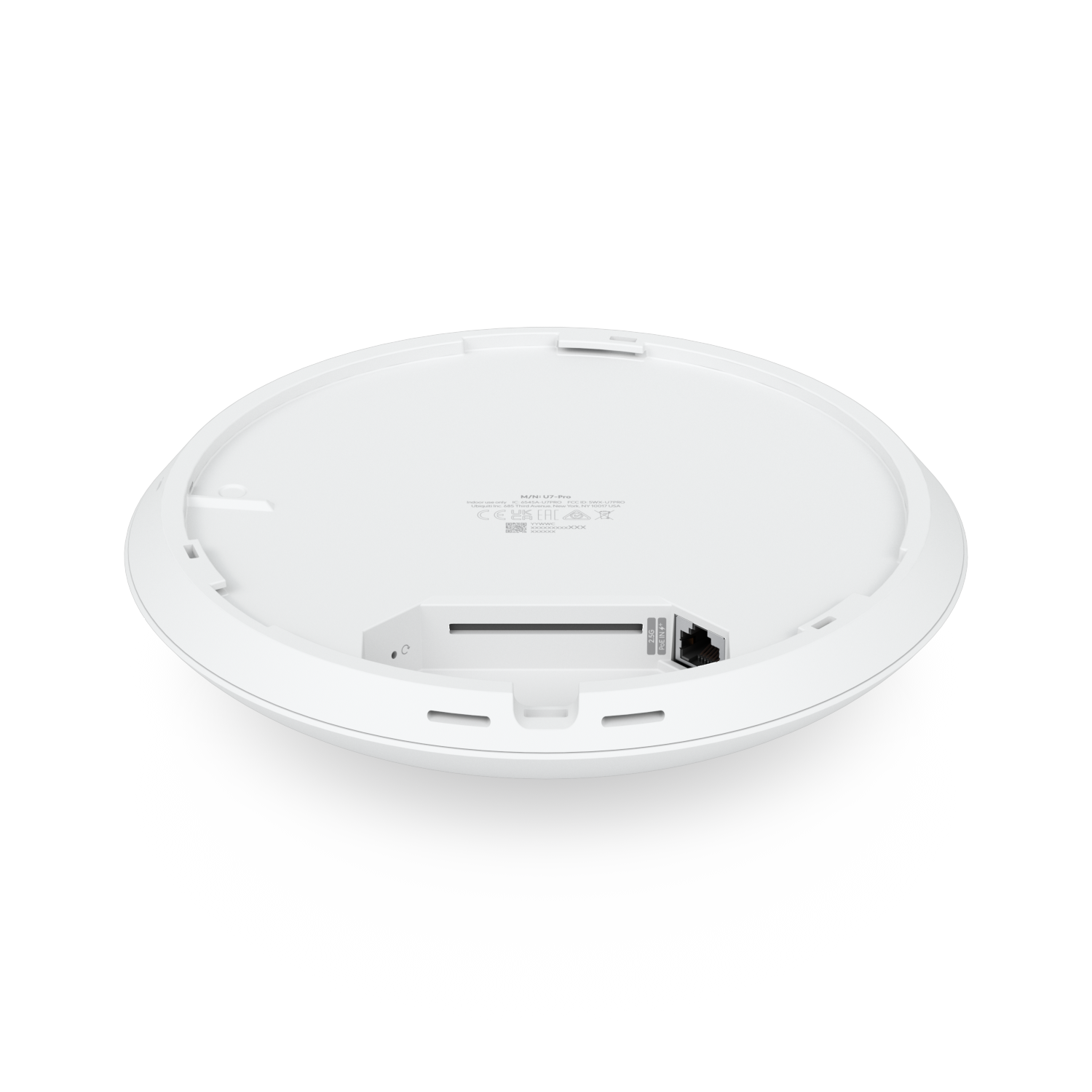

Build Features of U7-PRO with call out on features.Also include front, rear and side view of U7-Pro — **Features of U7-PRO**

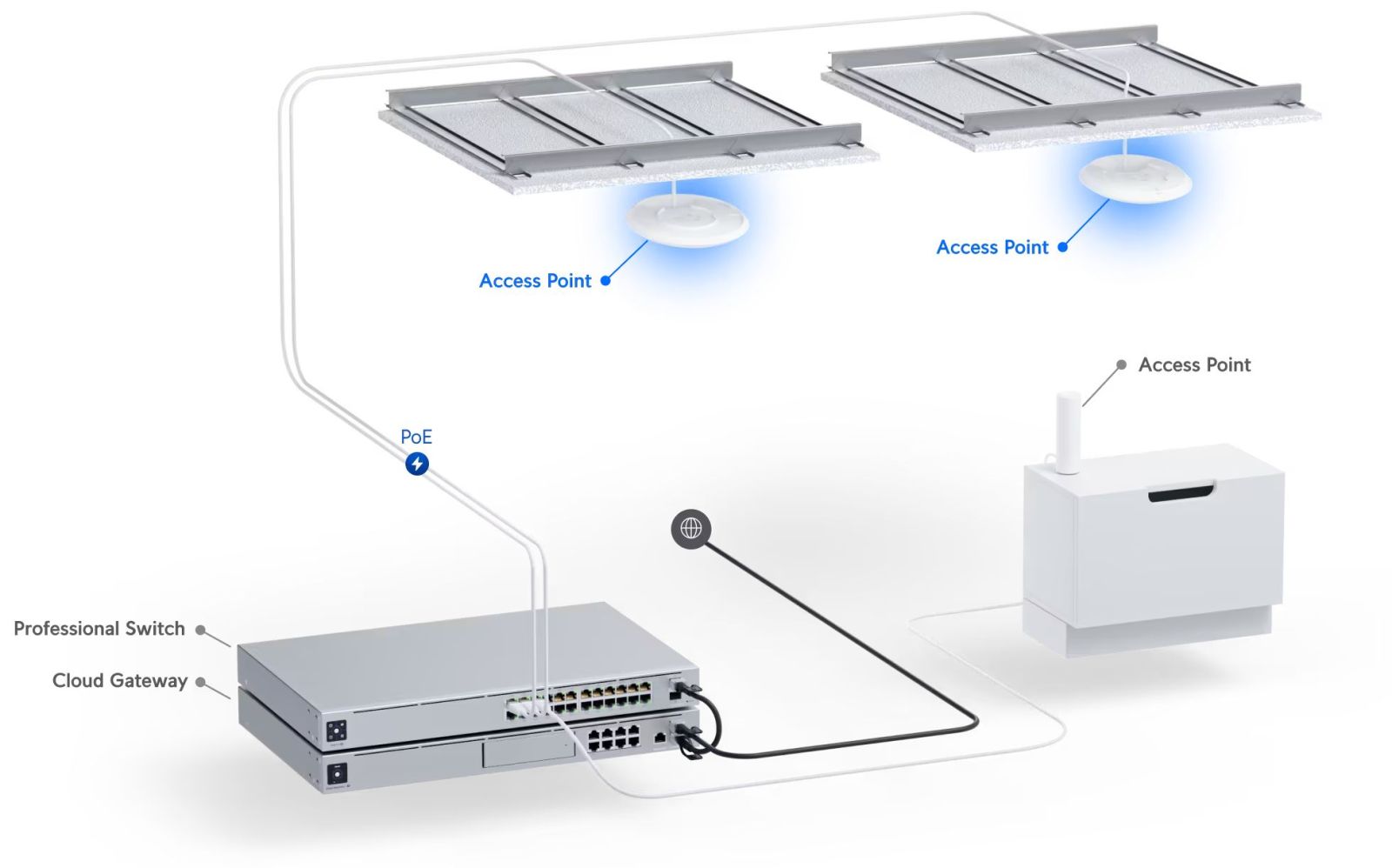

Conceptual Deployment for connecting U7-PRO access point to PoE+ switch and UDM-SE — **Conceptual Deployment for connecting U7-PRO AP to PoE+ switch and Dream Machine SE**

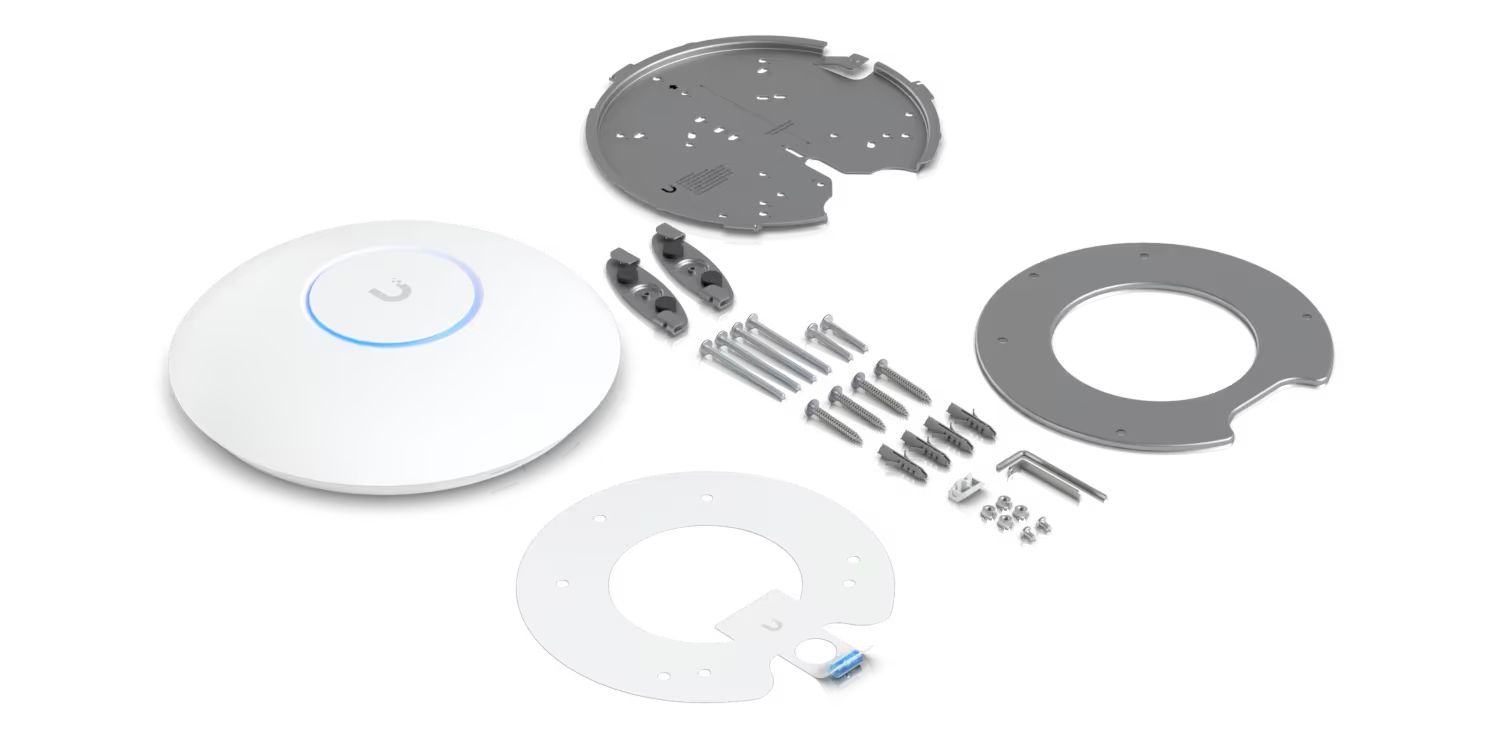

U7-Pro in the box items includes hanger and cieling mount — **U7-Pro in the box items(Included: universal mounting plate, backing plate, and screw kit)**

FAQs:

Can I install U7 Pro using an existing AP mounting plate?

U7 Pro uses the AP Professional Mounting System. It can be installed using the same metal mounting plate as the following AP models: U6-Enterprise, U6-Pro, U6-LR, UAP-AC-Pro, UAP-AC-HD, UAP-AC-SHD, UAP-AC-XG
What do I need to run U7 Pro?

U7 Pro is managed with UniFi Network 8.0.26 and later.

U7 Pro is powered by PoE+ with a 2.5 GbE uplink. We recommend pairing U7 Pro with a UniFi PoE switch that features 2.5 GbE performance and PoE+ output, such as Professional Max and Enterprise PoE switches.

U7 Pro is fully backwards compatible with WiFi 6E and earlier client devices. A WiFi 6E or WiFi 7 client device is required to utilize the 6 GHz band.
Can I customize the appearance of my U7 Pro?

Yes, a fully customizable cover will be available in the second quarter of 2024 for U7 Pro. U7-PRO Cover System

(U7-PRO)

Dual-band WiFi 6 (802.11ax)
5 GHz (4x4 MU-MIMO and OFDMA) band with a 4.8 Gbps throughput rate
2.4 GHz (2x2 MU-MIMO and OFDMA) band with a 573.5 Mbps throughput rate
Operates at full 4x4 MIMO with 160 MHz bandwidth
300+ concurrent client capacity
Guest Traffic Isolation, which enhances wireless network security and lowers traffic congestion
Included universal mounting plate, backing plate, and screw kit
· WiFi 7 with 6 GHz support

· 140 m² (1,500 ft²) coverage

· 300+ connected devices

· Powered using PoE+

· 2.5 GbE uplink

Ceiling-mount WiFi 7 AP with 6 GHz support, 2.5 GbE uplink, and 9.3 Gbps over-the-air speed.

Mechanical
Dimensions	Ø206 x 46 mm (Ø8.1 x 1.8")
Weight	680 g (1.5 lb)
Enclosure materials	Polycarbonate, metal
Mount material	Mounting bracket: stainless steel (SUS304) Backing plate: galvanized steel (SGCC)
Hardware
Networking interface	(1) 2.5 GbE RJ45 port
Management interface	Ethernet
Power method	PoE+
Power supply	UniFi PoE switch
Supported voltage range	44—57V DC
Max. power consumption	21W
Max. TX power 2.4 GHz 5 GHz 6 GHz	22 dBm 26 dBm 23 dBm
MIMO 2.4 GHz 5 GHz 6 GHz	2 x 2 2 x 2 2 x 2
Throughput rate 2.4 GHz 5 GHz 6 GHz	688 Mbps 2882 Mbps 5765 Mbps
Antenna gain 2.4 GHz 5 GHz 6 GHz	4 dBi 6 dBi 5.8 dBi
LEDs	White/blue
Button	Factory reset
Mounting	Wall/ceiling (Included)
Operating temperature	-30 to 60° C (-22 to 140° F)
Operating humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC
Software
WiFi standards	802.11a/b/g/n/ac/ax/be
Wireless security	WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID	8 per radio
VLAN	802.1Q
Advanced QoS	Per-user rate limiting
Guest traffic isolation	Supported
Concurrent clients	300+
Supported Data Rates
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b	1, 2, 5.5, 11 Mbps
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n	6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5)	6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6)	7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WiFi 7)	7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
Application Requirements
UniFi Network	Version 8.0.7 and later
UniFi OS	Version 3.2 and later
