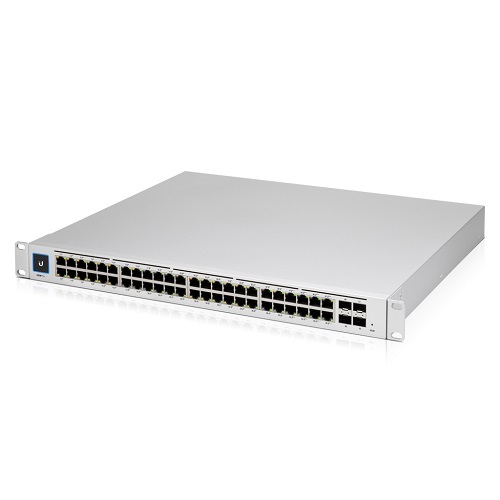

Name: Ubiquiti UniFi 48 port Managed Gigabit Layer2 and Layer3 switch with auto-sensing 802.3at PoE+ and 802.3bt PoE - Touch Display
Brand: UBIQUITI
SKU: USW-PRO-48-POE
Price: 1899 AUD
Availability: InStock

The USW-PRO-48-POE is a configurable Gigabit Layer2 and Layer3 switch with auto-sensing 802.3at PoE+ and 802.3bt PoE++. Forty PoE+ and eight PoE++ RJ45 ethernet ports have total 600W PoE budget, and four SFP+ ports offer 10Gbps uplink options. Near-silent cooling and a 1.3' touch LCM.

A 48-port, Layer 3 switch capable of high-power PoE++ output.

(40) GbE PoE+, (8) GbE PoE++ ports

(4) 10G SFP+ ports

600W total PoE availability

DC Power backup ready

Layer 3 switching

Near-silent cooling

(USW-PRO-48-POE)

Technical Specifications

Mechanical
Dimensions	442 x 400 x 44 mm (17.4 x 15.7 x 1.7")
Weight	Without mounting brackets: 6.2 kg (13.8 lb) With mounting brackets: 6.3 kg (14 lb)
Enclosure material	SGCC steel
Hardware
Management interface	Ethernet In-Band
Networking interface	(48) GbE RJ45 ports (4) 1/10G SFP+ ports
PoE interface	(40) PoE/PoE+ (Pins 1, 2+; 3, 6-) (8) 60W PoE++; PoE/PoE+ (Pins 1, 2+; 3, 6-) / PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput	88 Gbps
Switching capacity	176 Gbps
Forwarding rate	130.944 Mpps
Power method	(1) Universal input, 100—240V AC, 50/60 Hz (1) USP-RPS DC input, 52V DC, 11.54A; 11.5V DC, 5.22A
Power supply	AC/DC, internal, 660W
Supported voltage range	100—240V AC
Max. power consumption	60W (Excluding PoE output)
Total available PoE	600W
Max. PoE wattage per port by PSE	PoE+: 32W PoE++: 64W
Voltage range PoE mode	PoE: 44—57V PoE+: 50—57V
ESD/EMP protection	Air: ± 16kV, contact: ± 12kV
LCM display	(1) 1.3" touchscreen
Button	Factory reset
Shock and vibration	ETSI300-019-1.4 Standard
Operating temperature	-5 to 40° C (23 to 104° F)
Operating humidity	10 to 90% noncondensing
Certifications	CE, FCC, IC
LEDs
System	Status
Ethernet	PoE Speed/link/activity
SFP+	Link/activity
RPS	Status
Application Requirements
UniFi Network	Version 5.10.5 and later

SKU	USW-PRO-48-POE
Barcode #	817882027809
Brand	UBIQUITI
Shipping Weight	6.3000kg
Shipping Width	0.270m
Shipping Height	0.080m
Shipping Length	0.550m
Shipping Cubic	0.010913000m3
