Ubiquiti Switch Enterprise 8-port PoE+ 8x2.5GbE, Ideal For Wi-Fi 6 AP, 2x 10g SFP+ Ports For Uplinks, Managed Layer 3 Switch,
Model # USW-Enterprise-8-PoE (120W)
-
SKU: USW-Enterprise-8-PoE
- Pick Up Available
- Australian Warranty
- Checkout Securely
An 8-port, Layer 3 switch with 2.5 GbE PoE+ output.
(8) 2.5 GbE PoE+ ports
(2) 10G SFP+ ports
120W total PoE availability
Ubiquiti Networks Enterprise 8-Port 2.5GbE PoE+ Switch with 2x 10G SFP+ Ports
Total Non-Blocking Throughput: 40 Gbps
Switching Capacity: 80 Gbps
Forwarding Rate: 59.52 Mpps
Max PoE Power: 120W
Power Supply: AC/DC, Internal, 150W
Management Interface: Ethernet In-Band
Networking Interfaces: 8x 2.5Gbps RJ45 Ethernet
SFP+: 2x 10Gbps SFP+
PoE Interfaces: 8x PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
(USW-Enterprise-8-PoE)
| Mechanical | |
|---|---|

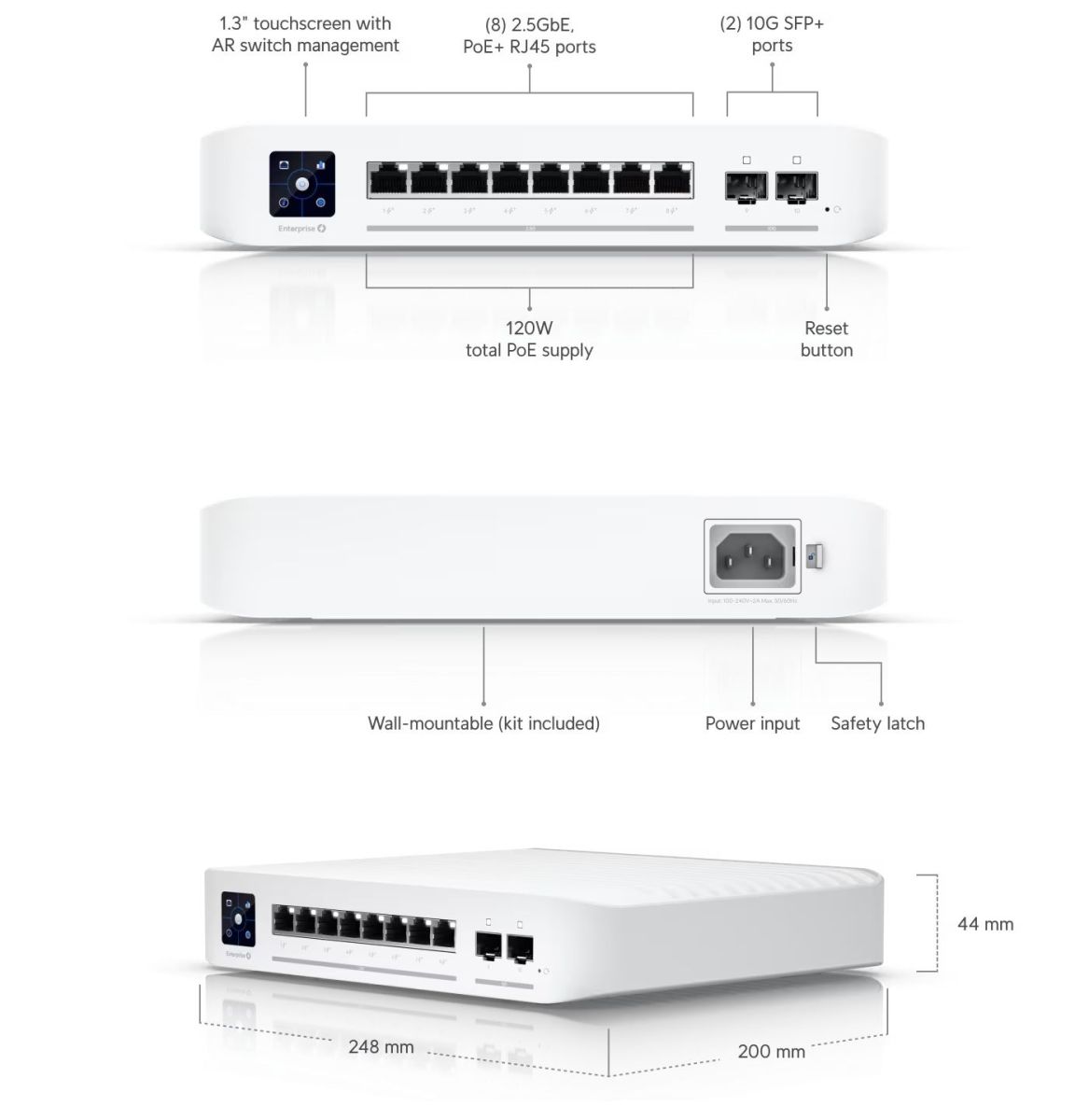

| Dimensions | 200 x 248 x 44 mm (7.9 x 9.8 x 1.7") |
| Weight | 2.4 kg (5.3 lb) |
| Enclosure material | Polycarbonate |
| Mount material | Polycarbonate |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (8) 2.5 GbE RJ45 ports (2) 10G SFP+ ports |
| PoE interface | (8) PoE/PoE+ (Pins 1, 2+; 3, 6-) |
| Total non-blocking throughput | 40 Gbps |
| Switching capacity | 80 Gbps |
| Forwarding rate | 59.52 Mpps |
| Power method | Universal input, 100—240V AC, 2A Max., 50/60 Hz |
| Power supply | AC/DC, internal, 150W |
| Supported voltage range | 100—240V AC |
| Total available PoE | 120W |
| Max. PoE+ wattage per port by PSE | 32W |
| Voltage range PoE mode | PoE: 44—57V PoE+: 50—57V |
| LCM Display | (1) 1.3" color touchscreen |

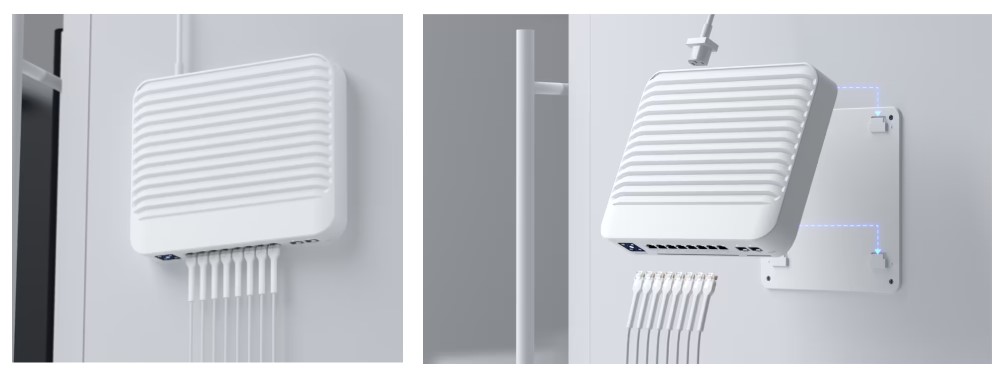

| Mounting | Desktop-mountable (Do not physically stack the USW-Enterprise-8-PoE) |
| ESD/EMP protection | Air: ± 16kV, contact: ± 12kV |
| Ambient operating temperature | -5 to 45° C (23 to 113° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features | |
| Layer 2 features | IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs |
| Layer 3 features | DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks |
| LEDs | |
| System | Status |
| Ethernet | Link/activity |
| SFP+ | Link/activity |
| Application Requirements | |
| UniFi Network | Version 6.3.51 and later |
| SKU | USW-Enterprise-8-PoE |
| Barcode # | 810010074874 |
| Brand | UBIQUITI |
| Shipping Weight | 2.7000kg |
| Shipping Width | 0.370m |
| Shipping Height | 0.080m |
| Shipping Length | 0.260m |
Manufacturer Warranty : 1 Year Manufacturer Warranty
