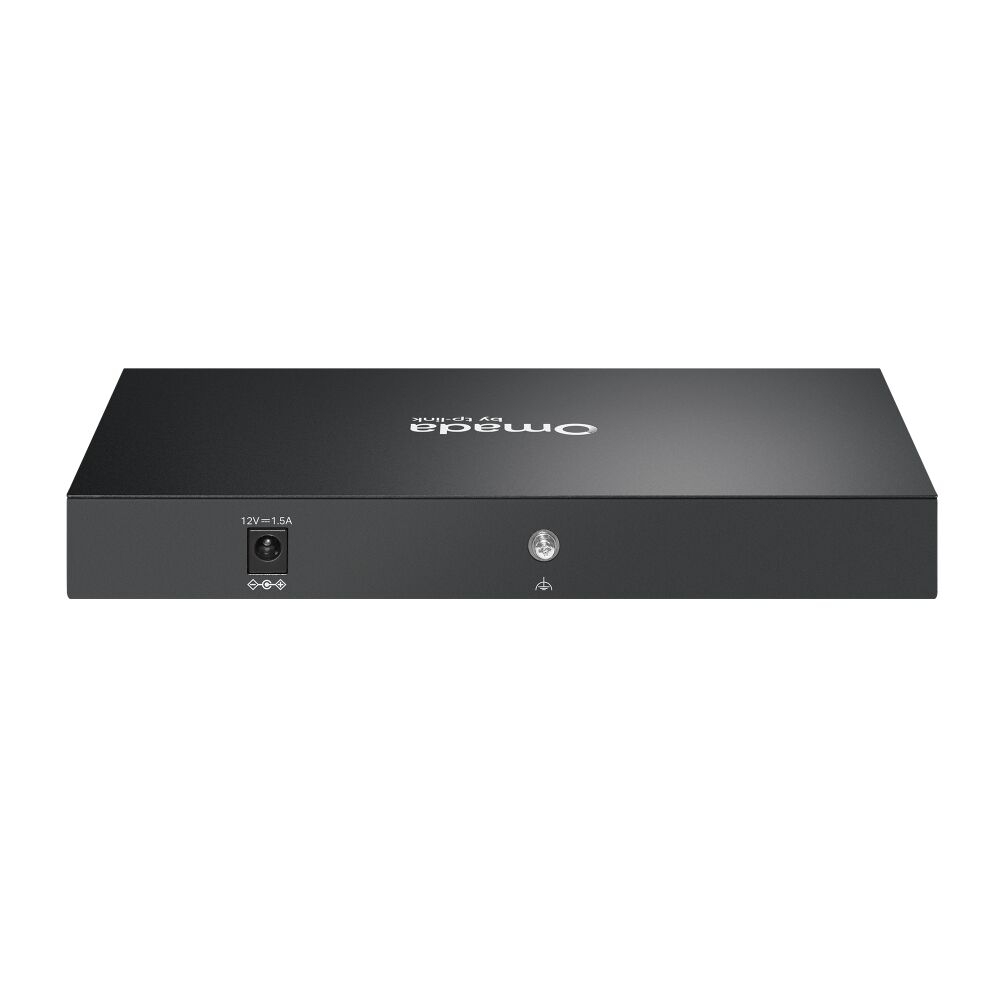

TP-Link ES210X-M2 Omada 8-Port 2.5G BASE-T Easy Managed Switch with 2 10GE SFP+ Slots
Model # ES210X-M2
-
SKU: ES210X-M2
- Pick Up Available
- Australian Warranty
- Checkout Securely
TP-Link ES210X-M2 Omada 8-Port 2.5G Easy Managed Switch with 2 10GE SFP+ Slots
• 8× 2.5 Gbps RJ45 Ports
• 2× 10 Gbps SFP+ Slots
• Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
• Centralized Cloud Management via the web or the Omada app†
• Automatic Loop Prevention, VLAN, and IGMP Snooping
• Fanless design for silent operation
• Durable metal casing and desktop/wall mounting design
(ES210X-M2)
| HARDWARE FEATURES | |
|---|---|
| Interface | • 8× 2.5 Gbps RJ45 Ports • 2× 10 Gbps SFP+ Slots • Auto-Negotiation/Auto MDI/MDIX |
| Fan Quantity | Fanless |
| Installation | • Desktop • Wall Mount |
| Physical Security Lock | √ |
| Power Supply | DC Power Adapter (Output: 12 VDC / 1.5 A) |
| Dimensions ( W x D x H ) | 8.2 × 5.0 × 1.0 in (209 × 126 × 26 mm) |
| Surge Protection | ±6 kV |
| PERFORMANCE | |
|---|---|
| Packet Buffer Memory | 640 KB |
| Jumbo Frame | 10 KB |
| Switching Capacity | 80 Gbps |
| Packet Forwarding Rate | 59.52 Mpps |
| MAC Address Table | 16K |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | • Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control△ |
| L2 Features | • Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP |
| L2 Multicast | • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave |
| VLAN | • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID |
| Transmission Method | Store-And-Forward |
| Management Features | |
|---|---|
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Unified Configuration† |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Content | • ES210X-M2 • Power Adapter • Rubber Feet • Installation Guide |
| Environment | • Operating Temperature: -5℃~40℃ (23℉~104℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
| SKU | ES210X-M2 |
| Barcode # | 1210002600743 |
| Brand | TP-LINK |
| Shipping Weight | 0.5900kg |
| Shipping Width | 0.070m |
| Shipping Height | 0.315m |
| Shipping Length | 0.240m |
Manufacturer Warranty
