Eight 2.5G PoE ports
Connects compatible powered multi-Gigabit devices within the 240W budget.
D-Link 10-Port Multi-Gigabit Smart Managed PoE+ Switch with 8 2.5G PoE+ ports and 2 10G SFP+ ports
Model # DMS-1250-10SP
-
SKU: DMS-1250-10SP
- Pick Up Available
- Australian Warranty
- Checkout Securely
D-Link product

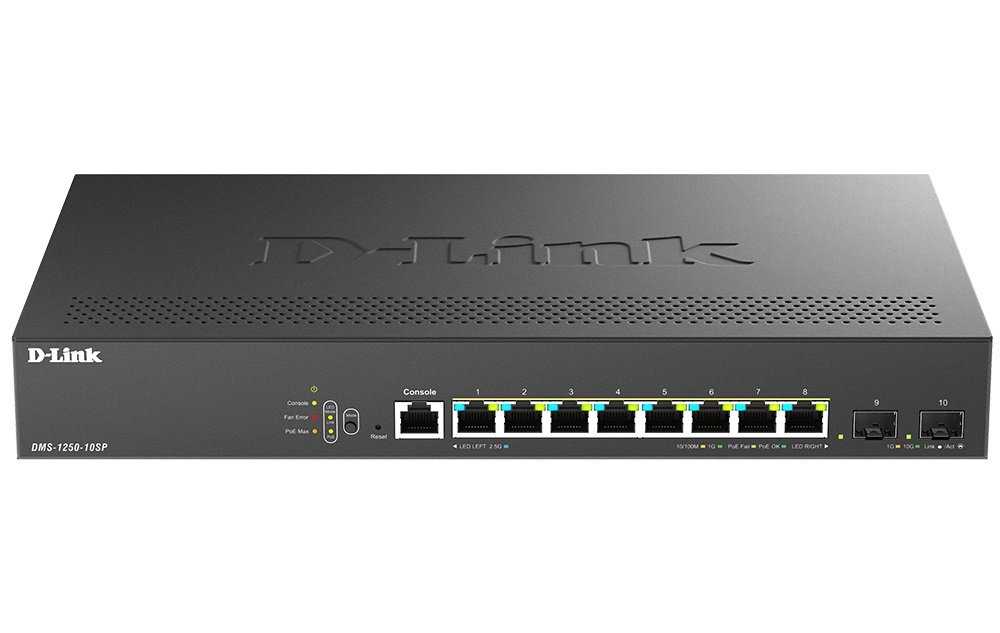

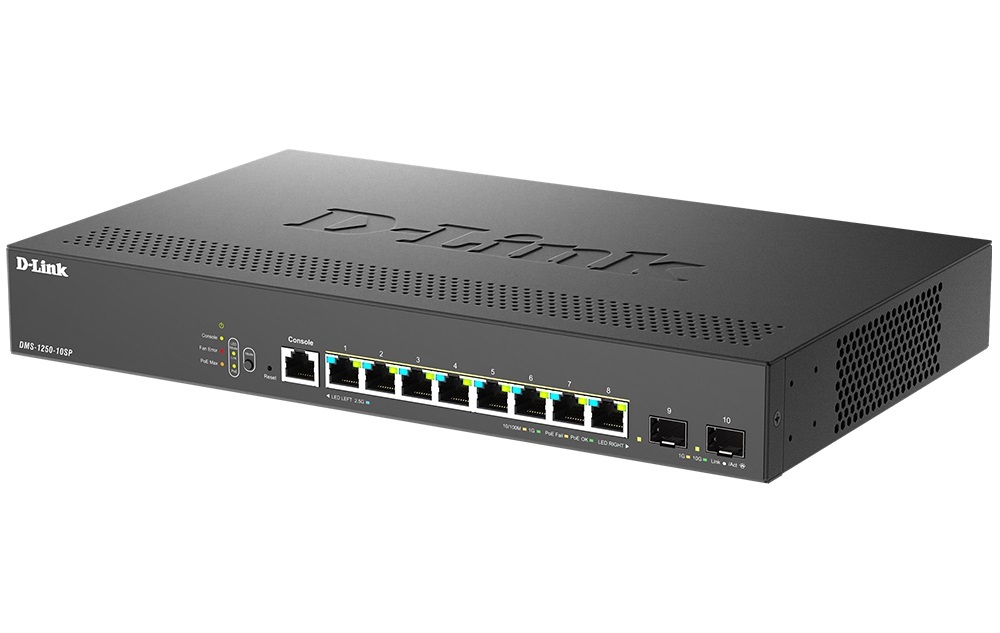

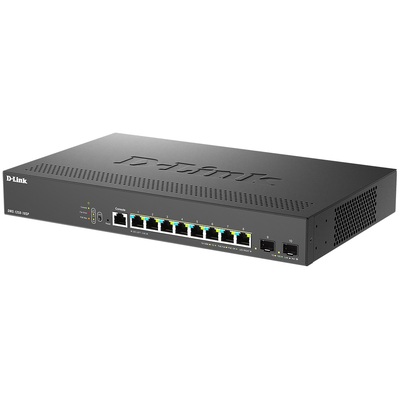

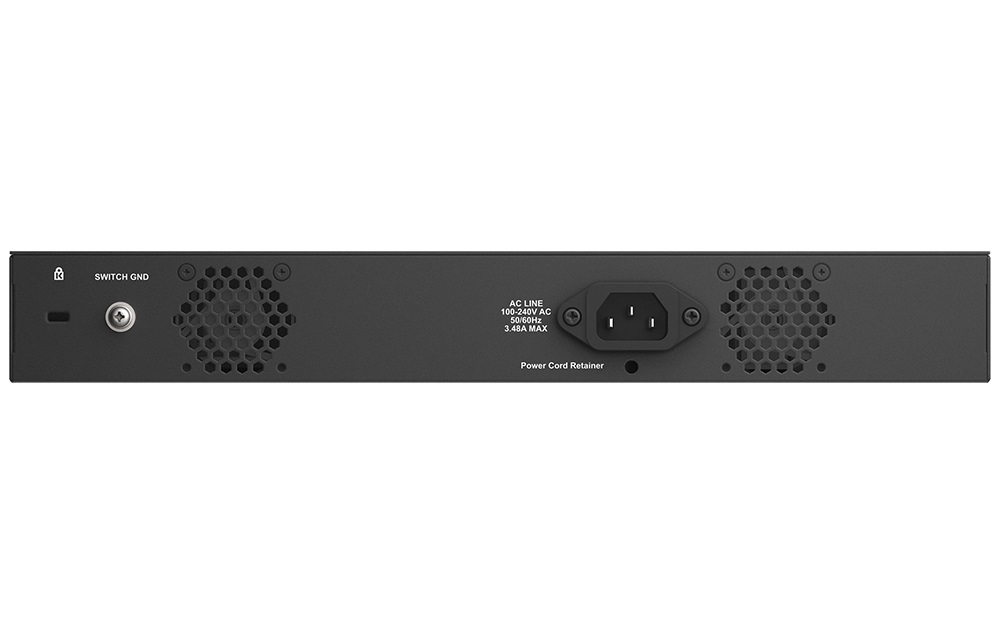

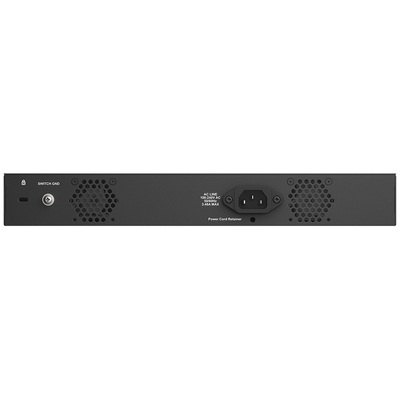

D-Link DMS-1250-10SP 10-Port Smart Managed PoE+ Switch
A smart managed Layer 2 switch with eight 2.5GBASE-T PoE ports, two 10G SFP+ ports, a 240W PoE budget, 80Gbps switching capacity and web-based management.
Two 10G SFP+ ports
Adds high-speed compatible fibre uplinks.
Smart managed Layer 2
Provides a web GUI, routing and DHCP screening features.
Multi-Gigabit powered access
Eight 100/1000/2.5GBASE-T PoE ports deliver network connectivity and power to compatible devices.
10G fibre uplinks
Two 10G SFP+ interfaces support high-speed compatible uplink connections.
Management and routing
A web-based GUI, IPv4 routing, IPv6 routing and DHCP server screening are included in the supplied feature set.
Switching performance
The source states an 80Gbps switching capacity, 59.53mpps forwarding rate and 240W PoE budget.
Buy with confidence from DeviceDeal
DeviceDeal is an authorised D-Link reseller. This product is supplied under the applicable D-Link manufacturer warranty.
Frequently asked questions
How many total ports are provided?
The switch provides ten ports.
How many multi-Gigabit PoE ports are included?
Eight 2.5GBASE-T PoE ports are listed.
How many 10G SFP+ ports are included?
Two 10G SFP+ ports are provided.
What is the total PoE budget?
The stated PoE budget is 240W.
What is the switching capacity?
An 80Gbps switching capacity is stated.
What forwarding rate is listed?
The maximum forwarding rate is 59.53mpps.
Is the switch managed?
Yes. It is a smart managed Layer 2 switch with a web-based GUI.
Does it support IP routing?
Yes. IPv4 and IPv6 routing are listed.
Does it support virtual stacking?
Yes. Virtual stacking is stated, while physical stacking is not listed.
What warranty applies?
The product is supplied under the applicable D-Link manufacturer warranty.
(DMS-1250-10SP)
D-Link DMS-1250-10SP 10-Port Smart Managed PoE+ Switch features
Eight powered 2.5G ports
Supports compatible multi-Gigabit PoE devices.
Two 10G uplinks
Provides compatible SFP+ fibre connectivity.
240W PoE budget
Allocates the stated power across connected equipment.
Smart management
Includes the listed GUI, routing and screening functions.
Confirm connected-device demand against the 240W PoE budget and verify compatible 10G SFP+ modules, fibre type and management requirements.
D-Link DMS-1250-10SP 10-Port Smart Managed PoE+ Switch specifications
Product details
| Model | DMS-1250-10SP |
|---|---|
| Product type | Smart managed multi-Gigabit Layer 2 PoE switch |
| Total ports | 10 |
| 2.5GBASE-T PoE ports | 8 |
| 10G SFP+ ports | 2 |
| Copper port speed | 100/1000/2.5GBASE-T |
| PoE | Yes |
| PoE budget | 240W |
| Switching capacity | 80Gbps |
| Maximum forwarding rate | 59.53mpps |
| Management | Smart managed |
| Web-based GUI | Yes |
| IPv4 routing | Yes |
| IPv6 routing | Yes |
| DHCP server screening | Yes |
| Virtual stacking | Yes |
| Physical stacking | No |
| Cooling | Active |
| Dimensions | 330 x 200 x 44mm |
| Redundant power supply | No |
| Cloud managed | No |
| Licence required | No |
Warranty
| Coverage | Applicable D-Link manufacturer warranty |
|---|
| SKU | DMS-1250-10SP |
| Barcode # | 790069472435 |
| Brand | D-LINK |
| Shipping Weight | 3.7000kg |
| Shipping Width | 0.010m |
| Shipping Height | 0.042m |
| Shipping Length | 0.035m |
