Name: Ubiquiti UniFi Switch Flex XG - Layer 2 Switch with (4) 10GbE RJ45 Ports and (1) GbE, 802.3at PoE+ RJ45 Input,
Brand: Ubiquiti
SKU: USW-Flex-XG
Price: 639 AUD
Availability: InStock

Ubiquiti UniFi Switch Flex XG - Layer 2 switch with (4) 10GbE RJ45 ports and (1) GbE, 802.3at PoE+ RJ45 input.

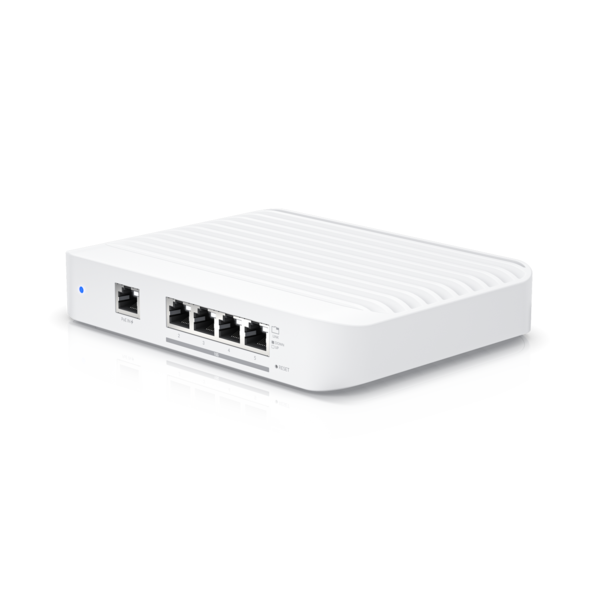

The Switch Flex XG (USW Flex XG) is a fully managed, mult-gigabit, Layer 2 switch with (4) 10GbE RJ45 ports and (1) GbE PoE input. The USW Flex XG sports slim, compact housing and can be mounted on a desktop*. This switch can also be monitored or configured from anywhere with the powerful, intuitive UniFi Network

Switch Flex XG

Layer 2 switch with (4) 10GbE RJ45 ports and (1) GbE, 802.3at PoE+ RJ45 input.

Note: Do not stack other hardware on the USW Flex XG.

Works with the UniFi Network Application

Centrally manage multiple networks from an intuitive interface

Enjoy real-time device insights and deep configuration options

Upgrade device firmware remotely

Manage network users and guests with ease

Personalize the design, architecture, and privacy of guest hotspots

Set up devices quickly and manage them on the go with a powerful mobile app

High Performance Managed Layer 2 Multi-Gigabit Switch

Build and expand your network with the USW-Flex-XG. The UniFi Flex XG is a configurable managed-grade 10 GbE Layer 2 switch. It offers 5 RJ45 Gigabit Ethernet ports, providing (1) PoE input and (4) 10GbE RJ45 Ethernet ports to your network. Housed in a compact and slim design, the UniFi Flex XG can fit into any networking environment, delivering high performance switching capacity and easy management via the UniFi Network controller.

UniFi Network App

UniFi Network pairs with your UniFi OS Console to give you a central hub for monitoring and managing your network without any licensing fees. It can be accessed over the web (unifi.ui.com) or with the mobile app (iOS/Android).

Specifications

Mechanical

Dimensions

135 x 185 x 32 mm

Weight

1.2 kg

Enclosure Material

Polycarbonate

Hardware

Total Non-Blocking Throughput

41 Gbps

Switching Capacity

82 Gbps

Forwarding Rate

61.012 Mpps

Max Power Consumption

25W

Power Method

(1) 802.3at PoE, 50-57VDC, 25W
(1) USB Type-C, 5VDC, 5A

Power Supply

802.3at PoE (Pins 1, 2+/3, 6- or 4, 5+/7, 8-)
AC/DC Power Adapter, 5VDC, 5A, 1.5 m Cord (Included)

Supported Voltage Range

90 to 264VAC (Adapter)

ManagementInterface

Ethernet In-Band

Networking Interfaces

(1) 10/100/1000 Mbps RJ45 Ethernet
(4) 100/1,000/2,500/5,000/10,000 Mbps RJ45 Ethernet

Services

SMB Layer 2 Gigabit Ethernet Switch

ESD/EMP Protection

Air: ± 16 kV, Contact: ± 12 kV

Button

Factory Reset

Operating Temperature

-5 to 45° C

Operating Humidity

10 - 90% Noncondensing

Certifcations

CE, FCC, IC

LEDs

System

(1) Power, Blue/White
Flashing White: Bootup in Progress
Flashing Blue: Firmware Upgrading
Steady White: Factory Defaults, Awaiting Adoption
Steady Blue: Device is Adopted

Ethernet

White: Link or Activity

(USW-Flex-XG)

Dimensions

135 x 185 x 32 mm (5.3 x 7.3 x 1.3")

Port Layout

1 GbE RJ45

1 (1G/100M/10M)

10 GbE RJ45

Form Factor

Compact desktop, wall

Switching Capacity
